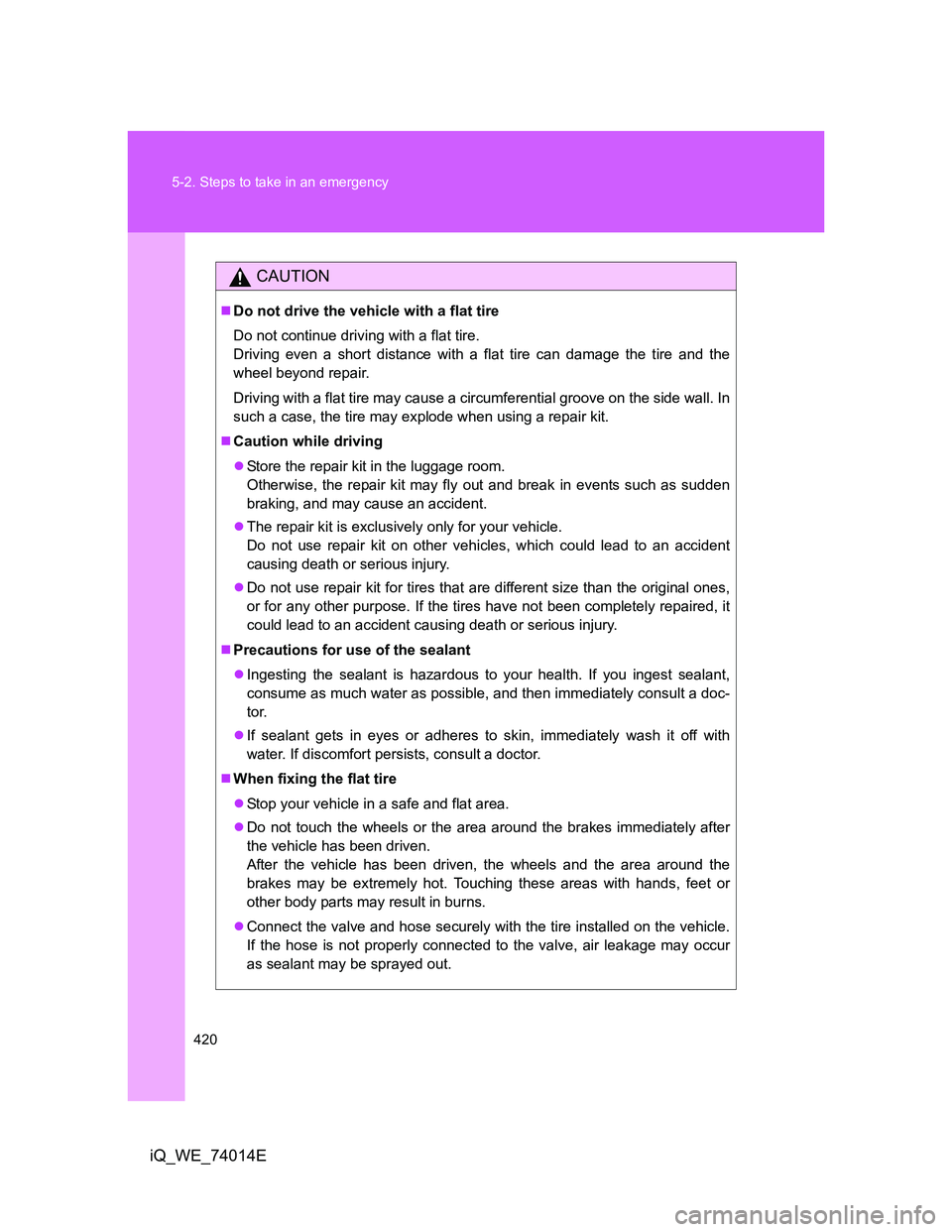

420 5-2. Steps to take in an emergency
iQ_WE_74014E
CAUTION
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall. In
such a case, the tire may explode when using a repair kit.
Caution while driving
Store the repair kit in the luggage room.
Otherwise, the repair kit may fly out and break in events such as sudden
braking, and may cause an accident.
The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.
Precautions for use of the sealant
Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
When fixing the flat tire
Stop your vehicle in a safe and flat area.
Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.
Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur
as sealant may be sprayed out.

455 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E
Brakes
*1: Minimum pedal clearance when depressed with a force of 300 N (30 kgf, 66
lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf, 44
lbf)
Steering
Tires and wheels
Pedal clearance*1
Vehicles with rear drum brake
Vehicles with rear disc brake91 mm (3.58 in.) Min.
86 mm (3.39 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*2
Vehicles with rear drum brake
Vehicles with rear disc brake6  9 clicks
5  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free play Less than 30 mm (1.2 in.)
Tire size 175/65R15 84S, 175/60R16 82H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(100 mph)240 (2.4, 35) 230 (2.3, 33)
160 km/h
(100 mph)
or less230 (2.3, 33) 220 (2.2, 32)
Wheel size 15  5 J, 16  5 J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

456 6-1. Specifications
iQ_WE_74014E
Light bulbs
A: HIR2 bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
CAUTION
When replacing tires and wheels
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to the peripheral parts of the tires, as
well as dangerous handling characteristics, which may lead to fatal or injury
accidents.
Do not use tire sizes or wheel sizes other than those recommended by
To y o t a .
Light BulbsWTy p e
ExteriorHeadlights 55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights (if equipped) 55 B
Side turn signal lights 5 C
Rear turn signal lights 21 C
Back-up lights 21 D
Rear fog light 21 D
Tail/stop lights 5/21 D
License plate lights 5 D

469 Alphabetical index
iQ_WE_74014E
Switch
Airbag manual on-off
switch.................................. 159
Emergency flasher switch ..... 386
Engine switch ................ 176, 179
Fog light switch ..................... 216
Hazard light switch ................ 386
Ignition switch ............... 176, 179
Light switches ....................... 211
Outside rear view mirror
switch.................................... 95
Power door lock switch ........... 73
Power window switch ............ 100
Rear window wiper and
washer switch ..................... 222
VSC OFF switch ................... 225
Window lock switch ............... 100
Wiper and washer
switch.......................... 218, 222
Tachometer .............................. 197
Tail lights
Replacing light bulbs ............. 374
Switch ................................... 211
Wattage................................. 456
Theft deterrent system
Alarm..................................... 119
Engine immobilizer system ... 108
Tire inflation pressure ............. 350
Tires
Chains ................................... 233
Checking ............................... 347
If you have a flat tire.............. 405
Inflation pressure .......... 350, 455
Rotating tires ......................... 347
Size ....................................... 455
Snow tires ............................. 231
Tools ......................................... 324
Towing
Emergency towing ................ 389
Trailer towing ........................ 235Traction control ....................... 224
TRC ........................................... 224
Trip information ....................... 205
Trip meter ................................. 206
Turn signal lights
Lever ..................................... 193
Replacing light bulbs............. 373
Wattage ................................ 456
Vanity mirrors .......................... 294
Vehicle identification
number ................................... 445
Vehicle stability control .......... 224
VSC ........................................... 224
Warning buzzers
Brake system ........................ 397
Seat belt reminder ................ 399
Warning lights
ABS....................................... 398
Airbag system ....................... 398
Anti-lock brake system.......... 398
Brake assist system .............. 398
Brake system ........................ 397
Charging system ................... 398
Electric power steering ......... 398
Engine oil pressure ............... 398
High engine coolant
temperature ........................ 398
Low fuel level ........................ 399
Malfunction indicator lamp .... 398
Open door ............................. 399
Pretensioners........................ 398
Seat belt reminder light ......... 399
Slip indicator ......................... 398
Smart entry & start system ... 401
SRS airbags.......................... 398
VSC OFF .............................. 398
Warning reflector holder ......... 301
