6837-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
When recharging or replacing the 12-volt battery
For vehicles with an alarm: make sure the key is not inside the vehicle when
recharging or replacing the 12-volt battery to prevent the doors from being
locked with the key left inside the vehicle when the alarm operates.
In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt battery is discharged. Use the wire-
less remote control or the mechanical key to lock or unlock the doors.
The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12-volt battery.
CAUTION
Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:
Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.

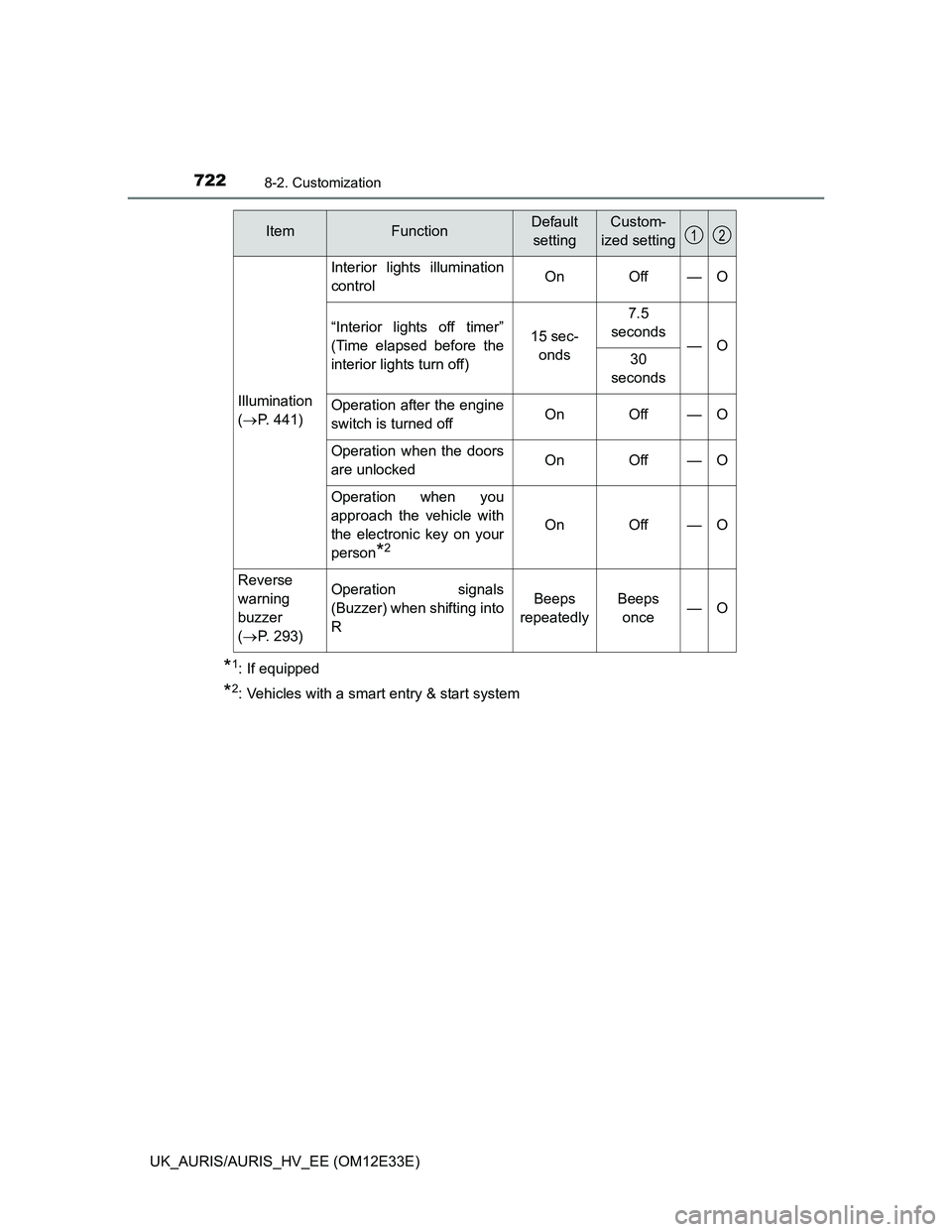

7228-2. Customization
UK_AURIS/AURIS_HV_EE (OM12E33E)
*1: If equipped
*2: Vehicles with a smart entry & start system
Illumination
(P. 441)
Interior lights illumination
controlOnOff—O
“Interior lights off timer”
(Time elapsed before the
interior lights turn off)15 sec-
onds
7.5
seconds
—O30
seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*2
OnOff—O
Reverse
warning
buzzer
(P. 293)Operation signals
(Buzzer) when shifting into
RBeeps
repeatedlyBeeps
once—O
ItemFunctionDefault
settingCustom-
ized setting12

726
UK_AURIS/AURIS_HV_EE (OM12E33E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 149)
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 150)
Is the key battery weak or depleted? (P. 529)
Vehicles with a smart entry & start system (except hybrid model):
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 261)
Vehicles with smart entry & start system (hybrid model):
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 270)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 158)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

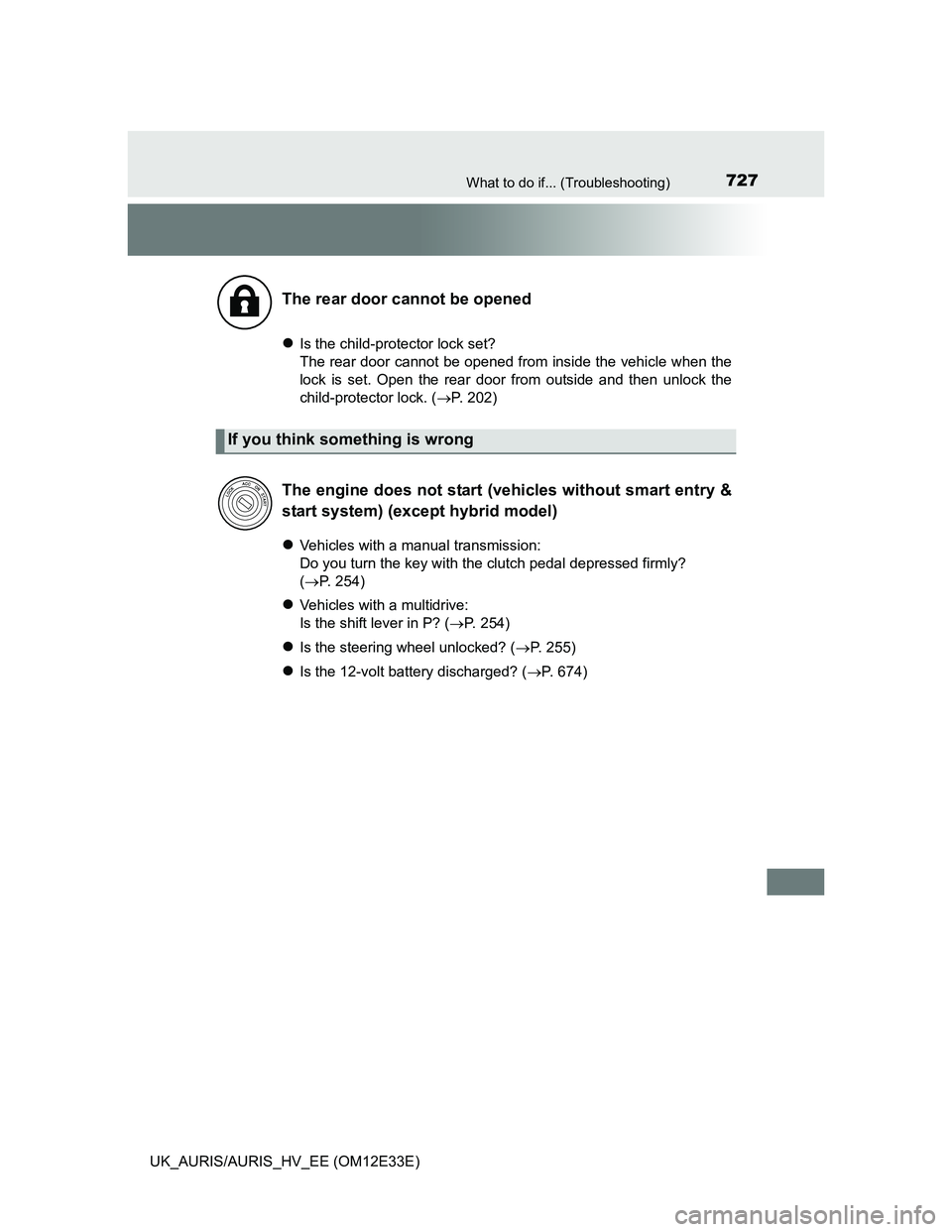

727What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 202)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 254)
Vehicles with a multidrive:
Is the shift lever in P? (P. 254)
Is the steering wheel unlocked? (P. 255)
Is the 12-volt battery discharged? (P. 674)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without smart entry &
start system) (except hybrid model)

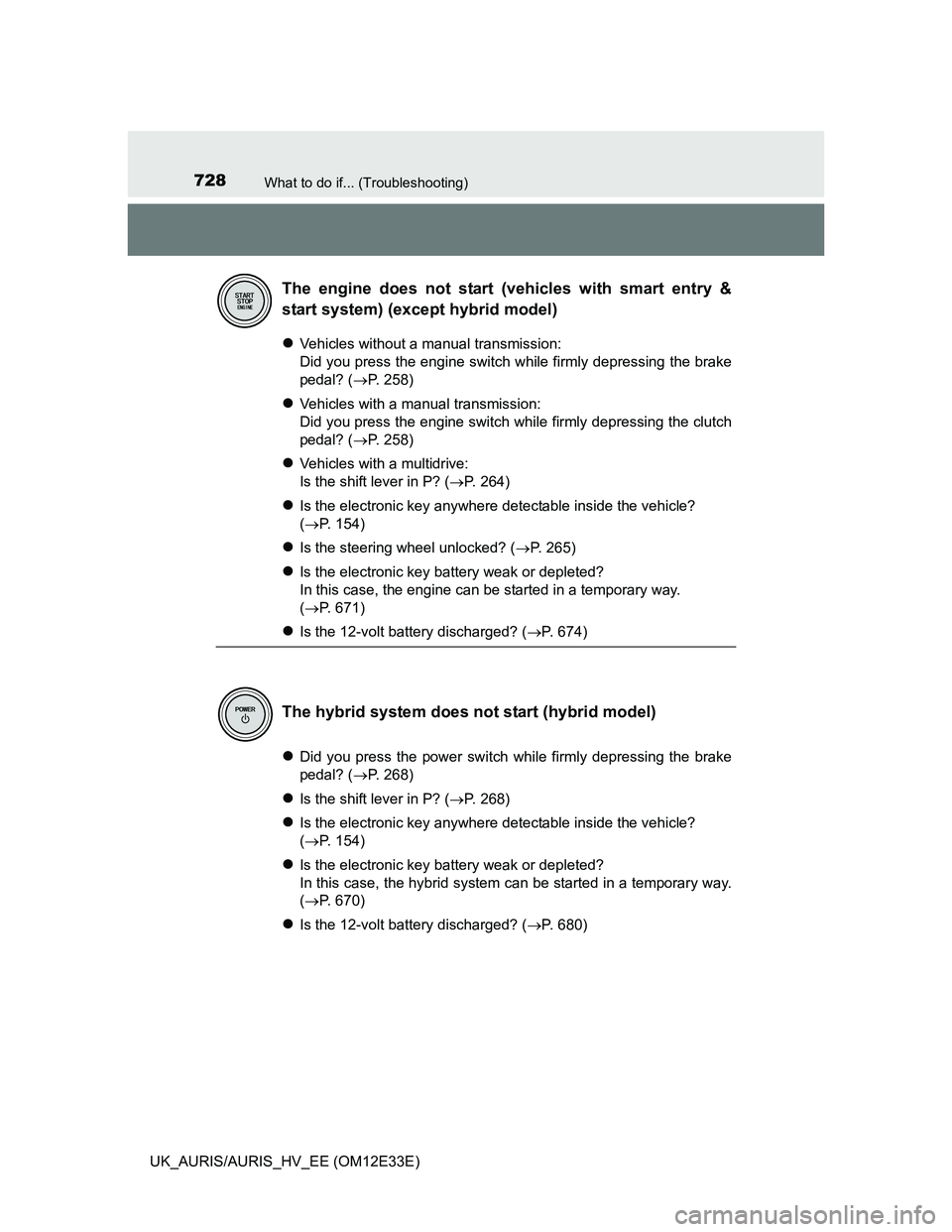

728What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles without a manual transmission:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 258)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 258)
Vehicles with a multidrive:
Is the shift lever in P? (P. 264)
Is the electronic key anywhere detectable inside the vehicle?
(P. 154)
Is the steering wheel unlocked? (P. 265)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 671)
Is the 12-volt battery discharged? (P. 674)
Did you press the power switch while firmly depressing the brake
pedal? (P. 268)
Is the shift lever in P? (P. 268)
Is the electronic key anywhere detectable inside the vehicle?
(P. 154)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(P. 670)
Is the 12-volt battery discharged? (P. 680)
The engine does not start (vehicles with smart entry &
start system) (except hybrid model)
The hybrid system does not start (hybrid model)

729What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 668)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 668)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 256)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 264)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 220)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a multidrive)
The steering wheel cannot be turned after the engine is
stopped (except hybrid model)
The windows do not open or close by operating the power
window switches

731What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 103)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 599)
When a warning light turns on, refer to P. 585.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

734Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Back door ................................ 204
Back-up lights
Replacing light bulb............... 555
Wattage................................. 716
Battery .............................. 508, 514
Checking ....................... 508, 514
If the 12-volt battery is
discharged .......................... 680
If the vehicle has discharged
battery................................. 674
Preparing and checking before
winter .................................. 368
Warning light ......................... 586
Bluetooth
®
Audio system*
Hands-free system*
(for cellular phone)
Boost ventilator system .......... 374
Bottle holders........................... 447
Brake
Fluid ...................................... 713
Parking brake ........................ 298
Warning light ................. 585, 589
Brake assist.............................. 356
Break-in tips ............................ 230
Brightness control
Meter light control ......... 125, 131Care................................... 474, 478
Aluminum wheels.................. 475
Exterior ................................. 474
Interior................................... 478
Seat belts .............................. 479
Cargo hooks............................. 451
CD player .................................. 408
Chains....................................... 370
Child restraint system ............... 59
Baby seats, definition.............. 59
Baby seats, installation ........... 69
Child seats, definition.............. 59
Child seats, installation ........... 69
Installing CRS with ISOFIX
rigid anchors ......................... 73
Installing CRS with
seat belts .............................. 69
Installing CRS with top strap... 74
Junior seats, definition ............ 59
Junior seats, installation ......... 71
Child safety ................................ 58
Airbag precautions .................. 48
Battery precautions ....... 510, 679
Child restraint system ............. 59
How your child should wear
the seat belt .......................... 43
Installing child restraints ......... 68
Panoramic roof shade
precautions ......................... 472
Power window lock switch .... 220
Power window precautions ... 223
Rear door child-protectors .... 202
Removed electronic key
battery precautions ............. 531
Seat belt precautions .............. 45
Seat heater precautions........ 465
