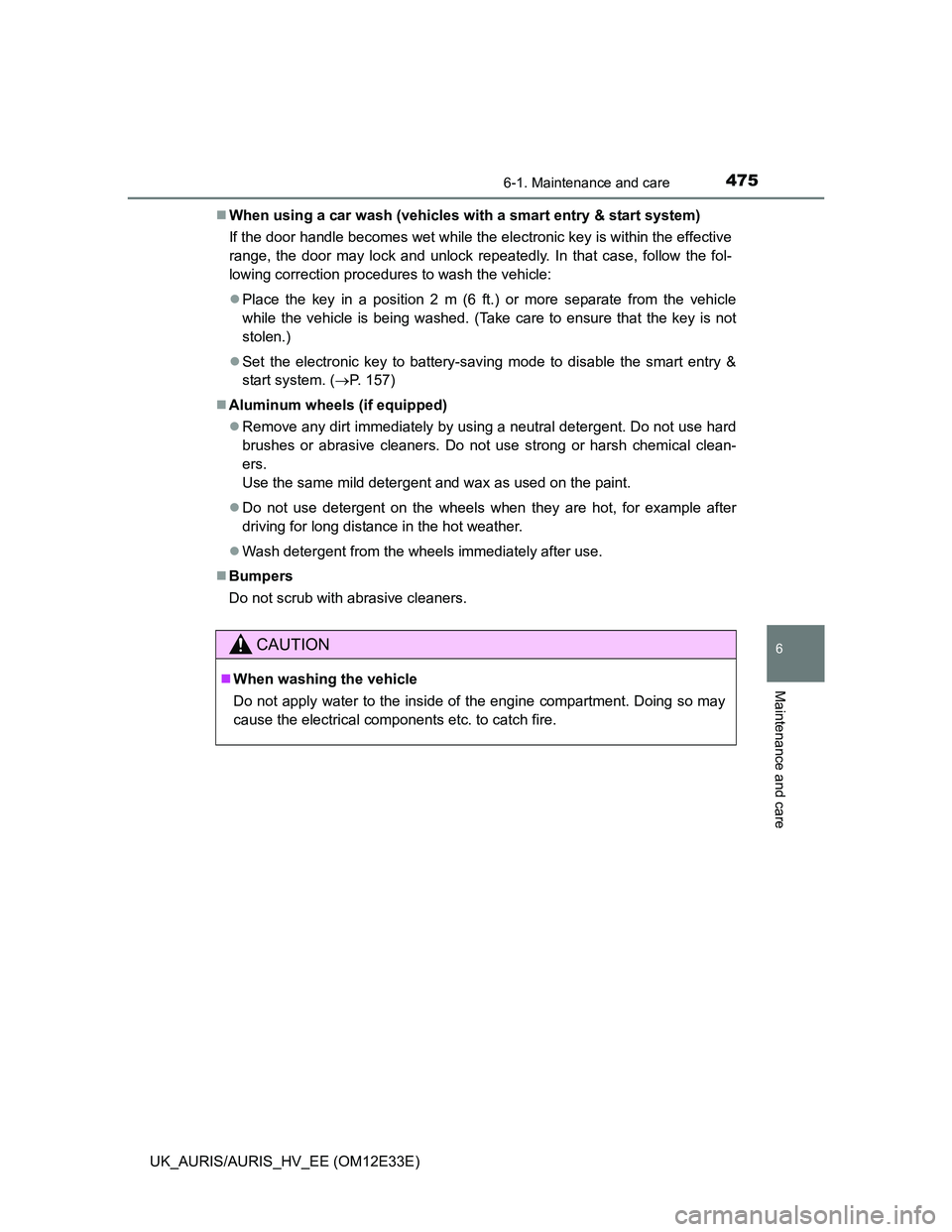

4756-1. Maintenance and care
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:
Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)
Set the electronic key to battery-saving mode to disable the smart entry &
start system. (P. 157)
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.

5096-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following before recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery (vehicles with a smart
entry & start system)
Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.
Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
The engine switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the engine switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn off
the engine before disconnect the 12-volt battery. Take extra care when con-
necting the 12-volt battery if the engine switch mode prior to discharge is
unknown.
If the system will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

5166-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, before recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Vehicles with a smart entry & start system: Unlocking the doors using the
entry function may not be possible immediately after reconnecting the 12-
volt battery. If this happens, use the wireless remote control or the mechani-
cal key to lock/unlock the doors.
Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.
The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn the
power switch off before disconnect the 12-volt battery. Take extra care when
connecting the 12-volt battery if the power switch mode prior to discharge is
unknown.
When the 12-volt battery is reconnected, start the hybrid system, depress
the brake pedal, and confirm that it is possible to shift into each shift posi-
tion.
If the system will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.

5296-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Flathead screwdriver
Small flathead screwdriver
Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system or push
button start)
Vehicles without a smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the battery cover.
Wireless remote control/electronic key
batter y
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

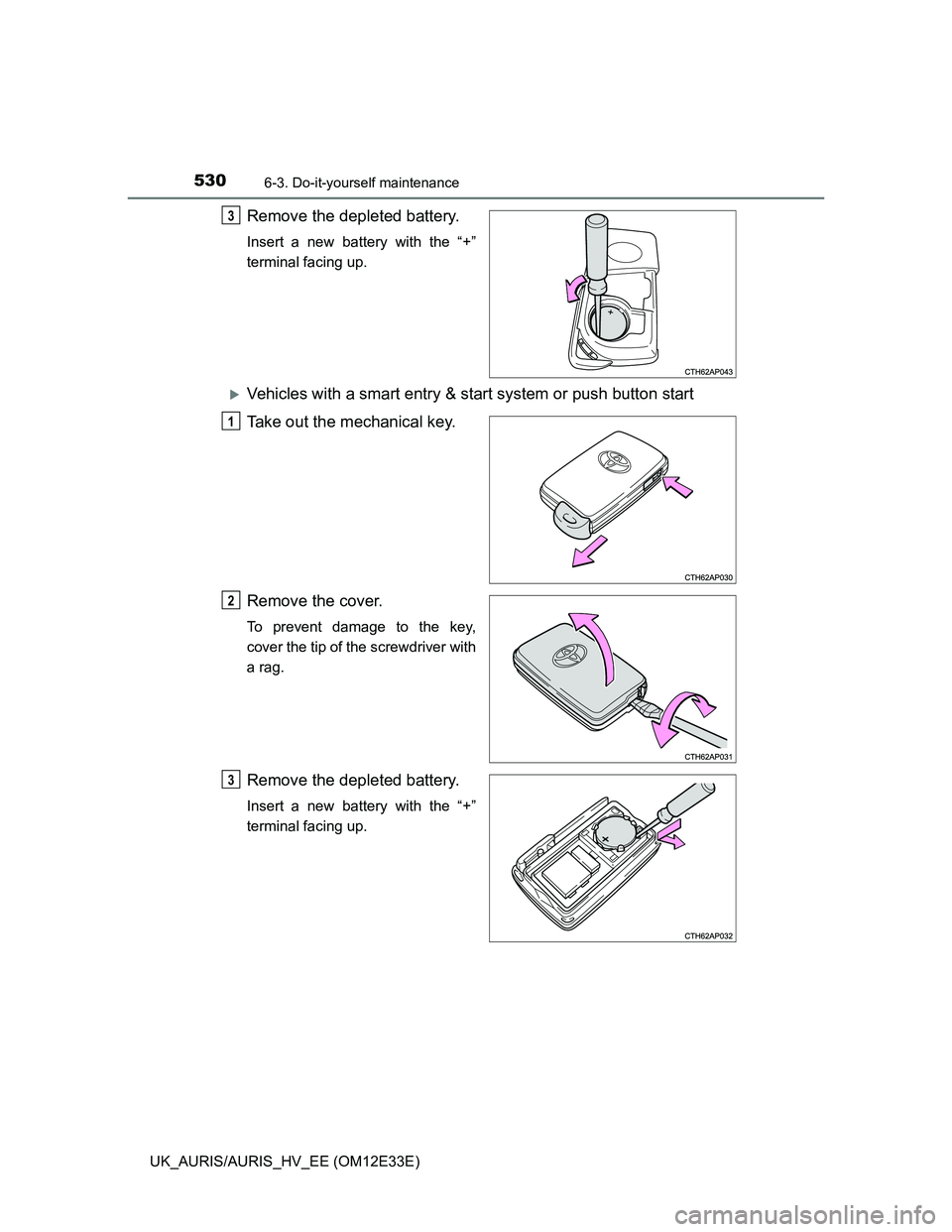

5306-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Vehicles with a smart entry & start system or push button start
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
3
1
2
3

5316-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Use a CR2016 (vehicles without a smart entry & start system) or CR2032
(vehicles with a smart entry & start system or push button start) lithium
battery
Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
Replace only with the same or equivalent type recommended by the manu-
facturer.
Dispose of used batteries according to local laws.
If the key battery is depleted
The following symptoms may occur:
The smart entry & start system (if equipped), push button start (if equipped)
and wireless remote control will not function properly.
The operational range will be reduced.
CAUTION
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
Certification for the lithium battery
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other component inside the remote control.
Do not bend either of the battery terminals.

571
7When trouble arises
UK_AURIS/AURIS_HV_EE (OM12E33E)7-1. Essential information
Emergency flashers ........... 572
If your vehicle has to
be stopped in an
emergency ....................... 573
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 575
If you think something is
wrong ............................... 583
Fuel pump shut off
system ............................. 584
If a warning light turns
on or a warning buzzer
sounds ............................. 585
If a warning message is
displayed ......................... 599
If you have a flat tire
(vehicles with a spare
tire) .................................. 626
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 638
If the engine will not
start ................................. 664
If the hybrid system will
not start ........................... 666
If the shift lever cannot
be shifted from P ............. 668
If the shift lever cannot
be shifted ......................... 669If the electronic key does
not operate properly ........ 670
If the vehicle 12-volt battery
is discharged (except
hybrid model) ................... 674
If the 12-volt battery is
discharged
(hybrid model).................. 680
If your vehicle overheats
(except hybrid model) ...... 685
If your vehicle overheats
(hybrid model).................. 687
If you run out of fuel and
the engine stalls............... 691
If the vehicle becomes
stuck ................................ 692

5747-1. Essential information
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
If the shift position cannot be changed to N (hybrid model)
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
CAUTION
If the engine has to be turned off while driving (except hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
If the hybrid system has to be turned off while driving (hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
5
