4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

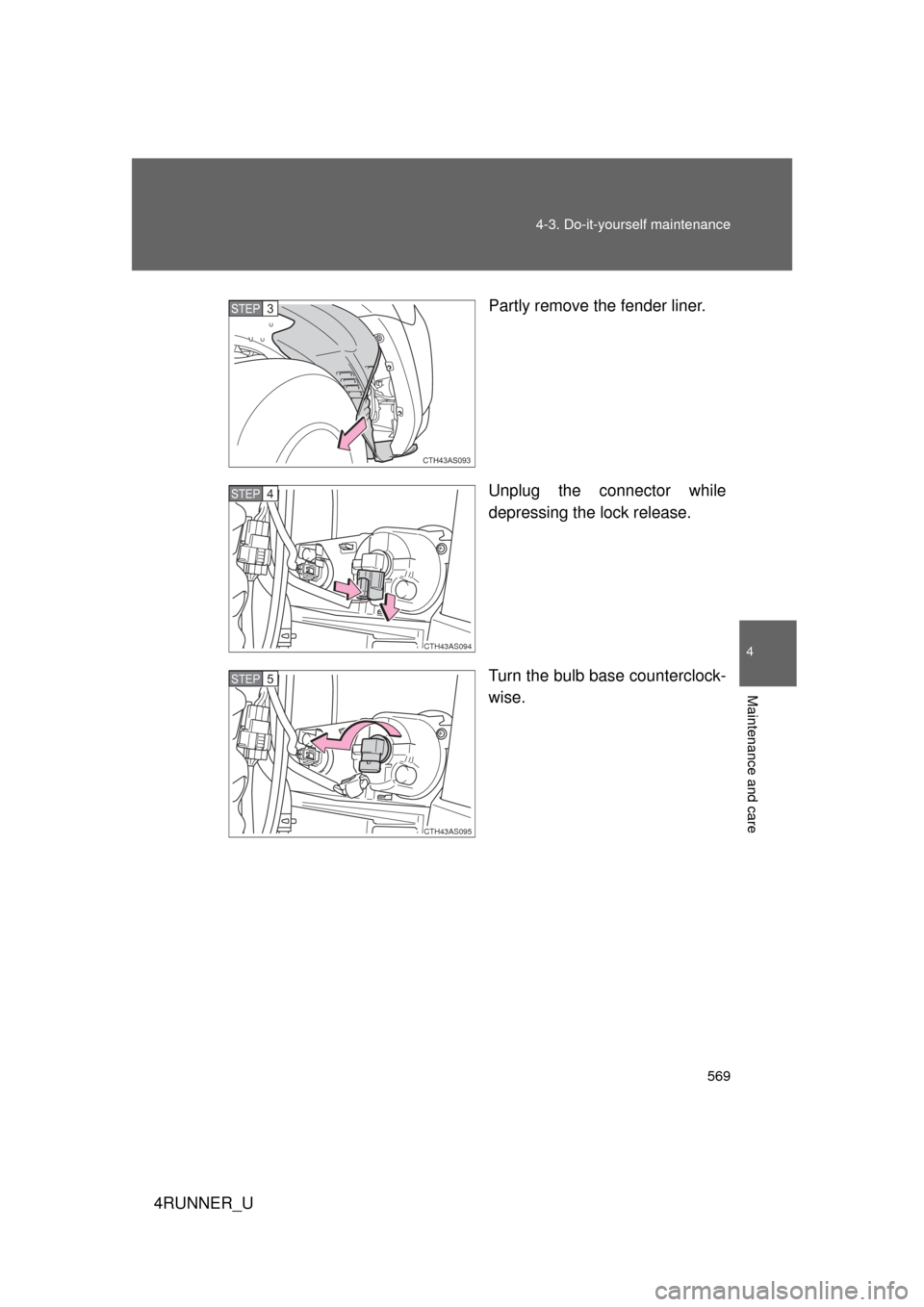

Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
CTH43AS093
STEP 3
CTH43AS094
STEP 4
CTH43AS095
STEP 5

570 4-3. Do-it-yourself maintenance
4RUNNER_U■
Front turn signal light and daytime running light

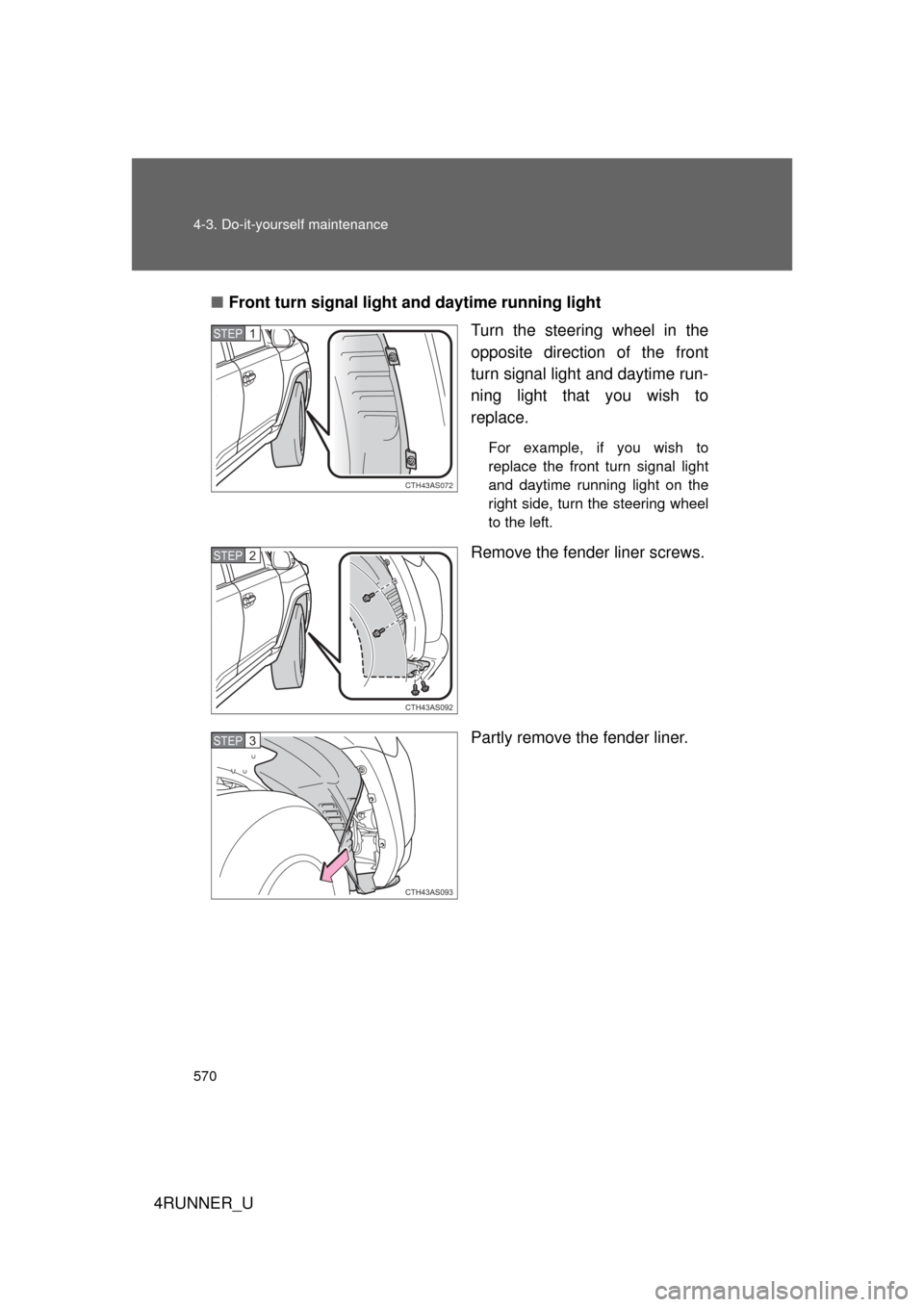

Turn the steering wheel in the
opposite direction of the front
turn signal light and daytime run-
ning light that you wish to
replace.
For example, if you wish to
replace the front turn signal light
and daytime running light on the
right side, turn the steering wheel
to the left.
Remove the fender liner screws.
Partly remove the fender liner.
CTH43AS072
STEP 1
CTH43AS092
STEP 2
CTH43AS093
STEP 3

571
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

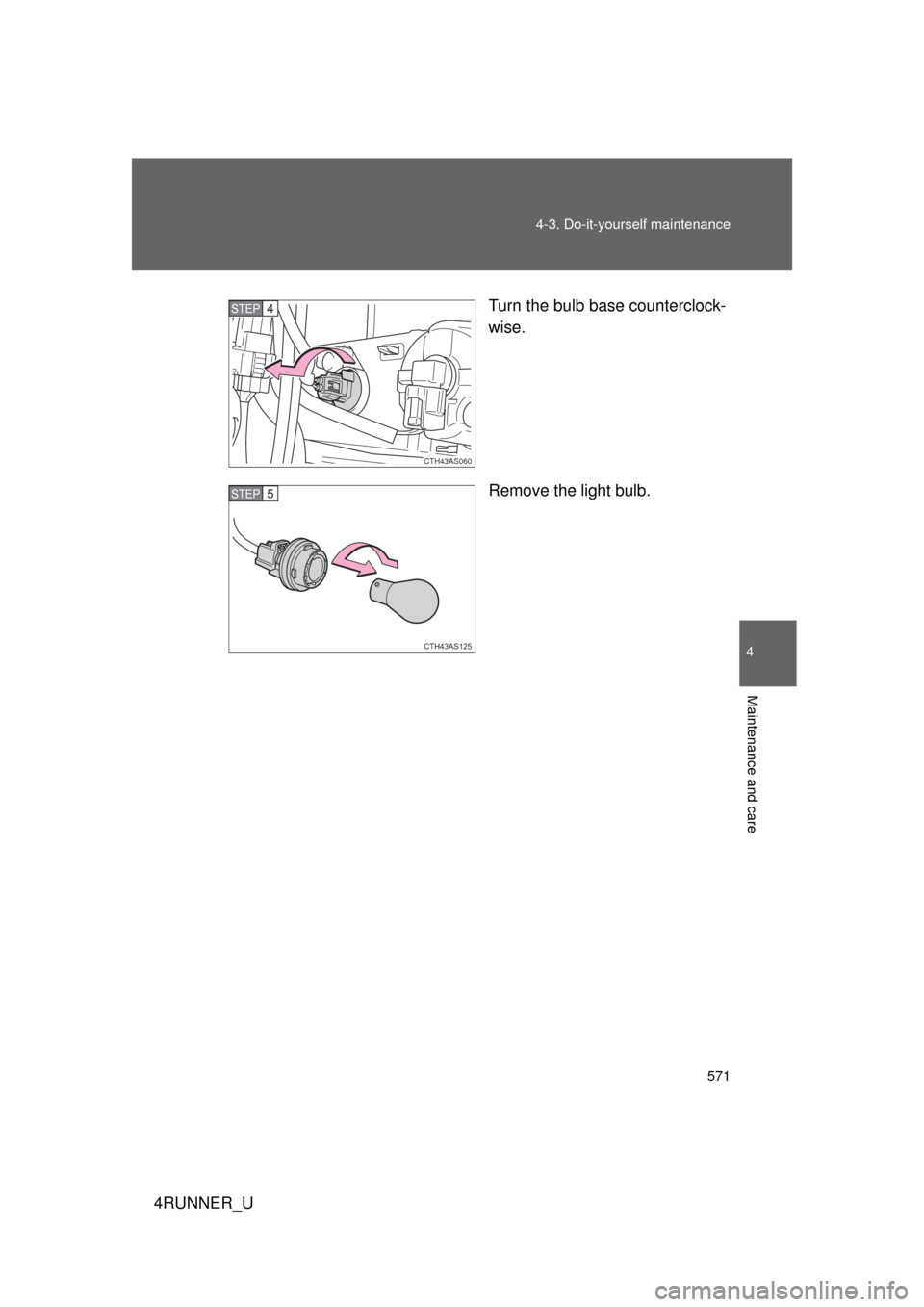

Turn the bulb base counterclock-
wise.
Remove the light bulb.
CTH43AS060
STEP 4
CTH43AS125
STEP 5

572 4-3. Do-it-yourself maintenance
4RUNNER_U■

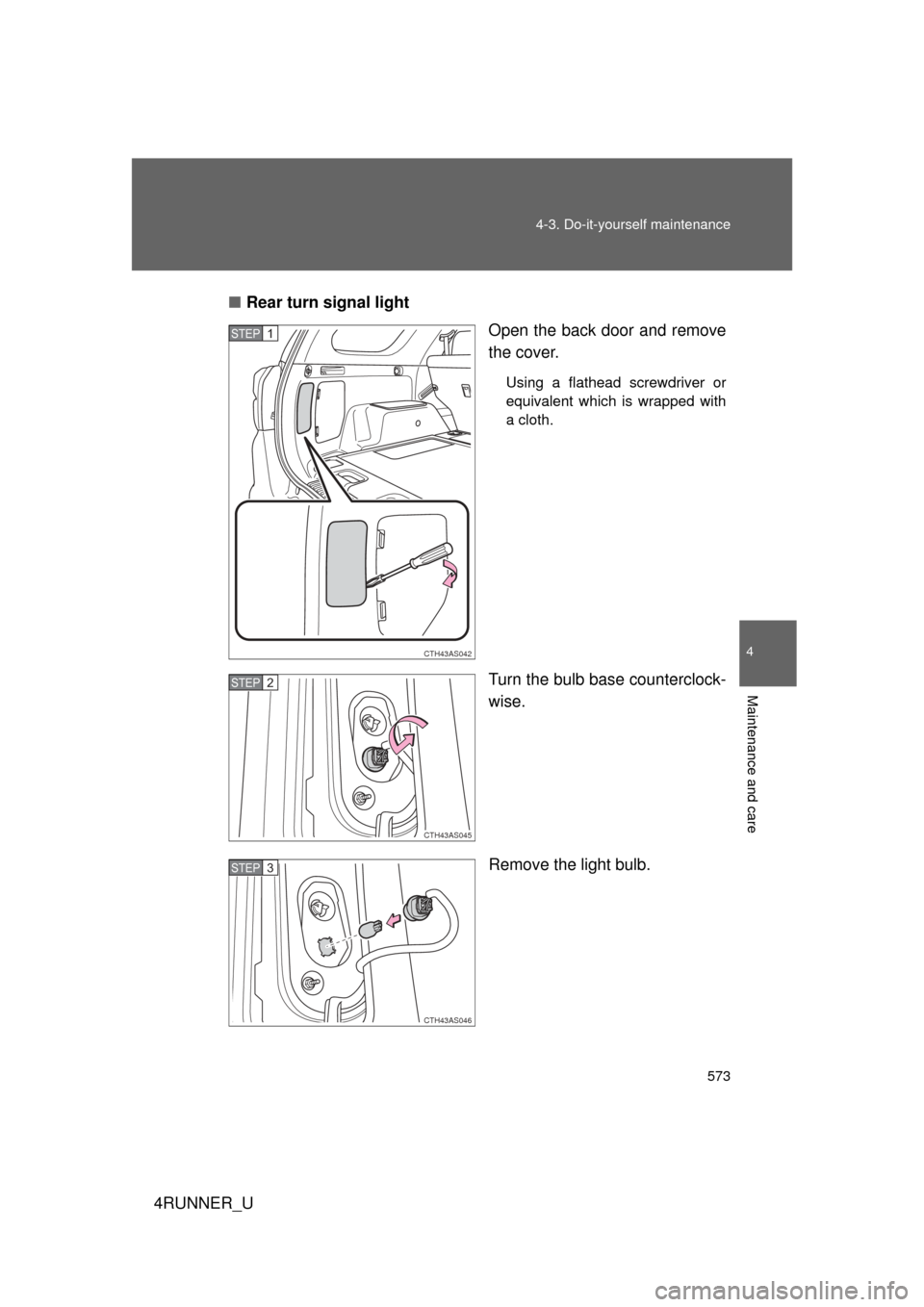

Stop/tail and rear side ma rker light and back-up light
Open the back door and remove
the cover.
Using a flathead screwdriver or
equivalent which is wrapped with
a cloth.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Back-up light
Remove the light bulb. Stop/tail and rear side marker
light
Back-up light
CTH43AS042
STEP 1
CTH43AS043
STEP 2
CTH43AS044
STEP 3

573
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■

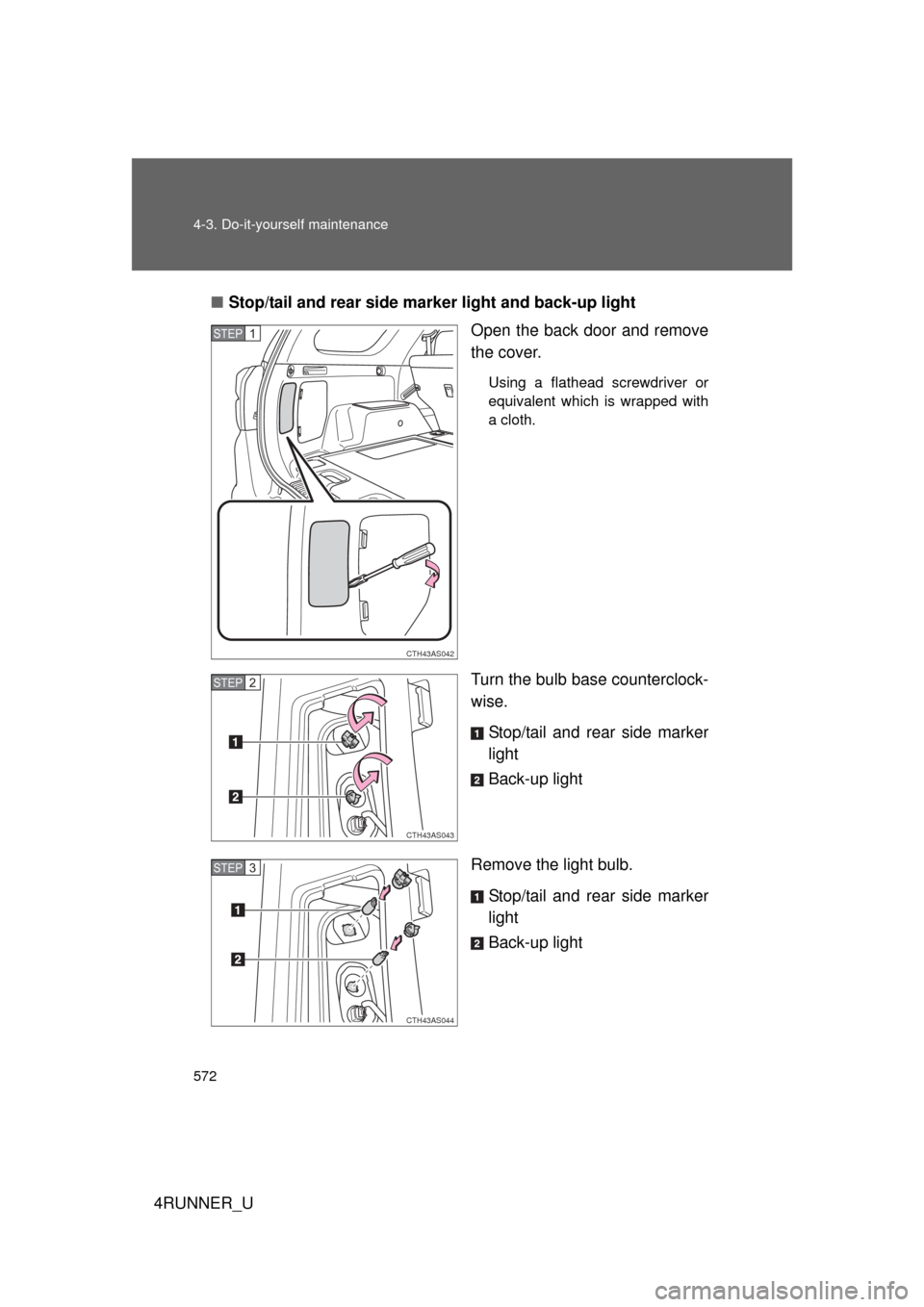

Rear turn signal light
Open the back door and remove
the cover.
Using a flathead screwdriver or
equivalent which is wrapped with
a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
CTH43AS042
STEP 1
CTH43AS045
STEP 2
CTH43AS046
STEP 3

574 4-3. Do-it-yourself maintenance
4RUNNER_U■

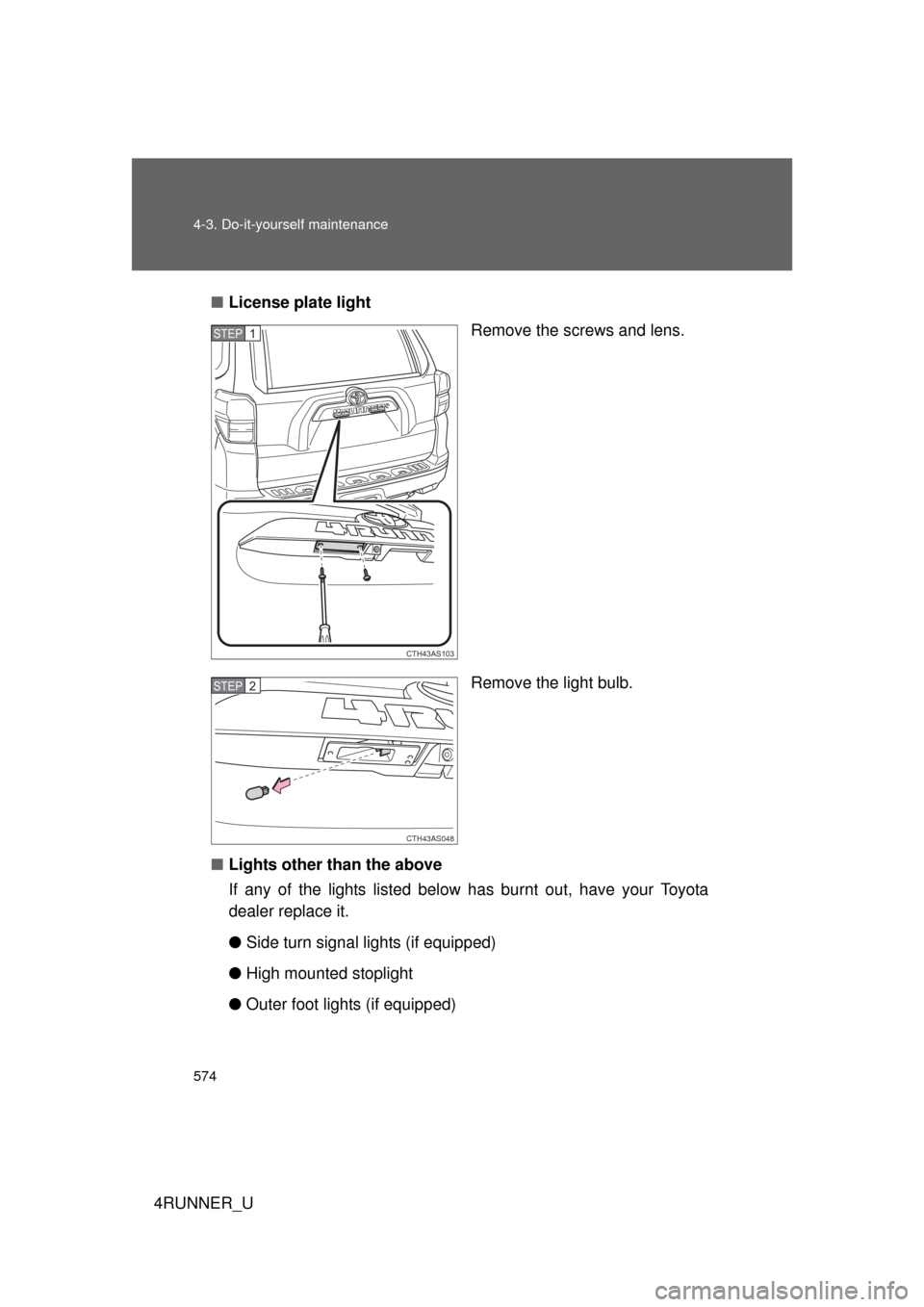

License plate light
Remove the screws and lens.
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below has burnt out, have your Toyota
dealer replace it.
●Side turn signal lights (if equipped)
● High mounted stoplight
● Outer foot lights (if equipped)
CTH43AS103
STEP 1
CTH43AS048
STEP 2

575
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
LED light bulbs
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any LEDs burn out, take your vehicle to your Toyota dealer to have
the light replaced.
■ Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

576 4-3. Do-it-yourself maintenance
