2012 TOYOTA 4RUNNER fuse box

520
4-3. Do-it-yourself maintenance
4RUNNER_U
Engine compar tment
Washer fluid tank (P. 535)
Power steering fluid reservoir ( P. 530)
Engine oil level dipstick ( P. 522)
Engine coolant reservoir ( P. 526)
Engine oil filler cap ( P. 522)Brake fluid reservoir
( P. 528)
Fuse box ( P. 555)
Battery ( P. 532)
Condenser ( P. 527)
Radiator ( P. 527)
CTH43AS117

555
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP 1
STEP 2
CTH43AS123
CTH43AS028

556 4-3. Do-it-yourself maintenance
4RUNNER_U
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 559) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pull-out
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 3
STEP 4
CTH43AS029
STEP 5
CTH43AS030
CTH43AS031

557
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

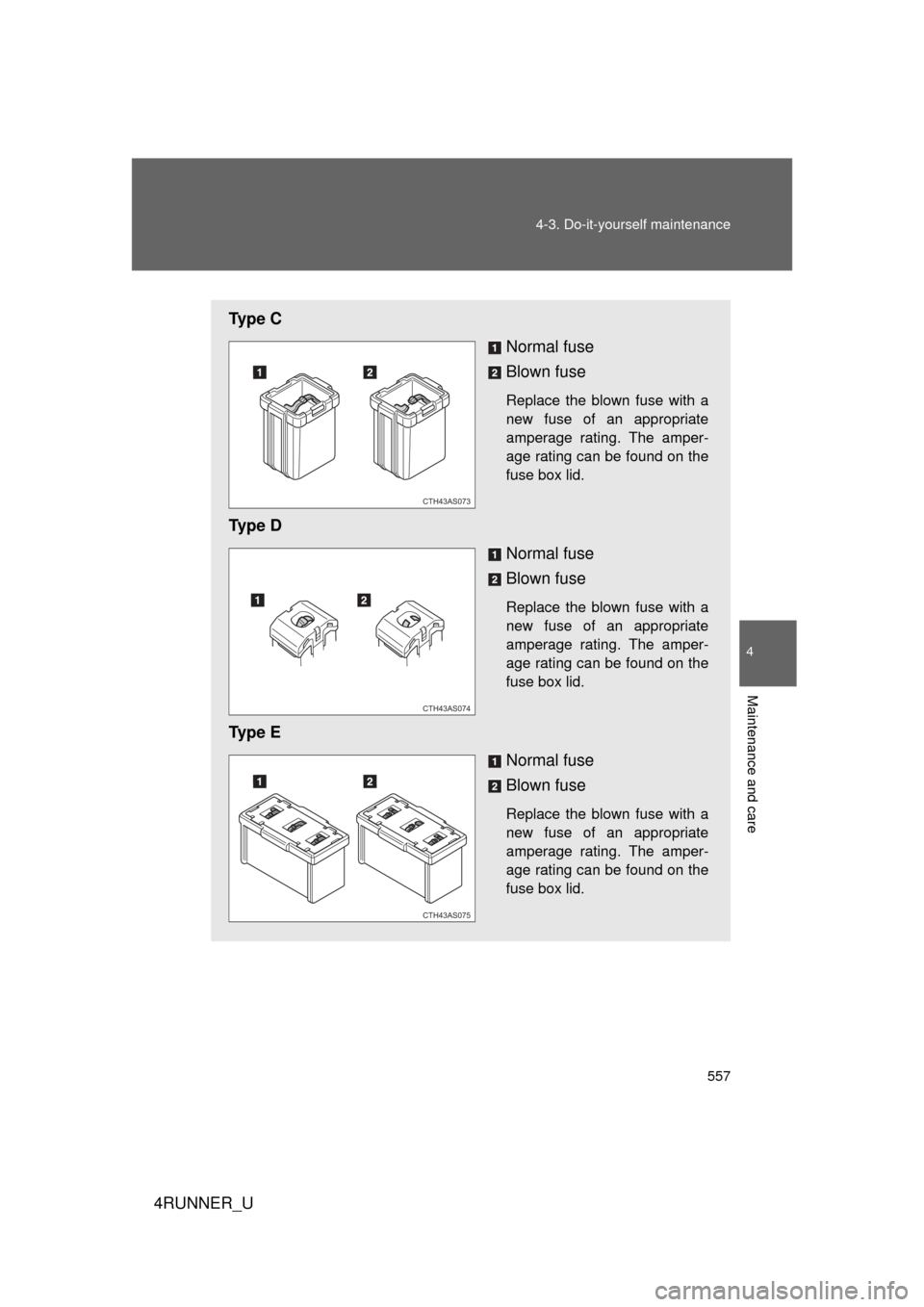

Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e DNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e ENormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
CTH43AS073
CTH43AS074
CTH43AS075

564 4-3. Do-it-yourself maintenance
4RUNNER_U
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 565)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
