4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
After recharging/reconnect ing the battery (vehicles with smart key sys-
tem)
● Unlocking the doors using the smart key system may not be possible
immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
● Start the engine with the “ENGINE START STOP” switch in ACCES-
SORY mode. The engine may not start with the “ENGINE START STOP”
switch turned OFF. However, the engine will operate normally from the
second attempt.
● The “ENGINE START STOP” switch mode is recorded by the vehicle. If
the battery is reconnected, the vehicle will return the “ENGINE START
STOP” switch mode to the status it was in before the battery was discon-
nected. Make sure to turn off the engine before disconnect the battery.
Take extra care when connecting the battery if the “ENGINE START
STOP” switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact your Toyota
dealer.
CAUTION
■ Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
● Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.

550
4-3. Do-it-yourself maintenance
4RUNNER_U
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
■ Removal method
Turn the engine switch (vehicles without a smart key sys-
tem) or “ENGINE START STOP” switch (vehicles with a
smart key system) off.
Open the glove box and
remove the cover.
Remove the filter cover.
Remove the filter.
The “UP” marks shown on
the filter should be pointing up.
STEP 1
CTH43AS089
STEP 2
CTH43AS024
STEP 3
CTH43AS025
STEP 4

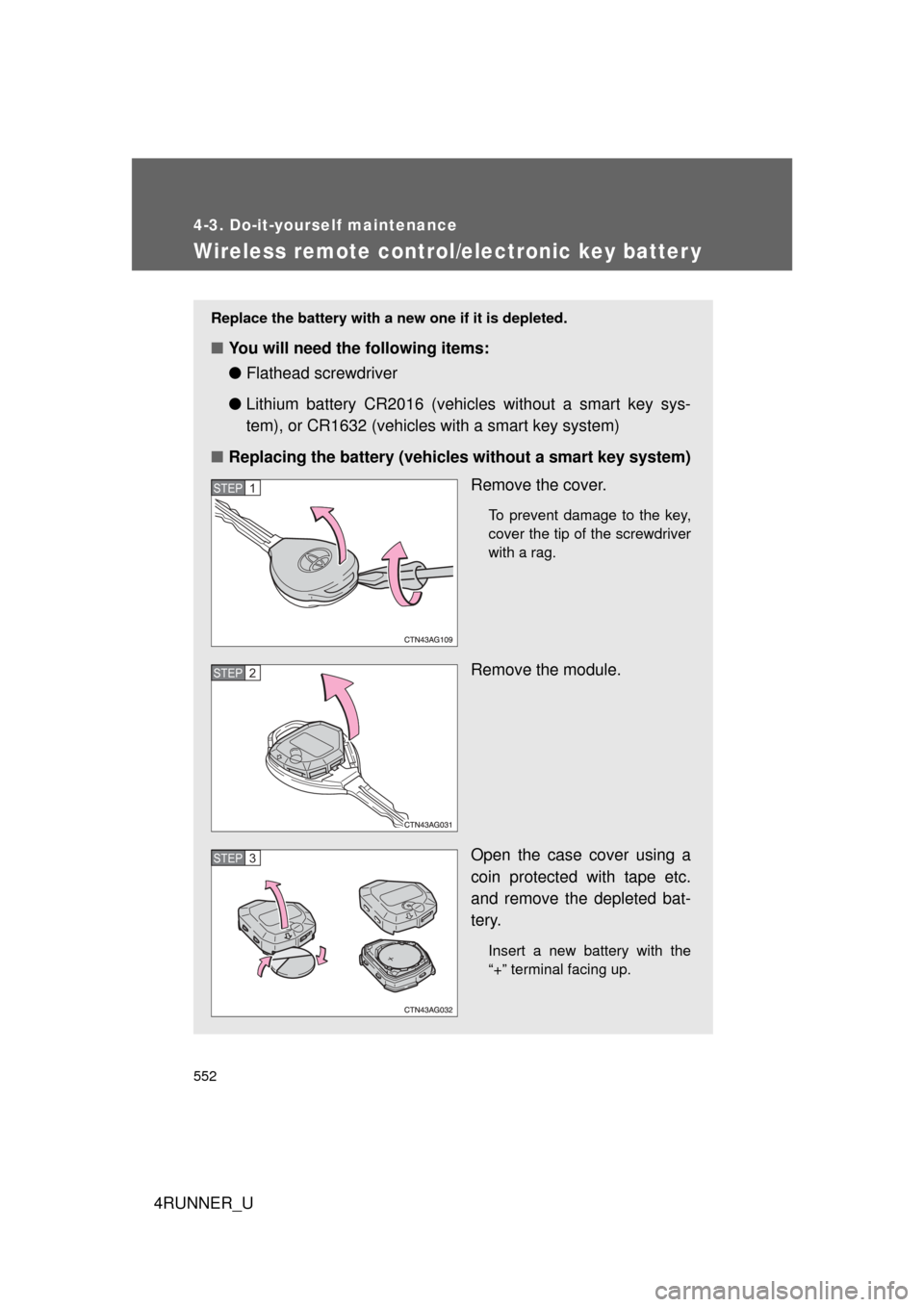

552
4-3. Do-it-yourself maintenance
4RUNNER_U
Wireless remote control/electronic key batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart key sys-
tem), or CR1632 (vehicles with a smart key system)
■ Replacing the battery (vehicles without a smart key system)
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the module.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

553
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■

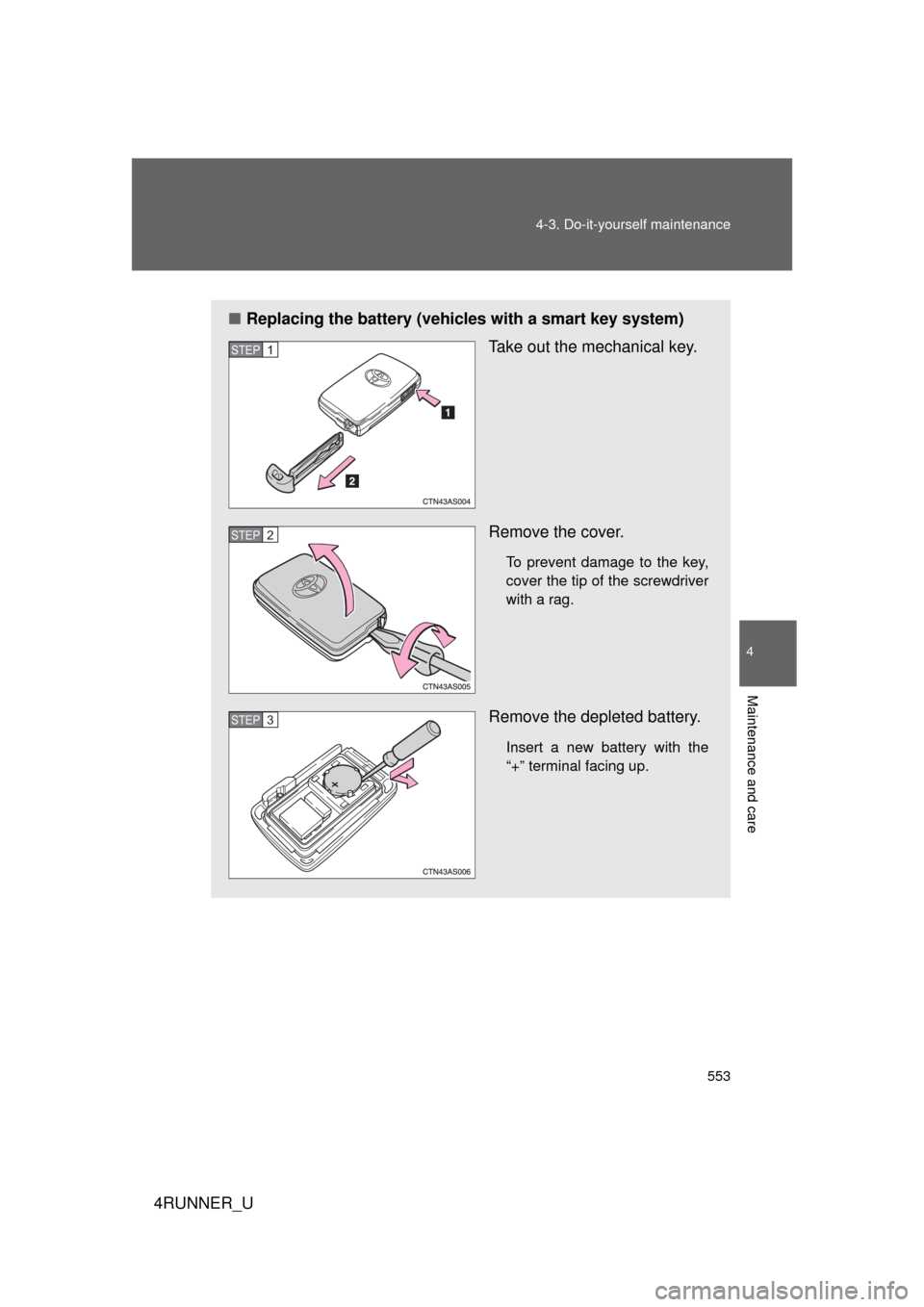

Replacing the battery (vehicles with a smart key system)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

554 4-3. Do-it-yourself maintenance
4RUNNER_U
■Use a CR2016 (vehicles without a smart key system) or CR1632 (vehi-
cles with a smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

555
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP 1
STEP 2
CTH43AS123
CTH43AS028

561
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
*: Replace the fuse with one of th
e same ampere rating as the origi-
nal
39ALT140 A* HTR, 400W INV, A/C COMP,
TOWING TAIL, SUB BATT,
MIR HTR, DEF, DEICER,
STOP, PTC HTR NO.1, PTC
HTR NO.2, PTC HTR NO.3,
S/HTR FR, ACC, P/OUTLET,
IG1, ECU-IG NO.1, ECU-IG
NO.2, WIP, WASHER, KDSS,
4WD, BKUP LP, TOWING
BKUP, DOOR P, DOOR RL,
DOOR RR, DOOR D, P/SEAT
FL, P/SEAT FR, DOOR, A/C,
OBD, DOOR BACK, S/ROOF,
PANEL, TAIL, FOG FR, D/L
NO.2 fuses
40SPARE10 A

41SPARE15 A
42SPARE20 A
43P/I-B80 A
IG2, EFI, A/F, HORN fuses
44SECURITY10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
45SMART 7.5 A
Smart key system
46STRG LOCK 20 ASteering lock system
47TOWING BRK30 A
Trailer brake controller
FuseAmpereCircuit

562 4-3. Do-it-yourself maintenance
4RUNNER_U■
Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 A Stop/tail lights
2PA N E L7.5 A Instrument panel lights
3GAUGE7.5 A Meter and gauge
4IGN10 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5WASHER20 A Wiper and washer
6WIP30 A Wiper and washer
7S/ROOF 25 A Electric moon roof
8DOOR RR25 A Power windows
9DOOR D25 A Power windows
10DOOR BACK30 A
Multiplex communication sys-
tem
11DOOR P30 A Power windows
12P/SEAT FR 30 A Front passenger's power seat
13S/HTR FR 20 A Seat heater system
14ECU-IG NO.210 AAir conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15IG17.5 A
Turn signal lights, emergency
flashers
16ECU-IG NO.110 AVehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17DOOR7.5 A Power windows
