2012 TOYOTA 4RUNNER key

5
When trouble arises
631

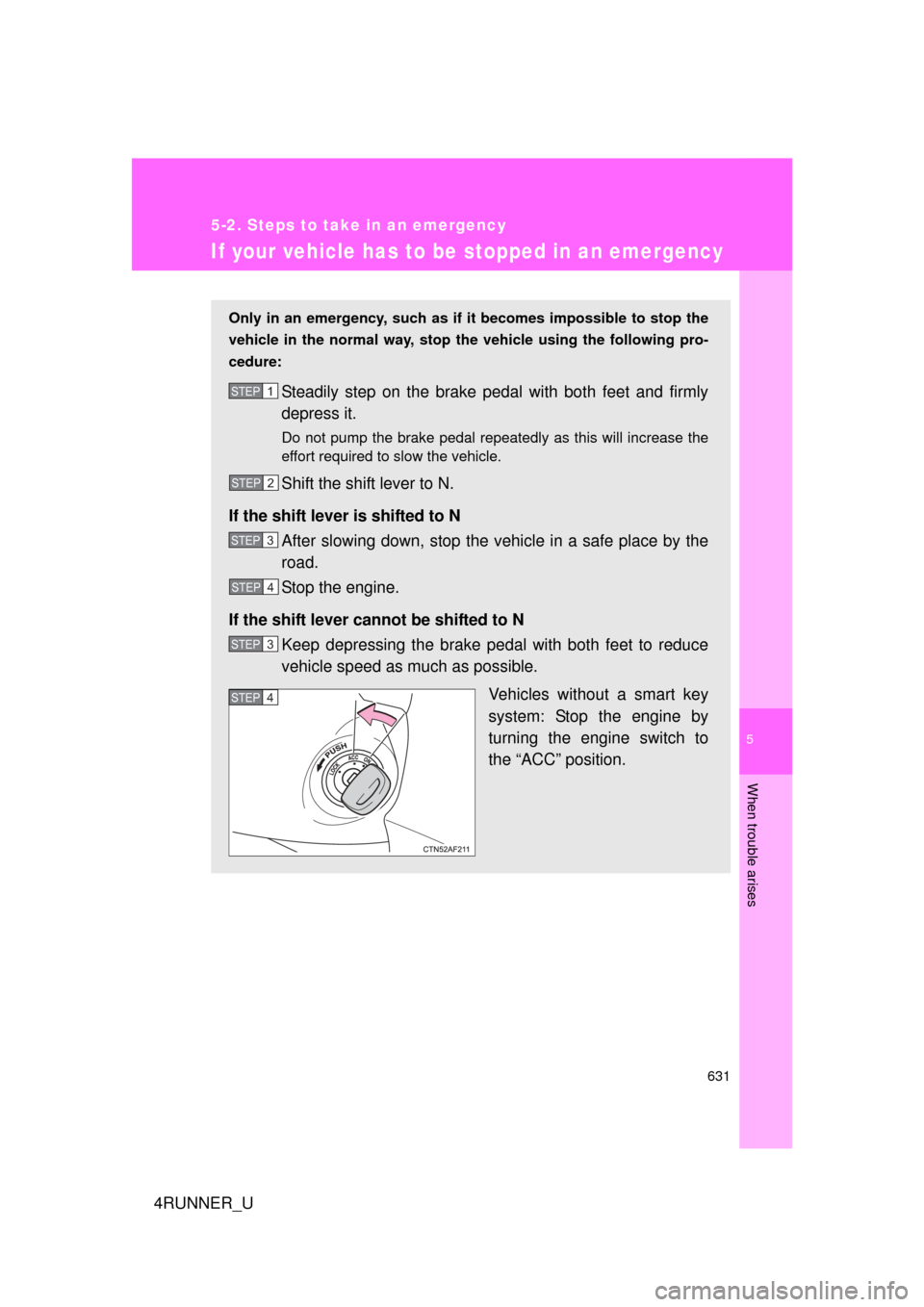

5-2. Steps to take in an emergency
4RUNNER_U
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4

632 5-2. Steps to take in an emergency
4RUNNER_U
CAUTION
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more
STEP 4
STEP 5

660
4RUNNER_U
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart key
system and
wireless
remote con-
trol
( P. 35, 49) Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer) On Off
Open door warning
function (when locking
the vehicle) On Off
Automatic door locking
function (if a door is not
opened after being
unlocked) On Off
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Smart key
system
( P. 35) Smart key system On Off
Wireless
remote con-
trol
( P. 49) Wireless remote control On
Off
Panic function OnOff
Operation signal
(Buzzer volume) Level 7 OFF to level 6
Your vehicle includes a variety of electronic features that can be per-
sonalized to suit your prefer
ences. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

661
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Door lock
(
P. 53,
621) Speed-detecting auto-
matic door lock function
Off On
Shifting the shift lever to
position other than P
locks all doors On Off
Shifting the shift lever to
P unlocks all doors On Off
Opening driver’s door
unlocks all doors Off On
Power win-
dows
( P. 98) Mechanical key linked
operation (close)
Off On
Mechanical key linked
operation (open) Off On
Wireless remote control
linked operation (open) Off On
Wireless remote control
linked operation signal
(Buzzer) On Off
Automatic
light control
system
( P. 203) Light sensor sensitivity Level 3 Levels 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 secondsOff
60 seconds
90 seconds
Ambient light level at
which instrument illumi-
nation begins to dim
(meter lights etc.) Standard
-2 (darker) to
2 (brighter)
Ambient light level at
which instrument illumi-
nation begins to
brighten (meter lights
etc.) Standard
-2 (darker) to
2 (brighter)
ItemFunctionDefault settingCustomized setting

662 6-2. Customization
4RUNNER_U
Illumination
(P. 438) Time period before
lights turn off
15 seconds7.5 seconds
30 seconds
Vehicles without a
smart key system:
Operation after the
engine switch is turned
to the “LOCK” position
Vehicles with a smart
key system: Operation
after the “ENGINE
START STOP” switch is
turned OFF On
Off
Operation when the
doors are unlocked On
Off
Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son (When the interior
light switch [ON/DOOR/
OFF] is DOOR) On
Off
Footwell lights OnOff
Overhead courtesy light On Off
Interior light control OnOff
Interior light dimmer
control while driving On
Off
ItemFunctionDefault settingCustomized
setting

663
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Outer foot
lights
(if equipped)
(
P. 438) Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son
On Off
Operation when the
doors are unlocked
using the wireless
remote control, key or
entry function On Off
Operation when the
doors are unlocked
using the door lock
switch On Off
Time period before
lights turn off 15 seconds7.5 seconds
30 seconds
Lighting control OnOff
Moon roof
( P. 105) Mechanical key linked
operation
Off
On
Mechanical key linked
operation Open and closeOpen only
Close only
Linked operation of
components when door
key is used Slide only Tilt only
Wireless remote control
linked operation (open
only) Off
On
Linked operation of
components when wire-
less remote control is
used (open only) Slide only Tilt only
ItemFunctionDefault settingCustomized
setting

664 6-2. Customization
4RUNNER_U
Rear window
wiper and
washer
(P. 214) Wiper operates auto-
matically when washer
is operated
On Off
Drip prevention function On Off
Wiper operation interval 3 seconds 2 seconds
4 seconds
5 seconds
Time elapsed before
the rear wiper storage
function activates 3 seconds4 seconds
5 seconds
6 seconds
Power back
window
( P. 101) Vehicles without a
smart key system:
Close operation linked
to door lock operation
using a key
On
Off
Vehicles without a
smart key system:
Open operation linked
to door unlock opera-
tion using a key On
Off
Vehicles with a smart
key system: Close
operation linked to door
lock operation using the
switch On
Off
Vehicles with a smart
key system: Open oper-
ation linked to door
unlock operation using
the switch On
Off
ItemFunctionDefault settingCustomized
setting

665
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Power back
window
(
P. 101) Vehicles with a smart
key system: Time
required to press and
hold the switch before
the window begins to
open/close
0.8 seconds
1 second
1.2 seconds
1.4 seconds
Intuitive
parking
assist
( P. 221) Buzzer volume
Max. Min. to Max.
Seat belt
reminder
( P. 591) Vehicle speed linked
seat belt reminder
buzzer
On
Off
ItemFunctionDefault settingCustomized
setting
