2012 SSANGYONG NEW ACTYON SPORTS display

09-4
2. CAUTIONS
Note that the display does not show everything in the rear area. Always check nobody,
especially animals and children, is behind the vehicle when parking or reversing.
If you can not properly check the vehicle behind, get out of the vehicle and then visually
check it.
The parking aid system is just a supplemental device to help your parking.
Always keep the safety precautions.
Do not press or shock the sensors by hitting or using a high-pressure water gun while
washing, since it may damage the sensors.
If the system is in normal operating condition, a short beep sounds when the shift lever is
moved into "R" position with the ignition key "ON". -
-
-
-
-
-
The parking aid system will not work or improperly work under following cases: ▶
1. Certain obstacles that sensors can not detect
Thin and narrow objects, such as wires, ropes, chains
Cotton, sponge, clothes, snow; that absorb ultrasonic waves
Obstacles lower than the bumper (ex. drain ditch or mud puddle) -
-
-
2. Not defective but improperly working
When the sensing portion is frozen (operates normally after thawed)
When the sensing portion is covered by rain, water drops, snow or mud (operates normally
after cleaned)
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on -
-
-
-
3. Narrowed sensing area
When the sensing portion is partially covered by snow or mud (operates normally after
cleaned)
<007a009c009900990096009c0095008b00900095008e0047009b008c00940097008c00990088009b009c0099008c00470096008d0047009a008c0095009a0096009900470090009a0047009b009600960047008f0090008e008f0047004f00880097009700
990096009f005500470096009d008c00990047005f005700b6>C) or too low (approx.
below -30°C) -
-
When driving on the rough roads, gravel road, hill and grass
When the bumper height is changed due to heavy load
When the sensing portion is frozen
When the sensing portion is covered by rain, water drops, snow or mud
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on
When some accessories are attached in detecting ranges -
-
-
-
-
-
- 4. Not defective but may cause malfunction

09-58790-01
Parking Aid Unit
1. GENERAL INFORMATION
1) Components and Function
The parking aid system uses three
piezoelectric ceramic sensors inside the rear
bumper to measure the vertical and horizontal
distances to the obstacles. The parking aid
system has a separate unit that sends signal
to the buzzer when reverse parking to notify
the driver of the distance to obstacle. When
placing the gear selector lever to “R" position,
this unit activates the sensor to measure the
distance between the object and the bumper.
The existing PAS unit displays the
malfunctions using the LED when there are
any defects in sending/receiving signal or the
open circuit to sensor. On the other hand, the
PAS unit of KORANDO SPORTS informs the
malfunction of the relevant sensor using a
buzzer.
STICS
PAS buzzer
LH/RH sensor
Center sensor

01-4
This indicator shows the current position of
the gear.
In normal mode: P, R, N, D
Gear indication in “M” mode: 1, 2, 3, 4, 5, 6
Driving gear can be adjusted by operating
the tip switch after moving the gear select
lever in “M” position.
Shift down Shift up
Tip switch on steering wheel ▶
Gear position display on instrument cluste▶
Gear select lever ▶
Mode Switch
W :
S :
Selection of Manual/
Automatic Shift Function
D :
M :Shift Lock Release Button Hole
when Locked in the "P" Position
If you cannot move the gear
select lever from the "P" position,
try to move the lever while
pushing down here with a sharp
object such as a ballpoint pen.
For your safety, turn off the
engine and depress the brake
pedal before the attempt. Tip Switch in “M” Position (Manual Gear Shift)
The shiftable gear can be adjusted by moving this switch to forward and rearward when the
gear select lever is in “M” position.
Positions of gear
select lever
P : Parking
R : Reverse
N : Neutral
D : Drive
Winter mode
Standard mode (Use the
standard mode in normal
driving conditions.)
Automatic shift according to
the driving condition
Manual shift

01-76810-01
▶ Step 5
Ambient
temperature
display
51
Interior
temperature
displayIntake air temperature
display
Ambient
temperature
sensorInterior
temperature
sensorIntake air
temperature sensor
▶ Step 6
To enter the step 6 from 5, turn the fan speed dial lightly toward the right not using the
temperature control dial. In this step, you can decrease or increase by up to 3 degrees
from the temperature set on the A/C controller. -You can check that the temperature value from each temperature sensor is displayed
properly in this step. Pressing the defroster switch changes the temperature value that
appears on the display in the order as follows: -
2) Self-diagnosis step
(1) Step 1
Turn the ignition ON and press the OFF switch for 5 sec. or more within 10 sec.
Then the first step of the self-diagnosis is started as shown in the below figure.
2. Display for checking VFD and all LED segments
1. Press OFF switch for 5 sec. or more

01-8
(2) Step 2
The sensors and air mix door are checked for proper operation in this step. When the step 2 is
started, the number "2", which indicates that the system is in the step 2, apprears on the display
and the check for sensors is performed. Once the check is done (for 10 to 20 sec.), the one digit
number between 0 and 8 is added behind "2". "20" means there is no fault code. For the meaning
of the rest of the numbers, refer to the description below.
1. Turn temperature dial lightly toward right to enter step 2
10 to 20
sec.
System starts sensor
check after "2" is
displayed 2.
Fault code for sensor
appears and blinks 3.
Fault code no. 1
(ambient temperature
sensor) blinks twiceFault code no. 5 (sun
sensor) blinks twice
(fault codes appears
sequentially)
If "-" is displayed before "2", it means
that the sensor for that flashing fault
code has a short circuit.
Ambient temperature
sensor short
circuited
Refer to the following table for the meaning of the fault code.

01-96810-01
(3) Step 3
In this step, you can check the position and condition of the air source door and mode door. To
start step 3, turn the temperature control dial lightly toward the right and confirm that the number 3
appears on the display. It takes several tens of seconds to finish the check. If there is no fault
code, "30" is displayed. And if there is a malfunction, the corresponding fault code is added as
described in the step 2.
Turn temperature dial lightly toward
right to enter step 3 1.
System starts
sensor check after
"3" is displayed 2. Fault code for
sensor appears
and blinks (30 is
displayed when
there is no fault) 3.
Refer to the following table for the meaning of the fault code.

01-10
In this step, the door position of each actuator, fan speed and operation of the compressor are
checked. To enter this step, turn the temperature dial to the right in the step 3. The number, "41",
appears on the display as soon as the step 4 is started. Press the defroster switch to change the
diagnosis mode.
(4) Step 4
Press
Press
Press
PressPress
Press
Turn temperature dial lightly
toward right to enter step 4 1.
Below table describes the detailed diagnosis items performed for each number. Check the
corresponding component for proper operation according to the table. The voltage values listed
in the table are the output voltage to operate the blower motor. The higher the voltage, the faster
the fan speed is.

01-116810-01

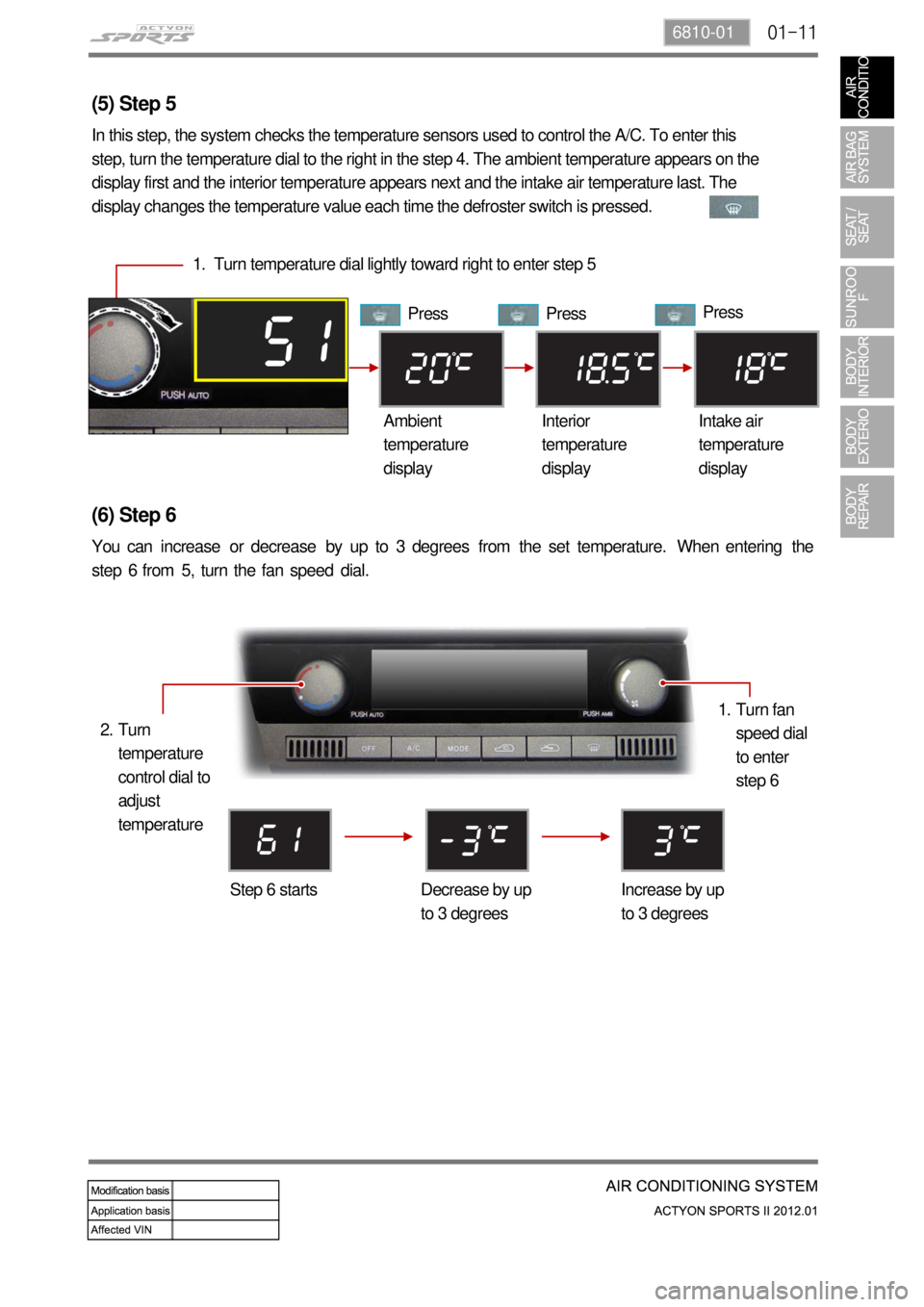

(5) Step 5
In this step, the system checks the temperature sensors used to control the A/C. To enter this
step, turn the temperature dial to the right in the step 4. The ambient temperature appears on the
display first and the interior temperature appears next and the intake air temperature last. The
display changes the temperature value each time the defroster switch is pressed.
1. Turn temperature dial lightly toward right to enter step 5
Press Press Press
Ambient
temperature
displayInterior
temperature
displayIntake air
temperature
display
(6) Step 6
You can increase or decrease by up to 3 degrees from the set temperature. When entering the
step 6 from 5, turn the fan speed dial.
Step 6 starts Decrease by up
to 3 degreesIncrease by up
to 3 degreesTurn fan
speed dial
to enter
step 6 1.
Turn
temperature
control dial to
adjust
temperature 2.
