lights-on warning buzzer........................................ (current page)
1.80
ENG_UD10541_1
Éclairages et signalisations extérieures (X85 - B85 - C85 - S85 -\
K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

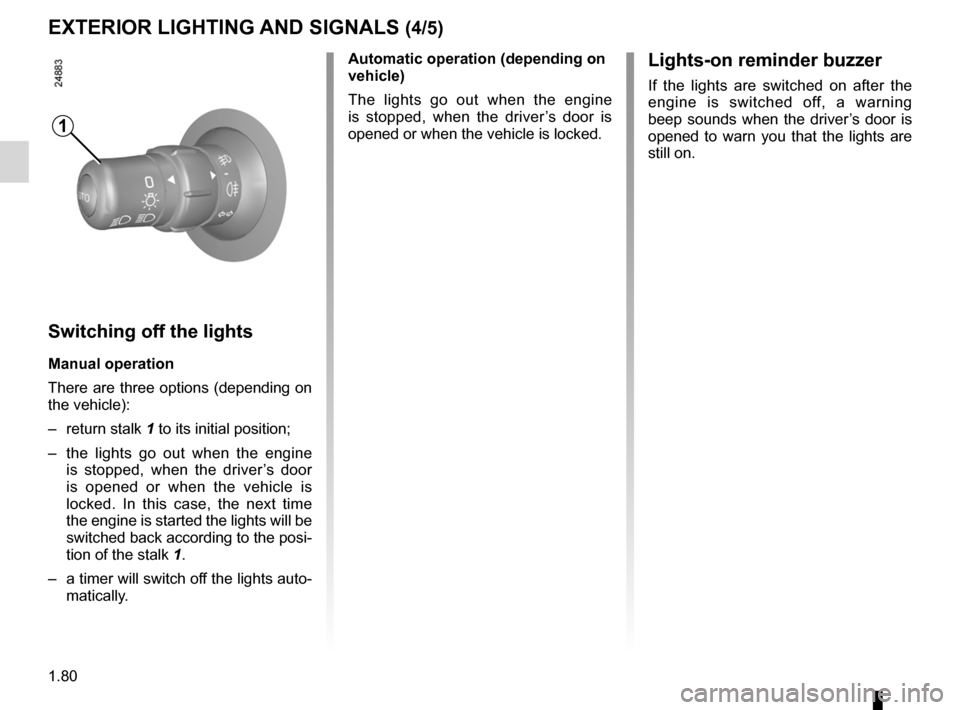

EXTERIOR LIGHTING AND SIGNALS (4/5)
Switching off the lights
Manual operation
There are three options (depending on
the vehicle):
– return stalk 1 to its initial position;
– the lights go out when the engine
is stopped, when the driver’s door
is opened or when the vehicle is
locked. In this case, the next time
the engine is started the lights will be
switched back according to the posi-
tion of the stalk 1.
– a timer will switch off the lights auto-
matically.
Automatic operation (depending on
vehicle)
The lights go out when the engine
is stopped, when the driver’s door is
opened or when the vehicle is locked.Lights-on reminder buzzer
If the lights are switched on after the
engine is switched off, a warning
beep sounds when the driver’s door is
opened to warn you that the lights are
still on.
1

JauneNoirNoir texte
1.87
ENG_UD24919_5
Réservoir carburant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

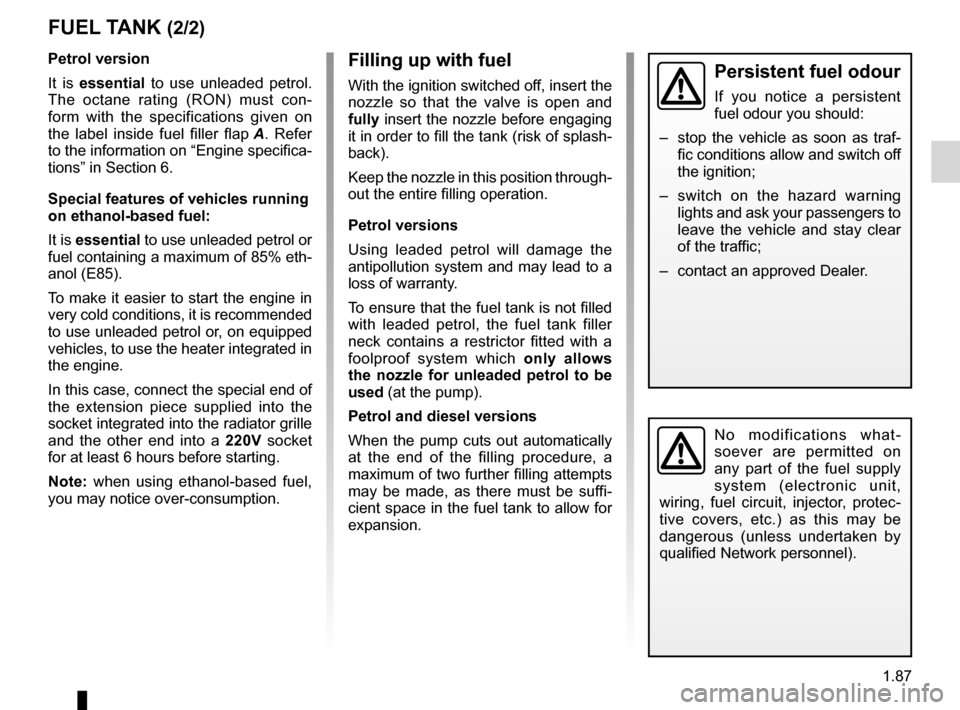

Filling up with fuel
With the ignition switched off, insert the
nozzle so that the valve is open and
fully insert the nozzle before engaging
it in order to fill the tank (risk of splash -
back).
Keep the nozzle in this position through -
out the entire filling operation.
Petrol versions
Using leaded petrol will damage the
antipollution system and may lead to a
loss of warranty.
To ensure that the fuel tank is not filled
with leaded petrol, the fuel tank filler
neck contains a restrictor fitted with a
foolproof system which only allows
the nozzle for unleaded petrol to be
used (at the pump).
Petrol and diesel versions
When the pump cuts out automatically
at the end of the filling procedure, a
maximum of two further filling attempts
may be made, as there must be suffi -
cient space in the fuel tank to allow for
expansion.
Petrol version
It is essential to use unleaded petrol.
The octane rating (RON) must con -
form with the specifications given on
the label inside fuel filler flap A . Refer
to the information on “Engine specifica-
tions” in Section 6.
Special features of vehicles running
on ethanol-based fuel:
It is essential to use unleaded petrol or
fuel containing a maximum of 85% eth-
anol (E85).
To make it easier to start the engine in
very cold conditions, it is recommended
to use unleaded petrol or, on equipped
vehicles, to use the heater integrated in
the engine.
In this case, connect the special end of
the extension piece supplied into the
socket integrated into the radiator grille
and the other end into a 220V socket
for at least 6 hours before starting.
Note: when using ethanol-based fuel,
you may notice over-consumption.
FUEL TANK (2/2)
No modifications what -
soever are permitted on
any part of the fuel supply
system (electronic unit,
wiring, fuel circuit, injector, protec -
tive covers, etc.) as this may be
dangerous (unless undertaken by
qualified Network personnel).
Persistent fuel odour
If you notice a persistent
fuel odour you should:
– stop the vehicle as soon as traf-
fic conditions allow and switch off
the ignition;
– switch on the hazard warning
lights and ask your passengers to
leave the vehicle and stay clear
of the traffic;
– contact an approved Dealer.

2.1
ENG_UD27580_9
Sommaire 2 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

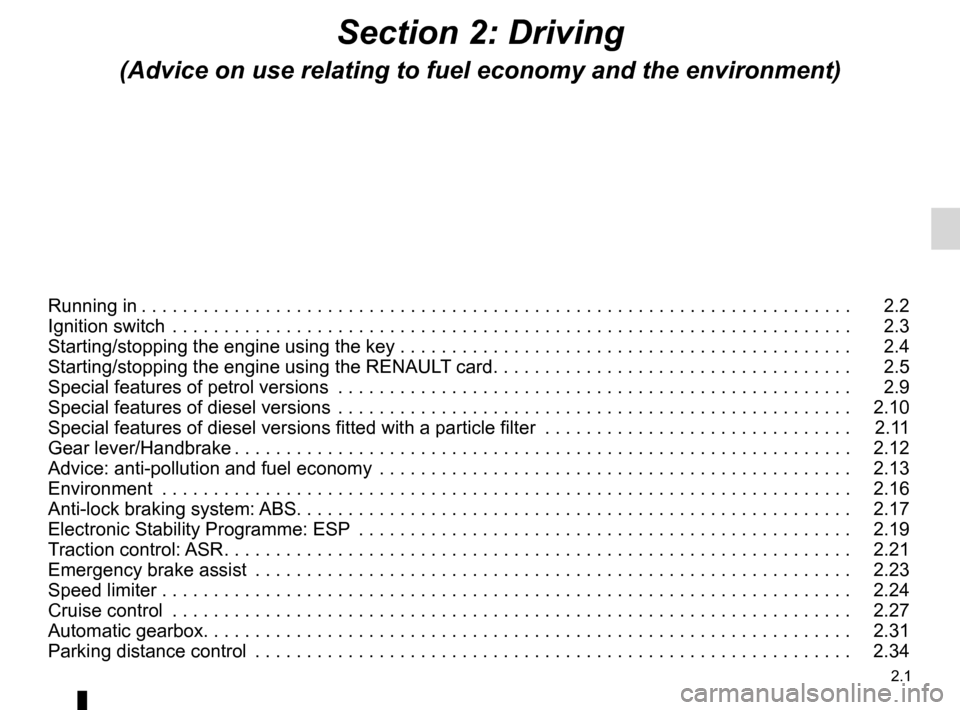

Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
Starting/stopping the engine using the key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4
Starting/stopping the engine using the RENAULT card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Special features of diesel versions fitted with a particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Gear lever/Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.12
Advice: anti-pollution and fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.13
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
Anti-lock braking system: ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . 2.17
Electronic Stability Programme: ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.19
Traction control: ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21
Emergency brake assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.23
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.31
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.34

engine start/stop button ........................ (up to the end of the DU)
ignition switch ....................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
switching on the vehicle ignition ........... (up to the end of the DU)
2.3
ENG_UD26548_3
Contacteur de démarrage : véhicule avec clé / télécommand\
e à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Ignition switch
Special note on vehicles with an au-
tomatic gearbox
Before starting, move the lever to posi-
tion N or P.
Note:
If a gear other than neutral is displayed,
it flashes; starting is not possible unless
you depress the brake pedal, while
holding the key in the starting position.Ignition position M.
The ignition is switched on:
Start position D
If the engine fails to start at the first
attempt, the key must be turned back
before the starter can be activated
again. Release the key as soon as the
engine starts.
Note: on diesel versions, several sec -
onds may pass between turning the
key and the engine starting to allow for
engine preheating.
Off position S (steering lock
applied)
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
“Accessories” position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
IGNITION SWITCH: vehicle with key

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.4
ENG_UD10550_1
Démarrage / arrêt moteur : véhicule avec clé / télécom\
mande à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Starting/stopping the engine using the key
Stopping the engine
With the engine idling, turn the key
back to the Stop position.ÉDiesel injection
Cold or warm engine
– Turn the key to the “Start” posi -
tion D without depressing the
accelerator pedal .
– Release the key as soon as the
engine starts.
Note: several seconds may pass be -
tween turning the key and the engine
starting to allow for engine preheating.Starting the engine
Petrol injection
Engine warm or cold
– Run the starter without depress-
ing the accelerator.
– Release the key as soon as the
engine starts.
STARTING/STOPPING THE ENGINE: vehicle with key
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc., and the passive safety de-
vices such as the airbags and pre -
tensioners will no longer operate.

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
child safety ............................................................. (current page)
2.5
ENG_UD26550_2
Démarrage moteur : véhicule avec carte Renault (X85 - B85 - C85 -\
S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Starting/stopping the engine using the RENAULT card
Starting conditions.
Follow the starting instructions on the
instrument panel 2 describing the fol -
lowing conditions:
to start, depress the brake pedal or
clutch (the pedal must be depressed
throughout starting) and press button 3.
If a gear is engaged, the vehicle may
only be started by depressing the clutch
pedal.
RENAULT card
The card must be in detection zone 1
(passenger compartment and luggage
compartment, except for some high
areas such as the sun visor, spectacle
holder, dashboard upper section, etc.)
or in card reader 4.
STARTING THE ENGINE: vehicle with RENAULT CARD (1/3)
1
2
34
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others
by starting the vehicle, activating
equipment such as the windows, or
locking the doors.
Risk of serious injury.

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.8
ENG_UD12574_2
Arrêt moteur : véhicule avec carte Renault (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
When you leave your vehi -
cle, especially if you have
your RENAULT card with
you, check that the engine
is completely switched off.
To ensure that the engine is completely
stopped, press button 3 twice.
The steering locks. Check that it is cor-
rectly locked in position.
With the engine switched off, any ac -
cessories being used (radio, heating
and air conditioning, etc.) will continue
to function for a few minutes.
When the driver’s door is opened, the
accessories stop working.Conditions for stopping the
engine
Before stopping the engine, make
sure you have your card.
When the vehicle is stationary, press
button 3.
If the card is not in the detection zone
after pressing once, the messages
‘Confirm engine stop’ and ‘Press STOP
twice’ appear on instrument panel 2.
STOPPING THE ENGINE: vehicle with RENAULT CARD
3
2
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc. and the passive safety de-
vices such as air bags and preten -
sioners will no longer operate.

driving ................................................... (up to the end of the DU)
filter particle filter .................................... (up to the end of the DU)
special features of diesel vehicles with particle filter
(up to the end of the DU)
2.11
ENG_UD19899_2
Particularités des versions diesel avec filtre à particules (X85 \
- B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
As a guide, this type of cleaning should
take up to 20 minutes.
If the
© warning light comes on,
accompanied by the message “Check
antipollution”, consult an approved
Dealer as soon as possible.
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
Special features of diesel versions fitted with a particle filter
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
When driving, depending on the grade
of fuel used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Depending on the vehicle, warning
light 1
Ü comes on to indicate a
filter saturation risk.
To clean the particle filter, for 60 miles
(100 km) after the message appears,
drive at an average speed of at least
24 mph (40 km/h), where suitable traf-
fic conditions and the speed limit will
allow, until the warning light goes out.
You may need to restart the operation if
the vehicle has to stop before the warn-
ing light goes out.
DIESEL VERSIONS WITH PARTICLE FILTER
1
