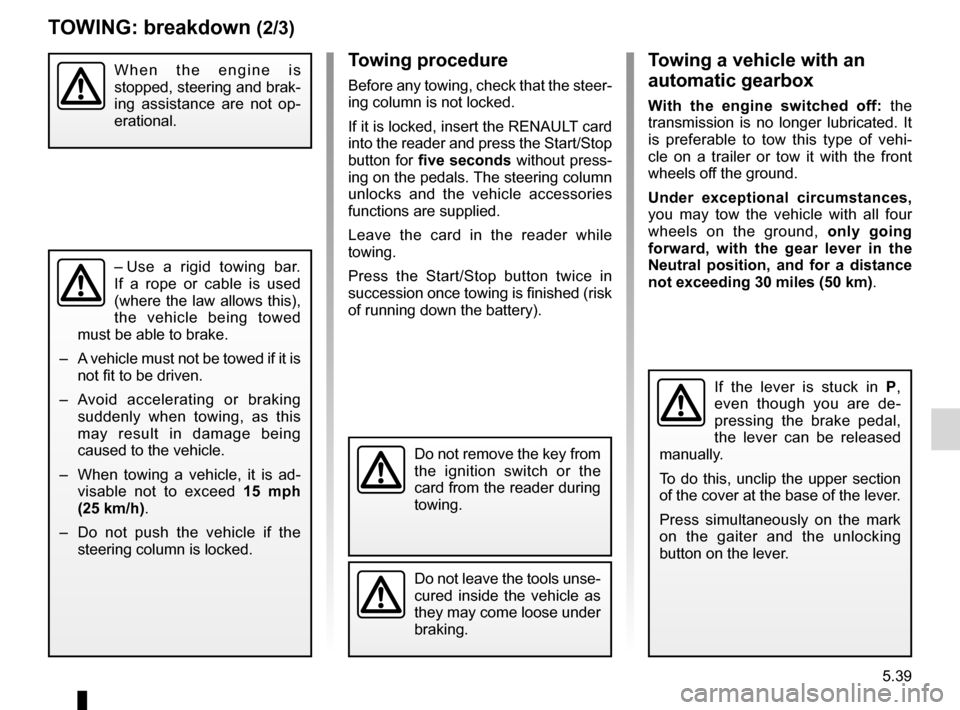

Towing a vehicle with an
automatic gearbox
With the engine switched off: the
transmission is no longer lubricated. It
is preferable to tow this type of vehi -
cle on a trailer or tow it with the front
wheels off the ground.
Under exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going
forward, with the gear lever in the
Neutral position, and for a distance
not exceeding 30 miles (50 km).
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually.
To do this, unclip the upper section
of the cover at the base of the lever.
Press simultaneously on the mark
on the gaiter and the unlocking
button on the lever.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
– Do not push the vehicle if the
steering column is locked.
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button for five seconds without press-
ing on the pedals. The steering column
unlocks and the vehicle accessories
functions are supplied.
Leave the card in the reader while
towing.
Press the Start/Stop button twice in
succession once towing is finished (risk
of running down the battery).
TOWING: breakdown (2/3)
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op -
erational.
Do not remove the key from
the ignition switch or the
card from the reader during
towing.

operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.41
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5

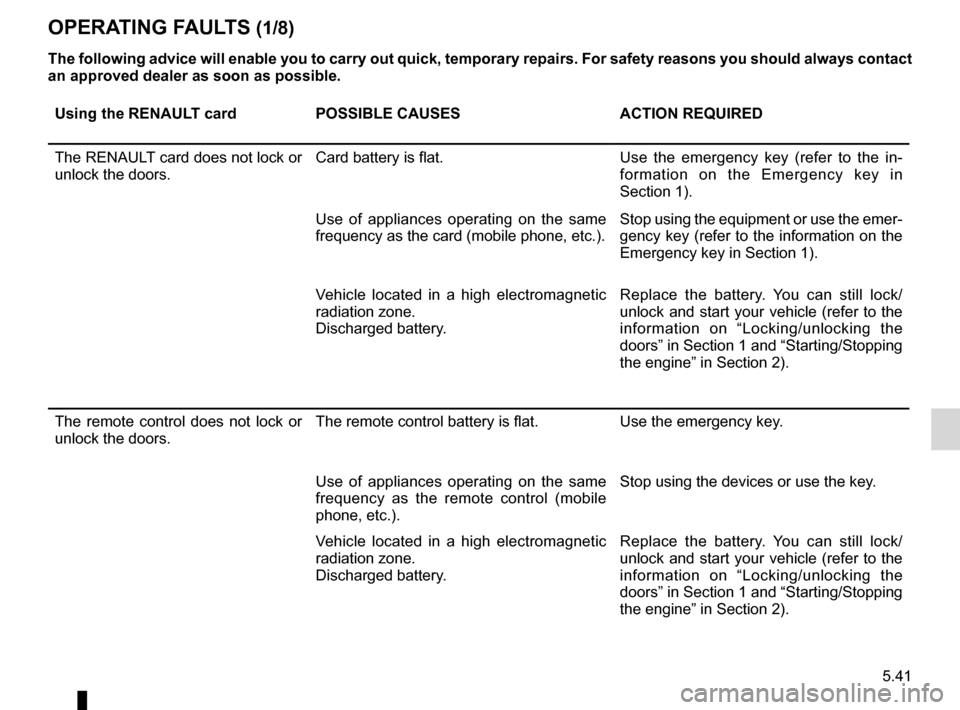

Operating faults
OPERATING FAULTS (1/8)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the RENAULT card POSSIBLE CAUSES ACTION REQUIRED
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Use the emergency key (refer to the in-
formation on the Emergency key in
Section 1).
Use of appliances operating on the same
frequency as the card (mobile phone, etc.). Stop using the equipment or use the emer-
gency key (refer to the information on the
Emergency key in Section 1).
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on the same
frequency as the remote control (mobile
phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).

JauneNoirNoir texte
5.43
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
OPERATING FAULTS (3/8)
The starter is activated POSSIBLE CAUSESACTION REQUIRED
The engine will not start
(vehicle with RENAULT card). Starting conditions are not fulfilled.
Refer to the information on “Starting/
stopping the engine” in Section 2.
The hands-free RENAULT card is not de-
tected. Move the card inside the passenger
compartment.
The hands-free RENAULT card does not
work. Insert the card in the card reader in order
to start the engine.
Refer to the information on “Starting/
stopping the engine” in Section 2.
It is difficult to start the engine in wet
weather or after washing the vehicle. Poor ignition, ignition system damp.
Dry the spark plug and coil wires.
The engine is difficult to start when hot. Faulty carburation (bubbles of vaporised
fuel in the circuit).Let the engine cool down.
Poor compression. Consult an approved dealer.
The engine cannot be switched off
(vehicle with RENAULT card). Electronic fault.
Press the starter button quickly five
times.
The steering column remains locked. Steering wheel locked.Move the steering wheel while press-
ing the engine start button (refer to the
information on Starting the engine in
Section 2).

7.2
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (2/5)
emergency brake assist ..................................................... 2.23
emergency braking ............................................................ 2.23
emergency key .................................................................... 1.8
emergency spare wheel ............................................ 5.2 → 5.5
engine technical specifications .................................................. 6.6
engine coolant ..................................................................... 4.8
engine immobiliser............................................................. 1.19
engine oil .................................................................... 4.4 – 4.5
engine oil level ............................................................ 4.4 – 4.5
engine specifications ........................................................... 6.6
engine start/stop button ............................................. 2.3 → 2.8
environment ....................................................................... 2.16
ESP: Electronic Stability Program .......................... 2.19 – 2.20
external temperature ......................................................... 1.74
F
faults operating faults ................................................ 5.41 → 5.48
filter air filter ......................................................................... 4.10
diesel filter .................................................................... 4.10
particle filter ................................................................. 2.11
passenger compartment filter ...................................... 4.10
fitting a radio ...................................................................... 5.34
fittings .................................................................... 3.24 → 3.27
fog lights ................................................................... 1.81, 5.19
front passenger air bag deactivation ................................. 1.48
front seat adjustment .............................................. 1.22 – 1.23
front seats adjustment ............................................... 1.22 – 1.23, 1.25
fuel advice on fuel economy ............................................... 2.13
filling .................................................................. 1.86 – 1.87
grade ................................................................. 1.86 – 1.87
fuel economy ......................................................... 2.13 → 2.15fuel filler cap
........................................................... 1.86 – 1.87
fuel level ................................................................ 1.56 → 1.60
fuel tank capacity ........................................................................ 1.86
fuel tank capacity .................................................... 1.86 – 1.87
fuses ....................................................................... 5.26 – 5.27
G
gear lever ........................................................................\
... 2.12
glove box ........................................................................\
... 3.26
h
handbrake ........................................................................\
.. 2.12
hands-free telephone integrated control ............................ 3.42
hazard warning lights signal .............................................. 1.51
headlight beam adjustment ............................................... 1.82
headrest ......................................................... 1.20 – 1.21, 3.29
heated seats ...................................................................... 1.22
heated windscreen .................................................. 3.8 → 3.15
heating and air conditioning system ........................ 3.4 → 3.16
heating system ........................................................ 3.4 → 3.16
horn ........................................................................\
........... 1.51
hubcap tool ............................................................... 5.9 – 5.10
i
ignition switch ...................................................................... 2.3
indicator lights .................................................................... 5.23
indicators ................................ 1.51, 5.16 → 5.18, 5.20 → 5.23
indicators: direction indicators ....................................................... 1.51
instrument panel .............................................. 1.56 → 1.65
instrument panel .................................................... 1.56 → 1.65
instrument panel messages ...................................1.63 → 1.65
interior trim maintenance ..................................................... 4.15 – 4.16
Isofix ....................................................................... 1.39 – 1.40

7.4
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
use ................................................... 1.7 → 1.12, 2.5 → 2.8
RENAULT card battery ...................................................... 5.33
replacement parts ................................................................ 6.8
reverse gear selecting ....................................................................... 2.12
reversing sensor ..................................................... 2.34 – 2.35
roof bars ................................................................. 3.40 – 3.41
roof rack roof bars ............................................................ 3.40 – 3.41
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.29 → 1.32
seat belts ............................................................... 1.25 → 1.28
service sheets .......................................................... 6.9 → 6.14
signals and lights .......................................... 1.51, 1.77 → 1.82
speakers location ........................................................................ 5.34
special features of diesel vehicles with particle filter ......... 2.11
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter .......................................................... 2.24 → 2.26
starting the engine ..................................................... 2.3 → 2.7
steering wheel adjustment ................................................................... 1.24
stopping the engine ................................................... 2.4 → 2.8
storage compartment ............................................. 3.24 → 3.27
storage compartments ........................................... 3.24 → 3.27
sun visor ........................................................................\
.... 3.22
sunroof .................................................................... 3.20 – 3.21
switching on the vehicle ignition ................................... 2.3, 2.7
t
tailgate .......................................................... 3.32, 3.35 → 3.37tanks and reservoirs
brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications .............................................. 6.4 → 6.8
temperature regulation ............................................ 3.4 → 3.16
tool kit ........................................................................\
.......... 5.9
towing breakdown .......................................................5.38 → 5.40
towing a caravan .......................................................... 5.40
towing equipment ......................................................... 5.40
towing a caravan ................................................................. 6.7
towing equipment fitting ............................................................................ 5.40
towing hitch ..................................................... 5.9, 5.38 → 5.40
towing rings ............................................................ 3.35 – 3.36
towing weights ..................................................................... 6.7
traction control: ASR ............................................... 2.21 – 2.22
transporting children .......................... 1.36 – 1.37, 1.39 → 1.48
transporting objects in the luggage compartment ........................................ 3.37
luggage net ....................................................... 3.38 – 3.39
on the roof ...................................................................... 6.7
trims ........................................................................\
........... 5.10
trip computer and warning system .........................1.63 → 1.65
tyre inflation kit ........................................................... 5.6 → 5.8
tyre pressure ...................................................................... 5.14
tyres ....................................................................... 5.13 → 5.15
U
unlocking the doors ............................................... 1.15 → 1.17
V
variable power-assisted steering ....................................... 1.24
ventilation ................................................................ 3.2 → 3.16
