INSTRUMENTS and CONTROLS
MAIN MENU
)
Press the "MENU"
button to gain access to the main menu
:
- audio functions,
- vehicle diagnostics,
- personalisation-confi guration,
- telephone (Bluetooth system).
)
Press the "
" or "
" buttons to select the menu required, then
confi rm by pressing the "OK"
button.
"AUDIO FUNCTIONS" MENU
With the Peugeot Connect Sound (RD5) switched on, once this menu
has been selected you can activate or deactivate the functions linked
with use of the radio (RDS, REG, RadioText) or the CD (introscan,
shuffl e, CD repeat).
For more information on the "Audio functions" application, refer to the
Peugeot Connect Sound (RD5) section.
"DIAGNOSIS VEHICLE" MENU
Once this menu has been selected, you can consult information
concerning the status of the vehicle.
Alert log
This summarises the active warning messages, displaying them in
succession on the multifunction screen.
)
On the " Diagnosis vehicle
" menu, select the following application:
)
Press the "MENU"
button to gain access to the main menu.
)
Press the arrows, then the "OK"
button to select the " Diagnosis
vehicle
" menu.
Page 48 of 336
46
RETRACTABLE COLOUR SCREEN (WITH
PEUGE
OT CONNECT NAVIGATION (RT6))
DISPLAYS IN THE SCREEN
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and contacts information,
- satellite navigation system information,
- alert messages,
- menus for settings of the screen, navigation system and vehicle
equipment.
From the navigation system control panel, to select one of the
applications:
)
press the dedicated "RADIO"
, "MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for access to the corresponding
menu,
)
turn dial A
to select a function, an item in a list,
)
press button B
to confi rm the selection,
or
)
press the "Back"
button to abandon the current operation and
return to the previous display.
For more information on these applications, refer to the "Audio
equipment and telematics" section.
CONTROLS
Page 50 of 336
48
RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))
DISPLAYS IN THE SCREEN
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and address book information,
- satellite navigation system information.
- display screen or navigation system parameter settings menus.
From the Peugeot Connect Media Navigation (NG4 3D) control panel,
to select one of the applications:
)
press the dedicated "RADIO"
, "MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button for access to the
corresponding menu,
)
turn dial A
to select a function, an item in a list,
)
press button B
to confi rm the selection,
or
)
press the "Back"
button to abandon the current operation and
return to the previous display.
CONTROLS
For more information on these applications, refer to the
Peugeot Connect Media Navigation (NG4 3D) section.
Page 196 of 336
194
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter,
you can contact a PEUGEOT dealer for the specifi cation of
transmitters which can be fi tted (frequency, maximum power,
aerial position, specifi c installation requirements), in line with the
Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, it may be
compulsory to have a high visibility safety vest, warning triangle
and spare bulbs and fuses available in the vehicle.
The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system and excessive electrical consumption.
Please note this precaution. You are advised to contact a
PEUGEOT representative to be shown the range of recommended
equipment and accessories.
"Multimedia":
portable navigation systems, Wi-Fi on Board...
By going to a PEUGEOT dealer you can also obtain products for
cleaning and maintenance (exterior and interior) - including ecological
products from the "TECHNATURE" range, topping up products
(screenwash, ...), touch-up pens and aerosols for the exact colour of
your vehicle, refi lls (cartridge for temporary tyre repair kit...), ...
Page 205 of 336
203
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
PeugeotConnectMediaNavigation (NG4 3D)
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation / Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.
Select "PEUGEOT Assistance"
to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check
the confi guration of these services and, if desired, modifi ed to suit your wishes.
If an impact is detected b
y the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated withfl ashing of the orange indicator lamp indicates a malfunction.Contact a PEUGEOT dealer.
Page 207 of 336
205
The system is protected in such a way that it will onlyoperate in your vehicle.
Peugeot Connect Media Navigation (NG4 3D)
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
01 First steps
02 Voice commands and
steerin
g mounted controls
03 General operation
04 Navi
gation - Guidance
05 Traffic information
06 Radio
07 Music media pla
yers
08 Usin
g the telephone
09 Screen menu map
Frequentl
y asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 2
06
208
211
216
225
227
228
233
238
243
CONTENTS
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH TELEPHONE
GPS EUROPE
Page 208 of 336
206
01FIRST STEPS

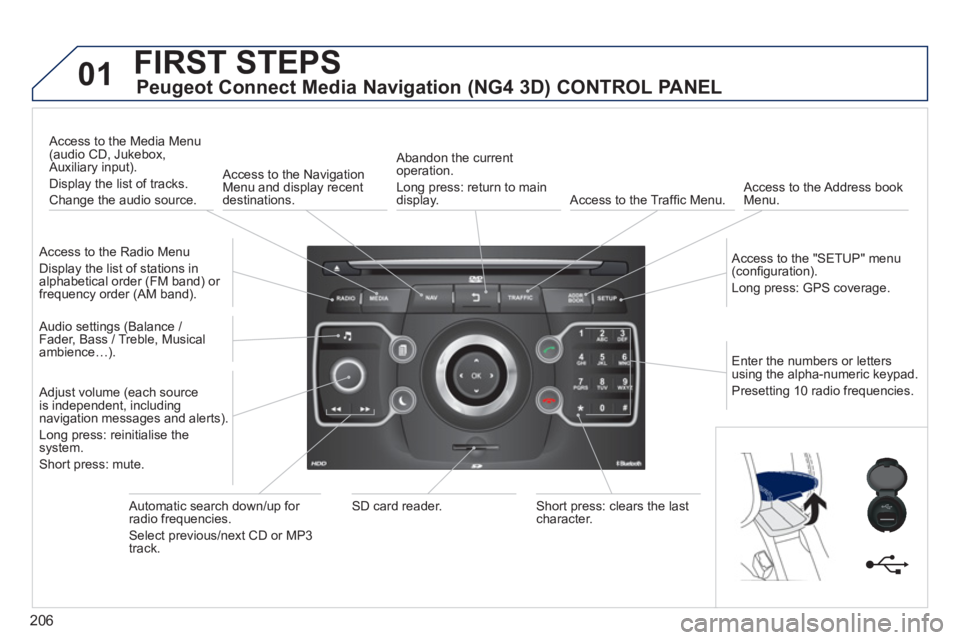

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL
