2012 PEUGEOT RCZ seats

CONTENTS
2
ECO-DRIVING 20-21
Direction indicators 102Hazard warning lamps 102Emergency or assistance call 103Horn 103
Tyre under-inflation detection 103Braking assistance systems 105Trajectory control systems 106Active bonnet 108
Active spoiler 109Front seat belts 111Airbags 114Child seats 119
Front seats 65Steering wheel adjustment 69Mirrors 70Rear seats 73Ventilation 74
Dual-zone digital air conditioning 76Rear screen demist - defrost 78Courtesy lamp 79Interior mood lighting 80
Interior fittings 82Front armrest 85Boot fittings 88
Lighting controls 90LED lamps 93Automatic illumination of headlamps 94
Headlamp adjustment 96Directional lighting 97Wiper controls 98
Automatic rain sensitive wipers 100
FAMILIARISATION 4-19
1/INSTRUMENTS and CONTROLS 22-51
2/ACCESS 52-64
3/EASE OF USE and COMFORT 65-89
4/VISIBILITY 90-101
5/SAFETY 102-126
Remote control key 52Alarm 56Electric windows 59Doors 61Boot 64
Instrument panels 22Warning and indicator lamps 26Indicators 33
Instrument panel buttons 37Clock 38Trip computer 39
Monochrome screen C (Peugeot Connect Sound (RD5))42Retractable colour screen (Peugeot Connect Navigation (RT6))46Retractable colour screen (Peugeot Connect Media Navigation (NG4 3D))48

FAMILIARISATION
SITTING COMFORTABLY

FRONT SEATS


Forwards-backwards
Height


MANUAL ADJUSTMENTS

65
66


ELECTRIC ADJUSTMENTS


Seat back angle

12
SITTING COMFORTABLY

FRONT SEATS

85


Other functions available...

Lumbar adjustment.
As a safety precaution, these
operations must only be carried out
when stationary. Heated seats. 67
67


STEERING WHEEL ADJUSTMENT



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.
69


FRONT ARMREST

For your comfort, the height and the
longitudinal position of the front armrest can
be adjusted.
It also offers a storage compartment. Storing of driving positions (driver's electric
seat).
68

FAMILIARISATION



- Insert the tongue A
in the buckle A
in the
middle of the rear seat.

- Insert the tongue B
in the outer buckle B
.


REAR SEAT BELTS

112



FOLDING DOWN THE REAR
BACKREST
73

1.
Release the backrest by pulling the
handle from the boot.
73


ACCESS TO THE REAR SEATS



1.
Releasing the backrest.

2.
Tilting the backrest.


2.
Fold the backrest onto the seat cushion
from the passenger compartment. Press the red button B
then the black button A

to remove the seat belt. The control giving access to the rear
seats does not release the seat.

LIMIT THE CAUSES OF EXCESS
CONSUMPTION

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refi t your summer tyres.



OBSERVE THE RECOMMENDATIONS ON
MAINTENANCE

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil fi lter, air fi lter...)
and observe the schedule of operations recommended by the
manufacturer.



When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overfl ow.

At the wheel of your new vehicle, it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down
to a consistent average.

3/
EASE OF USE and COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a seat
back which can be adjusted to adapt your position for ease of driving
and comfort.

MANUAL ADJUSTMENTS


Forwards-backwards adjustment
Driver's or passenger's seat height adjustment

Seat back angle adjustment



)
Raise the control bar and slide the seat forwards or backwards.


)
Pull the control lever upwards to raise or push it downwards to
lower, as many times as necessary, to obtain the position required.



)
Turn the knob to set the angle required.

66
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a
seat back which can be adjusted to adapt your position for ease of
driving and comfort.


ELECTRIC ADJUSTMENTS


Forwards-backwards adjustment
Seat cushion height adjustment



)
Push the control forwards or rearwards to slide the seat.


)
Tilt the rear part of the control upwards or downwards to obtain
the required height.

The electrical functions of the seat are deactivated approximately
one minute after the ignition is switched off.
To reactivate them, switch on the ignition.



Seat back angle adjustment



)
Tilt the control forwards or rearwards to adjust the angle of the
seat back.

3/
EASE OF USE and COMFORT

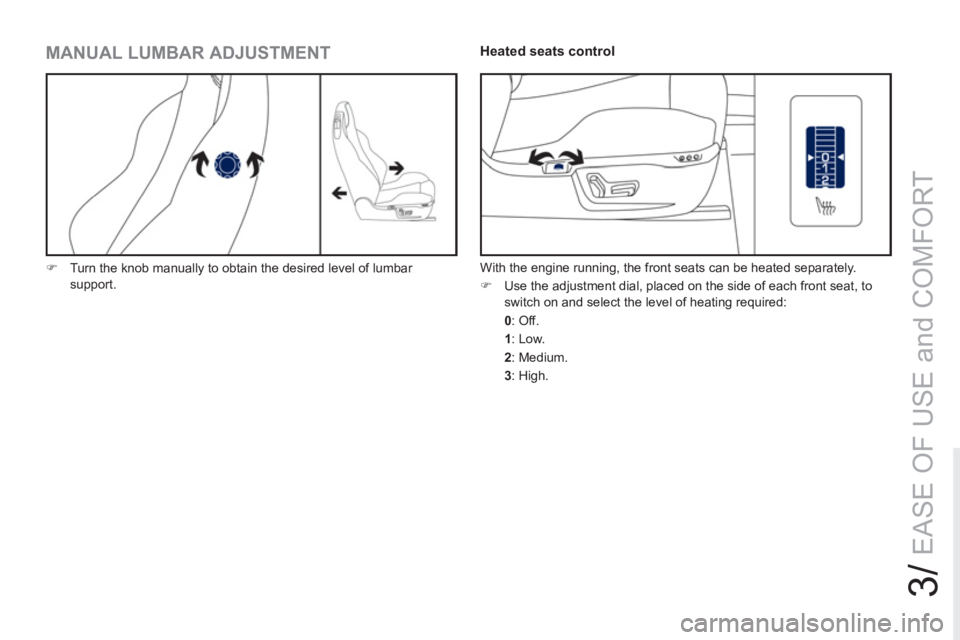

MANUAL LUMBAR ADJUSTMENT



)
Turn the knob manually to obtain the desired level of lumbar
support.












Heated seats control

With the engine running, the front seats can be heated separately.


)
Use the adjustment dial, placed on the side of each front seat, to
switch on and select the level of heating required:

0
:
Off.

1
:
Low.

2
:
Medium.

3
:
High.
