2012 PEUGEOT RCZ seats
[x] Cancel search: seatsPage 75 of 336
3/
EASE OF USE and COMFORT
ACCESS TO THE REAR SEATS
REAR SEATS
Two-seat bench with one-piece fi xed seat cushion and one-piece folding
backrest.
The rear headrests are fi xed.
FOLDING DOWN THE REAR BACKREST
RETURNING THE REAR BACKREST TO THE UPRIGHT POSITION
When returning the backrest to the upright position, ensure that it is
locked securely to assure your safety.
)
Open the boot.
)
Pull the backrest release handle, located under the shelf.
When transporting long objects, do not place a load of more
than 30 kg on the rear of the backrest.
Do not place rough objects on the rear of the backrest which
could damage it.
)
Check that the front seat has been moved forward suffi ciently.
)
Pull the control upwards to tilt the backrest.
When the seat is put back in place, the backrest returns to its initial position.
The backrest can be folded down to increase the boot storage space.
The backrest release control is located in the boot.
)
Check that the front seats have been moved forward suffi ciently.
)
Check that nothing has been left on the rear seats.
)
Store the seat belt buckles on their respective securing points
located between the headrests.
)
Fold the backrest down onto the seat cushion.
Page 98 of 336
96
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPSA
UTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
To avoid dazzling other road users, the height of the halogen bulb
headlamps must be adjusted according to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads. In order to avoid causing a nuisance to other road users, this system
corrects the height of the xenon headlamp beams automatically and
when stationary, in relation to the load in the vehicle.
If a malfunction occurs, this warning lamp is displayed on the
instrument panel, accompanied by an audible signal and a
message in the screen.
The system then places your headlamps in the lowest position.
Initial setting is position "0". Do not touch the xenon headlamp bulbs.
Contact a PEUGEOT dealer or a qualifi ed workshop.
Travelling abroad
If using your vehicle in a country that drives on the other side of
the road, the headlamps must be adjusted to avoid dazzling on-
coming drivers.
Contact a PEUGEOT dealer or a qualifi ed workshop.
Page 113 of 336
5/
SAFETY
SEAT BELTS
FRONT SEAT BELTS
Fastening
)
Pull the strap, then insert the tongue in the buckle.
)
Check that the seat belt is fastened correctly by pulling the strap.
Unfastening
)
Press the red button on the buckle.
)
Guide the seat belt as it reels in.
Seat belt not fastened / unfastened warning lamps display
A.
Front seat belts not fastened / unfastened warning lamp.
B.
Front left seat belt warning lamp.
C.
Front right seat belt warning lamp.
When the ignition is switched on, the warning lamp A
comes on in the
seat belt and passenger's front airbag warning lamp display, if the driver
and/or the front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h) this warning lamp fl ashes for
two minutes accompanied by an audible signal of increasing volume.
Once these two minutes have elapsed, this warning lamp remains on
until the driver and/or the front passenger fastens their seat belt.
The warning lamp B
or C
for the corresponding seat comes on in red if
the seat belt is not fastened or is unfastened.
The front seat belts are fi tted with a pretensioning and force limiting
system.
This system improves safety in the front seats in the event of a front or
side impact. Depending on the severity of the impact, the pretensioning
system instantly tightens the seat belts against the body of the
occupants.
The pretensioning seat belts are active when the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of
the occupant, so improving their protection.
Page 114 of 336
11 2
REAR SEAT BELTS
The rear seats are each fi tted with a three-point inertia reel seat belt
with force limiter.
Fastening
1.
Pull the strap and insert the tongue F
in the black buckle F
, in the
centre of the bench seat.
2.
Insert the tongue G
in the outer red buckle G
.
3.
Check that each buckle is fastened correctly by pulling the strap.
Unfastening
1.
Press the red button on the buckle G
, then the black button on the
buckle F
.
2.
Guide the strap as it reels in and bring the tongue G
, then the
tongue F
to the corresponding securing point on the backrest.
Seat belt unfastened warning lamps display
A.
Rear seat belts unfastened warning lamp.
D.
Rear right seat belt warning lamp.
E.
Rear left seat belt warning lamp.
The warning lamp A
comes on, either on in the seat belt and
passenger's front airbag warning lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h), this warning lamp fl ashes for
two minutes accompanied by an audible signal of increasing volume.
Once these two minutes have elapsed, this warning lamp remains on
until the one or more rear passengers fasten their seat belt.
When the ignition is switched on, with the engine running or the vehicle
moving at a speed below approximately 12 mph (20 km/h),
the corresponding warning lamps D
and E
come on in red for
approximately 30 seconds, if the seat belt is not fastened.
When the vehicle is moving at a speed of more than approximately
12 mph (20 km/h), the corresponding warning lamp D
or E
comes on in
red, accompanied by an audible signal and a message in the screen,
if a rear passenger has unfastened their seat belt.
Unfastening is detected on both buckles of the seat belt. The
corresponding warning lamp comes on when at least one of the
two buckles is unfastened.
Page 121 of 336
5/
SAFETY

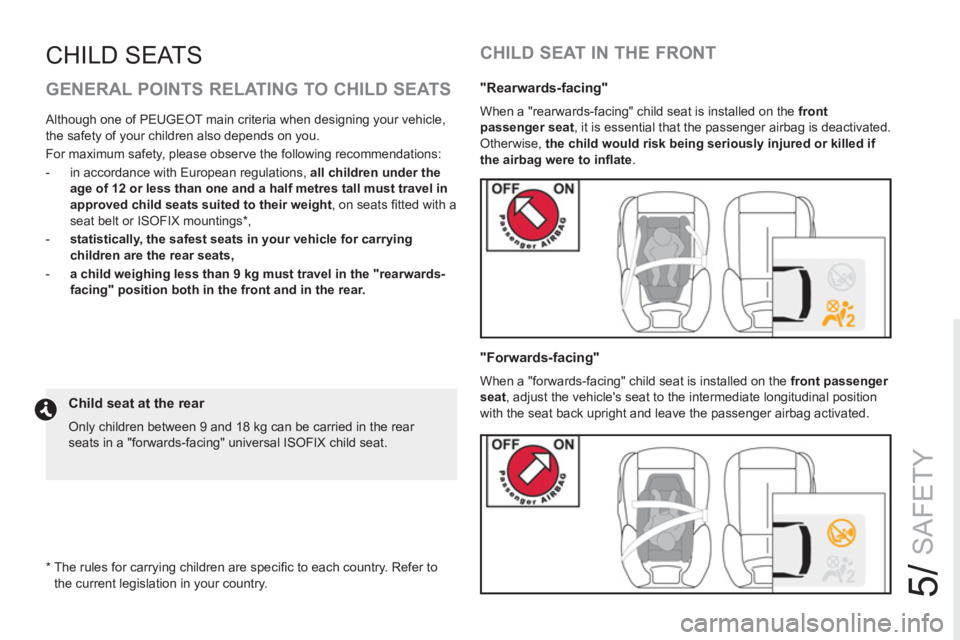

GENERAL POINTS RELATING TO CHILD SEATS
Although one of PEUGEOT main criteria when designing your vehicle,
the safety of your children also depends on you.
For maximum safety, please observe the following recommendations:
- in accordance with European regulations, all children under the
age of 12 or less than one and a half metres tall must travel in
approved child seats suited to their weight
, on seats fi tted with a
seat belt or ISOFIX mountings * ,
- statistically, the safest seats in your vehicle for carrying
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front and in the rear.
Child seat at the rear
Only children between 9 and 18 kg can be carried in the rear
seats in a "forwards-facing" universal ISOFIX child seat.
CHILD SEAT IN THE FRONT
"Rearwards-facing"
When a "rearwards-facing" child seat is installed on the front
passenger seat
, it is essential that the passenger airbag is deactivated.
Otherwise, the child would risk being seriously injured or killed if
the airbag were to infl ate
.
*
The rules for carrying children are specifi c to each country. Refer to
the current legislation in your country.
"Forwards-facing"
When a "forwards-facing" child seat is installed on the front passenger
seat
, adjust the vehicle's seat to the intermediate longitudinal position
with the seat back upright and leave the passenger airbag activated.
CHILD SEATS
Page 123 of 336
5/
SAFETY
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.
Groups 2 and 3: from 15 to 36 kg
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster
is used on its own.
L5
"RÖMER KIDFIX"
Page 124 of 336
122
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Seat
Weight of the child
/indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U(R)
U(R)
U(R)
U(R)
Outer rear seats
X
X
X
X
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car" cots cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U(R) : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or "forward facing", with
the seat adjusted to its highest position.
X:
seat not suited to the installation of a child seat for the weight group indicated.
Page 125 of 336
5/
SAFETY
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must be positioned on the child's
shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the
child's thighs.
PEUGEOT recommends the use of a booster seat which has a back,
fi tted with a seat belt guide at shoulder level. The incorrect installation of a child seat in a vehicle compromises
the child's protection in the event of an accident.
When installing a child seat using the seat belt, ensure that the
seat belt is tightened correctly on the child seat and that it secures
the child seat fi rmly on the vehicle's seat.
Remember to fasten the seat belts or the child seat harnesses
keeping
the slack
in relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward facing" child seat, ensure
that the back of the child seat is in contact with the back of the
vehicle's seat and that the head restraint does not cause any
discomfort.
Children under the age of 10 must not travel in the "forward
facing" position on the front passenger seat, unless the rear seats
are already occupied by other children, cannot be used or are
absent.
Deactivate the passenger airbag when a "rear facing" child seat
is installed on the front seat. Otherwise, the child would risk being
seriously injured or killed if the airbag were to infl ate. As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun,
with the windows closed,
- the keys within reach of children inside the vehicle.
