2012 PEUGEOT 4007 Owners Manual

9
PRACTICAL INFORMATION

Changing foglamp bulbs


)
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A
.

)
Remove the 4 clips B
using a screw-
driver to detach the lamp cover.

)
Remove the bolts C
and remove the
lamp unit.
)
Turn the pin and bulb assembly D
to
the left.

)
Remove the bulb.
To r efi t, carry out these operations in
reverse order.


)
When refi tting the lamp unit, align
the clips E
with the openings on the
bodywork.

9
PRACTICAL INFORMATION
CHANANGING A FUSE
Changing a fuse

Before changing a fuse, the cause of the
failure must be identifi ed and rectifi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.


Access to the tools

The extraction tweezer is fi tted in the
engine compartment fusebox.
To gain access to them:


)
Open the bonnet (refer to the "Ac-
cess" section),

)
Press on the hook A
and release
the catch,

)
Remove the cover completely,

)
Remove the tweezer B
.
Good Failed


)
Use the special tweezer to extract
the fuse from its location.

)
Always replace the faulty fuse with
a fuse of the same rating.

)
Check that the number etched on
the box, the rating etched on the top
and the tables below all agree.
The spare fuses are located on
the engine compartment fuse-
box cover. Your vehicle's electrical system
is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer or a qualifi ed workshop.
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying the malfunctions result-
ing from the installation of ac-
cessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with
its instructions, in particular when
the consumption of all of the ad-
ditional equipment connected
exceeds 10 milliamperes.

9
PRACTICAL INFORMATION

Dashboard fuses

The fuseboxes are placed in the lower
dashboard behind the enclosed storage
compartment (left-hand side).

Access to the fuses


)
Open the cover A
,

)
Pull it towards you to extract it,

)
Change the fuse (refer to the cor-
responding paragraph).

Fuse N°



Rating



Functions




1*



30 A

Heating.


2



15 A

Brake lamps, third brake lamp, built-in systems
interface.


3



10 A

Rear foglamps.


4



30 A

Windscreen wipers and screenwash.


5



10 A

Diagnostic socket.


6



20 A

Central locking, door mirrors.


7



15 A

Audio equipment, telematics, multifunction screen,
Bluetooth system.


8



7.5 A

Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.


9



15 A

Multifunction screen, instrument panel.


10



15 A

Built-in systems interface.


11



15 A

Rear wiper.


12



7.5 A

Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.


13



-

Not used.


14



10 A

Ignition switch.


15



20 A

Sunroof.


16



10 A

Door mirrors, audio equipment, telematics.

9
PRACTICAL INFORMATION

Access to the fuses


)
Open the cover A
,

)
Pull it towards you to extract it,

)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.


Fuse N°



Rating



Functions




17



10 A

4 wheel drive control unit.


18



7.5 A

Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.


19



15 A

Accessories socket.


20*



30 A

Electric window controls.


21
*

30 A

Rear screen demisting.


22



7.5 A

Heated door mirrors.


23



-

Not used.


24



25 A

Driver's electric seat, footwell lighting, rear bench
seat release.


25



30 A

Heated seats.

9
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine compartment near the
battery (left-hand side).

Access to the fuses


)
Open the bonnet (refer to the "Access" section),

)
Press on the hook A
to release the catch,

)
Remove the cover completely,

)
Change the fuse (refer to the corresponding paragraph),

)
When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.

Fuse N°



Rating



Functions




1



15 A

Front foglamps.


2



7 A

Engine ECU 2.4 litre 16 V


3



20 A

CVT automatic gearbox ECU, CVT
automatic gearbox relay


4



10 A

Horn.


5



7.5 A

Alternator 2.4 litre 16V


6



20 A

Headlamp wash.


7



10 A

Air conditioning.


8



15 A

Engine ECU 2.4 litre 16 V


9



-

Not used.


10



15 A

Demisting, wipers.


11



-

Not used.


12



-

Not used.


13



-

Not used.


14



10 A

Left-hand main beam headlamp.


15



10 A

Right-hand main beam headlamp.


16



20 A



Left-hand dipped beam headlamp (xenon).



17



20 A


Right-hand dipped beam headlamp (xenon).



18



10 A


Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.


19



10 A

Right-hand dipped beam headlamp.


20



-

Not used.


21



10 A

Ignition coils

9
PRACTICAL INFORMATION

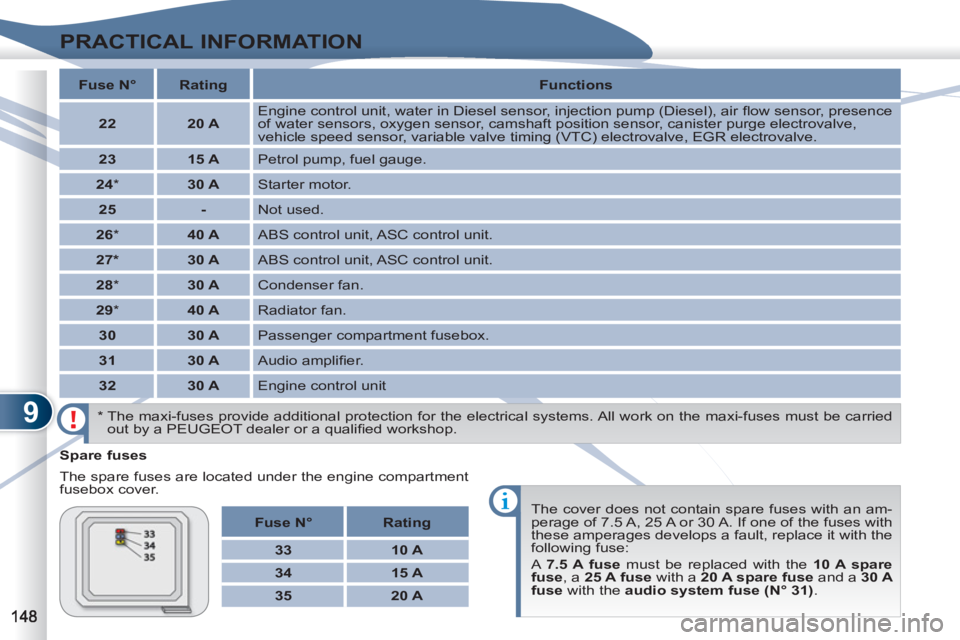

Spare fuses
The spare fuses are located under the engine compartment
fusebox cover.
The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse
must be replaced with the 10 A spare
fuse
, a 25 A fuse
with a 20 A spare fuse
and a 30 A
fuse
with the audio system fuse (N° 31)
.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.

Fuse N°



Rating



Functions




22



20 A

Engine control unit, water in Diesel sensor, injection pump (Diesel), air fl ow sensor, presence
of water sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve,
vehicle speed sensor, variable valve timing (VTC) electrovalve, EGR electrovalve.


23



15 A

Petrol pump, fuel gauge.


24
*

30 A

Starter motor.


25



-

Not used.


26
*

40 A

ABS control unit, ASC control unit.


27*



30 A

ABS control unit, ASC control unit.


28
*

30 A

Condenser fan.


29
*

40 A

Radiator fan.


30



30 A

Passenger compartment fusebox.



31



30 A

Audio amplifi er.


32



30 A

Engine control unit


Fuse N°



Rating




33



10 A




34



15 A




35



20 A

9
PRACTICAL INFORMATION

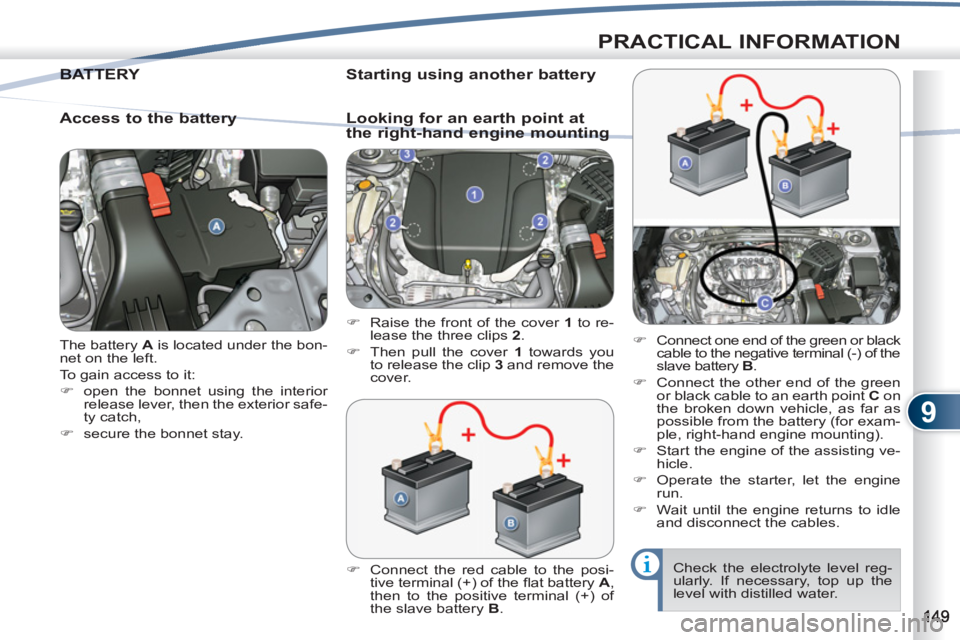

The battery A
is located under the bon-
net on the left.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,

)
secure the bonnet stay.

BATTERYBATTE


Access to the battery



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.
)
Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B
.

)
Connect the other end of the green
or black cable to an earth point C
on
the broken down vehicle, as far as
possible from the battery (for exam-
ple, right-hand engine mounting).

)
Start the engine of the assisting ve-
hicle.

)
Operate the starter, let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.


)
Raise the front of the cover 1
to re-
lease the three clips 2
.

)
Then pull the cover 1
towards you
to release the clip 3
and remove the
cover.

Check the electrolyte level reg-
ularly. If necessary, top up the
level with distilled water.


Starting using another battery
Looking for an earth point at
the right-hand engine mounting

9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Remove the battery and place it in a
ventilated area.

)
Remove the top-up caps and top up
the level with distilled water if nec-
essary.

)
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.

)
Disconnect the battery from the
charger and let it to cool.

)
If necessary, top up the level with
distilled water.

)
Clean the top of the battery care-
fully.

)
Put the top-up caps back in place.

)
Check that the terminals and con-
nectors are clean. If they are cov-
ered with sulphate (whitish or
greenish deposit), remove them
and clean them.

)
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Avoid prolonged contact of the
electrolyte with the skin.
Most of these fl uids are harmful
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
diffi culties are encountered following this
operation, contact a PEUGEOT dealer or
a qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise:


- the one-touch electric windows,

- the sunroof,

- the satellite navigation system.
