2012 PEUGEOT 4007 Owners Manual

FAMILIARISATION
7

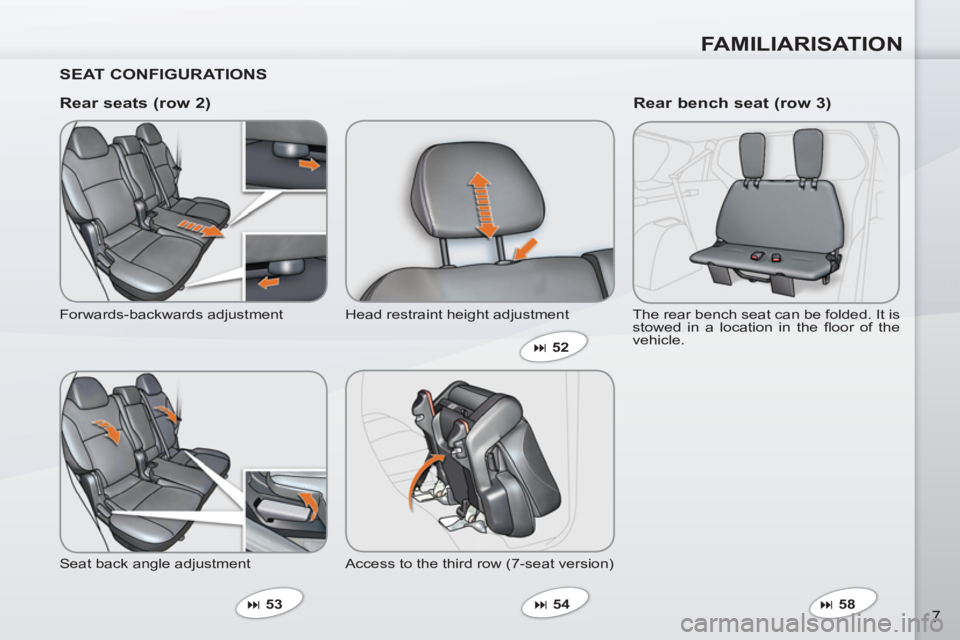

SEAT CONFIGURATIONS

Rear seats (row 2)

Forwards-backwards adjustment
Seat back angle adjustment



53 Head restraint height adjustment
Access to the third row (7-seat version)



54



Rear bench seat (row 3)

The rear bench seat can be folded. It is
stowed in a location in the fl oor of the
vehicle.



58



52

FAMILIARISATION
8

INTERIOR

Digital air conditioning

This automatic air conditioning system
maintains the desired level of com-
fort and adequate air circulation in the
passenger compartment.

Cruise control

This system automatically maintains
the vehicle speed at the value pro-
grammed by the driver, without use of
the accelerator pedal.

Audio and communication
systems
These systems benefi t from the lat-
est technology: MP3 compatible audio
system, Bluetooth hands-free tele-
phone, colour screen...

Four wheel drive system with
electronic control
This system permits the selection of a
transmission mode to suit the driving
conditions.


44




121



162




119

FAMILIARISATION
9

INSTRUMENTS AND CONTROLS



1.
Audio system controls.

2.
Telephone controls.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator
control stalk.
Headlamp wash control.

5.
Instrument panel.

6.
Driver's air bag.
Horn.

7.
Cruise control switches.

8.
Gear lever.

9.
Parking brake.

10.
Bonnet release lever.

11 .
Enclosed storage compartment.
Fusebox.

12.
Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
sensors.

13.
Cup holder.

14.
Side adjustable air vent.

15.
Information button.

16.
Window demisting/defrosting vent.

17.
Windscreen demisting/defrosting
vent.

FAMILIARISATION
10

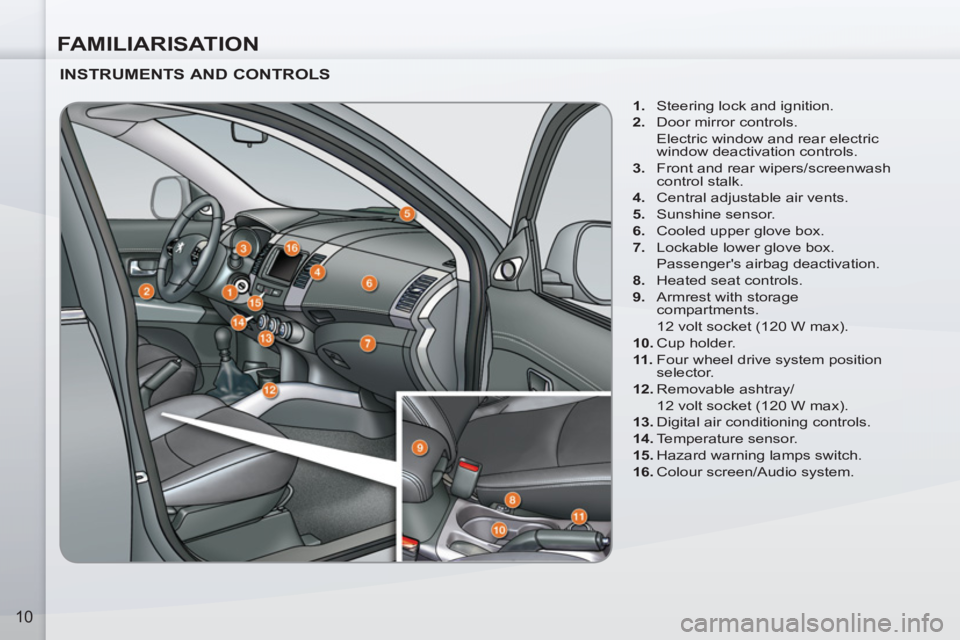

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Door mirror controls.
Electric window and rear electric
window deactivation controls.

3.
Front and rear wipers/screenwash
control stalk.

4.
Central adjustable air vents.

5.
Sunshine sensor.

6.
Cooled upper glove box.

7.
Lockable lower glove box.
Passenger's airbag deactivation.

8.
Heated seat controls.

9.
Armrest with storage
compartments.
12 volt socket (120 W max).

10.
Cup holder.

11 .
Four wheel drive system position
selector.

12.
Removable ashtray/
12 volt socket (120 W max).

13.
Digital air conditioning controls.

14.
Temperature sensor.

15.
Hazard warning lamps switch.

16.
Colour screen/Audio system.

FAMILIARISATION
11

SITTING COMFORTABLY




51




Front seats

Forwards-backwards Driver's seat cushion height and angle Seat back angle
Manual adjustments

Electric adjustments (driver's seat only)
Forwards-backwards Seat cushion height and angle Seat back angle


50

FAMILIARISATION
12

SITTING COMFORTABLY



1.
Releasing the lever.

2.
Locking the lever.

3.

Adjustment of the height of the steering
wheel.


Manual steering wheel height
adjustment
Door mirror adjustment


A.
Selection of the mirror.

B.

Adjustment of the position of the mirror.


C.
Folding/Unfolding.



63



Rear view mirror adjustment


D.
Control for selection of the "day/night"
position of the mirror.



61




62



Front seat belt



1.
Fastening.

2.
Height adjustment.



105

FAMILIARISATION
13

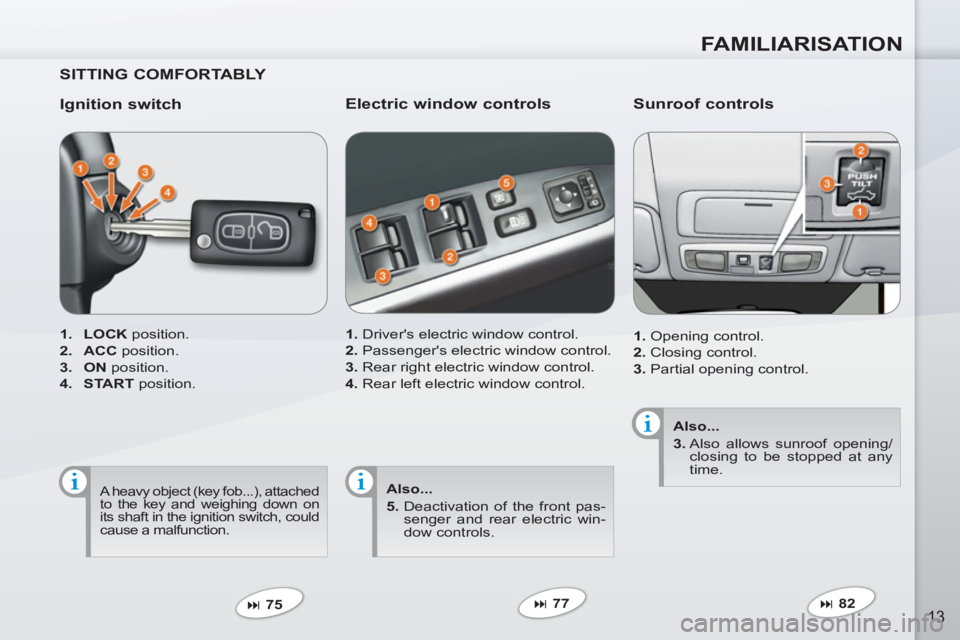

SITTING COMFORTABLY

Ignition switch



1.
LOCK
position.

2.
ACC
position.

3.
ON
position.

4.
START
position.



75



Electric window controls


1.
Driver's electric window control.

2.
Passenger's electric window control.

3.
Rear right electric window control.

4.
Rear left electric window control.

Also...

5.
Deactivation of the front pas-
senger and rear electric win-
dow controls.




77


Sunroof controls


1.
Opening control.

2.
Closing control.

3.
Partial opening control.

Also...

3.
Also allows sunroof opening/
closing to be stopped at any
time.




82


A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

FAMILIARISATION
14

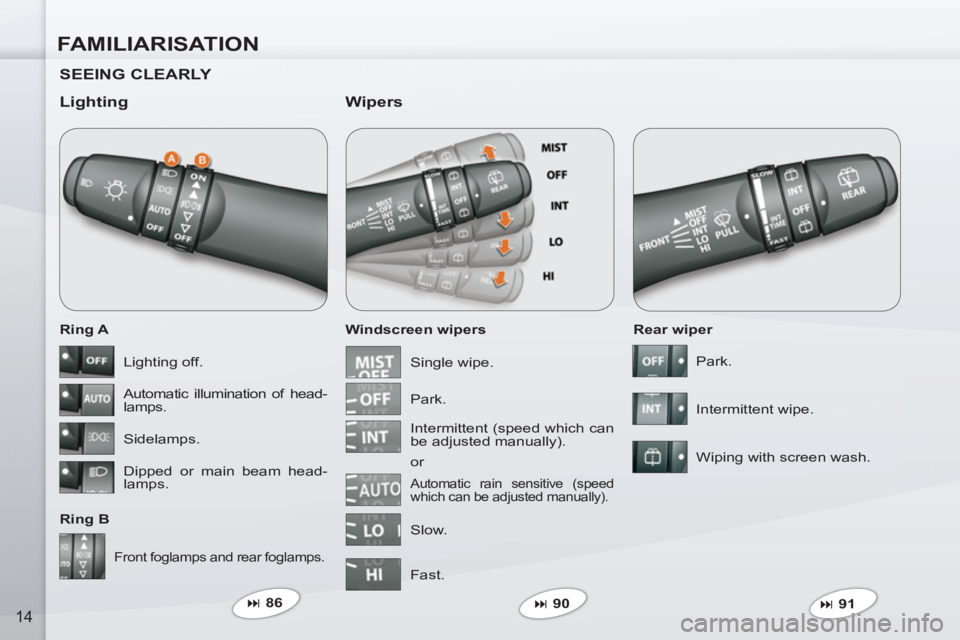

SEEING CLEARLY

Lighting


Ring A

Ring B
Windscreen wipers


Wipers


Rear wiper

Front foglamps and rear foglamps.





86



90




91

Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped or main beam head-
lamps. Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Slow. or

Automatic rain sensitive (speed
which can be adjusted manually).
