3
!
i
ACCESS
69
ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function.
Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
In the "cabriolet" confi guration, the
interior protection is deactivated
automatically.
Locking the vehicle with
perimiter protection only
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activate; the indicator lamp
on button A
fl ashes once per second.
The perimiter protection is activated
5 seconds after pressing the locking
button on the remote control.
The volumetric protection is activated
45 seconds after pressing the locking
button on the remote control.
If a door or the boot is open or not
properly closed, the vehicle is not
locked, but the perimiter protection will
be activated after 45 seconds at the
same time as the volumetric protection.
Exterior perimeter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp on button A
switches off.
Deactivation of the interior
volumetric protection
)
Switch off the ignition.
)
Within ten seconds, press button A
un-
til the indicator lamp is lit continuously.
)
Get out of the vehicle.
)
Quickly lock or deadlock the vehicle
using the locking button on the re-
mote control.
The exterior perimeter protection alone
remains activated; the indicator lamp on
button A
fl ashes once per second.
Page 72 of 224
3
!
ACCESS
70
Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, protection is
again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Failure of the remote control
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is trig-
gered.
)
Switch on the ignition; the alarm
stops.
*
According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is locked
using the remote control, the alarm is
activated, regardless of the status of
the doors and boot.
- 2 minutes after the last door or the
boot is closed, the alarm is activated.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
Reactivation of the interior
protection
)
Unlock the vehicle using the unlock-
ing button on the remote control.
)
Lock the vehicle again using the re-
mote control.
The alarm is activate again with both
types of protection; the indicator lamp
on button A
fl ashes once per second.
Page 73 of 224
3
!
i
ACCESS
71
WINDOW CONTROLS
System which opens or closes a win-
dow manually or automatically. It is fi t-
ted with a system which controls all four
windows on all models.
1.
Driver's electric windows switch.
2.
Passenger's electric windows switch.
Each window switch controls, on its
own side, the front window and the rear
quarter light.
One-touch electric windows
You have two options:
The windows (except the driver's
window) do not have an automatic
mode or safety anti-pinch function
for closing.
For your safety, the windows rise
in several stages; however, always
be vigilant. The window control switches re-
main operational for approximate-
ly 45 seconds after the ignition
is switched off or until a door is
opened.
)
Press or pull switch 1
. The
window stops as soon as the
switch is released.
The rear quarter light only opens once the
front window has opened completely.
Electric windows
- manual mode
)
Press or pull switch 1
gently. The
window stops as soon as the switch
is released.
The rear quarter light only opens once the
front window has opened completely.
- automatic mode
)
Press switch 1
fully. The window
opens or closes completely when
the switch is released.
)
Pressing the switch again stops the
movement of the window.
)
If you continue to press the switch,
the rear quarter light will open or
close.
Page 74 of 224
3
!
i
i
ACCESS
72

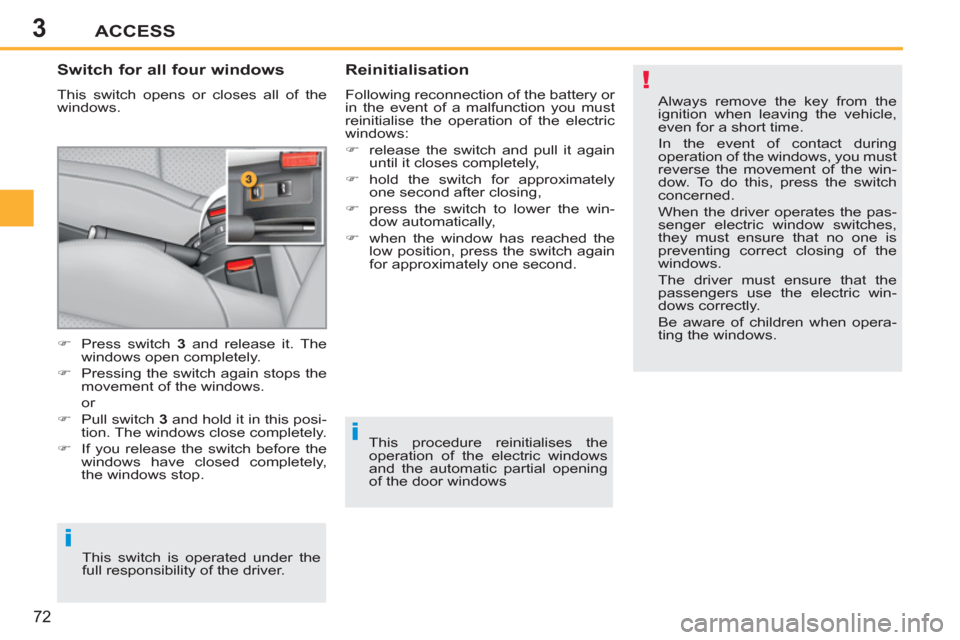

Switch for all four windows
This switch opens or closes all of the
windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
)
release the switch and pull it again
until it closes completely,
)
hold the switch for approximately
one second after closing,
)
press the switch to lower the win-
dow automatically,
)
when the window has reached the
low position, press the switch again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows.
)
Press switch 3
and release it. The
windows open completely.
)
Pressing the switch again stops the
movement of the windows.
or
)
Pull switch 3
and hold it in this posi-
tion. The windows close completely.
)
If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver. This procedure reinitialises the
operation of the electric windows
and the automatic partial opening
of the door windows
Page 76 of 224
3
i
i
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and button A
is inactive.
)
In this case, use the remote
control or the key to unlock the
vehicle.
Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking
)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
)
With the key in the ignition, press
button A
again to unlock the vehicle.
The red indicator lamp on the button
switches off.
Page 78 of 224
3
i
i
ACCESS
76
BOOT
Opening
)
After unlocking the boot or the vehi-
cle using the remote control or the
key, pull the handle and raise the
boot lid.
Unlocking and partially opening
the boot
)
Press the boot unlocking
button on the remote control
for more than two seconds.
The boot opens slightly.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer or a qualifi ed workshop.
Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door opening
control, when the key is not in the
ignition switch,
- by pressing the manual centralised
control A
, when the key is not in the
ignition switch.
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Closing
)
Lower the boot lid using the interior
grab handle.
If the boot lid is not closed correctly:
Automatic locking of the boot
In the "cabriolet" confi guration, with
the vehicle locked, if you unlock the
boot by pressing the boot unlock-
ing button on the remote control,
it will lock automatically when you
close it again.
In this case, if you inadvertently
leave the key in the boot, press the
manual centralised control A
im-
mediately to unlock the boot and
retrieve the key.
Page 83 of 224
4
!
i
81
VISIBILITY
Model with front and rear foglamps
front and rear foglamps
C.
foglamps selection ring.
These operate with the dipped and main
beam headlamps.
)
To switch on the foglamps, turn
ring C
forwards.
)
To switch off the rear foglamps, turn
ring C
rearwards twice in succes-
sion.
When the lighting is switched off auto-
matically (on AUTO model) or when the
dipped beam headlamps are switched
off manually, the foglamps and the side-
lamps will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer neces-
sary. In normal light levels, the
power of their beams may dazzle
other drivers.
Lighting on reminder
The triggering of an audible signal
when a door is opened warns the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off,
if the dipped beam headlamps re-
main on, they will be switched off
automatically after thirty minutes to
prevent discharging of the battery.
This indicator lamp comes on
on the instrument panel.
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime running
lamps, the dipped beam headlamps
come on when the vehicle is started.
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, unless the auto-
matic lighting mode is activated or the
lighting is switched on manually.
Page 84 of 224
4
!
82
VISIBILITY
In fog or snow, the sunshine sensor
may detect suffi cient light. There-
fore, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu,
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically, with-
out any action on the part of the driver, when
a low level of external light is detected (sen-
sor behind the rear view mirror) or when the
windscreen wipers are switched on.
As soon as the brightness returns to a suf-
fi cient level or after the windscreen wipers
are switched off, the lighting is switched off
automatically.
"Guide-me-home" lighting
The dipped beam headlamps remain on
temporarily, after switching off the vehi-
cle's ignition, to make the driver's exit
easier in poor light.
Activation
)
With the ignition off, activate a
"headlamp fl ash" using stalk B
.
)
A second "headlamp fl ash" switches
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time.
Activation
)
Turn ring A
to the " AUTO
" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.
Deactivation
)
Turn ring A
to a position other than
" AUTO
". Deactivation is accompa-
nied by a message in the multifunction
screen.
Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
