Page 134 of 714
Features and controls
3-19
3

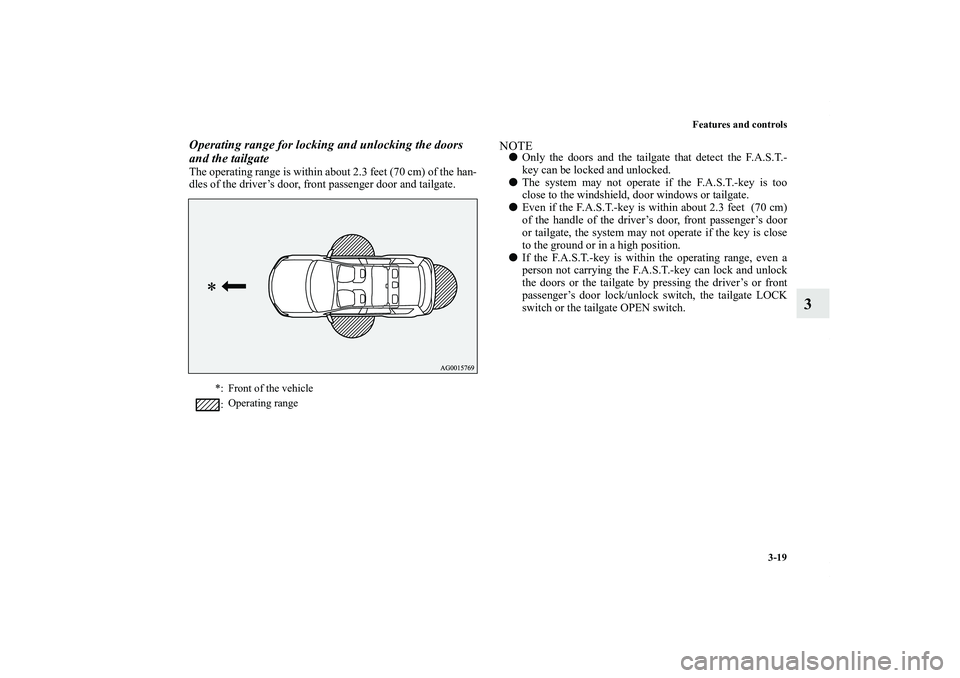

Operating range for locking and unlocking the doors
and the tailgateThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s door, front passenger door and tailgate.
NOTEOnly the doors and the tailgate that detect the F.A.S.T.-
key can be locked and unlocked.
The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or tailgate.
Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handle of the driver’s door, front passenger’s door
or tailgate, the system may not operate if the key is close
to the ground or in a high position.
If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the tailgate by pressing the driver’s or front
passenger’s door lock/unlock switch, the tailgate LOCK
switch or the tailgate OPEN switch.
*: Front of the vehicle
:Operating range
BK0138000US.book 19 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 135 of 714
3-20 Features and controls
3
Operating range for starting the engine
N00503300054
The operating range is the interior of the vehicle.NOTEEven if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or luggage
compartment.
Even if the F.A.S.T.-key is inside the vehicle, it may not
be possible to start the engine if the key is too close to a
door or door window.
To operate using the F.A.S.T.-key
N00503400198
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s or front pas-
senger’s door lock/unlock switch (A), or the tailgate LOCK
switch (B) within the operating range to lock all the doors and
the tailgate.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Doors locks”, “Power door locks” and “Flap-
fold tailgate” on pages 3-53, 3-57 and 3-60 respectively.
*: Front of the vehicle
:Operating range
Driver’s and front passenger’s door
lock/unlock switches
BK0138000US.book 20 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 145 of 714
3-30 Features and controls
3
F.A.S.T.-key take-out monitoring system
N00559800102
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900129
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors and the tailgate are closed, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch, the warning
display is displayed and the buzzer sounds for about 3 seconds
as a warning, and the doors and the tailgate cannot be locked.
BK0138000US.book 30 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 182 of 714
Features and controls
3-67
3
NOTEIf the engine hood is open, the theft-alarm indicator (A)
illuminates and the system cannot enter the armed stage.
The system enters the armed stage about 20 seconds after
the engine hood is closed.
The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the tailgate are
unlocked by using the keyless entry system or the
F.A.S.T.-key operation.
The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON”.
The system will not be armed if a door, the tailgate or the
engine hood is not completely closed. If this happens,
rearm the system as described above.
The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.
For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors and the tailgate)
is deactivated, the turn signal lights do not flash after the
locking and unlocking operation.For information on the answerback function, refer to
“Keyless entry system” on pages 3-9 and 3-45 and “To
operate using the F.A.S.T.-key” on page 3-20.
For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• During a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-65.
For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0138000US.book 67 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 185 of 714
3-70 Features and controls
3
NOTEThe function will be activated again if the following oper-
ation is performed.
• If the doors and the tailgate are unlocked using the key-
less entry system or the F.A.S.T.-key operation.
• If the ignition switch is turned to the “ON” or “ACC”
position.Disarmed stageThe system will be disarmed if the following operation is per-
formed.
The ignition switch is turned to the “ON” position.
All doors and the tailgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.
NOTEIf the UNLOCK button on the remote control transmitter,
or the driver’s or front passenger’s door lock/unlock
switch is pressed when all doors and the tailgate are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.
The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob. Open the door.
5. Make sure that the horn (the siren for vehicles equipped
with the interior alarm sensor) sounds intermittently and
the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the tailgate
by using the keyless entry system or the F.A.S.T.-key
operation.
Disarm...by using the keyless entry system or F.A.S.T.-key
operationBK0138000US.book 70 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 186 of 714
Features and controls
3-71
3 Power window control
N00510800383
NOTENever try to operate the main switch and sub-switch in
different directions at the same time. This will freeze the
window in position.
Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.1- Open (down)
2- Close (up)
WA R N I N G
!Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.Never leave the vehicle without carrying the key.Never leave children or unreliable adults unat-
tended inside the vehicle.
BK0138000US.book 71 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 187 of 714
3-72 Features and controls
3

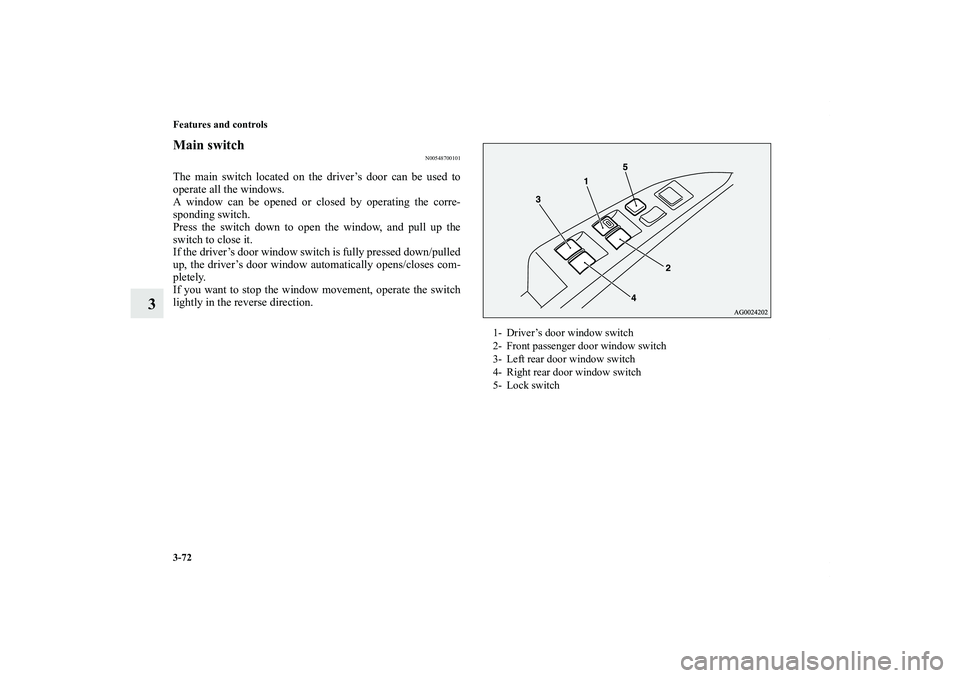

Main switch
N00548700101
The main switch located on the driver’s door can be used to
operate all the windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull up the
switch to close it.
If the driver’s door window switch is fully pressed down/pulled
up, the driver’s door window automatically opens/closes com-
pletely.
If you want to stop the window movement, operate the switch
lightly in the reverse direction.
1- Driver’s door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Lock switch
BK0138000US.book 72 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 188 of 714
Features and controls
3-73
3

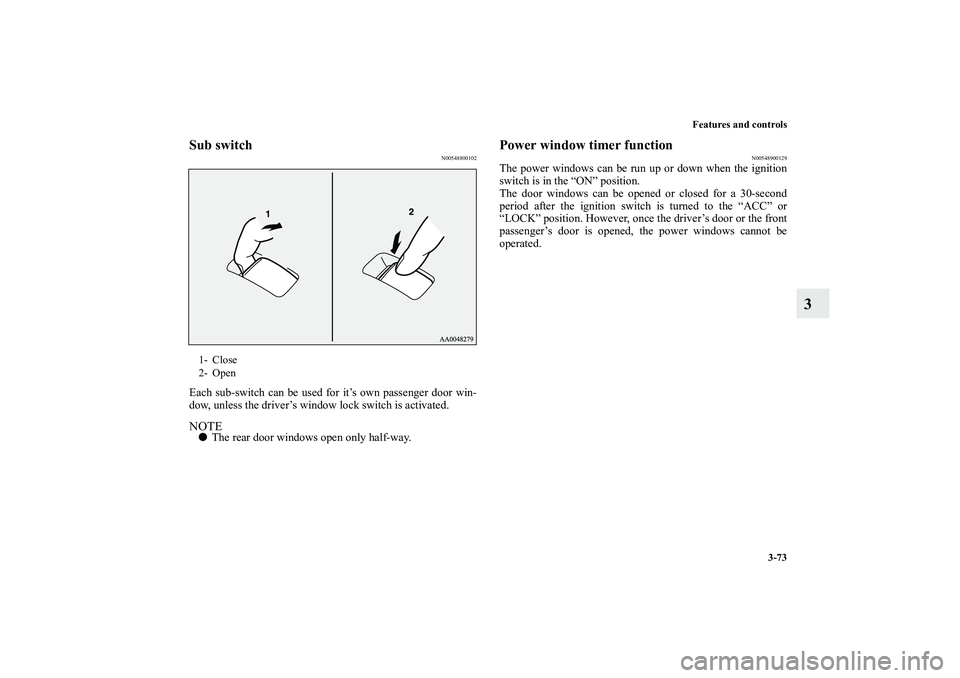

Sub switch
N00548800102
Each sub-switch can be used for it’s own passenger door win-
dow, unless the driver’s window lock switch is activated.NOTEThe rear door windows open only half-way.
Power window timer function
N00548900129
The power windows can be run up or down when the ignition
switch is in the “ON” position.
The door windows can be opened or closed for a 30-second
period after the ignition switch is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.
1- Close
2- Open
