2012 MITSUBISHI OUTLANDER XL window

7-48 Vehicle care and maintenance
7
5. Insert a new fuse of the same capacity securely into the
appropriate slot.
Replacement of light bulbs
N00942900310
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
BK0138000US.book 48 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

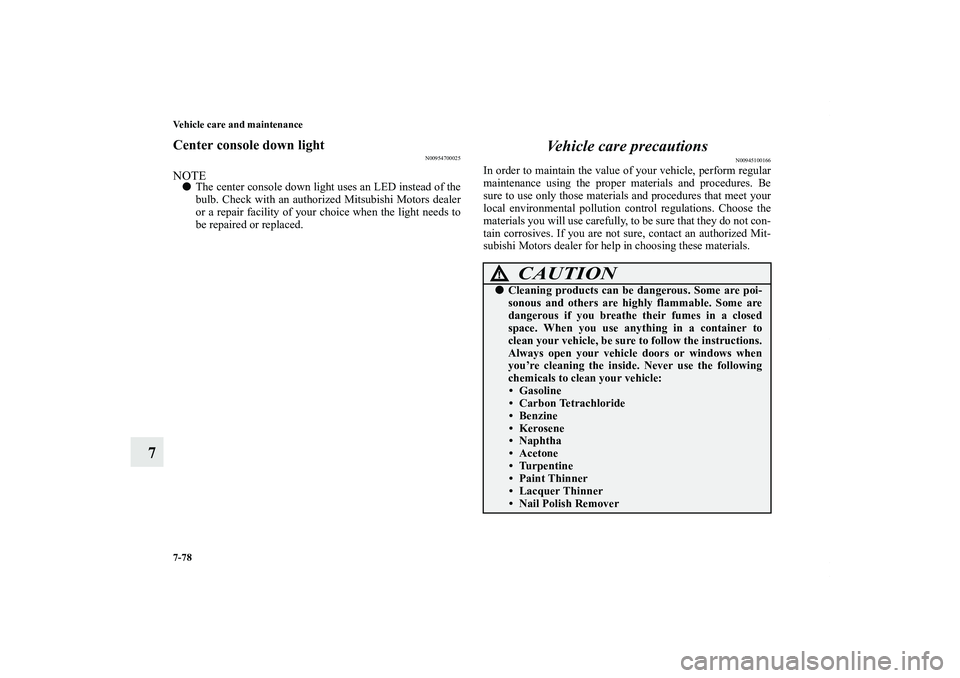

7-78 Vehicle care and maintenance
7
Center console down light
N00954700025
NOTE
The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
Vehicle care precautions
N00945100166
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous and others are highly flammable. Some are
dangerous if you breathe their fumes in a closed
space. When you use anything in a container to
clean your vehicle, be sure to follow the instructions.
Always open your vehicle doors or windows when
you’re cleaning the inside. Never use the following
chemicals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
BK0138000US.book 78 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-84 Vehicle care and maintenance
7
Cleaning plastic parts
N00946300194
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois.Chrome parts
N00946400052
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
Aluminum wheels (if so equipped)
N00946500183
1. Remove dirt using a wet sponge.
2. Use a mild detergent on any dirt that cannot be removed
easily with water.
Rinse off the detergent after washing the wheel.
3. Dry the wheel thoroughly using a chamois leather or a soft
cloth.Window glass
N00946600054
The window glass can usually be cleaned using only a sponge
and water. Glass cleaner can be used to remove wax, oil,
grease, dead insects, etc. After washing the glass, wipe it dry
with a clean, dry, soft cloth.
CAUTION
!
Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.
Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.
Do not let plastic parts get soiled with gasoline, oil,
brake fluids, engine oils, greases, paint thinner, and
sulfuric acid (battery electrolyte), as such substances
will cause stains, cracks, or discoloration.
If any of these get on a plastic part, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
CAUTION
!
Do not use a brush or other hard implement on the
wheels.
Do not use any cleaner that contains an abrasive
substance or is acidic or alkaline. Doing so could
cause the coating on the wheels to peel or become
discolored or stained.
Do not directly apply hot water using a steam
cleaner or by any other means.
Contact with seawater or road salt used for de-icing
can cause corrosion. Rinse off such substances as
soon as possible.
BK0138000US.book 84 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-85
7
Wiper blades
N00946700068
Use a soft cloth and glass cleaner to remove grease, dead
insects, etc., from the wiper blades.
Replace the wiper blades when they no longer clean the wind-
shield and rear window properly.Cleaning the sunroof (if so equipped)
N00946800069
Clean the inside of the sunroof with a soft cloth. Hard deposits
should be wiped away with a cloth dipped in warm, neutral
detergent solution. Wipe away the solution with a sponge
dipped in fresh water.NOTE
The surface treatment on the inside of the glass may be
removed if a hard cloth or organic solvent is used.Engine compartment
N00947000071
Never spray or splash water on the electrical accessories in the
engine compartment. This puts the engine at risk of being dam-
aged.
Do not bring the circumferential parts, the plastic parts and so
on into contact with sulfuric acid (battery electrolyte) which
may crack, stain or discolor them.
If they are in contact, wipe off with soft cloth, chamois or the
like and an aqueous solution of neutral detergent then immedi-
ately rinse the affected parts with plenty of water.
BK0138000US.book 85 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
2Power brakes 3-129
Service brake 3-128
Warning lights 3-210
Break-in recommendations 3-2
Bulb capacity 7-49
C
California Perchlorate Materials Requirements 1-9
Capacities 9-11
Card holder 3-270
Cargo area cover 3-287
Cargo loads 4-13
Cargo room light
Bulb capacity 7-51
Replacement 7-75
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-126
Certification label 9-5
Charging system warning light 3-212
Child restraint systems 2-50
Child safety locks for rear door 3-59
Cleaning
Inside of your vehicle 7-79
Outside of your vehicle 7-81
Clock 5-136
Coat hook 3-290
Consumer information 8-2
Continuously variable transmission (CVT) 3-104
Fluid 7-18
,9-11Selector lever operation 3-104
Selector lever positions 3-109
Sports mode 3-110
Coolant (engine) 7-12
,9-11
Cruise control 3-142
Cup holder 3-283
D
Daytime running lights
Bulb capacity 7-49
Replacement 7-56
Defogger (rear window) 3-236
Defrosting or defogging (windshield, door windows) 5-14
,5-
23
,5-33
,5-43
Dimensions 9-6
Dimmer (high/low beam change) 3-220
Disc brake pads 7-37
Dome light
Bulb capacity 7-51
Replacement 7-73
,7-75
Doors
Lock 3-53
Power door locks 3-57
Driving during cold weather 4-6
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-236
BK0138000US.book 2 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
5
O
Octane rating 1-2
Oil
Engine oil 9-11
Rear axle oil 9-11
Transfer oil 9-11
Operation under adverse driving conditions 6-27
Outside rearview mirrors 3-86
Overheating 6-5
P
Parking 4-8
Parking brake 3-80
Parking lights
Bulb capacity 7-49
Replacement 7-58
Personal compartment 3-279
Polishing 7-83
Power brakes 3-129
Power outlet 3-270
Power steering
Fluid 7-21
,9-11
System 3-137
Power windows 3-71
Puncture (Tire changing) 6-10
R
Radiator cap 7-13Radio
AM/FM electronically tuned radio with CD player 5-46
AM/FM electronically tuned radio with 6 CD autochanger 5-
66
General information about your radio 5-137
Reading lights
Bulb capacity 7-51
Replacement 7-73
Rear axle oil 7-19
,9-11
Rear combination lights
Bulb capacity 7-49
Replacement 7-65
Rear side-marker lights
Bulb capacity 7-49
Replacement 7-69
Rear turn-signal light
Bulb capacity 7-49
Replacement 7-65
Rear-view camera 3-156
Rearview mirror
Inside rearview mirror 3-82
Outside rearview mirrors 3-86
Replacement of light bulbs 7-48
Replacing tires and wheels 7-29
Reporting Safety Defects 8-3
Roof antenna 5-134,5-135
S
Safe driving techniques 4-6
BK0138000US.book 5 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
7
Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-29
Rotation 7-30
Size (tire and wheel) 9-10
Snow tires 7-32
To change a tire 6-10
Tread wear indicator 7-30
Tire pressure monitoring system 3-150
Tires
Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7
Storage 6-7
Towing 6-25
Trailer towing 4-17
Transfer oil 7-18
,9-11
Turn signal light
Indicators 3-210
Lever 3-224
U
USB input terminal 3-263
How to connect an iPod 3-266
USB input terminal device
How to connect a USB memory 3-264
V
Vanity mirror 3-269
Vanity mirror lights
Bulb capacity 7-51
Replacement 7-77
Vehicle care precautions 7-78
Vehicle dimensions 9-6
Vehicle labeling 9-2
Vehicle preparation before driving 4-5
Vehicle weights 9-7
Vents 5-2
W
Warning lights 3-210
Washer
Fluid 7-19
,9-11
Rear window washer 3-234
Switch 3-233
Washing 7-81
Waxing 7-82
Weights 9-7
Wheel
Covers 6-23
Specification 9-10
Wiper
Rear window wiper 3-234
Switch 3-227
Wiper blades 7-34
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
