2012 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (497,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-54.
Specifications
10-11
Mazda3_8BM5-EA-10F_Edition2 Page497
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (498,1)
Personalization Features
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Available customization Initial Setting After Setting Change
Auto headlight on/offThe headlight illumination on/off timing based
on the surrounding lightness/darkness can be
changed.2000―4000 lx 1000―2000 lx
Turn indicatorThe volume level of the turn indicator can be
changed.High Low/Deactivated
Key reminder
warning alarmThe volume of the key reminder warning alarm
can be changed.High Low
Lights-on reminder
warning alarm
*1The volume of the lights-on reminder warning
alarm can be changed.High Low/Deactivated
Illumination entryThe time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed.15 seconds 7.5/30/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated.Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated.Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar).30 minutes 10/60 minutes
The time required for the interior lamp to
illuminate after unlocking any door can be
changed.30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed.Activated Deactivated
Smart turnThe function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
activated.Deactivated Activated
10-12
Personalization Features
Mazda3_8BM5-EA-10F_Edition2 Page498
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (499,1)
Setting Available customization Initial Setting After Setting Change
Power door locksThe vehicle-speed-response auto lock function
can be deactivated.Activated Deactivated
Locking/unlocking of the doors can be set in
conjunction with the selector lever position.Deactivated1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable
The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed.Unlock all doorsUnlock driver's
door/Inoperable
Keyless entryThe method for unlocking doors using the
retractable key can be selected.Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed.30 seconds 60/90 seconds
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated.Activated Deactivated
The hazard warning lights can be deactivated so
that they do not flash when the doors are
locked/unlocked.Activated Deactivated
Personalization Features
10-13
Mazda3_8BM5-EA-10F_Edition2 Page499
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (500,1)
Setting Available customization Initial Setting After Setting Change
Advanced keyless
entryThe function to automatically lock doors when
leaving the vehicle while carrying the key can
be activated.Deactivated Activated
The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated.Activated Deactivated
The volume of the answer-back beep during
keyless entry system operation can be adjusted.High Low/Deactivated
The volume of the warning beep for the
advanced keyless entry system can be adjusted.High Low
The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated.Activated Deactivated
A transition pattern in which the ignition
position can be switched when pressing the
push button start can be selected.ON→Off ON→ACC→Off
The advanced key function can be deactivated. Activated Deactivated
The method for unlocking the doors using the
request switch can be selected.Press × 2 Press × 1
*1 Without auto-light control function
The following“Personalization Features”can be changed the vehicle owner.
Setting Function Initial Setting After Setting Change
Multi information
displayThe display language can be selected. 6-107English, French,
or Spanish
English/German/French/Italian/
Spanish
The distance unit can be changed. 6-107 mile or km km or mile
The temperature unit can be changed. 6-107 °F or °C °C or °F
10-14
Personalization Features
Mazda3_8BM5-EA-10F_Edition2 Page500
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (501,1)

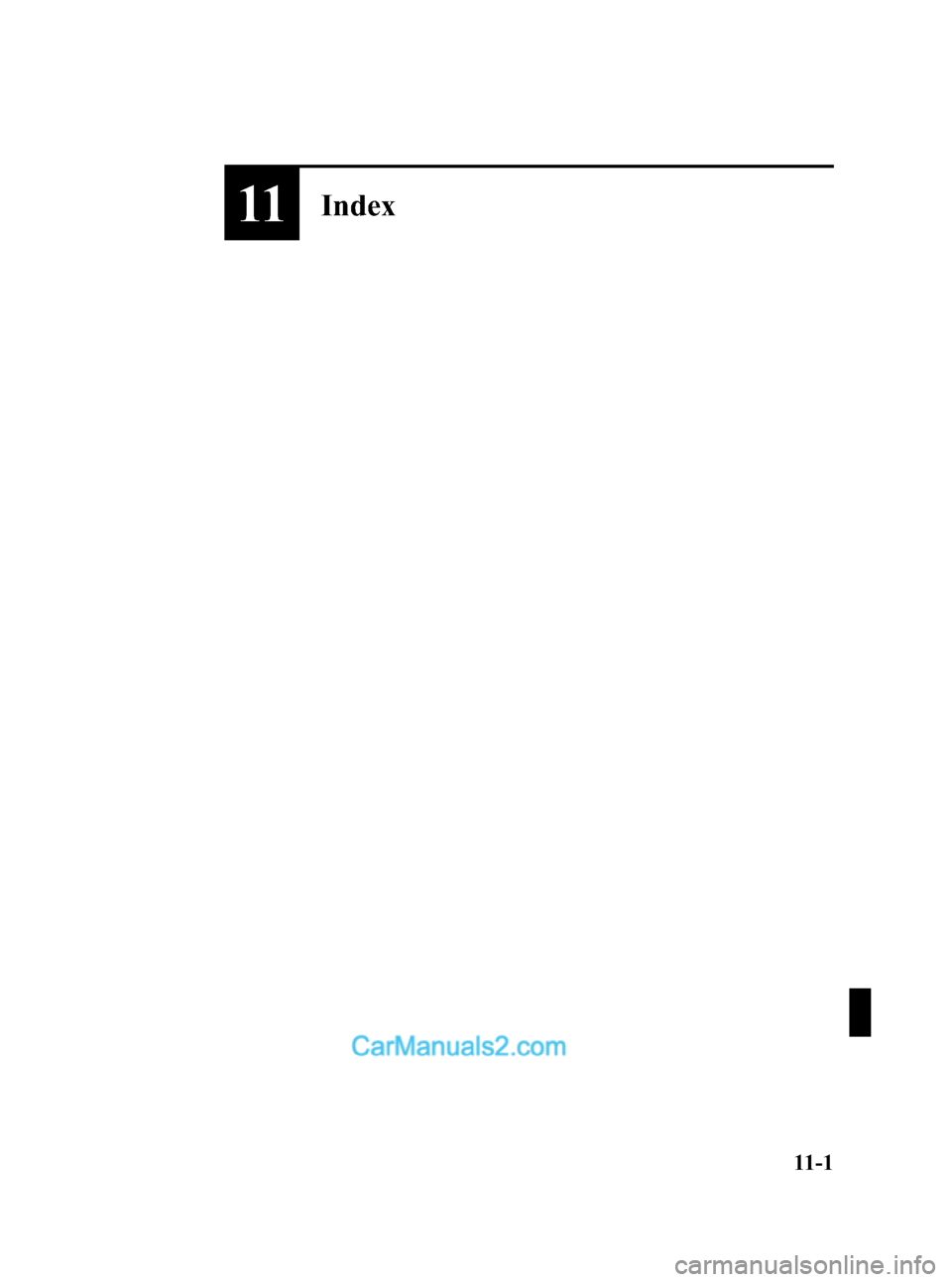

11Index
11-1
Mazda3_8BM5-EA-10F_Edition2 Page501
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (502,1)
A
Accessory Socket ............................ 6-113
Adaptive Front Lighting System
(AFS) ................................................ 5-63
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-21
Auxiliary key .............................. 3-21
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-17
Service ......................................... 3-7
Warning and beep sounds .......... 3-22
When warning indicator/beep is
activated ..................................... 3-25
Air Bag Systems ............................... 2-43
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-8
Warning light ............................... 5-9
Appearance Care ............................... 8-60
Audio System ................................... 6-16
Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-59
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle
Driving tips ................................ 5-19
Fluid ........................................... 8-24
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
Battery
Emergency starting .................... 7-17
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beep Sounds
Ignition key reminder ................. 5-57
Lights-on reminder ..................... 5-57
Seat belt warning ........................ 5-57
Tire inflation pressure warning ... 5-58
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Bluetooth Audio ............................... 6-62
Bluetooth Hands-Free ....................... 6-71
Basic Bluetooth Hands-Free
operation .................................... 6-75
Convenient use of the hands-free
system ........................................ 6-80
Hands-free setting ...................... 6-86
Mazda Bluetooth Hands-Free
customer service ......................... 6-93
Safety certification ..................... 6-93
When Bluetooth Hands-Free cannot
be used ....................................... 6-92
Body Lubrication .............................. 8-27
Boost Gauge ..................................... 5-39
Bottle Holder ................................... 6-109
Brake/Clutch
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-42
11-2
Index
Mazda3_8BM5-EA-10F_Edition2 Page502
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (503,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-111
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-110
Child Restraint
Child restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-38
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2
Gas specifications ...................... 10-9
Clock ................................................. 6-97
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-108
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-40
Daytime Running Lights ................... 5-64
Defroster
Mirror ......................................... 5-70
Rear window .............................. 5-70
Dimensions ....................................... 10-5
Door Locks ....................................... 3-33
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
D
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-19
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-28
TCS/DSC indicator light ............ 5-28
E
Emergency Starting ........................... 7-17
Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-22
Emergency Towing ........................... 7-23
Emission Control System .................... 4-4
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-49
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-15
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-62
Index
11-3
Mazda3_8BM5-EA-10F_Edition2 Page503
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (504,1)

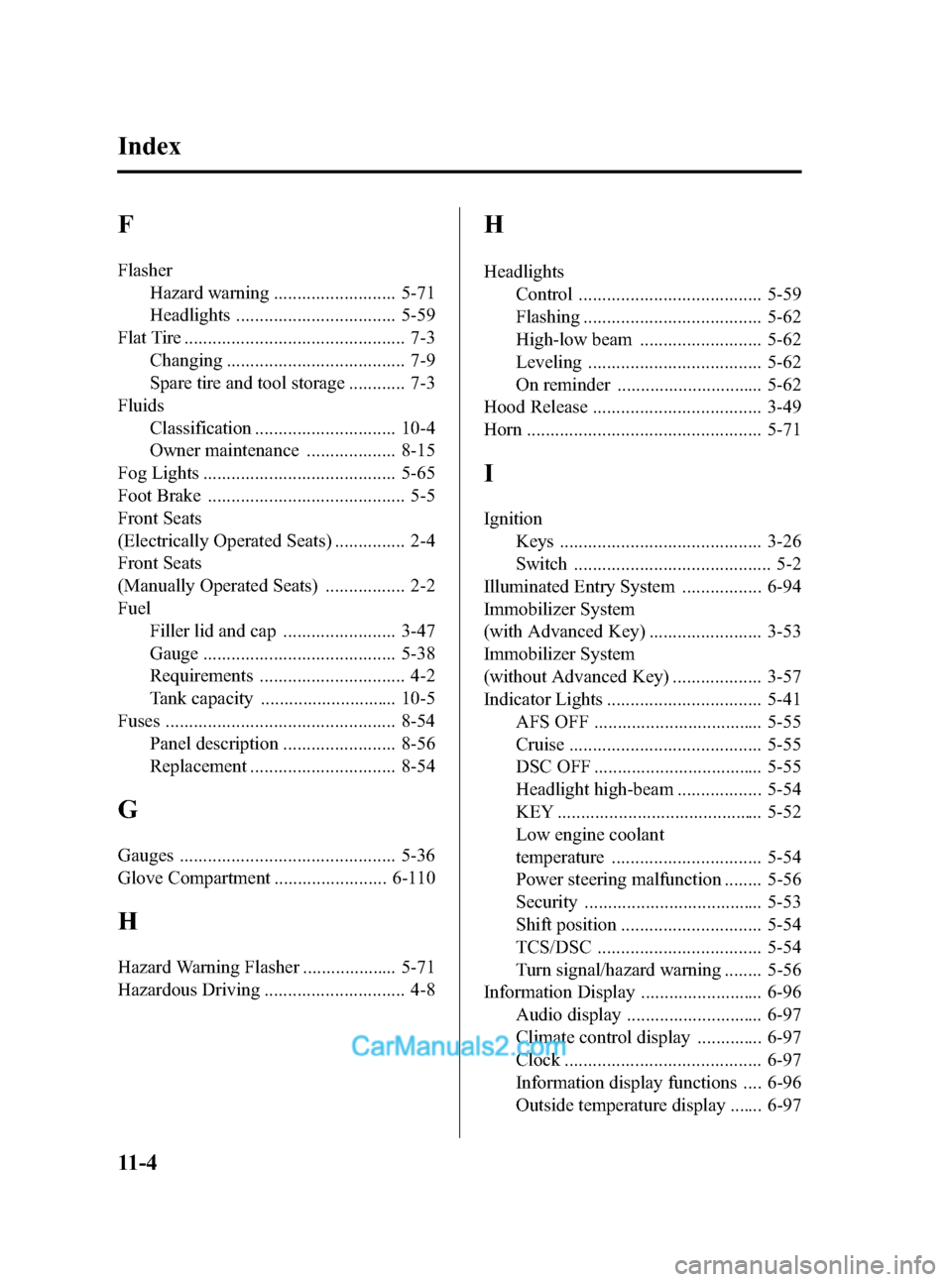

F
Flasher
Hazard warning .......................... 5-71
Headlights .................................. 5-59
Flat Tire ............................................... 7-3
Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-65
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-47
Gauge ......................................... 5-38
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-54
Panel description ........................ 8-56
Replacement ............................... 8-54
G
Gauges .............................................. 5-36
Glove Compartment ........................ 6-110
H
Hazard Warning Flasher .................... 5-71
Hazardous Driving .............................. 4-8
H
Headlights
Control ....................................... 5-59
Flashing ...................................... 5-62
High-low beam .......................... 5-62
Leveling ..................................... 5-62
On reminder ............................... 5-62
Hood Release .................................... 3-49
Horn .................................................. 5-71
I
Ignition
Keys ........................................... 3-26
Switch .......................................... 5-2
Illuminated Entry System ................. 6-94
Immobilizer System
(with Advanced Key) ........................ 3-53
Immobilizer System
(without Advanced Key) ................... 3-57
Indicator Lights ................................. 5-41
AFS OFF .................................... 5-55
Cruise ......................................... 5-55
DSC OFF .................................... 5-55
Headlight high-beam .................. 5-54
KEY ............................................ 5-52
Low engine coolant
temperature ................................ 5-54
Power steering malfunction ........ 5-56
Security ...................................... 5-53
Shift position .............................. 5-54
TCS/DSC ................................... 5-54
Turn signal/hazard warning ........ 5-56
Information Display .......................... 6-96
Audio display ............................. 6-97
Climate control display .............. 6-97
Clock .......................................... 6-97
Information display functions .... 6-96
Outside temperature display ....... 6-97
11-4
Index
Mazda3_8BM5-EA-10F_Edition2 Page504
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F
