2012 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (345,1)
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
Interior Comfort
Interior Equipment
6-113
Mazda3_8BM5-EA-10F_Edition2 Page345
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

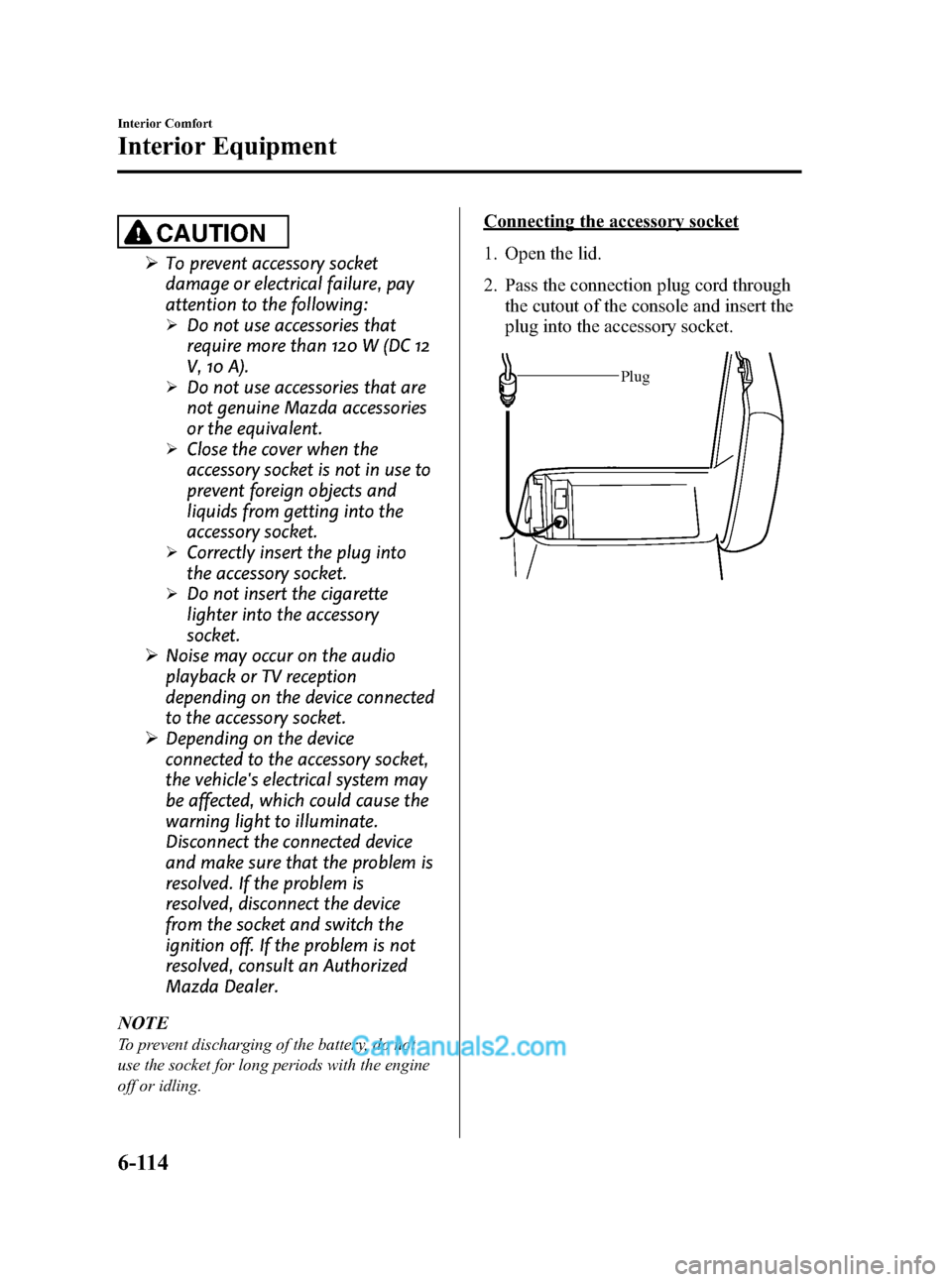

Black plate (346,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
ØNoise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
Plug
6-114
Interior Comfort
Interior Equipment
Mazda3_8BM5-EA-10F_Edition2 Page346
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (347,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-15
Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23
Towing Description ................................................................. 7-23
Tiedown Hook ........................................................................ 7-24
Recreational Towing ............................................................... 7-26
7-1
Mazda3_8BM5-EA-10F_Edition2 Page347
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (348,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8BM5-EA-10F_Edition2 Page348
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (349,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire
Jack
Jack handleTiedown eyelet
Lug wrench
Bolt for flat tire 4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8BM5-EA-10F_Edition2 Page349
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (350,1)
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Bolt for flat tireBolt for flat tire 5 Door
(Type A)
(Type B)
7-4
In Case of an Emergency
Flat Tire
Mazda3_8BM5-EA-10F_Edition2 Page350
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (351,1)
qJack
To remove the jack
(4 Door)
1. Remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing boltJack screw
(5 Door)
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing boltJack screw
In Case of an Emergency
Flat Tire
7-5
Mazda3_8BM5-EA-10F_Edition2 Page351
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (352,1)
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing up and turn the
wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Wing boltJack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
7-6
In Case of an Emergency
Flat Tire
