2012 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (489,1)
qEngine Number
2.0-liter and 2.5-liter engine
Forward
2.3-liter turbocharged engine
Forward
Identification Numbers
10-3
Mazda3_8BM5-EA-10F_Edition2 Page489
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (490,1)
Specifications
qEngine
ItemSpecification
2.0-liter engine2.3-liter turbocharged
engine2.5-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke87.5 × 83.1 mm
(3.44 × 3.27 in)87.5 × 94.0 mm
(3.44 × 3.70 in)89.0 × 100 mm
(3.50 × 3.94 in)
Displacement1,999 ml
(1,999 cc, 122.0 cu in)2,261 ml
(2,261 cc, 138.0 cu in)2,488 ml
(2,488 cc, 151.8 cu in)
Compression ratio 10.0 9.5 9.7
qElectrical System
ItemClassification
2.0-liter engine2.3-liter turbocharged
engine2.5-liter engine
Battery12V-40AH/5HR,
12V-52AH/5HR12V-48AH/5HR,
12V-52AH/5HR12V-40AH/5HR,
12V-48AH/5HR,
12V-52AH/5HR
Spark-plug numberLFG1 18 110
*1, L3Y2 18
110L3BD 18 110*1, L3YD 18
110LFG1 18 110*1, L3Y2 18
110
Spark-plug gap1.25―1.35 mm
(0.049―0.053 in)0.60―0.70 mm
(0.024―0.027 in)1.25―1.35 mm
(0.049―0.053 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page490
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (491,1)

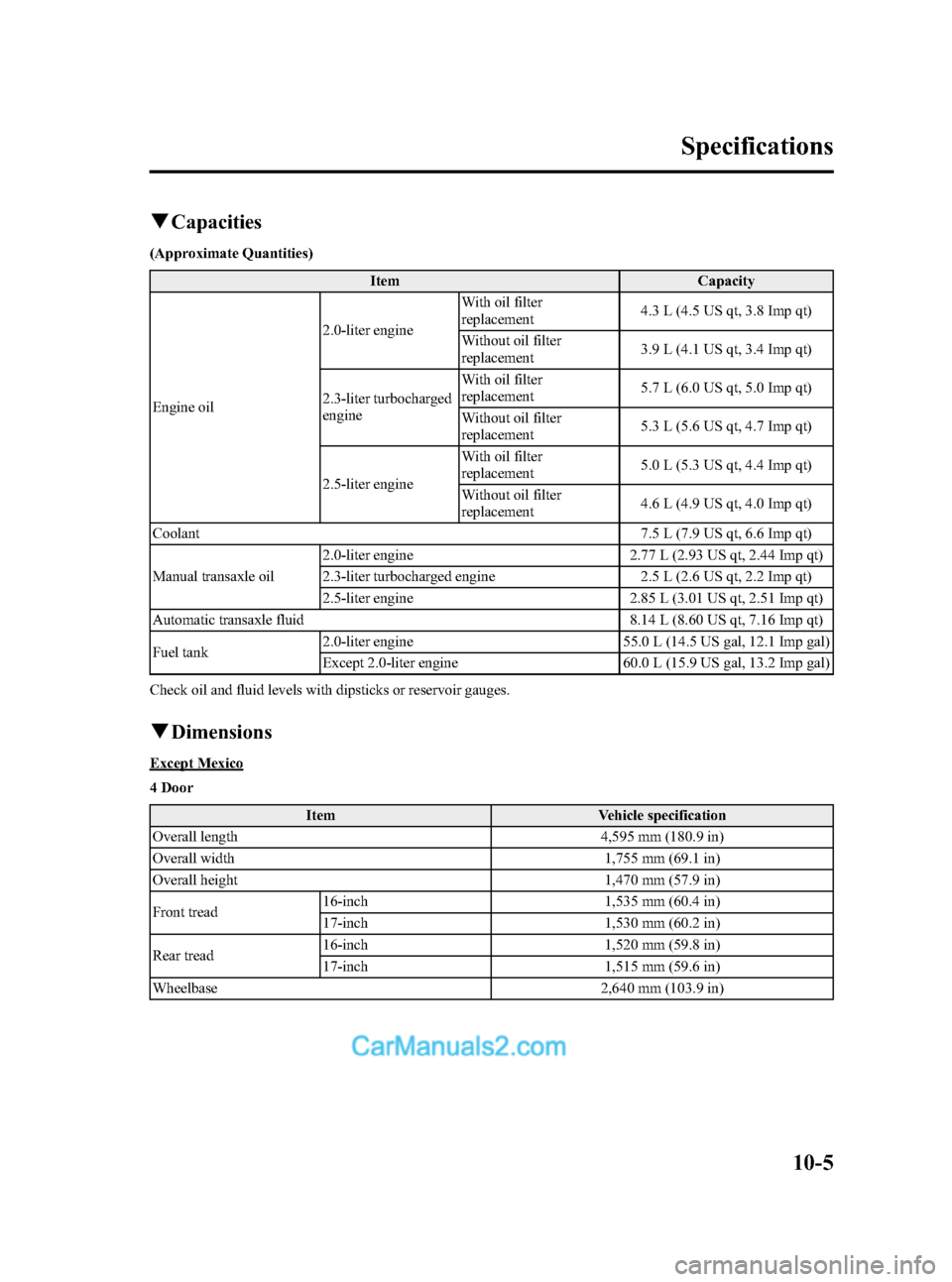

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.0-liter engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engineWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter
replacement5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil2.0-liter engine 2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank2.0-liter engine 55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8BM5-EA-10F_Edition2 Page491
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (492,1)
5 Door
(Except 2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Mexico
4 Door
Item Vehicle specification
Overall lengthWithout license plate
holder4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page492
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (493,1)
5 Door
(Except 2.3-liter turbocharged engine)
Item Vehicle specification
Overall lengthWithout license plate
holder4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
Except Mexico
4 Door
(2.0-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating)Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating)Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
Specifications
10-7
Mazda3_8BM5-EA-10F_Edition2 Page493
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (494,1)
5 Door
(2.0-liter engine (Canada))
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,788 kg (3,942 lbs)
GAWR (Gross Axle Weight Rating)Front 931 kg (2,052 lbs) 964 kg (2,125 lbs)
Rear 833 kg (1,836 lbs) 824 kg (1,817 lbs)
(2.3-liter turbocharged engine)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating)Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating)Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
Mexico
4 Door
(2.0-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,765 kg (3,891 lbs) 1,795 kg (3,957 lbs)
Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 835 kg (1,841 lbs) 830 kg (1,830 lbs)
GAW (Permissible axle load)Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 840 kg (1,852 lbs) 835 kg (1,841 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,815 kg (4,001 lbs) 1,845 kg (4,067 lbs)
Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 845 kg (1,863 lbs) 845 kg (1,863 lbs)
GAW (Permissible axle load)Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 850 kg (1,874 lbs) 850 kg (1,874 lbs)
10-8
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page494
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (495,1)

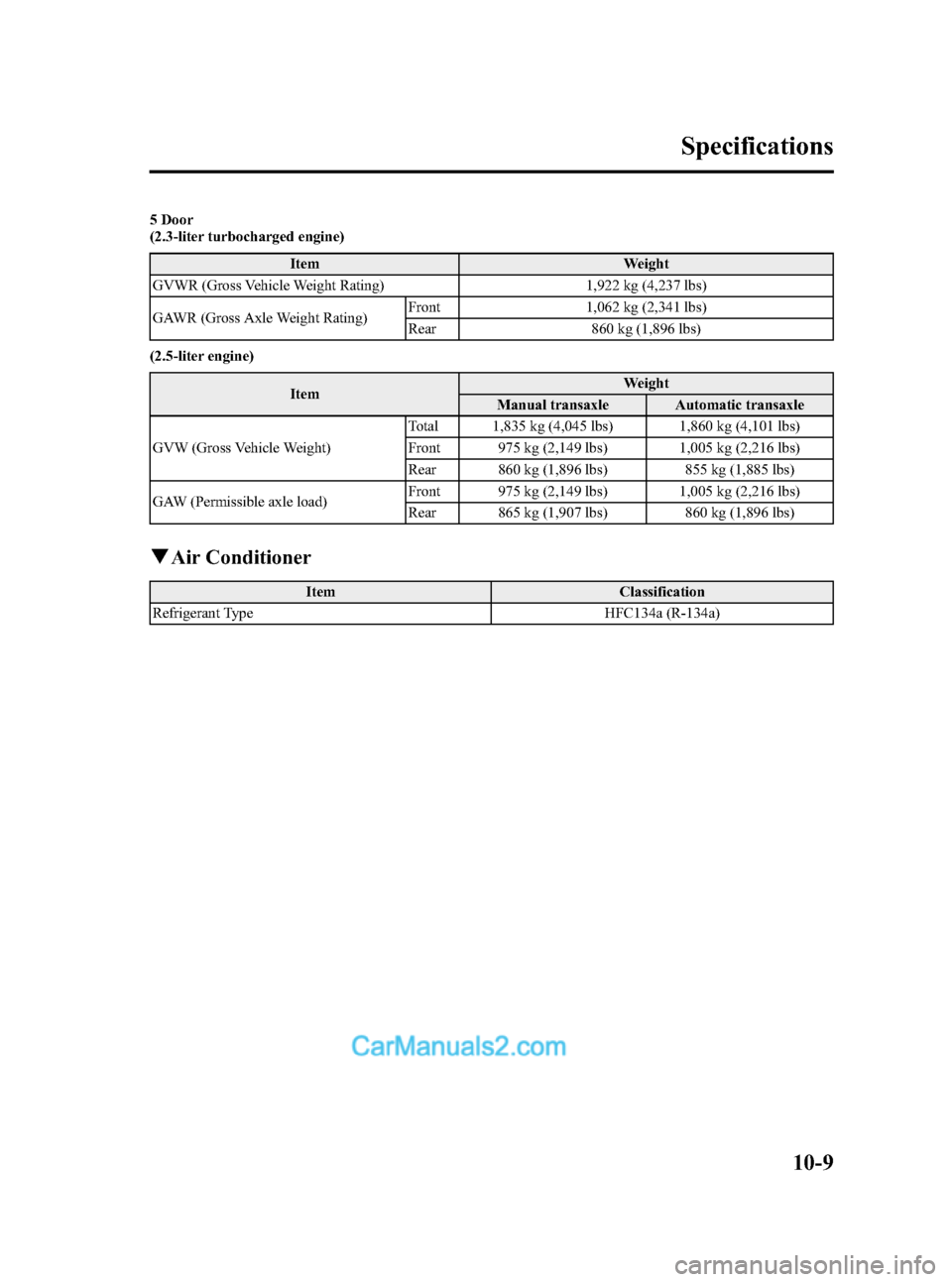

5 Door
(2.3-liter turbocharged engine)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating)Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,835 kg (4,045 lbs) 1,860 kg (4,101 lbs)
Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 860 kg (1,896 lbs) 855 kg (1,885 lbs)
GAW (Permissible axle load)Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 865 kg (1,907 lbs) 860 kg (1,896 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-9
Mazda3_8BM5-EA-10F_Edition2 Page495
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (496,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHalogenHigh beam 60 HB3 (#9005)
Low beam 55 H11 (H11)
Xenon fusion bulb High/Low beam 35 D2S (D2S)
Daytime running lights (Canada)
í35 H8 (H8)
Front turn signal
lights/Front
side-marker
lights/Parking
lightsHalogen/Xenon fusion bulb
(With daytime running lights)
27/8―(#7444NA)
Xenon fusion bulb
(Without daytime
running lights)Front turn signal
lights/Front side-marker
lights
Parking lights 5 W5W (4CP)
Fog lights
íExcept 2.3-liter turbocharged engine 51 HB4 (#9006)
2.3-liter turbocharged engine 55 H11 (H11)
Side turn signal lights (Integrated with outside mirrors)
íLED*1―(―)
High-mount brake
light4 Door 21 W21W (1120)
5 DoorBulb type 18 W16W (#921)
LED type LED
*1―(―)
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/TaillightsBulb type 21/5 W21/5W (#7443)
LED type LED
*1―(―)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (―)
Rear side-marker lights
íLED*1―(―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (4 Door) 3―
Luggage compartment light (5 Door) 5―
Overhead light/Map lights (Front) 8―
Overhead light (Rear) 10―
Vanity mirror lights
í2―
10-10íSome models.
