2012 MAZDA MODEL CX-7 Owners Manual (in English)

Black plate (385,1)
1. Remove the battery cover.
2. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.6. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
7. If the battery cover has been removed,
install it in the reverse order of
removal.
NOTE
Verify that the covers are securely installed.
In Case of an Emergency
Emergency Starting
7-17
CX-7_8CG3-EA-11J_Edition1 Page385
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (386,1)
Push-Starting
Do not push-start your Mazda.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
7-18
In Case of an Emergency
Emergency Starting
CX-7_8CG3-EA-11J_Edition1 Page386
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (387,1)

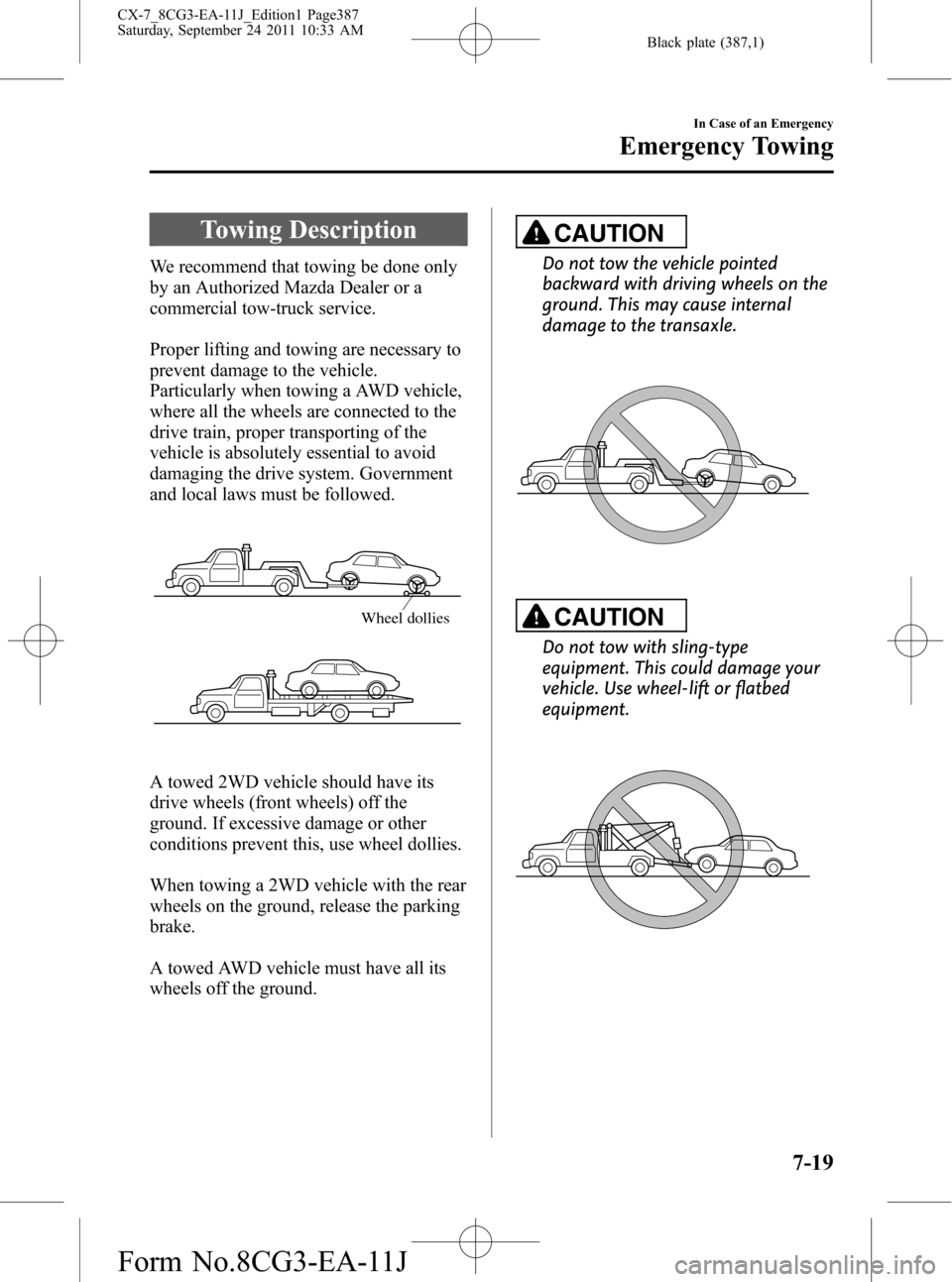

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Particularly when towing a AWD vehicle,
where all the wheels are connected to the
drive train, proper transporting of the
vehicle is absolutely essential to avoid
damaging the drive system. Government
and local laws must be followed.
Wheel dollies
A towed 2WD vehicle should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
When towing a 2WD vehicle with the rear
wheels on the ground, release the parking
brake.
A towed AWD vehicle must have all its
wheels off the ground.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-19
CX-7_8CG3-EA-11J_Edition1 Page387
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (388,1)
WARNING
Always tow a AWD vehicle with all four
wheels off the ground:
Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has
been damaged, transport the vehicle
on a flat bed truck.
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet from the
trunk (page 7-3).
2. Press the marking on the cover as
shown in the figure to remove the
cover.
Front
7-20
In Case of an Emergency
Emergency Towing
CX-7_8CG3-EA-11J_Edition1 Page388
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (389,1)
Rear
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.NOTE
If it is difficult to remove the tiedown eyelet,
wrap the jack lever with a cloth as shown in
the figure and press the marking on the cover
to remove it.
Front
Rear
3. Securely install the tiedown eyelet
using the lug wrench.
In Case of an Emergency
Emergency Towing
7-21
CX-7_8CG3-EA-11J_Edition1 Page389
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (390,1)
Front
Lug wrench
Rear
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
Front
Rear
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
7-22
In Case of an Emergency
Emergency Towing
CX-7_8CG3-EA-11J_Edition1 Page390
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J

Black plate (391,1)

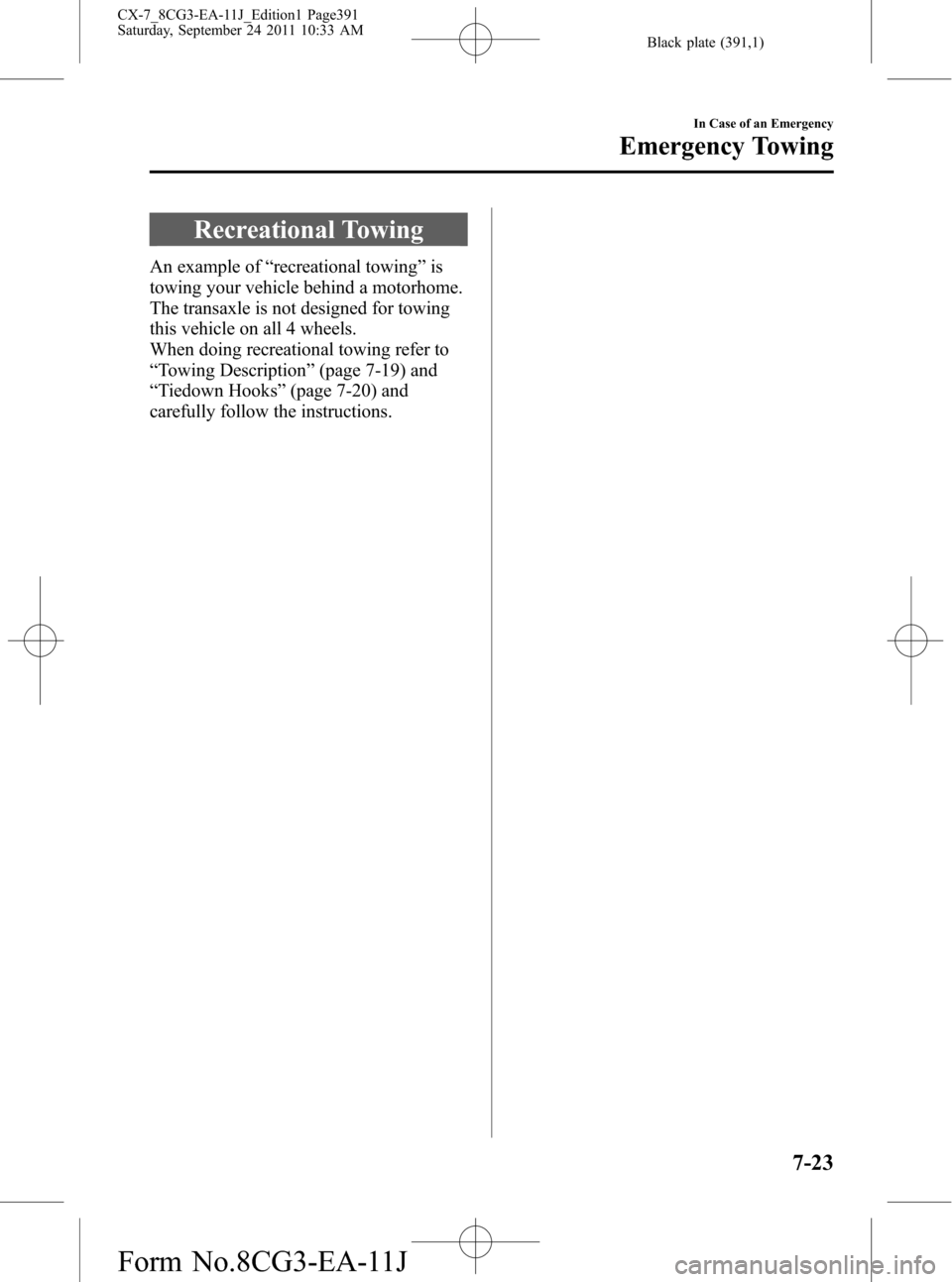

Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-19) and
“Tiedown Hooks”(page 7-20) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-23
CX-7_8CG3-EA-11J_Edition1 Page391
Saturday, September 24 2011 10:33 AM
Form No.8CG3-EA-11J
