2012 LINCOLN MKZ HYBRID Owners Manual

The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
To program another rolling code device such as an additional garage door
opener, a security device or home lighting, repeat Steps 1 through 4
substituting a different function button in Step 3 than what you used for
the garage door opener. For example, you could assign the left-most
button to the garage door, the center button to a security device, and
the right-most button to another garage door opener.
Note:The Car2Usystem allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
theErasing the Car2UHome Automation System buttonsprocedure
and then programming all of the devices being used.
Fixed code programming
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”
Switch position1234567 8 9101112
Up,onor+ LLLLLLLLLLLL
Middle, neutral
or 0MMMMMMMMMMMM
Down, off or –RRRRRRRRRRRR
L=left; M=middle; R=right
Driver Controls
105
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

3. To input these positions into the
Car2Usystem, simultaneously
press all three Car2Usystem
buttons for a few seconds and then
release to put the device into
programming mode. The indicator
lights will blink slowly. Within
2.5 minutes enter your
corresponding DIP switch settings
from left to right into your Car2Usystem by pressing and releasing the
buttons corresponding to the settings you circled.
4. After inputting switch settings, simultaneously press and release all
three Car2Usystem buttons. The indicator lights will turn on.
5. Press and hold the Car2U
system button you would like to use
to control the garage door.
Immediately (within 1 second)
release the button once the garage
door moves. During this time the
selected button indicator light will
blink slowly. Do not release the
button until you see the garage door move. Most garage doors open
quickly. You may need to hold the button from 5–55 seconds before
observing movement of the garage door.
6. The indicator light will (begin to) blink rapidly until programming is
complete. If your garage door opener does not operate following these
steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2Uhelp
line at 1-866-57Car2U (1-866-572-2728).
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
Driver Controls
106
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

Erasing the Car2UHome Automation System buttons
Note:The system allows for three devices to be programmed. If you
need to change or replace any of the three devices after it has been
initially programmed, it will be necessary to erase the current settings
using the procedure below and then reprogramming all of the devices
being used.
To erase programming on the Car2Usystem (individual buttons cannot
be erased), use the following procedure:
1. Firmly press the two outside
Car2Usystem buttons
simultaneously for approximately
20 seconds until the indicator lights
begin to blink rapidly. The indicator
lights are located directly above the
buttons.
2. Once the indicator lights begin to
blink, release your fingers from the
buttons. The codes for all buttons
are erased.
If you sell your vehicle equipped with the Car2Usystem, it is
recommended that you erase the programming for security reasons.
FCC and RSS-210 Industry Canada Compliance
The Car2Usystem complies with Part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received including interference
that may cause undesired operation.
Changes and modifications to the Car2Usystem transmitter by other
than an authorized service facility could void authorization to use the
equipment.
Driver Controls
107
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

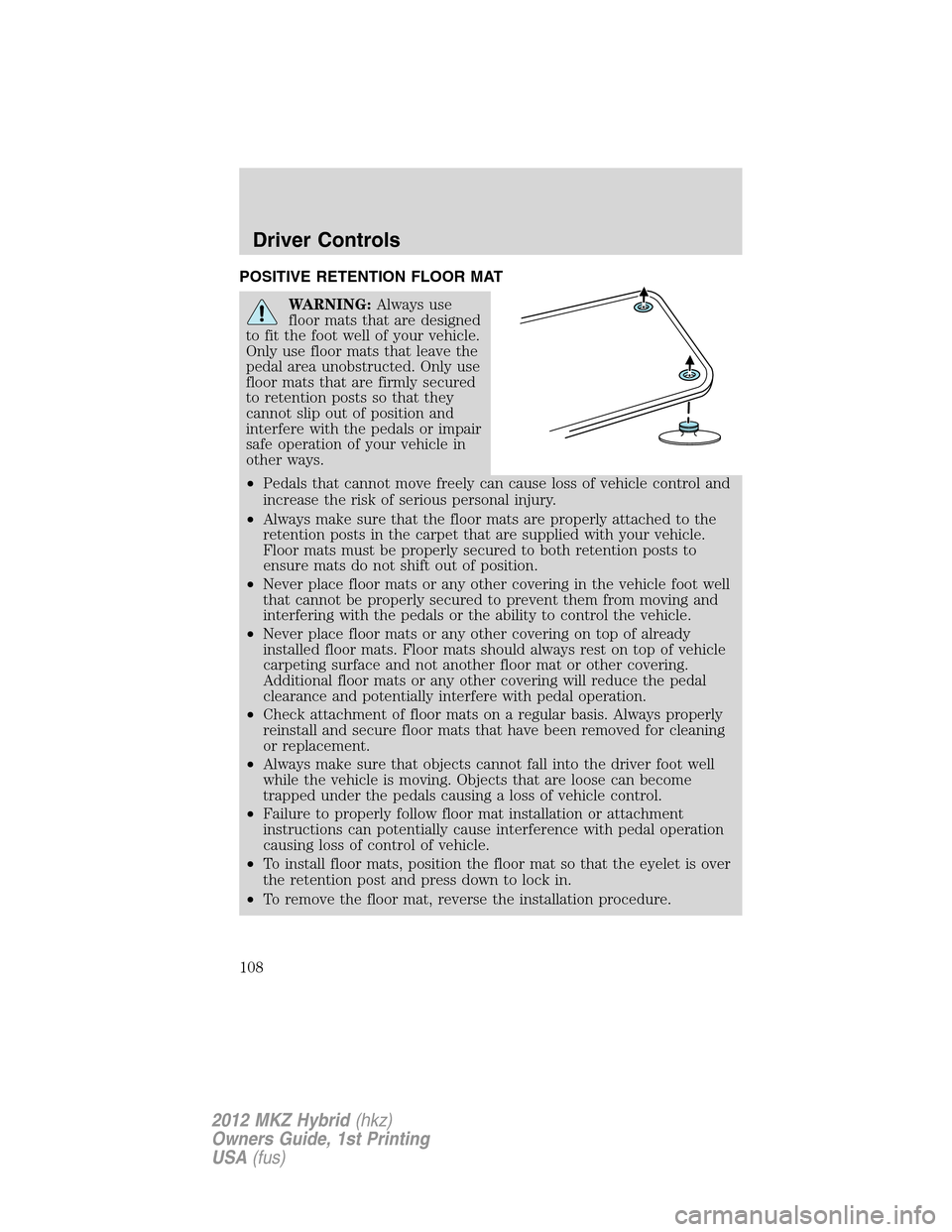

POSITIVE RETENTION FLOOR MAT
WARNING:Always use
floor mats that are designed
to fit the foot well of your vehicle.
Only use floor mats that leave the
pedal area unobstructed. Only use
floor mats that are firmly secured
to retention posts so that they
cannot slip out of position and
interfere with the pedals or impair
safe operation of your vehicle in
other ways.
•Pedals that cannot move freely can cause loss of vehicle control and
increase the risk of serious personal injury.
•Always make sure that the floor mats are properly attached to the
retention posts in the carpet that are supplied with your vehicle.
Floor mats must be properly secured to both retention posts to
ensure mats do not shift out of position.
•Never place floor mats or any other covering in the vehicle foot well
that cannot be properly secured to prevent them from moving and
interfering with the pedals or the ability to control the vehicle.
•Never place floor mats or any other covering on top of already
installed floor mats. Floor mats should always rest on top of vehicle
carpeting surface and not another floor mat or other covering.
Additional floor mats or any other covering will reduce the pedal
clearance and potentially interfere with pedal operation.
•Check attachment of floor mats on a regular basis. Always properly
reinstall and secure floor mats that have been removed for cleaning
or replacement.
•Always make sure that objects cannot fall into the driver foot well
while the vehicle is moving. Objects that are loose can become
trapped under the pedals causing a loss of vehicle control.
•Failure to properly follow floor mat installation or attachment
instructions can potentially cause interference with pedal operation
causing loss of control of vehicle.
•To install floor mats, position the floor mat so that the eyelet is over
the retention post and press down to lock in.
•To remove the floor mat, reverse the installation procedure.
Driver Controls
108
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

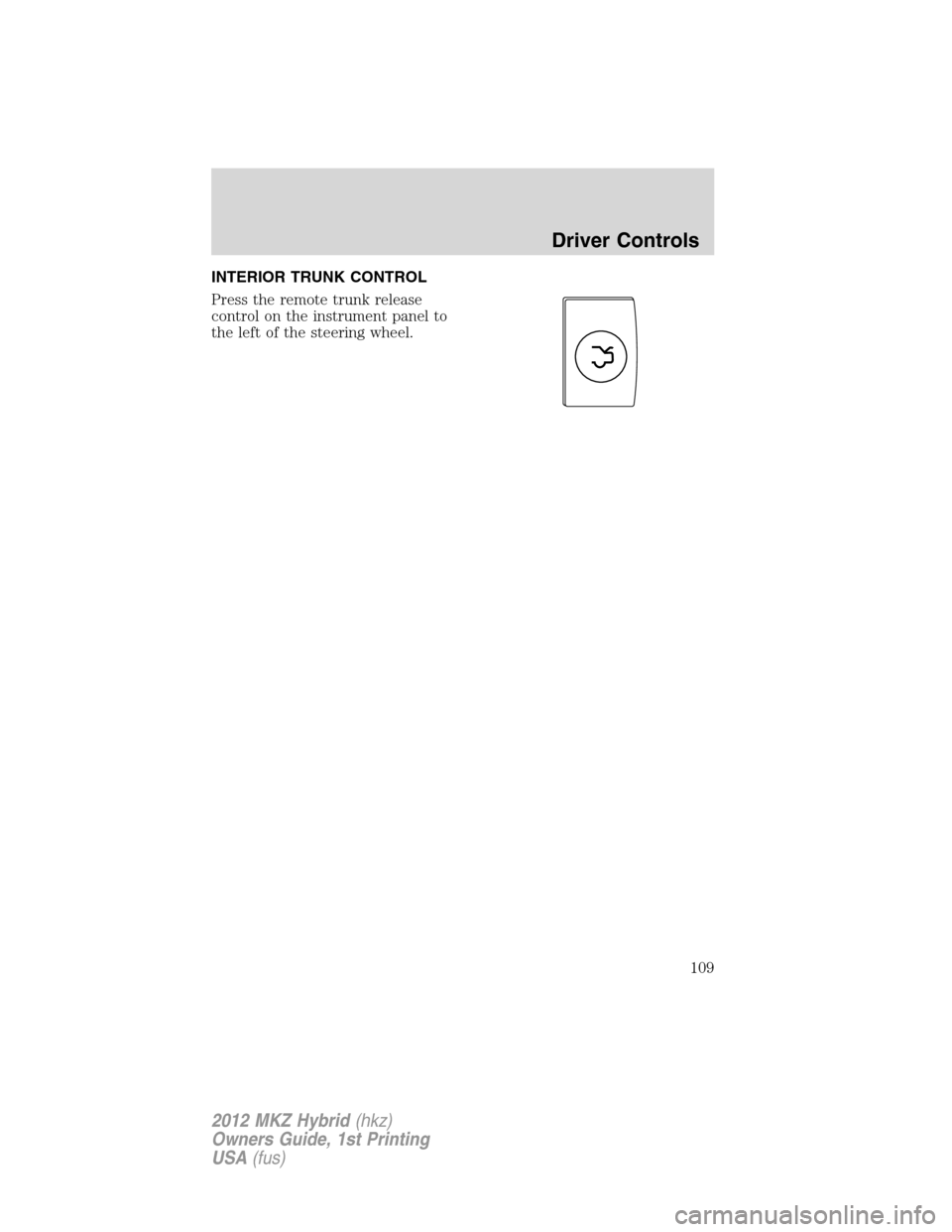

INTERIOR TRUNK CONTROL
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
Driver Controls
109
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

KEYS
Your vehicle is equipped with two
Integrated Keyhead Transmitters
(IKTs). The key blade functions as a
programmed key which starts the
vehicle and unlocks/locks all the
doors. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied IKTs, replacement IKTs are available through your authorized
dealer. Standard SecuriLockkeys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security label that
provides important vehicle key cut
information. It is recommended that
you keep the label in a safe place
for future reference.
Locks and Security
110
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

MYKEY
The MyKeyfeature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey. The key will remain restricted
until MyKeyis cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey, program optional MyKeysettings, and clear the MyKey
feature. When the MyKeyfeature is enabled the user can use system
check in the message center to see how many MyKeysand admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKeyactive.
MyKeyrestricted features
Standard settings – these settings cannot be changed
•Belt-Mindercannot be disabled. The audio system will be muted
whenever Belt-Minderis activated until the safety belts are buckled.
Refer to theSeating and Safety Restraintschapter for a detailed
description of Belt-Minderoperation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The following systems, if equipped, cannot be turned off: reverse
sensing system, Blind Spot Information System (BLIS) with cross
traffic alert and collision warning system.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud or sand.
Locks and Security
111
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition and
turn the ignition on. Use the message center buttons to do the following:
1. Press SETUP until Create MyKey is displayed.
2. Press RESET to show Confirm and then follow the on-screen
directions.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyOptional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith Remote Start Systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyoptional settings
Turn the ignition on using an admin key and do the following:
1. Press SETUP until the feature you want to change is highlighted.
2. Press RESET to select the item.
3. Press SETUP to scroll through the list of options and then reset to
select it.
Clear MyKey
To reset all MyKeysas admin keys, start the vehicle using an admin key
and then press SETUP to choose the Clear MyKey option in the settings
menu. Press RESET to select Clear MyKey and then press and hold
RESET to confirm clear.
Check MyKeysystem status
The vehicle system check will provide the status of the following MyKey
parameters. Press SETUP to reach System Check. Then press RESET
and the message center will cycle through the vehicle systems. The
following items will display for MyKey:
•MyKey Used — This is shown when at least one MyKey is
programmed.
MyKey Miles —This will be displayed on the right side of the cluster
when MyKey Used is displayed on the left side of the cluster. This
odometer only tracks mileage when a MyKeyis used. If mileage does
Locks and Security
112
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
