2012 LINCOLN MKZ HYBRID ESP

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil
usage.
Introduction
5
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

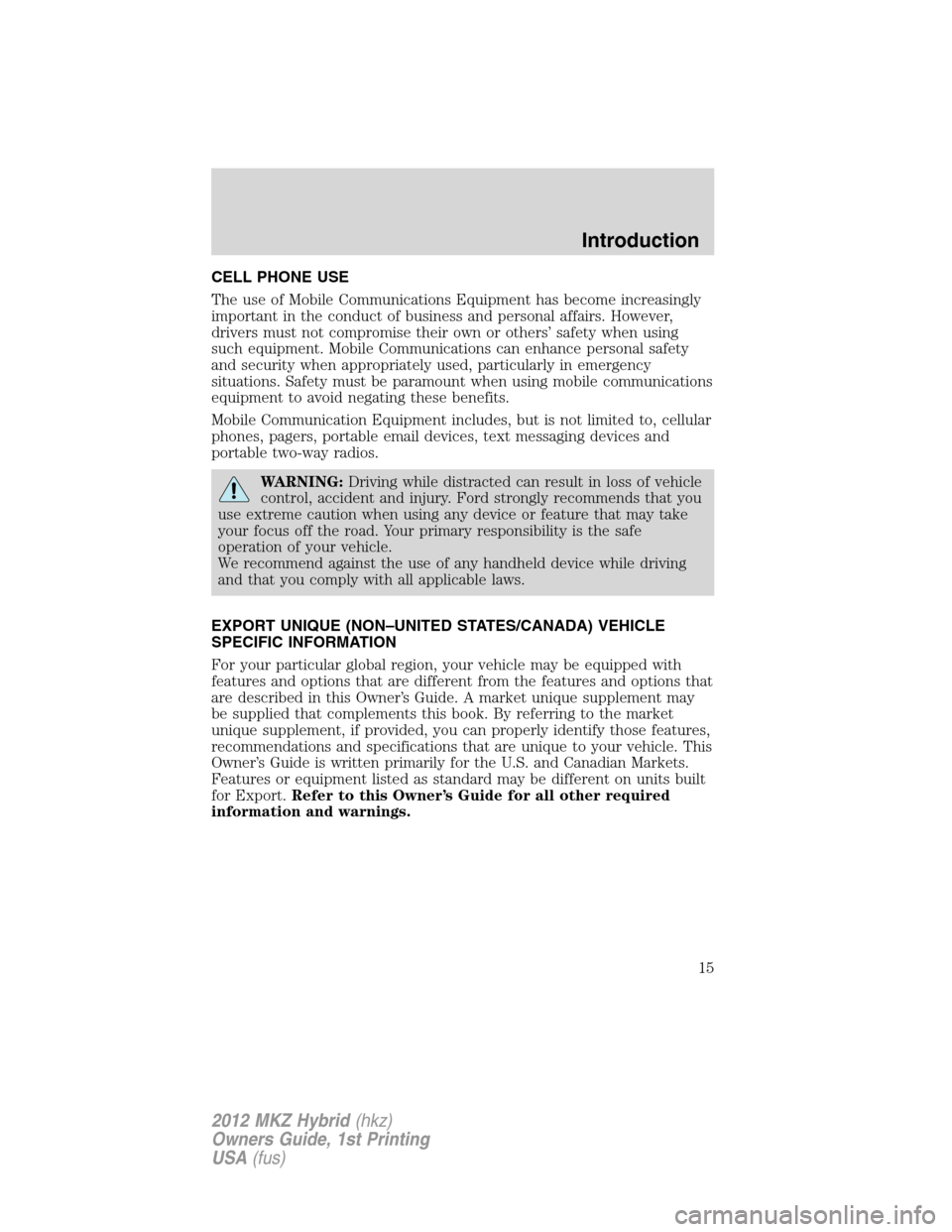

CELL PHONE USE
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to, cellular
phones, pagers, portable email devices, text messaging devices and
portable two-way radios.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of your vehicle.
We recommend against the use of any handheld device while driving
and that you comply with all applicable laws.
EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export.Refer to this Owner’s Guide for all other required
information and warnings.
Introduction
15
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system light explanation later in this section for additional
information.
Note:Some warning lights are reconfigurable telltale (RTT) indicators;
they will display in the message center and function the same as the
warning light, but they will not display on startup as regular warning
lights do.
Service engine soon:The service
engine soon light illuminates when
the ignition is turned to the on
position to check the bulb.
•Illuminates with key on, vehicle off:If the light illuminates, the
service engine soon light is working properly.
•Illuminates with key on, vehicle off, then starts to blink:The
light illuminates when the ignition is turned to the on position to
check the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. If after 15 seconds the service
engine soon light blinks eight times, it means that the vehicle is not
ready for Inspection/Maintenance (I/M) testing. This can occur if the
vehicle’s engine or transmission has just been serviced, or the battery
OFF
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
F
EMPG60
40
20
0H
LPOWER
EV
Instrument Cluster
18
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

Efficiency flowers:Indicates long
term driving efficiency. The more
flowers that are displayed, the more
efficiently you have driven. Once
earned, the flowers will remain
permanently unless long term fuel
efficiency is reset.
Note:Flowers only appear when
efficiency leaves are displayed. After
flowers begin to display, successive
flowers become harder to earn.
History graph:Indicates average
fuel economy in 10, 20, or
60 minute intervals. You can choose
the interval using the message
center. The graph is updated each
minute with the fuel economy that
was achieved during the prior 1, 2,
or 6 minutes of driving, respectively.
Each new average will be added to
the left side of the graph, shifting
the past data to the right. When the
graph area is full, the right most point will be deleted, keeping a running
scroll with the bar on the left being the most recent. Note that previous
values will remain when the vehicle is shut off and restarted, but values
from a previous drive cycle will be grayed out. The average fuel economy
since the last reset, or last 2,000 miles (3,200 km) of driving, is shown as
a horizontal line across the bar graph.
Refer toMessage centerin this chapter for more information on the
history graph display mode.
No efficiency information:If you choose, you may turn off both the
Efficiency leaves and History Graph using the message center. In this
case, the portion of your instrument cluster devoted to this information
will be blank.
Refer toMessage centerin this chapter for more information on
choosing no efficiency information.
Average fuel economy:Your average fuel economy in miles/gallon will
be displayed at the top right of your vehicle’s instrument cluster or in
liters/100 km at the lower right along with the efficiency leaves, history
graph or no display (shown previously with history graph). You may
reset this average at any time. Refer toMessage centerin this chapter
for more information on the average fuel economy display mode.
Instrument Cluster
31
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

•Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
Efficiency gauge
Use this to choose the type of efficiency gauge display you would like.
While Efficiency Gauge is highlighted, press RESET to select it and move
right to display to the following:
•Efficiency Leaves
•History Graph
•None
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
FE history length
Use this to set the fuel efficiency history length for the history graph.
While FE History Length is highlighted, press RESET to select it and
move right to display to the following:
•10
•20
•60
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
These indicate average fuel economy in 10, 20, or 60 minute intervals.
The graph is updated each minute with the fuel economy that was
achieved during the prior 1, 2, or 6 minutes of driving, respectively.
Language
While Language is highlighted, press RESET to select it and move right
to display the following:
•English
•Francais
•Español
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
Instrument Cluster
39
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

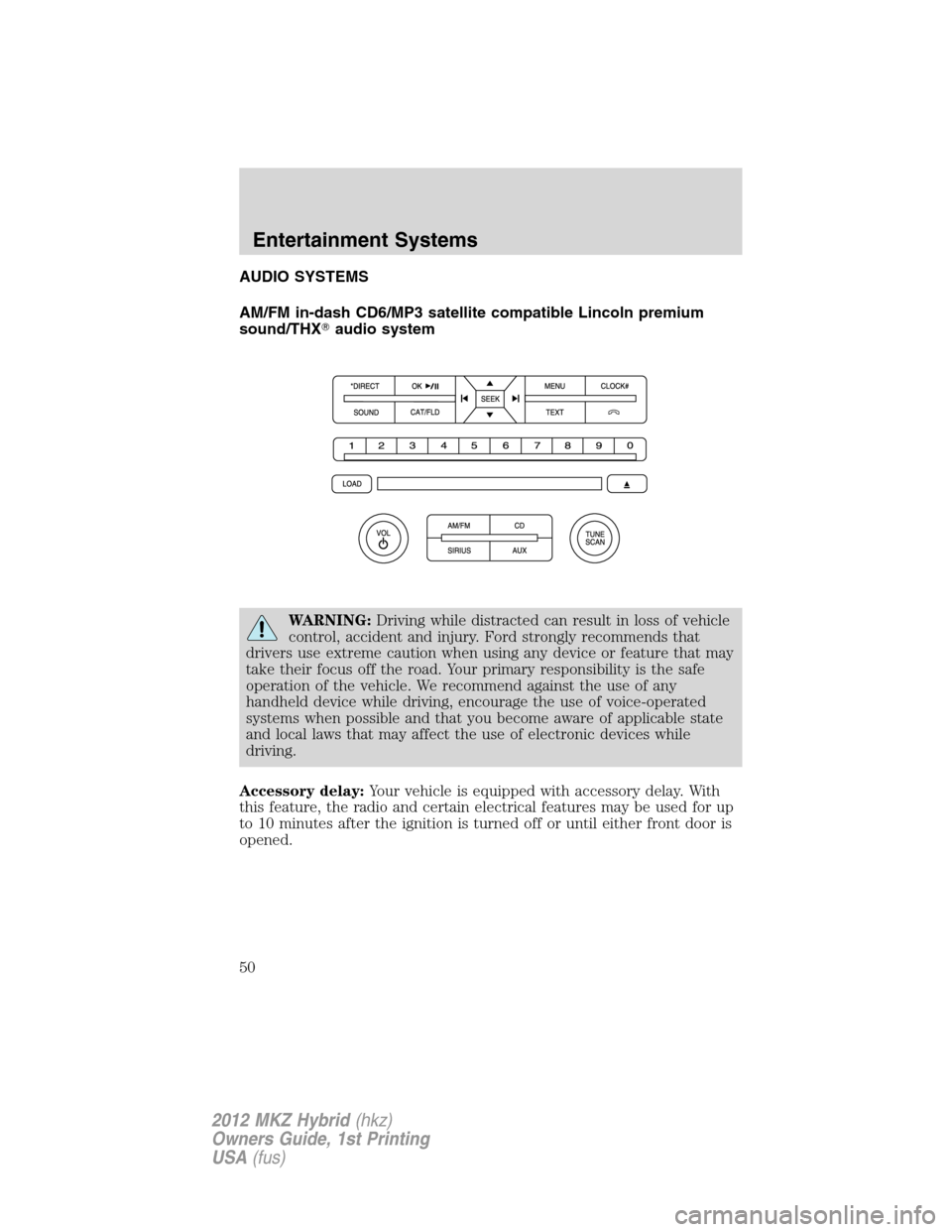

AUDIO SYSTEMS
AM/FM in-dash CD6/MP3 satellite compatible Lincoln premium
sound/THXaudio system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect the use of electronic devices while
driving.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and certain electrical features may be used for up
to 10 minutes after the ignition is turned off or until either front door is
opened.
Entertainment Systems
50
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

To auto load up to six discs–
Press and hold LOAD until the display reads MOVING TO #. Load the
desired disc, label side up. The system will prompt you to load discs for
the remaining available slots. Insert the discs, one at a time, label side
up, when prompted. Once loaded, the disc in slot 1 will begin to play.
To choose one of the loaded CDs to play, press the number preset
buttons (1–6) to choose the desired disc.
/OK (Play/Pause):Press to play/pause a track when playing a
CD.
(EJECT):Pressand select the desired CD slot by pressing the
corresponding memory preset #. The display will read EJECTING #.
When the system has ejected the CD, the display will read REMOVE CD
#. If you do not remove the CD the system will reload the disc.
To auto eject all loaded discs–Press and hold
. The system will eject
all discs and prompt you when to remove them.
SEEK:Press
SEEKto access the previous/next track.
CAT (Category) / FLD (Folder):
In MP3 mode only–Press CAT/FOLD and then press
SEEKto
access the previous/next folder.
SCAN:Press for a brief sampling of all tracks on the current disc or
MP3 folder.
DIRECT:
In CD mode–Press DIRECT. The display will read DIRECT TRACK
MODE SELECT TRACK. Enter the desired track number using the
memory preset buttons (0–9). The system will then begin playing that
track.
In MP3 folder mode–Press DIRECT and the memory preset buttons
(0–9) of the desired folder. The system will advance to that specific
folder.
TEXT:
In MP3 mode only–Press TEXT repeatedly to view Album (AL), Folder
(FL), Song (SO) and Artist (AR) in the display, if available.
In TEXT mode:Sometimes the display requires additional text to be
displayed. When theindicatorisactive,pressTEXT and then
press
SEEKto view the additional display text.
Entertainment Systems
53
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

OK/(Play/Pause):Your vehicle is equipped with special phone
and media features which will require you to confirm commands by
pressing OK. For further information, refer toSYNCinformation
included with your vehicle for further information.
(Phone):Press to access SYNC PHONE features. For further
information, please refer toSYNCinformation included with your vehicle
for further information.
Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle is equipped with an
auxiliary input jack (AIJ). The
auxiliary input jack provides a way
to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.
If your vehicle is equipped with a
navigation system, refer to
Auxiliary input jacksection in the
Audio featureschapter of your
Navigation Systemsupplement.
Entertainment Systems
58
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
