2012 LINCOLN MKT Owners Manual

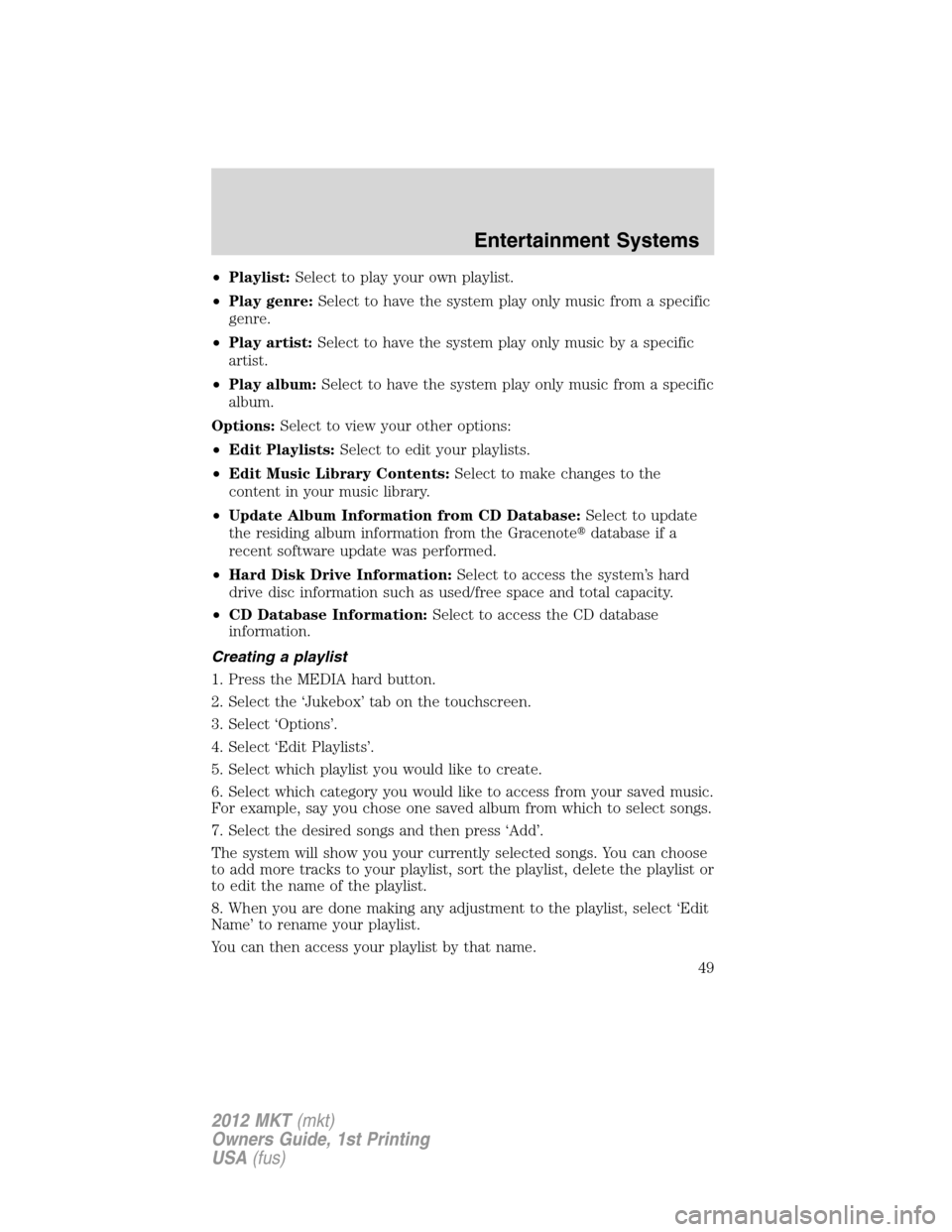

•Playlist:Select to play your own playlist.
•Play genre:Select to have the system play only music from a specific
genre.
•Play artist:Select to have the system play only music by a specific
artist.
•Play album:Select to have the system play only music from a specific
album.
Options:Select to view your other options:
•Edit Playlists:Select to edit your playlists.
•Edit Music Library Contents:Select to make changes to the
content in your music library.
•Update Album Information from CD Database:Select to update
the residing album information from the Gracenotedatabase if a
recent software update was performed.
•Hard Disk Drive Information:Select to access the system’s hard
drive disc information such as used/free space and total capacity.
•CD Database Information:Select to access the CD database
information.
Creating a playlist
1. Press the MEDIA hard button.
2. Select the ‘Jukebox’ tab on the touchscreen.
3. Select ‘Options’.
4. Select ‘Edit Playlists’.
5. Select which playlist you would like to create.
6. Select which category you would like to access from your saved music.
For example, say you chose one saved album from which to select songs.
7. Select the desired songs and then press ‘Add’.
The system will show you your currently selected songs. You can choose
to add more tracks to your playlist, sort the playlist, delete the playlist or
to edit the name of the playlist.
8. When you are done making any adjustment to the playlist, select ‘Edit
Name’ to rename your playlist.
You can then access your playlist by that name.
Entertainment Systems
49
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

User device
Your vehicle is equipped with
SYNC. Press the ’User Device’ tab
to access your SYNCmedia
options. For more information,
please refer to theSYNCmedia
featureschapter in yourSYNC
supplement.
Rear DVD system (if equipped)
Your system allows you to access the dual DVD headrest system (if
equipped). To access:
1. Press the MEDIA hard button.
2. Select the ‘Rear DVD A’ tab on
the touchscreen to access the
Monitor A headrest system:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
Entertainment Systems
50
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

3. Select the ‘Rear DVD B’ tab on
the touchscreen to view the status
of the Monitor B headrest system.
Rear Zone (if equipped)
This screen allows front seat passengers to select/listen to a different
audio/video source than the back seat passengers. The only restriction is
that the front and back seat passengers cannot both listen to a different
frequency band (AM/FM1/FM2). The frequency band selected by the
driver is the band accessible by the rear passenger. To access:
1. Ensure that the system is ON.
2. Press the MEDIA or RADIO hard button on the system.
3. Select the ‘Rear Zone’ tab on the touchscreen.
The screen will show you the
selected playing media of both DVD
headrest systems and headsets (A
and B). To make adjustments,
ensure that the correct system (A
or B) is highlighted. The appropriate
controls will appear to allow you to
make adjustments to your current
playing media.
•
(Reverse): Press for reverse play.
•
/(Play/Pause): Press to play or pause the DVD.
•
(Fast forward): Press for advance play.
SEEK:You may press the SEEK hard button on the system to access
the next or previous chapter.
•Media:Press to select the desired media in the selected headset (A
or B).
•Rear Controls Enabled/Disabled:Press to turn the Rear Controls
(if equipped) on/off.
•Headphones On/Off:Press to turn the headphones on/off.
Entertainment Systems
51
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

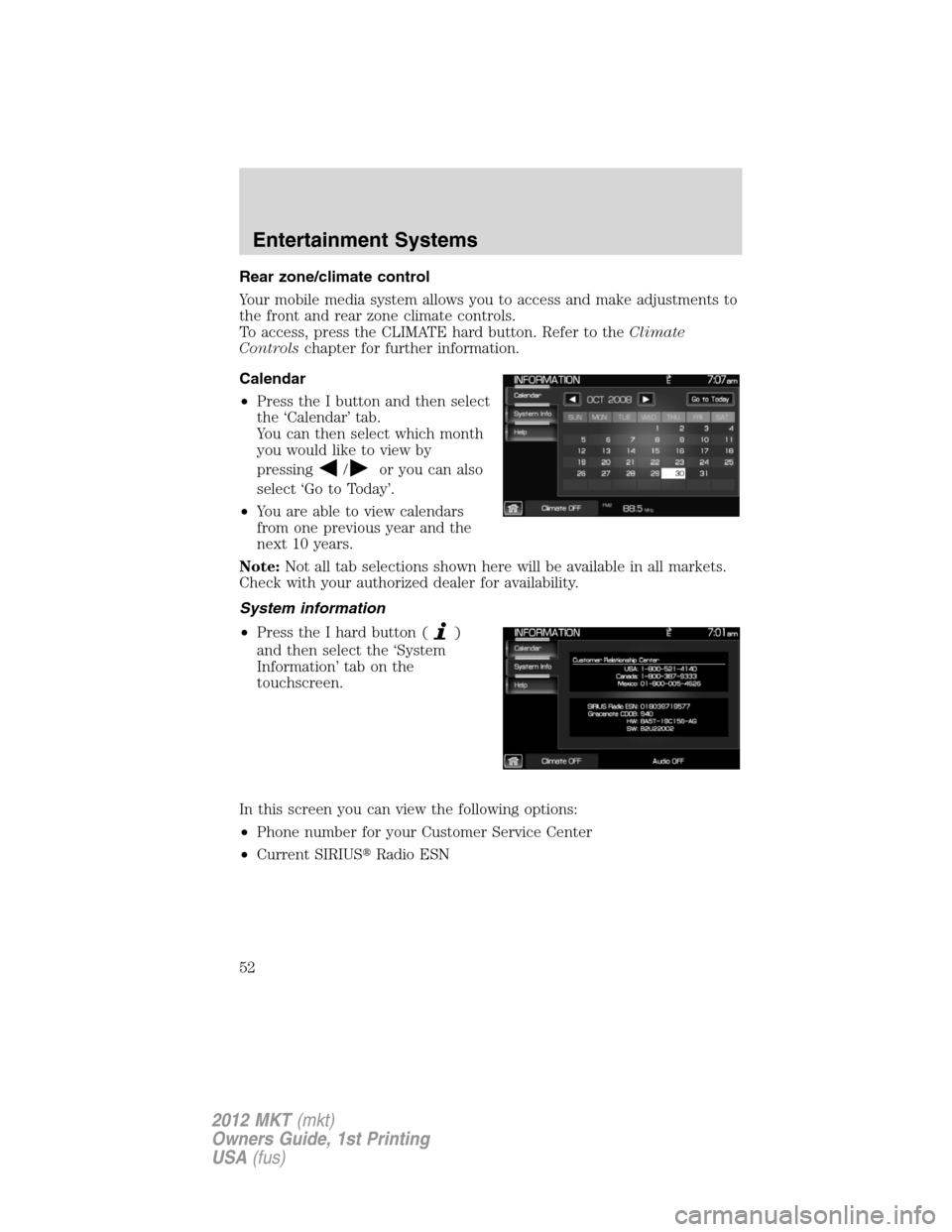

Rear zone/climate control
Your mobile media system allows you to access and make adjustments to
the front and rear zone climate controls.
To access, press the CLIMATE hard button. Refer to theClimate
Controlschapter for further information.
Calendar
•Press the I button and then select
the ‘Calendar’ tab.
You can then select which month
you would like to view by
pressing
/or you can also
select ‘Go to Today’.
•You are able to view calendars
from one previous year and the
next 10 years.
Note:Not all tab selections shown here will be available in all markets.
Check with your authorized dealer for availability.
System information
•Press the I hard button (
)
and then select the ‘System
Information’ tab on the
touchscreen.
In this screen you can view the following options:
•Phone number for your Customer Service Center
•Current SIRIUSRadio ESN
Entertainment Systems
52
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

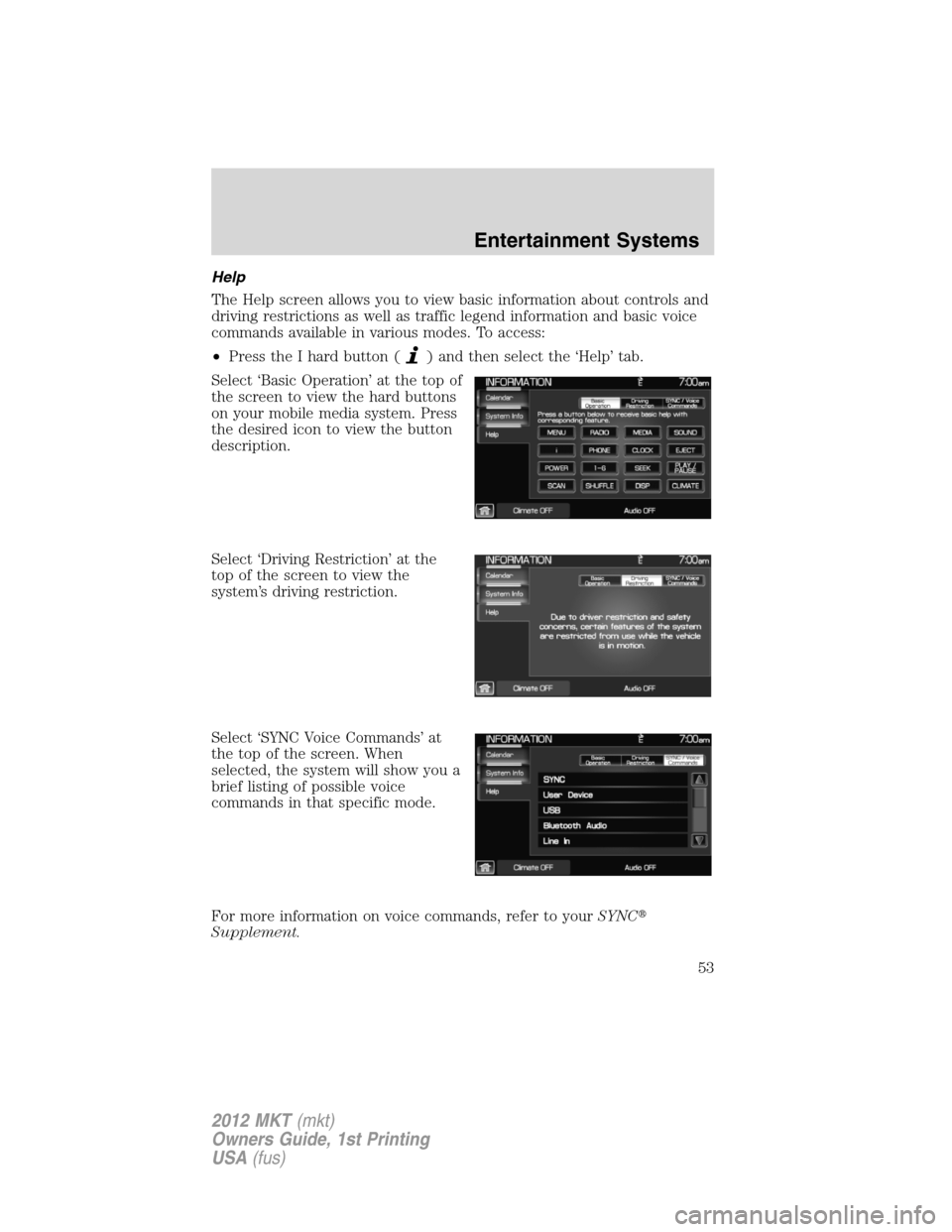

Help
The Help screen allows you to view basic information about controls and
driving restrictions as well as traffic legend information and basic voice
commands available in various modes. To access:
•Press the I hard button (
) and then select the ‘Help’ tab.
Select ‘Basic Operation’ at the top of
the screen to view the hard buttons
on your mobile media system. Press
the desired icon to view the button
description.
Select ‘Driving Restriction’ at the
top of the screen to view the
system’s driving restriction.
Select ‘SYNC Voice Commands’ at
the top of the screen. When
selected, the system will show you a
brief listing of possible voice
commands in that specific mode.
For more information on voice commands, refer to yourSYNC
Supplement.
Entertainment Systems
53
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

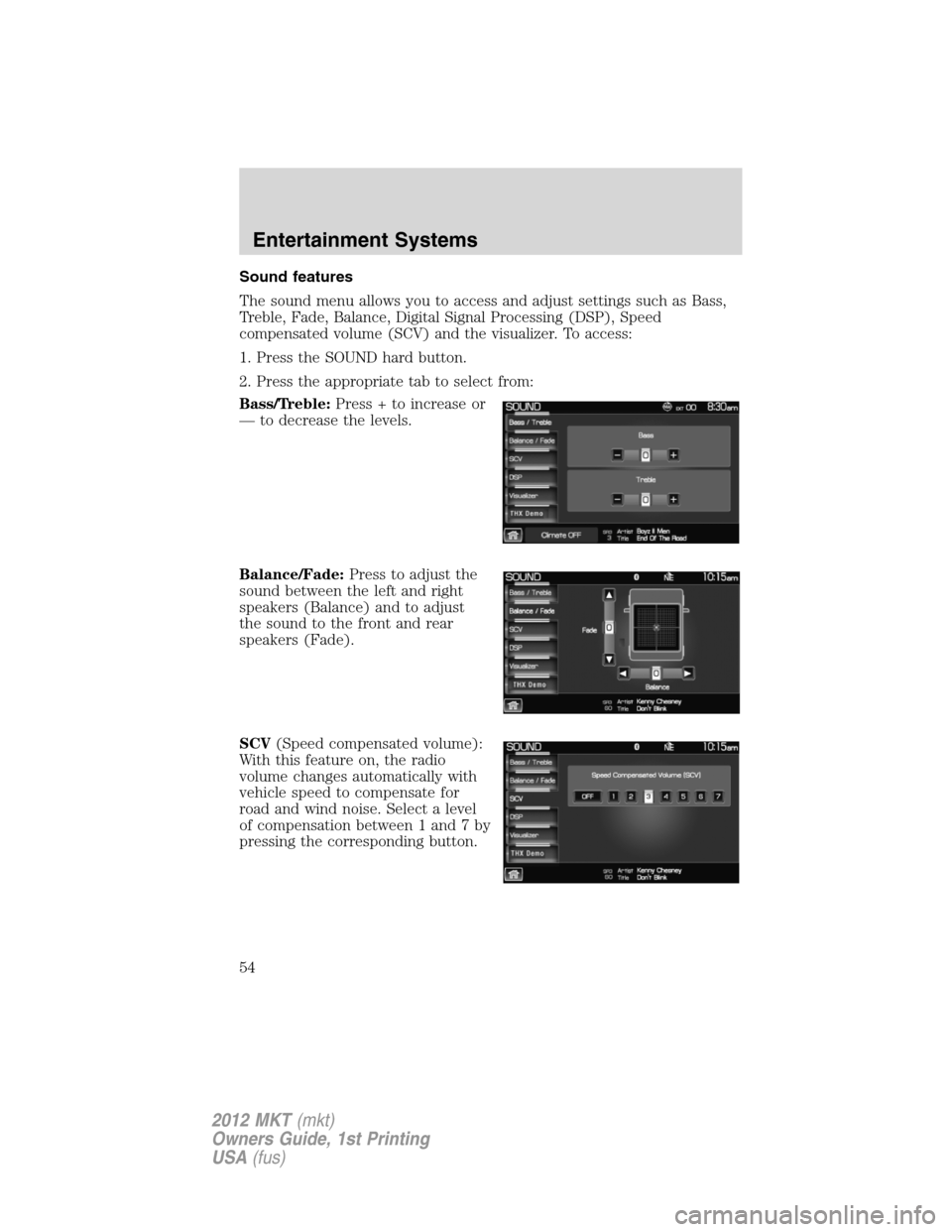

Sound features
The sound menu allows you to access and adjust settings such as Bass,
Treble, Fade, Balance, Digital Signal Processing (DSP), Speed
compensated volume (SCV) and the visualizer. To access:
1. Press the SOUND hard button.
2. Press the appropriate tab to select from:
Bass/Treble:Press + to increase or
— to decrease the levels.
Balance/Fade:Press to adjust the
sound between the left and right
speakers (Balance) and to adjust
the sound to the front and rear
speakers (Fade).
SCV(Speed compensated volume):
With this feature on, the radio
volume changes automatically with
vehicle speed to compensate for
road and wind noise. Select a level
of compensation between 1 and 7 by
pressing the corresponding button.
Entertainment Systems
54
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

DSP(Digital Signal Processing):
Depending on your option package,
you may either select from ‘Stereo’
or ‘Surround Sound’.
Or, you may choose to optimize the
sound quality for ‘All Seats’, ‘Driver
Seat’ or ‘Rear Seat’.
Visualizer:Press to turn the audio
visualizer display on or off.
Note:Turning the visualizer setting
to off will not remove the visualizer
on the home screen. You will need
to select a different view in order to
remove the visualizer.
THX Demo (if equipped):Select
this tab to activate the THX audio
demonstration. You may press “X” to
stop the demonstration.
Entertainment Systems
55
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

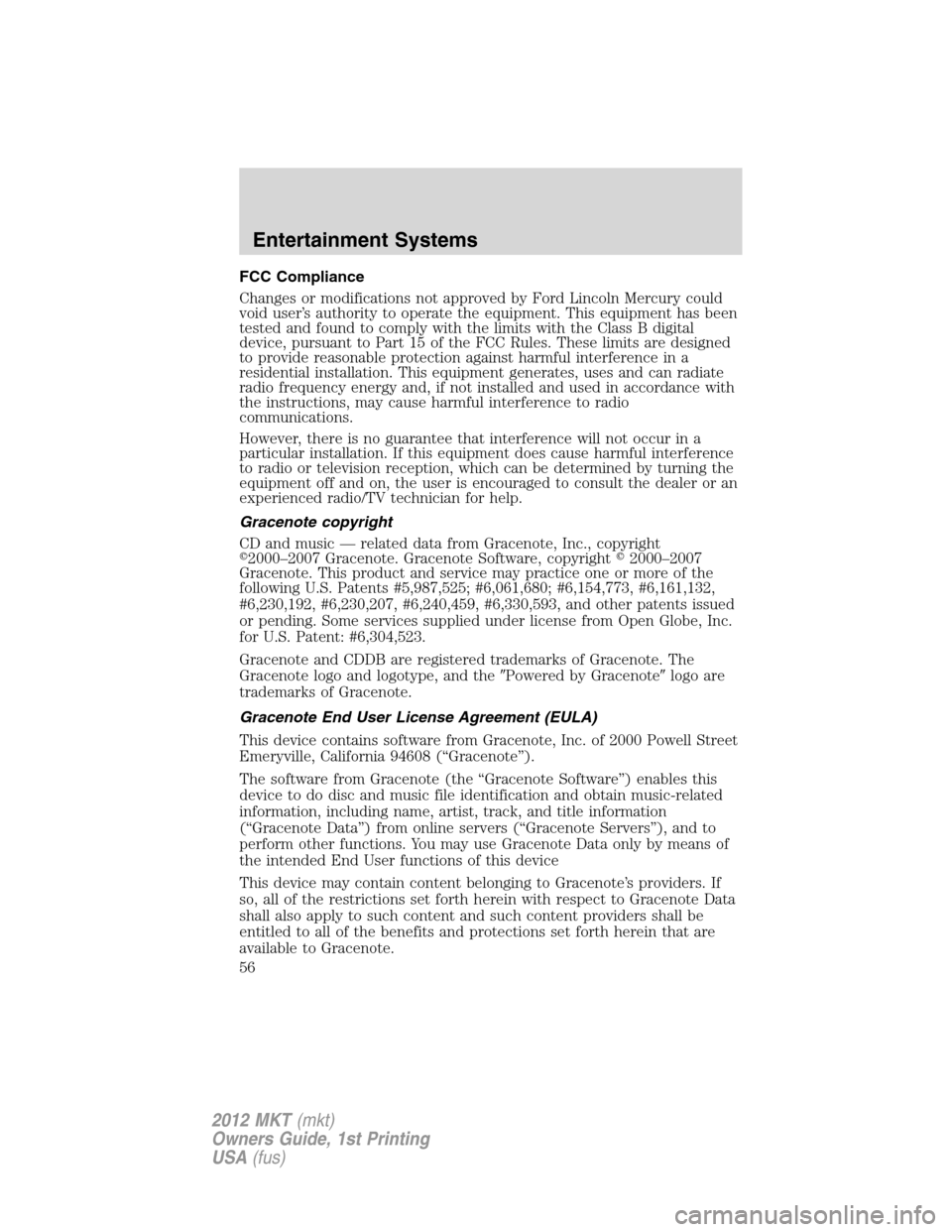

FCC Compliance
Changes or modifications not approved by Ford Lincoln Mercury could
void user’s authority to operate the equipment. This equipment has been
tested and found to comply with the limits with the Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Gracenote copyright
CD and music — related data from Gracenote, Inc., copyright
2000–2007 Gracenote. Gracenote Software, copyright2000–2007
Gracenote. This product and service may practice one or more of the
following U.S. Patents #5,987,525; #6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued
or pending. Some services supplied under license from Open Globe, Inc.
for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks of Gracenote. The
Gracenote logo and logotype, and thePowered by Gracenotelogo are
trademarks of Gracenote.
Gracenote End User License Agreement (EULA)
This device contains software from Gracenote, Inc. of 2000 Powell Street
Emeryville, California 94608 (“Gracenote”).
The software from Gracenote (the “Gracenote Software”) enables this
device to do disc and music file identification and obtain music-related
information, including name, artist, track, and title information
(“Gracenote Data”) from online servers (“Gracenote Servers”), and to
perform other functions. You may use Gracenote Data only by means of
the intended End User functions of this device
This device may contain content belonging to Gracenote’s providers. If
so, all of the restrictions set forth herein with respect to Gracenote Data
shall also apply to such content and such content providers shall be
entitled to all of the benefits and protections set forth herein that are
available to Gracenote.
