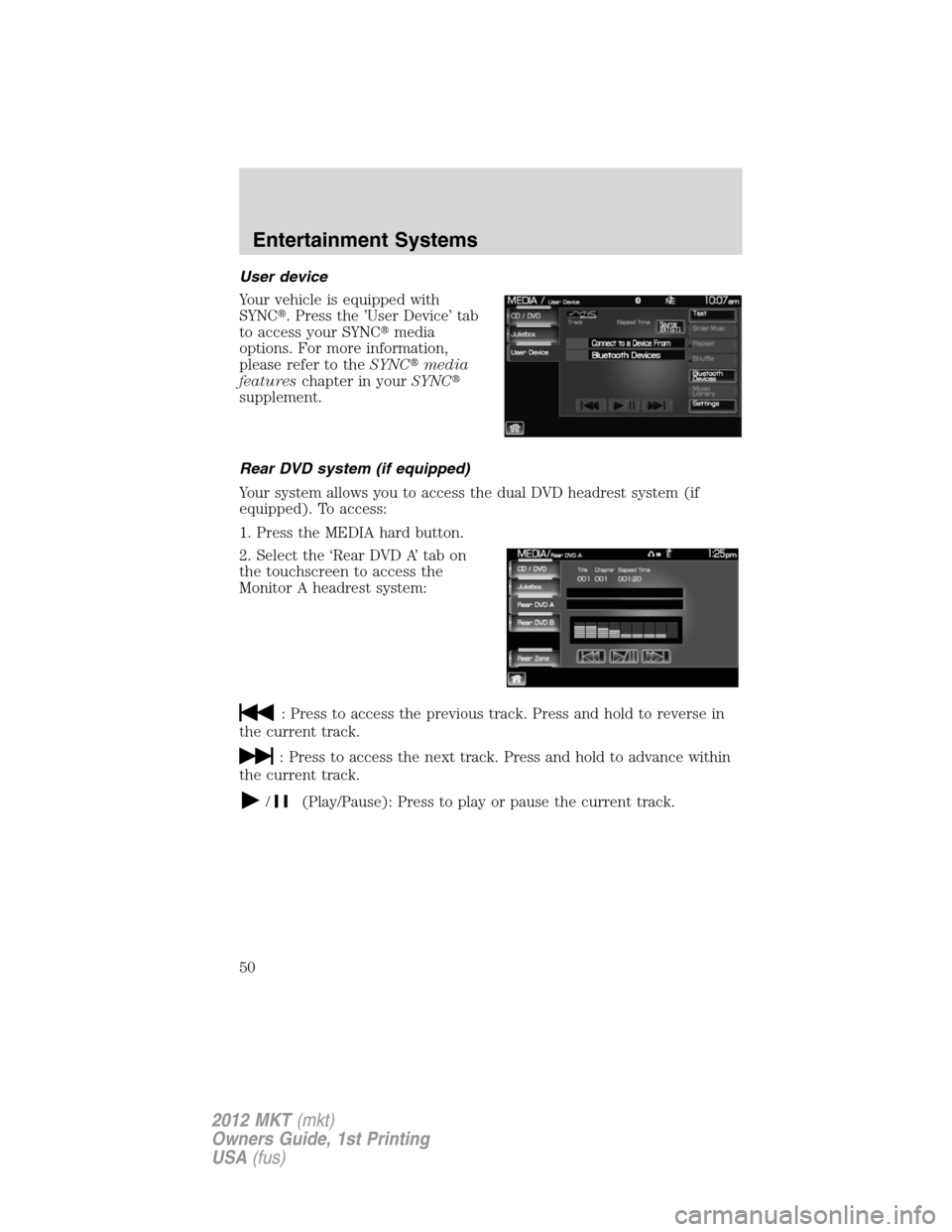

User device
Your vehicle is equipped with
SYNC. Press the ’User Device’ tab
to access your SYNCmedia
options. For more information,
please refer to theSYNCmedia
featureschapter in yourSYNC
supplement.
Rear DVD system (if equipped)
Your system allows you to access the dual DVD headrest system (if
equipped). To access:
1. Press the MEDIA hard button.
2. Select the ‘Rear DVD A’ tab on
the touchscreen to access the
Monitor A headrest system:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
Entertainment Systems
50
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

3. Select the ‘Rear DVD B’ tab on
the touchscreen to view the status
of the Monitor B headrest system.
Rear Zone (if equipped)
This screen allows front seat passengers to select/listen to a different
audio/video source than the back seat passengers. The only restriction is
that the front and back seat passengers cannot both listen to a different
frequency band (AM/FM1/FM2). The frequency band selected by the
driver is the band accessible by the rear passenger. To access:
1. Ensure that the system is ON.
2. Press the MEDIA or RADIO hard button on the system.
3. Select the ‘Rear Zone’ tab on the touchscreen.
The screen will show you the
selected playing media of both DVD
headrest systems and headsets (A
and B). To make adjustments,
ensure that the correct system (A
or B) is highlighted. The appropriate
controls will appear to allow you to
make adjustments to your current
playing media.
•
(Reverse): Press for reverse play.
•
/(Play/Pause): Press to play or pause the DVD.
•
(Fast forward): Press for advance play.
SEEK:You may press the SEEK hard button on the system to access
the next or previous chapter.
•Media:Press to select the desired media in the selected headset (A
or B).
•Rear Controls Enabled/Disabled:Press to turn the Rear Controls
(if equipped) on/off.
•Headphones On/Off:Press to turn the headphones on/off.
Entertainment Systems
51
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle may be equipped with a Family Entertainment System (FES)
which allows you to listen to audio CDs, MP3 discs, watch DVDs and to
plug in and play a variety of standard video game systems. The
headrest-mounted DVD players are capable of playing standard DVDs, CDs,
MP3s and are compatible with Video CD, HDCD, Hybrid SACD (play CD
layer only), SVCD, DVD-video, JPEGs, up to MPEG-4 files, MP3 files and
WMA media. Please review this material to become familiar with the FES
features and controls as well as the very important safety information.
Quick start
Your family entertainment system includes two headrest-mounted DVD
player/screens, two sets of wireless infrared (IR) headphones and a
wireless infrared (IR) remote control capable of controlling either DVD
player. Both DVD players are capable of playing their own independent
media, or they can both watch the same media.
When in single play mode, the headrest video sources that have been
selected at each headrest will play through the speakers, but no audio is
available through the headphones.
To play a DVD
1. Insert a DVD into the system, label side facing the rear passengers.
The disc slot indicator lights will illuminate. The system will
automatically load the disc and it will begin to play. LOADING will
appear in the screen.
2. If there is already a disc in the system, press the power button on the
DVD system and then press
(Play) to begin to play the disc.
Entertainment Systems
67
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

3. Use the bezel controls to play () pause (), stop (), or
eject (
) a DVD.
Press
/to access the previous/next chapter. Press and hold for a
fast reverse/forward search.
Note:The system goes into dual play mode when it is turned on. Audio
from the DVD system will not play over the rear two speakers until dual
play mode is turned off. When dual play mode is turned on, the audio
sound plays over the front two speakers until dual play mode is turned
off.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
To watch a DVD playing in the other headrest system:Press MEDIA
repeatedly until the desired system (Monitor A or Monitor B) appears in
the display.
To play a CD or MP3 disc
The DVD system can play audio CDs, CD-R and CD-R/W, CD-ROM. To
ensure proper disc operation, check the disc for finger prints and
scratches. Clean the disc with a soft cloth, wiping from the center to the
edge.
1. Insert a disc into the system,
label side facing the rear
passengers. The disc slot indicator
lights will illuminate. The system
will automatically load the disc and
it will begin to play. (If it is an MP3,
the MP3 audio disc screen will
display and allow you to access the
folders and files.) The folder, track
and elapsed time will appear in the
status bar. The screen will list the
title, album and file name. Press the arrow controls on the headrest DVD
system to scroll through the folders. When the desired folder is
highlighted, press SEL to confirm the selection.
2. If there is already a disc in the system, press the power button on the
DVD system and then press
(Play) to begin to play the disc.
Entertainment Systems
68
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

To play an auxiliary source through the DVD system
The DVD system can be used to connect and play auxiliary electronic
devices (game systems, personal camcorders, video cassette recorders,
etc) and to connect to and access certain files through your USB port.
1. On the front of each monitor,
located behind the left trim cover
panel, is the headphone input jack
(5). This headphone will listen to
the media selected through that
monitor. When you need to make
any adjustments to the media,
volume, etc., ensure that the
monitor-A source is highlighted.
•
USB port (4): To access, ensure
that the monitor is already
selected as the media source (Monitor A or Monitor B.) Then, plug in
your flash/thumb drive and it will automatically begin to play. The
system will try to play whatever file it comes to first (slideshow of
pictures, etc). If it is a supported file type, it will play. If it is not
supported, CAN’T PLAY will appear in the monitor. Scroll through the
contents on the rest of the drive using the arrow keys on the DVD
headrest or remote. Press SEL to confirm a selection. Each headrest
system automatically recognizes the audio and video files that are stored
and provides a menu from which to choose the desired selection.
•Wired headphone jack (5): Use for dual play mode
2. Connect an auxiliary audio/video
source (game systems, personal
camcorders, video cassette
recorders, etc.) by connecting RCA
cords (not included) to the RCA
jacks behind the cover panels on the
right corner of the system.
•Yellow (1) — video input
•White (2) — left channel audio
input
•Red (3) — right channel audio input
3. Whatever is plugged in will automatically begin to play on your screen.
If your auxiliary source does not have a video signal, or if the DVD
system does not detect a video signal from the auxiliary source, the
screen will remain black.
MEDIA
45
Entertainment Systems
69
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

5./(Headphones/Speakers): Press to activate dual play mode on
either headrest system. During dual play mode, the following happens:
a.Rear speakers turn off
b.Headphones become active on both headrest systems.
c.Media sources become available through the DVD systems.
Note:If the system is in dual play mode, you must press the
/
(Headphones/Speakers) button on both headrest systems in order to
return to single play. For more information, please refer toSingle
play/Dual playlater in this section.
6.MEDIA for Monitor A:In Dual Play mode, press MEDIA repeatedly
to select from the possible media sources: (Monitor A, Monitor B, AM,
FM1, FM2, SR1, SR2, SR3 (satellite radio, if equipped), Disc, Jukebox (if
equipped) and SYNC(if equipped). The selected media type will
display on the screen. When Monitor A is chosen, you can also use the
auxiliary inputs and the USB port on the headrest system.
MEDIA for Monitor B:In Dual Play mode, press MEDIA repeatedly to
select from the possible media sources: (Monitor A, Monitor B). The
selected media type will display on the screen. When Monitor B is
chosen, you can also use the auxiliary inputs and USB port on the
headrest system.
For further information, please refer toSingle play/Dual playlater in
this section.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
7.
(On/Off):Press to turn the system on/off. Power for headrest A is
separate from headrest B.
Note:This also disables dual play. When both headrest systems are
turned off, the system will return to single play mode.
8.Infrared receiver (IR):System sensor which reads the signals from
the remote control and also sends audio signals to the infrared wireless
headphones.
9.LCD screen:This seven inch liquid crystal display (LCD) screen can
be adjusted for easier viewing by children. Pull the top of the screen
panel toward the viewer at the IR receiver/transmitter cover for a better
viewing angle. The screen is hinged at the bottom and pivots to face
downward. Push the screen back in place until it latches to return it to a
stowed position.
Note:Ensure that you do not pull the LCD screen too far forward as it
can cause damage.
10.CD/DVD slot:Insert the disc, label side facing the rear passengers.
Entertainment Systems
71
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Remote control
Unless otherwise stated, all operations can be carried out with the
remote control. Always point the remote control directly at the player.
Ensure that there are no obstructions between the remote and player.
Press the MON A B control to select either Monitor A or Monitor B.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
Note:Use the remote to adjust the volume levels for wired headphones
for headrest media sources only (DVD, USB port and auxiliary inputs).
To adjust the volume levels on the infrared wireless headphones
(provided with your system), first use the remote control
volume-controls to adjust volume settings to maximum, then use the
rotary volume control on the side of the headphones to adjust the
volume to the desired listening level.
1.
(On/off):Press to turn each monitor/headrest system on or off.
2.Cursor controls:Use in various active menus to advance the cursor
up/down/left/right. When not in a menu, the left and right cursor controls
decrease and increase the display brightness, and the left and right
Entertainment Systems
72
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

cursor controls advance to the next or previous station when accessing
the radio tuner in dual play mode (AM/FM/SR).
3.DISPLAY:Press to access the on-screen display of title track, chapter
and time elapsed.
4.RETURN:Press to return to the previous menu screen.
5.SETUP: Press to access the setup menu for each monitor. Refer to
Setup Menulater in this section for more information.
6.MON A/B:Press to select either monitor A or monitor B to be
controlled by the remote control.
7.VOL (Volume):When in Dual Play only, press to increase (
)or
decrease (
) the volume for the wired headphones for headrest media
sources only (DVD, USB port and auxiliary inputs). (Wireless headphone
volume is controlled with the rotary dial on the right ear piece.)
8.Fast Forward/Next:In DVD mode, press and hold for a quick
advance within the DVD. Press and release to advance to the next
chapter. In CD/MP3 mode, press to access the next track. When using a
flash/thumb drive, press to access the next track.
9.Play/Pause:Press to play or pause a DVD, disc or flash/thumb drive
track.
10.TITLE:Press to access the on-screen display of the root DVD disc
menu.
11.STOP:Press to stop the current DVD, disc or flash/thumb drive
track.
12.
/Speaker/Headphone(Single/Dual Play): Press to switch
between Single Play (same media playing through all speakers) and Dual
Play (headphone mode, the rear speakers are muted). You can also press
the 2 and 4 memory presets on the audio system at the same time to
perform the same function.
Note:Whenever either headrest system presses this button, both
systems will automatically go into dual play mode. In order to return to
single play mode, you must press this button on both headrest systems.
13.Numeric Keypad:Use the numeric controls to enter in a specific
CD/MP3 track or DVD chapter to be played.
14.C (Cancel):Press to cancel/clear the numeric input (i.e. chapter
number).
Entertainment Systems
73
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
