2012 LINCOLN MKT Owners Manual

Satellite radio (if activated)
SIRIUSsatellite radio service:SIRIUSsatellite radio is a
subscription based satellite radio service that broadcasts a variety of
music, sports, news, weather, traffic and entertainment programming.
Your factory installed SIRIUSsatellite radio system includes: hardware
and a limited subscription term which begins on the date of sale or lease
of the vehicle. Refer to your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit www.sirius.com in
the United States, www.siriuscanada.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite radio reception factors
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
You will hear an audio mute when there is a satellite radio signal
interference. Your display may show ACQUIRING...toindicatethe
interference.
Satellite radio electronic serial number (ESN):You will need your
ESN to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access, press the I hard button (
) and select the ‘System Info’ tab
on the touchscreen.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Entertainment Systems
65
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Troubleshooting tips
Radio Display Condition Possible action
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.No action required. This
message should
disappear shortly.
SAT FAULT Internal module or
system failure present.If this message does not
clear within a short
period of time, or with
an ignition key cycle,
your receiver may have a
fault. See your
authorized dealer for
service.
INVALID CHANNEL Channel no longer
available.Tune to another channel
or choose another
preset.
UNSUBSCRIBED
CHANNELSubscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the channel,
or tune to another
channel.
NO SIGNAL Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.You are in a location that
is blocking the SIRIUS
signal (i.e., tunnel, under
an overpass, dense
foliage, etc.). The system
is working properly.
When you move into an
open area, the signal
should return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUS Satellite Radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
Entertainment Systems
66
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle may be equipped with a Family Entertainment System (FES)
which allows you to listen to audio CDs, MP3 discs, watch DVDs and to
plug in and play a variety of standard video game systems. The
headrest-mounted DVD players are capable of playing standard DVDs, CDs,
MP3s and are compatible with Video CD, HDCD, Hybrid SACD (play CD
layer only), SVCD, DVD-video, JPEGs, up to MPEG-4 files, MP3 files and
WMA media. Please review this material to become familiar with the FES
features and controls as well as the very important safety information.
Quick start
Your family entertainment system includes two headrest-mounted DVD
player/screens, two sets of wireless infrared (IR) headphones and a
wireless infrared (IR) remote control capable of controlling either DVD
player. Both DVD players are capable of playing their own independent
media, or they can both watch the same media.
When in single play mode, the headrest video sources that have been
selected at each headrest will play through the speakers, but no audio is
available through the headphones.
To play a DVD
1. Insert a DVD into the system, label side facing the rear passengers.
The disc slot indicator lights will illuminate. The system will
automatically load the disc and it will begin to play. LOADING will
appear in the screen.
2. If there is already a disc in the system, press the power button on the
DVD system and then press
(Play) to begin to play the disc.
Entertainment Systems
67
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

3. Use the bezel controls to play () pause (), stop (), or
eject (
) a DVD.
Press
/to access the previous/next chapter. Press and hold for a
fast reverse/forward search.
Note:The system goes into dual play mode when it is turned on. Audio
from the DVD system will not play over the rear two speakers until dual
play mode is turned off. When dual play mode is turned on, the audio
sound plays over the front two speakers until dual play mode is turned
off.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
To watch a DVD playing in the other headrest system:Press MEDIA
repeatedly until the desired system (Monitor A or Monitor B) appears in
the display.
To play a CD or MP3 disc
The DVD system can play audio CDs, CD-R and CD-R/W, CD-ROM. To
ensure proper disc operation, check the disc for finger prints and
scratches. Clean the disc with a soft cloth, wiping from the center to the
edge.
1. Insert a disc into the system,
label side facing the rear
passengers. The disc slot indicator
lights will illuminate. The system
will automatically load the disc and
it will begin to play. (If it is an MP3,
the MP3 audio disc screen will
display and allow you to access the
folders and files.) The folder, track
and elapsed time will appear in the
status bar. The screen will list the
title, album and file name. Press the arrow controls on the headrest DVD
system to scroll through the folders. When the desired folder is
highlighted, press SEL to confirm the selection.
2. If there is already a disc in the system, press the power button on the
DVD system and then press
(Play) to begin to play the disc.
Entertainment Systems
68
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

To play an auxiliary source through the DVD system
The DVD system can be used to connect and play auxiliary electronic
devices (game systems, personal camcorders, video cassette recorders,
etc) and to connect to and access certain files through your USB port.
1. On the front of each monitor,
located behind the left trim cover
panel, is the headphone input jack
(5). This headphone will listen to
the media selected through that
monitor. When you need to make
any adjustments to the media,
volume, etc., ensure that the
monitor-A source is highlighted.
•
USB port (4): To access, ensure
that the monitor is already
selected as the media source (Monitor A or Monitor B.) Then, plug in
your flash/thumb drive and it will automatically begin to play. The
system will try to play whatever file it comes to first (slideshow of
pictures, etc). If it is a supported file type, it will play. If it is not
supported, CAN’T PLAY will appear in the monitor. Scroll through the
contents on the rest of the drive using the arrow keys on the DVD
headrest or remote. Press SEL to confirm a selection. Each headrest
system automatically recognizes the audio and video files that are stored
and provides a menu from which to choose the desired selection.
•Wired headphone jack (5): Use for dual play mode
2. Connect an auxiliary audio/video
source (game systems, personal
camcorders, video cassette
recorders, etc.) by connecting RCA
cords (not included) to the RCA
jacks behind the cover panels on the
right corner of the system.
•Yellow (1) — video input
•White (2) — left channel audio
input
•Red (3) — right channel audio input
3. Whatever is plugged in will automatically begin to play on your screen.
If your auxiliary source does not have a video signal, or if the DVD
system does not detect a video signal from the auxiliary source, the
screen will remain black.
MEDIA
45
Entertainment Systems
69
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

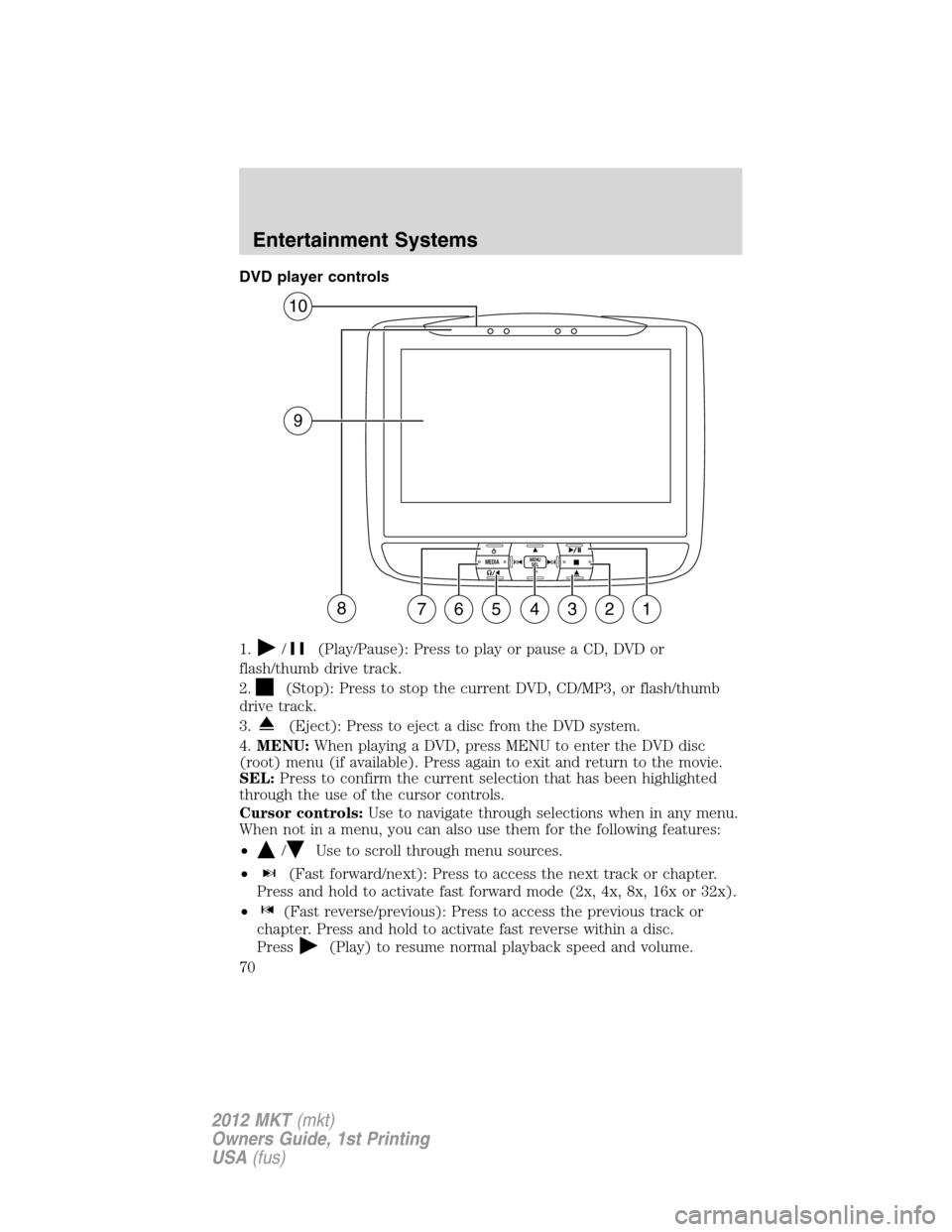

DVD player controls
1.
/(Play/Pause): Press to play or pause a CD, DVD or
flash/thumb drive track.
2.
(Stop): Press to stop the current DVD, CD/MP3, or flash/thumb
drive track.
3.
(Eject): Press to eject a disc from the DVD system.
4.MENU:When playing a DVD, press MENU to enter the DVD disc
(root) menu (if available). Press again to exit and return to the movie.
SEL:Press to confirm the current selection that has been highlighted
through the use of the cursor controls.
Cursor controls:Use to navigate through selections when in any menu.
When not in a menu, you can also use them for the following features:
•
/Use to scroll through menu sources.
•
(Fast forward/next): Press to access the next track or chapter.
Press and hold to activate fast forward mode (2x, 4x, 8x, 16x or 32x).
•
(Fast reverse/previous): Press to access the previous track or
chapter. Press and hold to activate fast reverse within a disc.
Press
(Play) to resume normal playback speed and volume.
MEDIAMENU
SEL
47561328
9
10
Entertainment Systems
70
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

5./(Headphones/Speakers): Press to activate dual play mode on
either headrest system. During dual play mode, the following happens:
a.Rear speakers turn off
b.Headphones become active on both headrest systems.
c.Media sources become available through the DVD systems.
Note:If the system is in dual play mode, you must press the
/
(Headphones/Speakers) button on both headrest systems in order to
return to single play. For more information, please refer toSingle
play/Dual playlater in this section.
6.MEDIA for Monitor A:In Dual Play mode, press MEDIA repeatedly
to select from the possible media sources: (Monitor A, Monitor B, AM,
FM1, FM2, SR1, SR2, SR3 (satellite radio, if equipped), Disc, Jukebox (if
equipped) and SYNC(if equipped). The selected media type will
display on the screen. When Monitor A is chosen, you can also use the
auxiliary inputs and the USB port on the headrest system.
MEDIA for Monitor B:In Dual Play mode, press MEDIA repeatedly to
select from the possible media sources: (Monitor A, Monitor B). The
selected media type will display on the screen. When Monitor B is
chosen, you can also use the auxiliary inputs and USB port on the
headrest system.
For further information, please refer toSingle play/Dual playlater in
this section.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
7.
(On/Off):Press to turn the system on/off. Power for headrest A is
separate from headrest B.
Note:This also disables dual play. When both headrest systems are
turned off, the system will return to single play mode.
8.Infrared receiver (IR):System sensor which reads the signals from
the remote control and also sends audio signals to the infrared wireless
headphones.
9.LCD screen:This seven inch liquid crystal display (LCD) screen can
be adjusted for easier viewing by children. Pull the top of the screen
panel toward the viewer at the IR receiver/transmitter cover for a better
viewing angle. The screen is hinged at the bottom and pivots to face
downward. Push the screen back in place until it latches to return it to a
stowed position.
Note:Ensure that you do not pull the LCD screen too far forward as it
can cause damage.
10.CD/DVD slot:Insert the disc, label side facing the rear passengers.
Entertainment Systems
71
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Remote control
Unless otherwise stated, all operations can be carried out with the
remote control. Always point the remote control directly at the player.
Ensure that there are no obstructions between the remote and player.
Press the MON A B control to select either Monitor A or Monitor B.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
Note:Use the remote to adjust the volume levels for wired headphones
for headrest media sources only (DVD, USB port and auxiliary inputs).
To adjust the volume levels on the infrared wireless headphones
(provided with your system), first use the remote control
volume-controls to adjust volume settings to maximum, then use the
rotary volume control on the side of the headphones to adjust the
volume to the desired listening level.
1.
(On/off):Press to turn each monitor/headrest system on or off.
2.Cursor controls:Use in various active menus to advance the cursor
up/down/left/right. When not in a menu, the left and right cursor controls
decrease and increase the display brightness, and the left and right
Entertainment Systems
72
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
