2012 Lexus IS F Specifications / LEXUS 2012 IS F OWNERS MANUAL (OM53A41U)

513
6-1. Specifications
6
Vehicle specifications
Vehicle identification■ Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the engine
compartment.
This number is also on the Certifica-
tion Label.

514
6-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.

515
6-1. Specifications
6
Vehicle specifications
Engine
Fuel
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 3.52 in. (94.0  89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)16.9 gal. (64 L, 14.0 Imp. gal.)

516
6-1. Specifications
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil capacity
(Drain and refill
 reference
*)
without filter8.7 qt. (8.2 L, 7.2 Imp. qt.)
with filter 9.8 qt. (9.3 L, 8.2 Imp. qt.)
Outside temperature

517
6-1. Specifications
6
Vehicle specifications
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant St andardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Cooling system
Capacity12.6 qt. (11.9 L, 10.5 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.

518
6-1. Specifications
Ignition system
Electrical system
Differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisf y the above specification. Please contact
your Lexus dealer for further details.
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the engine.
Battery
Open voltage* at
68 F (20 C):12.6 12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil
LX 75W-85 GL-5” or equivalent

519
6-1. Specifications
6
Vehicle specifications
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-tact your Lexus dealer.
Fluid capacity*11.6 qt. (11.0 L, 9.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.

520
6-1. Specifications

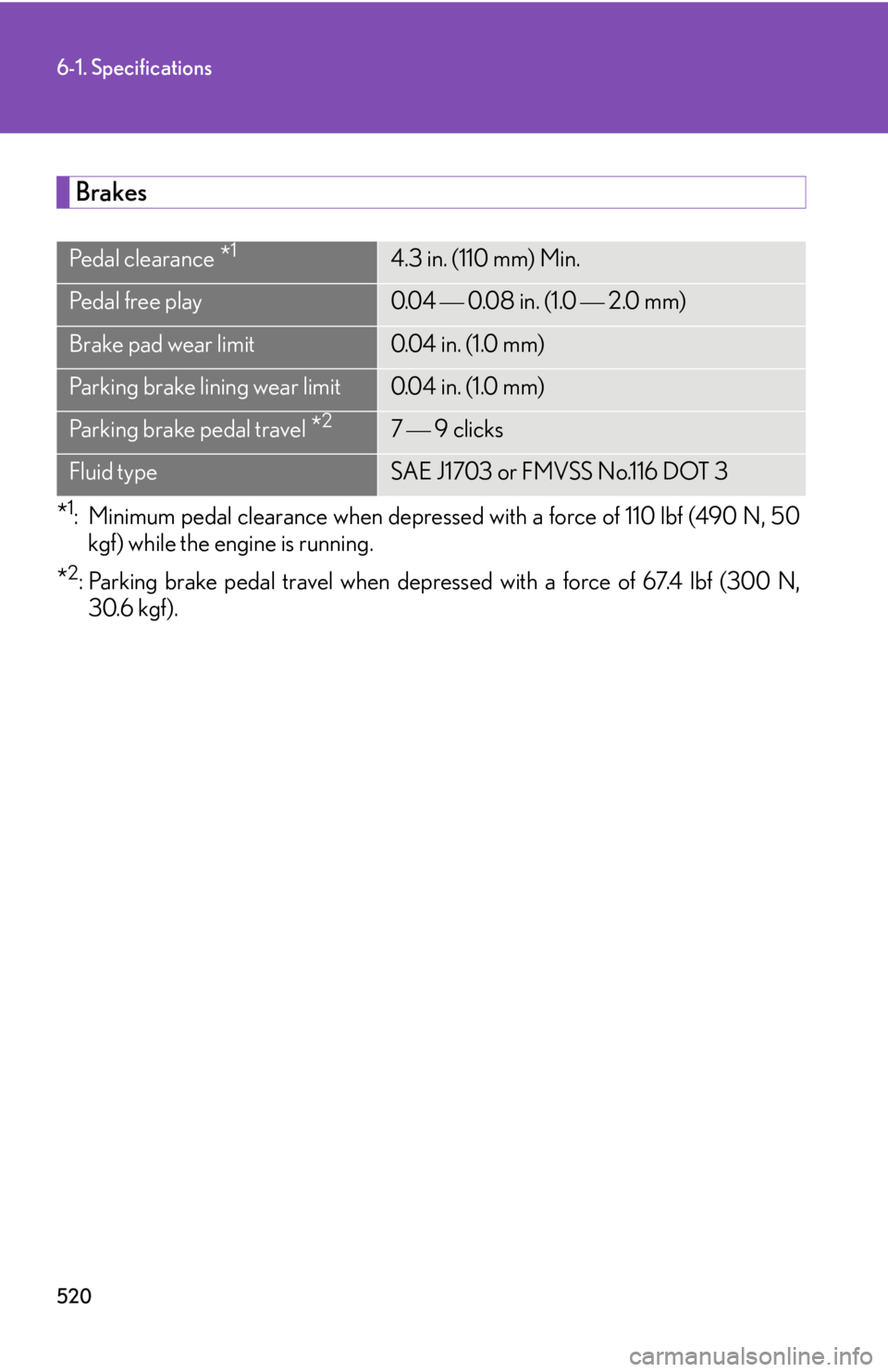

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Pe d a l c l e a r a n c e *14.3 in. (110 mm) Min.
Pedal free play0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
