2012 Lexus IS F Owner's Manual

448
4-3. Do-it-yourself maintenance
IS F_UPartly remove the cover. Remove
the wire harness and turn the bulb
base counterclockwise.
Remove the light bulb.
■ Rear turn signal lights
Open the trunk door and remove
the cover.
Remove the connector and turn
the bulb base counterclockwise.
STEP2
STEP3
STEP1
STEP2

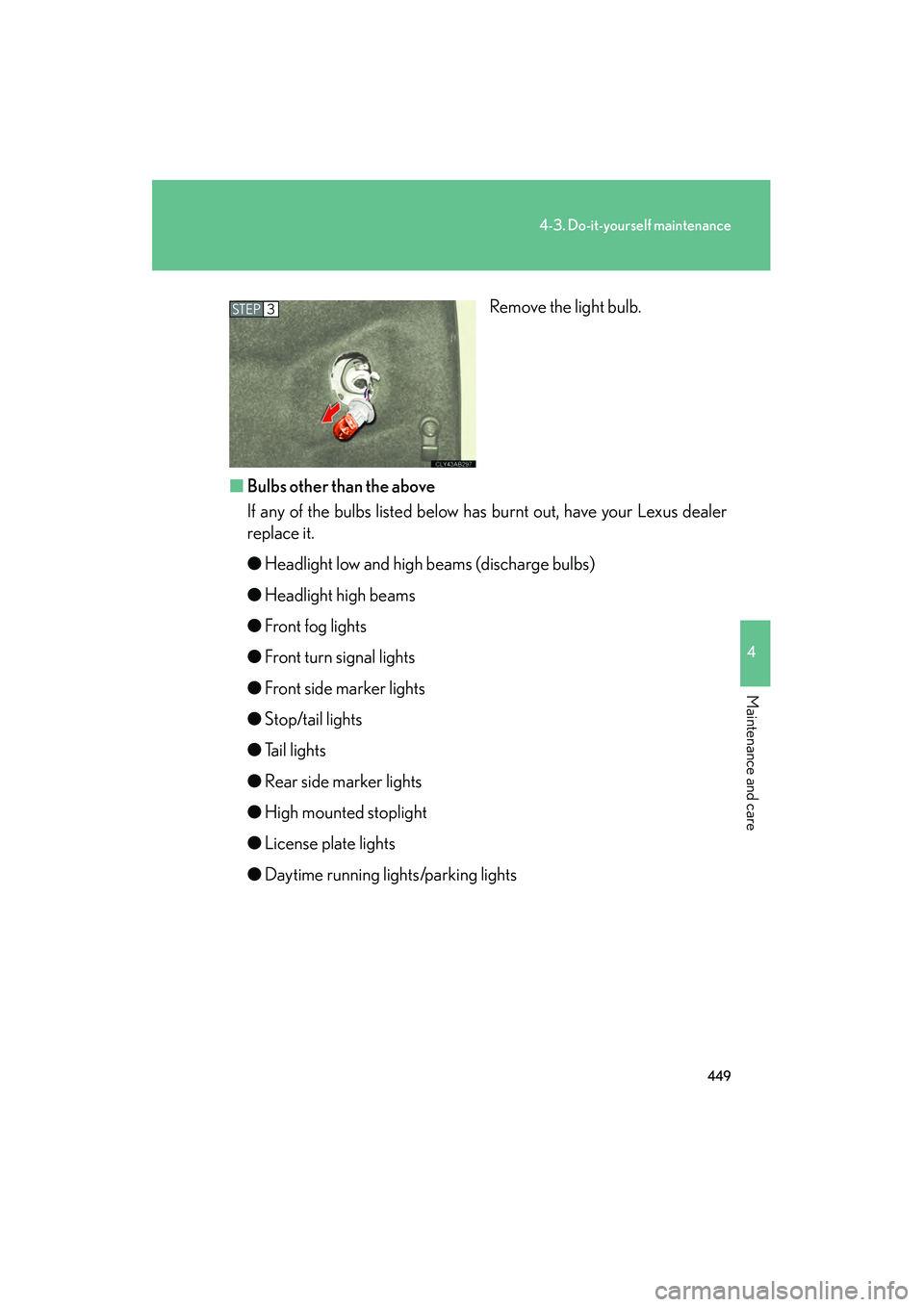

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_URemove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low and high beams (discharge bulbs)
● Headlight high beams
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
● Daytime running lights/parking lights
STEP3

450
4-3. Do-it-yourself maintenance
IS F_U
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED tail lights, stop/tail lights, daytime running lights/parking lights and high
mounted stoplight
The tail lights, stop/tail lights, daytime running lights/parking lights and high
mounted stoplight consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Lexus dealer to have the light replaced.

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

452
4-3. Do-it-yourself maintenance
IS F_U

When trouble arises5
453
IS F_U
5-1. Essential informationEmergency flashers............... 454
If your vehicle needs to be towed ...................................... 455
If you think something is wrong ....................................... 461
Fuel pump shut off system ..................................... 462 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 463
If a warning message is displayed................................ 473
If you have a flat tire............... 487
If the engine will not start .... 496
If the shift lever cannot be shifted from P ........................ 497
If you lose your keys .............. 498
If the electronic key does not operate properly.......... 499
If the vehicle battery is discharged ............................ 502
If your vehicle overheats ..... 505
If the vehicle becomes stuck........................................ 508
If your vehicle has to be stopped in an
emergency ............................ 509

454
IS F_U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.

5
When trouble arises
455
5-1. Essential information
IS F_U
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion. Towing eyelet
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the vehicle’s front wheels and axles must be in good
condition. ( →P. 4 5 9 )
If they are damaged, use a towing dolly or flat bed truck.
