2012 Lexus IS F Owner's Manual

160
2-2. Instrument cluster
IS F_U■
Gear position display
Indicates the current gear, and the range of gears
that is available when the shift lever is in the D posi-
tion. The gear range is shown by the number of dots
(•) and the current gear is shown as a number. The
transmission automatically selects the gears within
the driver selected gear range.
In the illustration to the left, a range of 8 available gears
(1 through 8) has been selected by the driver. (The shift
lever is in the D position with 8 ranges enabled) It is
possible for the transmission to automatically select
between all 8 of the gears. In this case, the transmission
has selected third gear.
When in the M position, the “F” mark is displayed.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Changing units for the multi-information display
→ P. 1 5 2

161
2-2. Instrument cluster
2
When driving
IS F_U
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's downshifting and the new gear
number appearing on the display. In this case, wait until the display changes and
take care not to downshift again, causing rapid and excessive engine braking and
possibly an accident resulting in death or serious injury.

162
IS F_U
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e AThe daytime running
lights turn on.
The side marker, tail,
license plate, daytime
running lights and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime run-
ning lights) turn on.
The headlights, park-
ing lights/daytime run-
ning lights and other
lights turn on and off
automatically.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)
U.S.A .Canada

163
2-3. Operating the lights and windshield wipers
2
When driving
IS F_U
Ty p e BThe daytime running
lights turn on.
The side marker, tail,
license plate, daytime
running lights and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime run-
ning lights) turn on.
The headlights, park-
ing lights/daytime run-
ning lights and other
lights turn on and off
automatically.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)

164
2-3. Operating the lights and windshield wipers
IS F_U
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
■Daytime running light system
●To make your vehicle more visible to other drivers, the parking light turn on
automatically (at a increased intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
●Compared to turning on the headlights, the daytime running light system offers
greater durability and consumes less electricity, so it can help improve fuel
economy.
■Headlight control sensorThe sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

165
2-3. Operating the lights and windshield wipers
2
When driving
IS F_U
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds
after a door is opened and closed if the “ENGINE START STOP” switch has
been switched to ACCESSORY mode or turned OFF. (The lights turn off
immediately if on the key is pressed after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF and driver’s door is opened.
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to
or .
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 5 3 8 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

166
2-3. Operating the lights and windshield wipers
IS F_U
Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
Ty p e AFront fog lights off
Front fog lights on

167
2-3. Operating the lights and windshield wipers
2
When driving
IS F_U

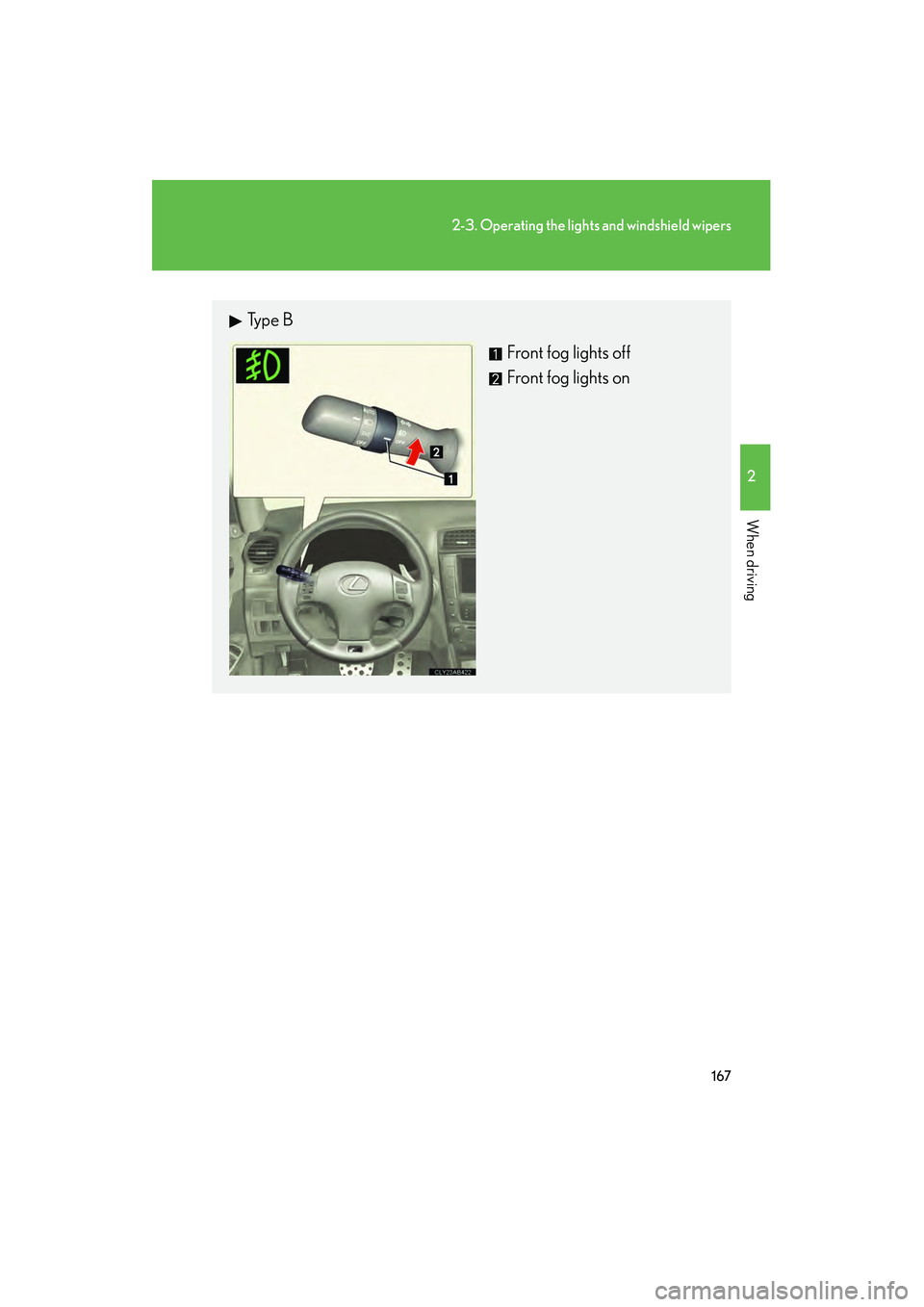

Ty p e BFront fog lights off
Front fog lights on
