2012 Lexus HS250h Owner's Manual

480
4-3. Do-it-yourself maintenance
HS250h_U_75050U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 4 8 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U

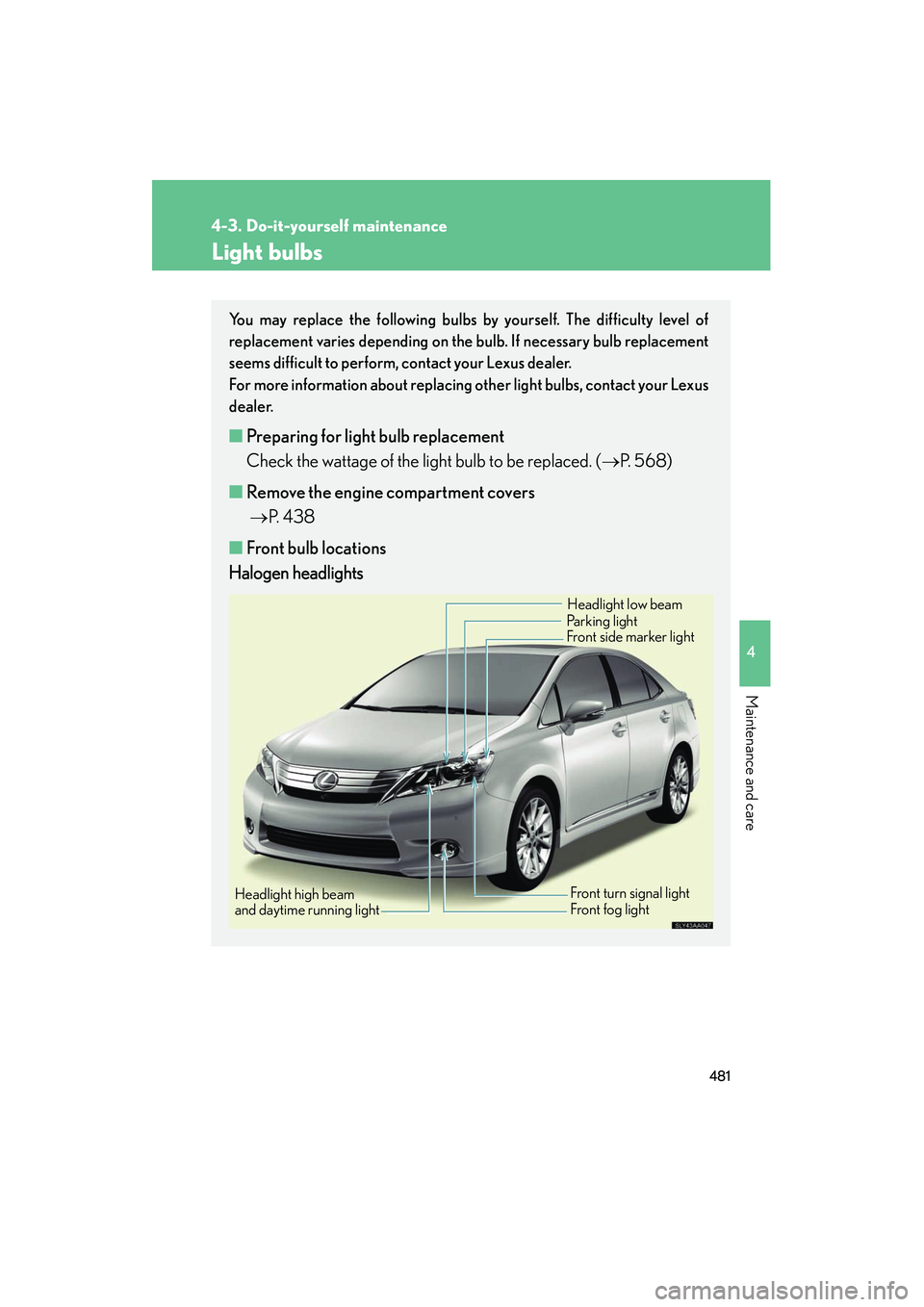

Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( →P. 568)
■ Remove the engine compartment covers
→ P. 4 3 8
■ Front bulb locations
Halogen headlights
Front side marker light Headlight low beam
Parking light
Front turn signal light
Front fog lightHeadlight high beam
and daytime running light

482
4-3. Do-it-yourself maintenance
HS250h_U_75050U
LED headlights
■Rear bulb locations
Front fog light
Front turn signal light
Parking lightFront side marker light
Headlight high beam and
daytime running light
Rear turn signal light
Back-up light
License plate light

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U
Replacing light bulbs■ Headlight high beams and daytime running lights (halogen head-
lights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight high beams and daytime running lights (LED headlights)
Turn the cover counterclockwise.

484
4-3. Do-it-yourself maintenance
HS250h_U_75050UTurn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U■
Front turn signal lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front turn signal lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

486
4-3. Do-it-yourself maintenance
HS250h_U_75050U■
Parking lights/front side marker lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Parking lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U■
Front side marker lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
Remove the fender liner bolts, clip
and remove the fender liner.
Removing the clip
Installing the clip
