2012 Lexus HS250h Owner's Manual

264
HS250h_U_75050U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ..................................... 266
Rear window defogger switch ....................................... 274
Windshield wiper de-icer ..... 275
3-2. Using the audio system Audio system............................ 276
Using the radio ........................ 279
Using the CD player ............. 287
Playing MP3 and WMA
discs......................................... 295
Operating an iPod ................. 302
Operating a USB memory................................... 310
Optimal use of the audio system ...................................... 318
Using the AUX port............... 321
Using the steering wheel audio switches...................... 322

Interior features3
265
HS250h_U_75050U
3-3. Using the Bluetooth® audio
system
Bluetooth
® audio system ... 325
Using the Bluetooth® audio
system .................................... 328
Operating a Bluetooth
®
enabled portable player... 333
Setting up a Bluetooth
®
enabled portable player.... 336
Bluetooth
® audio system
setup ......................................... 341
3-4. Using the hands-free phone system (for cellular phones)
Hands-free system for cellular phones..................... 342
Using the hands-free system (for cellular phones) ........... 346
Making a phone call .............. 354
Setting a cellular phone ....... 359
Security and system setup ........................................ 364
Using the phone book.......... 368
3-5. Using the interior lights Interior lights list ..................... 374
• Interior lights ........................ 375
• Personal lights ...................... 375 3-6. Using the storage features
List of storage features.......... 377
• Glove box .............................. 378
• Console box ......................... 379
• Cup holders ........................... 381
• Bottle holders....................... 383
• Auxiliary boxes .................... 384
3-7. Other interior features Sun visors ................................. 385
Vanity mirrors ......................... 386
Clock ......................................... 387
Power outlets .......................... 388
Seat heaters and ventilators ............................. 389
Armrest ..................................... 391
Rear sunshade ........................ 392
Floor mat .................................. 394
Trunk compartment features .................................. 396
Garage door opener ............ 398
Compass .................................. 404
Safety Connect ...................... 408

266
HS250h_U_75050U

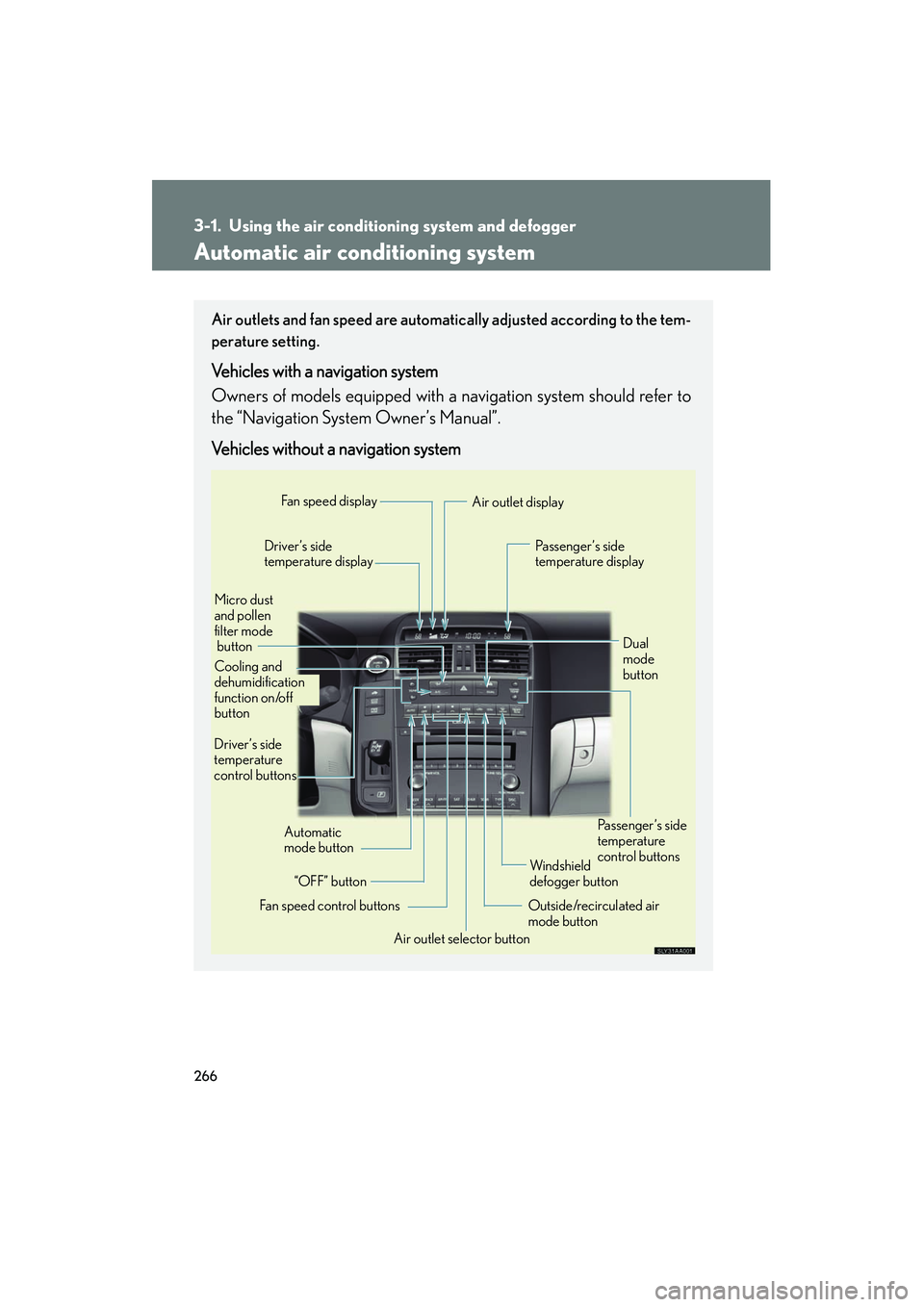

3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Automatic
mode button
Driver’s side
temperature display
Dual
mode
button
Fan speed control buttons Air outlet display
Fan speed display
Passenger’s side
temperature display
Driver’s side
temperature
control buttons Outside/recirculated air
mode buttonWindshield
defogger button Passenger’s side
temperature
control buttons
Micro dust
and pollen
filter mode
button
“OFF” button Air outlet selector button
Cooling and
dehumidification
function on/off
button

267
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050U
Using automatic air conditioning system
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature
setting.
Press “∧” on to increase the temperature and “ ∨” to
decrease the temperature.
When is pressed (the indicator on is on) or the passen-
ger’s side temperature control button is pressed, the temperature for
the driver and passenger seats can be adjusted separately.

268
3-1. Using the air conditioning system and defogger
HS250h_U_75050U
Adjusting the settings manually■ Basic setting
To turn on the air conditioning system and adjust the fan speed,
press “ ∧” on to increase the fan speed and “∨ ” on to
decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, press “ ∧” on to increase
the temperature and “ ∨” to decrease the temperature.
When is pressed (the indicator on is on) or the passen-
ger’s side temperature control button is pressed, the temperature for
the driver and passenger seats can be adjusted separately.
To change the air outlets, press .
The air outlets used are switched each time the button is pressed. The
air flow shown on the display indicates the following:
Air flows to the upper body.

269
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050U Air flows to the upper body and
feet.
Air flows mainly to the feet.
Air flows to the feet and the wind-
shield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between (recirculated air mode) and
(outside air mode) modes each time the button is pressed.

270
3-1. Using the air conditioning system and defogger
HS250h_U_75050U
Defogging the windshieldDefogging
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return to
recirculated air mode when the
switch is on.
Micro dust and pollen filter mode button
Operates micro dust and pollen fil-
ter on/off.
Outside air mode switches to (recirculated air) mode.
Pollen is removed from the air and
the air flows to the upper part of
the body.
Usually the system will turn off
automatically after approximately
3 minutes.
Adjusting the position of and op ening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.

271
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050UFront side outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
Rear outlets Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Air conditioning system settings
When the “POWER” switch is turned on, the air conditioning system settings will be
set to those that were in use the last time the “POWER” switch was turned off.
●Air conditioning system settings are memorized individually on each electronic
key, so the settings reproduced will be specific to the key that is used.
●This feature is customizable at your Lexus dealer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and ambi-
ent conditions. As a result, the following may occur:
●The system may switch automatically to recirculated air mode when the coolest
temperature setting is selected when the ambient temperature is high.
●Immediately after the button is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
