1. AIR CONDITIONING SYSTEM OPERATION
1. QUICK REFERENCE
The above illustration is for a left-hand drive vehicle. The button positions are
reversed for right-hand drive vehicles.
*1:Driver side temperature display
*2:Outside temperature display
*3:Passenger side temperature display
*4:Air outlet display
*5:Fan speed display
Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen.
*1
*2
*3
*1 *5 *4 *3

307
1. AIR CONDITIONING SYSTEM OPERATION
6
AIR CONDITIONING
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
No.NameFunctionPage
Driver’s side tem-
perature control but-
tonPress/select to control the driver’s side tem-
perature.310
Fan speed control
buttonsPress/select to change fan speed.311
Air flow control but-
tonsPress/select to change the air outlets.312
Passenger’s side tem-
perature control but-
tonPress/select to control the passenger’s side
temperature.
When you press/select this button, the “DU-
AL” indicator light will turn on, and the mode
will change to independent mode.
310
Windshield wiper de-
icer (If equipped)Select to prevent ice from building up on the
windshield and wiper blades.315
(Pollen removal
mode button)Press to remove pollen.315
“DUAL” button/
“DUAL”Press/select to set the temperatures inde-
pendently for the driver’s, and front passen-
ger’s seat.310
“A/C”Select to change the air conditioning between
on and off.316
Air intake control
buttonPress to change the function between outside
air, recirculated air and automatic mode.313
“OFF” buttonPress to turn the fan off.309,
311
“AUTO” buttonPress to use the automatic air conditioning
system.309
Rear window and
outside rear view
mirror defogger but-
ton
Press to defog the rear window and outside
rear view mirror.314
Windshield air flow
buttonPress to defog the windshield.311

308
1. AIR CONDITIONING SYSTEM OPERATION
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
2. SOME BASICS
1Press the “MENU” button on the
Remote Touch.
2Select “Climate”.
CLIMATE CONTROL
The “POWER” switch must be in
ON mode.
A function that enables automatic
return to the previous screen from the
air conditioning control screen can be
selected. See page 61 for details.
NOTICE
To prevent 12-volt battery discharge,
do not leave the air conditioning sys-
tem on longer than necessary when
the hybrid system is stopped.
INFORMATION
During use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air condition-
ing system. This may then cause odor
to be emitted from the vents.
To reduce potential odors from occur-
ring:
• It is recommended that the air condi-
tioning system be set to outside air
mode prior to turning the vehicle
off.
• The start timing of the blower may
be delayed for a short period of time
immediately after the air condition-
ing system is started in automatic
operation mode.

309
1. AIR CONDITIONING SYSTEM OPERATION
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
6
AIR CONDITIONING

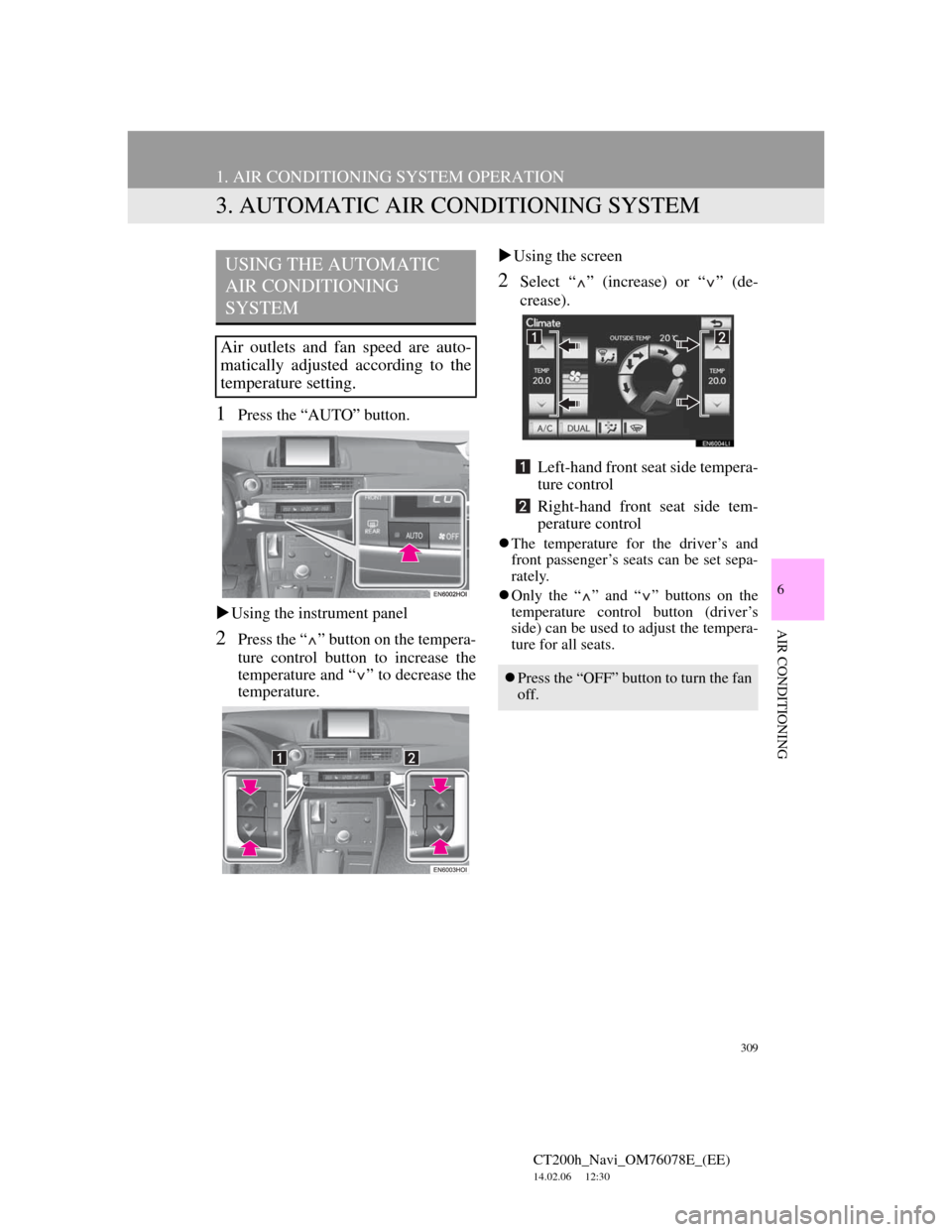

3. AUTOMATIC AIR CONDITIONING SYSTEM
1Press the “AUTO” button.
Using the instrument panel
2Press the “ ” button on the tempera-
ture control button to increase the
temperature and “ ” to decrease the
temperature.Using the screen
2Select “ ” (increase) or “ ” (de-
crease).
Left-hand front seat side tempera-
ture control
Right-hand front seat side tem-
perature control
The temperature for the driver’s and
front passenger’s seats can be set sepa-
rately.
Only the “ ” and “ ” buttons on the
temperature control button (driver’s
side) can be used to adjust the tempera-
ture for all seats.
USING THE AUTOMATIC
AIR CONDITIONING
SYSTEM
Air outlets and fan speed are auto-
matically adjusted according to the
temperature setting.
Press the “OFF” button to turn the fan
off.

310
1. AIR CONDITIONING SYSTEM OPERATION
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
Using the instrument panel
1Press the “ ” button on the tempera-
ture control button to increase the
temperature and “ ” to decrease the
temperature.
Using the screen
1Select “ ” (increase) or “ ” (de-
crease).
Left-hand front seat side tempera-
ture control
Right-hand front seat side tem-
perature control
The temperature for the driver’s and
front passenger’s seats can be set sepa-
rately.
Only the “ ” and “ ” buttons on the
temperature control button (driver’s
side) can be used to adjust the tempera-
ture for all seats.
DUAL
Using the instrument panel
1Press the “DUAL” button.
Using the screen
1Select “DUAL”.
When the indicator on “DUAL” is on,
the temperature for the driver’s and
front passenger’s seats can be set sepa-
rately.
ADJUST THE SETTINGS
MANUALLY
SETTING THE VEHICLE
INTERIOR TEMPERATURE
“DUAL” is used to set the tempera-
tures independently for the driver’s
seat and front passenger seat.

311
1. AIR CONDITIONING SYSTEM OPERATION
6
AIR CONDITIONING
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
Using the instrument panel
1Press the “ ” button on fan speed
control button to increase the fan
speed and press the “ ” button to de-
crease the fan speed. (7 levels)
Using the screen
1Select “ ” on to increase the fan
speed and “ ” to decrease the fan
speed. (7 levels)
1Press the windshield air flow button.
The air conditioning system control
operates automatically.
When the outside temperature is low,
recirculated air mode will automati-
cally switch to outside air mode.
SETTING THE FAN SPEED
Press the “OFF” button to turn the fan
off.
DEFOGGING THE
WINDSHIELD
CAUTION
To prevent the windshield from fog-
ging up
• Do not use the windshield air flow
button during cool air operation in
extremely humid weather. The dif-
ference between the temperature of
the outside air and that of the wind-
shield can cause the outer surface of
the windshield to fog up, blocking
your vision.

312
1. AIR CONDITIONING SYSTEM OPERATION
CT200h_Navi_OM76078E_(EE)
14.02.06 12:30
Using the instrument panel
1Press the air outlet selector button.
Using the screen
1Select any mode on the screen.Air flows to the upper body (Panel)
Air flows to the upper body and feet
(Bi-level)
SWITCHING THE AIR
OUTLETS AND AIR FLOW
The outlets from which air is deliv-
ered can be selected manually.
No.Function
Panel
Bi-level
Floor
Floor/windshield
