 ENHANCED SEAT BELT USE REMINDERSYSTEM (BeltAlert®) . . . . . . . . . . . . . . . . . . . . 29
 SEAT BELTS AND PREGNANT WOMEN . . . . . 29
 SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS . . . . . . . . . . . . . . . . . . . . . 30
 AIR BAG DEPLOYMENT SENSORS AND CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
 EVENT DATA RECORDER (EDR) . . . . . . . . . . . 36
 CHILD RESTRAINTS . . . . . . . . . . . . . . . . . . . . 37
 ENGINE BREAK-IN RECOMMENDATIONS . . . . . 44
 SAFETY TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . 45  Transporting Passengers . . . . . . . . . . . . . . . . . 45
 Exhaust Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
 Safety Checks You Should Make Inside TheVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
 Periodic Safety Checks You Should Make Outside The Vehicle . . . . . . . . . . . . . . . . . . . . . 47
11

SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
— AIR BAGS
This vehicle has Advanced Front Air
Bags for both the driver and front
passenger as a supplement to the seat
belt restraint systems. The driver's
Advanced Front Air Bag is mounted
in the center of the steering wheel.
The passenger's Advanced Front Air
Bag is mounted in the instrument
panel, above the glove compartment.
The words SRS AIRBAG are em-
bossed on the air bag covers.NOTE:
The Driver and Front Passenger
Advanced Front Air Bags are certi-
fied to the new regulations for Ad-
vanced Air Bags.
The Advanced Front Air Bags have a
multistage inflator design. This allows
the air bag to have different rates of
inflation that are based on several fac-
tors, including the severity and type of
collision.
This vehicle may be equipped with a
driver and/or front passenger seat
belt buckle switch that detects
whether the driver or front passenger
seat belt is fastened. The seat belt
buckle switch may adjust the inflation
rate of the Advanced Front Air Bags.
This vehicle is equipped with Supple-
mental Seat-Mounted Side Air Bags
(SAB) to provide enhanced protection
for an occupant during a side impact.
The SABs are located in the outboard
side of the front seats.NOTE:
 Air Bag covers may not be obvi-
ous in the interior trim, but they
will open during air bag deploy-
ment.
 After any collision, the vehicle should be taken to an autho-
rized dealer immediately.
Air Bag System Components
Your vehicle may be equipped with
the following air bag system compo-
nents:
 Occupant Restraint Controller (ORC)
 Air Bag Warning Light
 Steering Wheel and Column
 Instrument Panel
 Knee Impact Bolster
 Driver Advanced Front Air Bag
 Passenger Advanced Front Air Bag
 Supplemental Seat-Mounted Side Air Bags (SAB)
 Front and Side Impact SensorsAdvanced Front Air Bag And Knee Bolster Locations1 — Driver And Passenger Ad-
vanced Front Air Bags
2 — Knee Bolster
30

 Front Seat Belt Pretensioners, SeatBelt Buckle Switch, and Seat Track
Position Sensors
Advanced Front Air Bag Features
The Advanced Front Air Bag system
has multistage driver and front pas-
senger air bags. This system provides
output appropriate to several factors,
including the severity and type of col-
lision as determined by the Occupant
Restraint Controller (ORC), which
may receive information from the
front impact sensors.
The first stage inflator is triggered
immediately during an impact that
requires air bag deployment. This low
output is used in less severe collisions.
A higher energy output is used for
more severe collisions.WARNING!
 No objects should be placed over or near the air bag on the instru-
ment panel, because any such ob-
jects could cause harm if the ve-
hicle is in a collision severe
enough to cause the air bag to
inflate.
(Continued)
WARNING!(Continued)
 Do not put anything on or around
the air bag covers or attempt to
open them manually. You may
damage the air bags and you
could be injured because the air
bags may no longer be functional.
The protective covers for the air
bag cushions are designed to open
only when the air bags are inflat-
ing.
 Do not drill, cut or tamper with
the knee bolster in any way.
 Do not mount any accessories to
the knee bolster such as alarm
lights, stereos, citizen band ra-
dios, etc.
Supplemental Seat-Mounted Side
Air Bags (SAB)
Supplemental Seat-Mounted Side Air
Bags (SAB) may provide enhanced
protection to help protect an occupant
during a side impact. The SAB is
marked with an air bag label sewn
into the outboard side of the front
seats. When the air bag deploys, it opens the
seam between the front and side of the
seat's trim cover. Each air bag deploys
independently; a left side impact de-
ploys the left air bag only and a right-
side impact deploys the right air bag
only.
WARNING!
Do not use accessory seat covers or
place objects between you and the
side air bags; the performance could
be adversely affected and/or objects
could be pushed into you, causing
serious injury.Supplemental Seat-Mounted Side Air
Bag Label
31

Knee Impact Bolsters
The Knee Impact Bolsters help pro-
tect the knees of the driver and the
front passenger, and position front oc-
cupants for the best interaction with
the Advanced Front Air Bags.
Along with seat belts and pretension-
ers, Advanced Front Air Bags work
with the knee bolsters to provide im-
proved protection for the driver and
front passenger. Side air bags also
work with seat belts to improve occu-
pant protection.
AIR BAG DEPLOYMENT
SENSORS AND CONTROLS
Occupant Restraint Controller
(ORC)
TheORC is part of a regulated safety
system required for this vehicle.
The ORC determines if deployment of
the front and/or side air bags in a
frontal or side collision is required.
Based on the impact sensor's signals,
a central electronic ORC deploys the
Advanced Front Air Bags, Supple-
mental Seat-Mounted Side Air Bags
(SAB), and front seat belt pretension- ers, as required, depending on several
factors, including the severity and
type of impact.
Advanced Front Air Bags are designed
to provide additional protection by
supplementing the seat belts in cer-
tain frontal collisions depending on
several factors, including the severity
and type of collision. Advanced Front
Air Bags are not expected to reduce
the risk of injury in rear, side, or roll-
over collisions.
The Advanced Front Air Bags will not
deploy in all frontal collisions, includ-
ing some that may produce substan-
tial vehicle damage — for example,
some pole collisions, truck under-
rides, and angle offset collisions. On
the other hand, depending on the type
and location of impact, Advanced
Front Air Bags may deploy in crashes
with little vehicle front-end damage
but that produce a severe initial decel-
eration.
The side air bags will not deploy in all
side collisions. Side air bag deploy-
ment will depend on the severity and
type of collision.Because air bag sensors measure ve-
hicle deceleration over time, vehicle
speed and damage by themselves are
not good indicators of whether or not
an air bag should have deployed.
Seat belts are necessary for your pro-
tection in all collisions, and also are
needed to help keep you in position,
away from an inflating air bag.
The ORC monitors the readiness of
the electronic parts of the air bag sys-
tem whenever the ignition switch is in
the START or ON/RUN position. If
the key is in the OFF position, in the
ACC position, or not in the ignition,
the air bag system is not on and the air
bags will not inflate.
The ORC contains a backup power
supply system that may deploy the air
bags even if the battery loses power or
it becomes disconnected prior to de-
ployment.
Also, the ORC turns on the
Air Bag Warning Light in
the instrument panel for
approximately four to eight
seconds for a self-check when the ig-
nition is first turned on. After the self-32

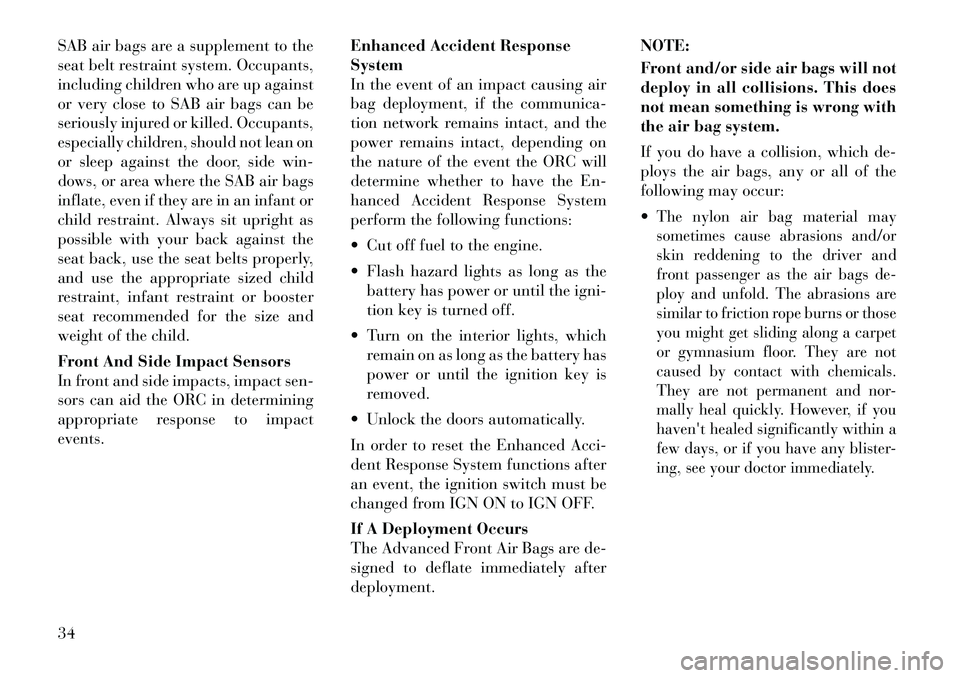

SAB air bags are a supplement to the
seat belt restraint system. Occupants,
including children who are up against
or very close to SAB air bags can be
seriously injured or killed. Occupants,
especially children, should not lean on
or sleep against the door, side win-
dows, or area where the SAB air bags
inflate, even if they are in an infant or
child restraint. Always sit upright as
possible with your back against the
seat back, use the seat belts properly,
and use the appropriate sized child
restraint, infant restraint or booster
seat recommended for the size and
weight of the child.
Front And Side Impact Sensors
In front and side impacts, impact sen-
sors can aid the ORC in determining
appropriate response to impact
events.Enhanced Accident Response
System
In the event of an impact causing air
bag deployment, if the communica-
tion network remains intact, and the
power remains intact, depending on
the nature of the event the ORC will
determine whether to have the En-
hanced Accident Response System
perform the following functions:
 Cut off fuel to the engine.
 Flash hazard lights as long as the
battery has power or until the igni-
tion key is turned off.
 Turn on the interior lights, which remain on as long as the battery has
power or until the ignition key is
removed.
 Unlock the doors automatically.
In order to reset the Enhanced Acci-
dent Response System functions after
an event, the ignition switch must be
changed from IGN ON to IGN OFF.
If A Deployment Occurs
The Advanced Front Air Bags are de-
signed to deflate immediately after
deployment. NOTE:
Front and/or side air bags will not
deploy in all collisions. This does
not mean something is wrong with
the air bag system.
If you do have a collision, which de-
ploys the air bags, any or all of the
following may occur:

The nylon air bag material may
sometimes cause abrasions and/or
skin reddening to the driver and
front passenger as the air bags de-
ploy and unfold. The abrasions are
similar to friction rope burns or those
you might get sliding along a carpet
or gymnasium floor. They are not
caused by contact with chemicals.
They are not permanent and nor-
mally heal quickly. However, if you
haven't healed significantly within a
few days, or if you have any blister-
ing, see your doctor immediately.
34

EMERGENCY BYPASS
MODE (TO RAISE THE TOP
ONLY)
This procedure is only to be used to
raise the top when the top cannot be
returned to the UP (raised) position
by pressing the POWER TOP switch
or is in a position in which the vehicle
cannot be driven. Please follow these
emergency bypass instructions to re-
turn the top to the UP (raised) posi-
tion.
Press the POWER TOP switch in the
Top Up direction five times within two
seconds and hold the switch in the
Top Up position for a minimum of two
minutes.CAUTION!
 Once this procedure has beencompleted and the top is in the UP
(raised) position, see your autho-
rized dealer. DO NOT exceed
64 km/h.
(Continued)
CAUTION!(Continued)
 Using the Emergency Bypass
Mode could potentially damage
the convertible top and should
only be used to raise the power top
to the UP (raised) position when
the normal top operation is not
functioning.
If damage starts to occur while in the
Emergency Bypass Mode, immedi-
ately release the power top switch and
see your authorized dealer.
NOTE:
This procedure may take more
time to fully raise and close the
power top. It is not uncommon to
see delays of up to 30 seconds be-
fore operation begins.
MIRRORS
AUTOMATIC DIMMING
MIRROR
A two-point pivot system allows for
horizontal and vertical adjustment of
the mirror. Adjust the mirror to center
on the view through the rear window. This mirror automatically adjusts for
headlight glare from vehicles behind
you. You can turn the feature on or off
by pressing the button at the base of
the mirror. A light to the left of the
button will illuminate to indicate
when the dimming feature is acti-
vated. The sensor to the right of the
button does not illuminate.
NOTE:
This feature is disabled when the
vehicle is moving in reverse.
CAUTION!
To avoid damage to the mirror dur-
ing cleaning, never spray any clean-
ing solution directly onto the mirror.
Apply the solution onto a clean cloth
and wipe the mirror clean.
Auto Dimming Mirror
63

bel. (If your vehicle has tires of a
different size than the size indicated
on the vehicle placard or tire inflation
pressure label, you should determine
the proper tire inflation pressure for
those tires.)
As an added safety feature, your ve-
hicle has been equipped with a Tire
Pressure Monitoring System (TPMS)
that illuminates a low tire pressure
telltale when one or more of your tires
is significantly under-inflated. Ac-
cordingly, when the low tire pressure
telltale illuminates, you should stop
and check your tires as soon as pos-
sible, and inflate them to the proper
pressure. Driving on a significantly
under-inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel effi-
ciency and tire tread life, and may
affect the vehicle’s handling and stop-
ping ability.Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached thelevel to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not oper-
ating properly. The TPMS malfunc-
tion indicator is combined with the
low tire pressure telltale. When the
system detects a malfunction, the tell-
tale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will con-
tinue upon subsequent vehicle start-
ups as long as the malfunction exists.
When the malfunction indicator is il-
luminated, the system may not be
able to detect or signal low tire pres-
sure as intended. TPMS malfunctions
may occur for a variety of reasons,
including the installation of replace-
ment or alternate tires or wheels on
the vehicle that prevent the TPMS
from functioning properly. Always
check the TPMS malfunction telltale
after replacing one or more tires or
wheels on your vehicle, to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
CAUTION!
The TPMS has been optimized for
the original equipment tires and
wheels. TPMS pressures and warn-
ing have been established for the tire
size equipped on your vehicle. Un-
desirable system operation or sensor
damage may result when using re-
placement equipment that is not of
the same size, type, and/or style.
Aftermarket wheels can cause sensor
damage. Do not use tire sealant from
a can or balance beads if your ve-
hicle is equipped with a TPMS, as
damage to the sensors may result.
26. Malfunction Indicator Light
(MIL) The Malfunction Indicator
Light (MIL) is part of an on-
board diagnostic system
called OBD that monitors
emissions, engine, and automatic
transmission control systems. The
light will illuminate when the key is in
the ON/RUN position before engine
start. If the bulb does not come on
when turning the key from LOCK to
ON/RUN, have the condition checked
promptly.
113

ELECTRONIC STABILITY
CONTROL (ESC)
This system enhances directional con-
trol and stability of the vehicle under
various driving conditions. ESC cor-
rects for over/under steering of the
vehicle by applying the brake of the
appropriate wheel to assist in counter-
acting the over/under steer condition.
Engine power may also be reduced to
help the vehicle maintain the desired
path. ESC uses sensors in the vehicle
to determine the vehicle path in-
tended by the driver and compares it
to the actual path of the vehicle. When
the actual path does not match the
intended path, ESC applies the brake
of the appropriate wheel to assist in
counteracting the oversteer or under-
steer condition.
 Over-steer - when the vehicle isturning more than appropriate for
the steering wheel position.
 Under-steer - when the vehicle is turning less than appropriate for
the steering wheel position.
WARNING!
The Electronic Stability Control
(ESC) cannot prevent the natural
laws of physics from acting on the
vehicle, nor can it increase the trac-
tion afforded by prevailing road
conditions. ESC cannot prevent ac-
cidents, including those resulting
from excessive speed in turns, driv-
ing on very slippery surfaces, or hy-
droplaning. ESC also cannot pre-
vent accidents resulting from loss of
vehicle control due to inappropriate
driver input for the conditions. Only
a safe, attentive, and skillful driver
can prevent accidents. The capabili-
ties of an ESC equipped vehicle
must never be exploited in a reckless
or dangerous manner which could
jeopardize the user’s safety or the
safety of others. ESC Operating Modes
All ESC equipped vehicles can choose
the following ESC operating modes:
ESC On
This is the normal operating mode for
ESC. Whenever the vehicle is started
the ESC system will be in this mode.
This mode should be used for almost
all driving situations. ESC should
only be turned to “Partial Off” for
specific reasons as noted below.
Partial ESC Mode
This mode is entered by momentarily
pressing the “ESC Off” switch (lo-
cated in the lower switch bank below
the heater/air conditioning controls).
When in “Partial Off” mode, the TCS
portion of ESC, except for the limited
slip feature described in the TCS sec-
tion, has been disabled and the “ESC
Activation/Malfunction Indicator
Light” will be illuminated. All other
stability features of ESC function nor-
mally, with the exception of engine
power reduction. This mode is in-
tended to be used if the vehicle is in
deep snow, sand, or gravel conditions
149
