SYSTEM STATUS
Displays SYSTEM OK if there are no
active Warning Messages stored.
Pressing and releasing the DOWN
button when SYSTEM OK is dis-
played will do nothing. Displays SYS-
TEM WARNINGS PRESENT if there
are active Warning Messages stored.
Pressing and releasing the DOWN
button when SYSTEM WARNINGS
PRESENT is displayed will display
each stored warning for each button
press. Press and Release the MENU
button to return to the Main Menu.
PERSONAL SETTINGS
(CUSTOMER-
PROGRAMMABLE
FEATURES)
Personal Settings allows the driver to
set and recall features when the auto-
matic transaxle is in PARK.
Press and release the MENU button
until “Personal Settings” displays in
the EVIC.
Press and release the DOWN button
to display the following program-
mable features:Language
When in this display you may select
different languages for all display no-
menclature, including the trip func-
tions. Pressing the SELECT button
while in this display selects English,
Spanish, French, German, Italian, or
Dutch depending on availability. As
you continue, the displayed informa-
tion will be shown in the selected lan-
guage.
Auto Unlock On Exit
When ON is selected and the transaxle
is in the PARK or NEUTRAL position,
all doors will unlock when the
driver's
door is opened. To make your selec-
tion, press the SELECT button until
ON or OFF appears.
RKE Unlock
When “Driver Door 1st Press” is se-
lected, only the driver's door will un-
lock on the first press of the Remote
Keyless Entry (RKE) transmitter UN-
LOCK button. When Driver Door 1st
Press is selected, you must press the
RKE transmitter UNLOCK button
twice to unlock the passenger's doors.
When “All Doors 1st Press” is se-
lected, all of the doors will unlock on the first press of the RKE transmitter
UNLOCK button. To make your se-
lection, press and release the SELECT
button until “Driver Door 1st Press”
or “All Doors 1st Press” appears.
Flash Lamp with LOCK
When ON is selected, the front and
rear turn signals will flash when the
doors are locked or unlocked with the
RKE transmitter. This feature may be
selected with or without the Sound
Horn with LOCK feature selected. To
make your selection, press and release
the SELECT button until ON or OFF
appears.
Headlamp Off Delay
When this feature is selected, the
driver can choose to have the head-
lights remain on for 0, 30, 60, or
90 seconds when exiting the vehicle.
To make your selection, press the SE-
LECT button until 0, 30, 60, or 90
appears.
Headlamps With Wipers
(Available with Auto Headlights
Only)
When ON is selected, and the head-
light switch is in the AUTO position,
121

 CONVERTIBLE TOP CARE . . . . . . . . . . . . . . 198
 WEATHER STRIP CARE – SOFT AND HARDTOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
 FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200  INTEGRATED POWER MODULE . . . . . . . . . . 200
 VEHICLE STORAGE . . . . . . . . . . . . . . . . . . . . . 203
 REPLACEMENT BULBS . . . . . . . . . . . . . . . . . . 203
 BULB REPLACEMENT . . . . . . . . . . . . . . . . . . . 203  HEADLAMP . . . . . . . . . . . . . . . . . . . . . . . . . . 203
 FRONT TURN SIGNAL . . . . . . . . . . . . . . . . . . 204
 FRONT FOG LAMP . . . . . . . . . . . . . . . . . . . . 204
 REAR TURN SIGNAL LAMPS . . . . . . . . . . . . 205
 BACKUP LAMP . . . . . . . . . . . . . . . . . . . . . . . 205
 LICENSE PLATE LAMP . . . . . . . . . . . . . . . . . 205
 FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . . 206
 FLUIDS, LUBRICANTS, AND GENUINE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
 ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
 CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
180

CavityCartridge Fuse Mini Fuse Description
31 —10 Amp RedHeadlamp Washer (for versions/markets,
where provided)
32 30 Amp Pink —Auto Shutdown (ASD) Relay 1
33 —10 Amp RedSwitch Bank/Diagnostic Link Connector/
Powertrain Control Module (PCM)
34 30 Amp Pink —Anti-Lock Brakes (ABS) Module (for
versions/markets, where provided)/
Electronic Stability Control (ESC) Module
(for versions/markets, where provided)
35 40 Amp Green —Anti-Lock Brakes (ABS) Module (for
versions/markets, where provided)/
Electronic Stability Control (ESC) Module
(for versions/markets, where provided)
36 30 Amp Pink —Passenger Door Module (PDM)/Driver Door
Module (DDM)
37 —25 Amp Natural Power Top Module (for versions/markets,
where provided)
CAUTION!
 When installing the Integrated
Power Module cover, it is impor-
tant to ensure the cover is properly
positioned and fully latched. Fail-
ure to do so may allow water to get
into the Integrated Power Module,
and possibly result in an electrical
system failure.
(Continued)
CAUTION!(Continued)
 When replacing a blown fuse, it is
important to use only a fuse hav-
ing the correct amperage rating.
The use of a fuse with a rating
other than indicated may result in
a dangerous electrical system
overload. If a properly rated fuse
continues to blow, it indicates a
problem in the circuit that must
be corrected.
202

VEHICLE STORAGE
If you will not be using your vehicle
for more than 21 days, you may want
to take steps to preserve your battery.
 Disengage the mini-fuse in thePower Distribution Center labeled
IOD (Ignition Off-Draw).
 Or disconnect the negative cable from the battery. Refer to “Prepa-
ration for Jump Start” in “Jump-
Starting” to identify the location of
the negative post.
 Anytime you store your vehicle, or keep it out of service (i.e., vacation)
for two weeks or more, run the air
conditioning system at idle for
about five minutes in the fresh air
and high blower setting. This will
ensure adequate system lubrication
to minimize the possibility of com-
pressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass
wedge base. Aluminum base bulbs are
not approved and should not be used
for replacement. LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading
Lamp . . . . . . . . . . . . . . 578/W5W
Center Courtesy/Reading
Lamp . . . . . . . . . . . . . . 578/W5W
Glove Box Lamp . . . . . . . . . . . 194
Shift Indicator Lamp . . IKLE14140
Rear Compartment (Trunk)
Lamp . . . . . . . . . . . . . . . . . . . 579
NOTE:
For lighted switches, see your au-
thorized dealer for replacement.
LIGHT BULBS – Exterior Bulb No.
Bi-Halogen Headlamp . . . . . . HIR2
Front Turn Signal Lamp . . 3157NAKFront Park Lamp . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Side Repeater Lamp . . . . . . WY5W
Front Fog Lamp . . . . . . . . . . . H11
Center High Mounted Stop
(CHMSL) Lamp . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Rear Tail/Stop Lamp . . . . . . . LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp . . . . W16W
Rear Fog Lamp . . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Backup Lamp . . . . . . . . . . . W16W
License Lamp. . . . . . . . . . . . W5W BULB REPLACEMENT
HEADLAMP
CAUTION!
Where possible, it is advisable to
have bulbs changed at a LANCIA
Dealership. Proper operation and
orientation of the external lights are
essential for driving safety and com-
plying with the law.
1. Raise and prop open the hood. Lo-
cate the connector behind the head-
lamp.
NOTE:
It may be necessary to remove the
air cleaner filter housing and po-
sition the totally integrated power
module aside prior to replacing
the low beam headlamp on the
driver's side of the vehicle.
203

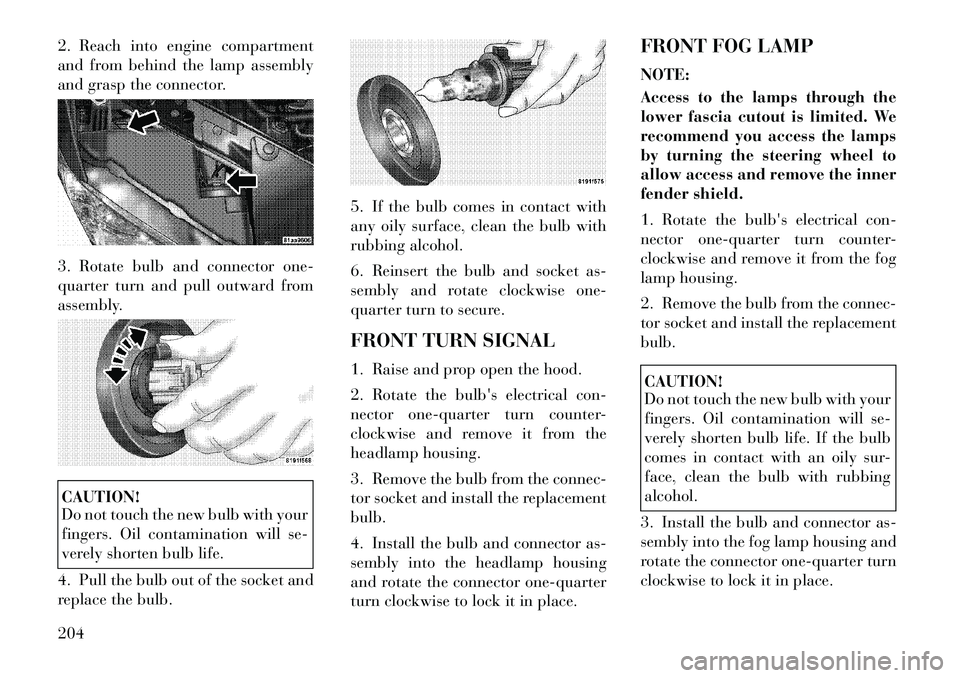

2. Reach into engine compartment
and from behind the lamp assembly
and grasp the connector.
3. Rotate bulb and connector one-
quarter turn and pull outward from
assembly.CAUTION!
Do not touch the new bulb with your
fingers. Oil contamination will se-
verely shorten bulb life.
4. Pull the bulb out of the socket and
replace the bulb. 5. If the bulb comes in contact with
any oily surface, clean the bulb with
rubbing alcohol.
6. Reinsert the bulb and socket as-
sembly and rotate clockwise one-
quarter turn to secure.
FRONT TURN SIGNAL
1. Raise and prop open the hood.
2. Rotate the
bulb's electrical con-
nector one-quarter turn counter-
clockwise and remove it from the
headlamp housing.
3. Remove the bulb from the connec-
tor socket and install the replacement
bulb.
4. Install the bulb and connector as-
sembly into the headlamp housing
and rotate the connector one-quarter
turn clockwise to lock it in place. FRONT FOG LAMP
NOTE:
Access to the lamps through the
lower fascia cutout is limited. We
recommend you access the lamps
by turning the steering wheel to
allow access and remove the inner
fender shield.
1. Rotate the
bulb's electrical con-
nector one-quarter turn counter-
clockwise and remove it from the fog
lamp housing.
2. Remove the bulb from the connec-
tor socket and install the replacement
bulb.
CAUTION!
Do not touch the new bulb with your
fingers. Oil contamination will se-
verely shorten bulb life. If the bulb
comes in contact with an oily sur-
face, clean the bulb with rubbing
alcohol.
3. Install the bulb and connector as-
sembly into the fog lamp housing and
rotate the connector one-quarter turn
clockwise to lock it in place.
204

Thousands Of Kilometers24 48 72 96 120 144 168 192
Months 12 24 36 48 60 72 84 96
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument
panel warning lights, etc.).
Check operation of windshield washer system and adjust
jets if necessary.
Check windshield/rear window wiper blade position/
wear.
Check cleanliness of hood and tailgate locks and cleanli-
ness and lubrication of linkages.
Visually inspect condition of: exterior bodywork, under-
body protection, pipes and hoses (exhaust - fuel system -
brakes), rubber elements (boots, sleeves, bushes, etc.).
Check conditions and wear of front disc brake pads.
Check conditions and wear of rear disc brake pads.
Check and, if necessary, top up fluid levels (brakes, wind-
shield washer, battery, engine coolant, etc.).
Visually inspect the condition of accessory drive belt/s.
Check the handbrake lever stroke and adjust it, if neces-
sary.

Check exhaust gas emissions.
Check engine management system operation (via diag-
nostic socket).
Change the automatic transmission fluid and filter.
Replace spark plugs.
