2012 Lancia Delta Owner handbook (in English)

TECHNICAL SPECIFICATIONS271
6

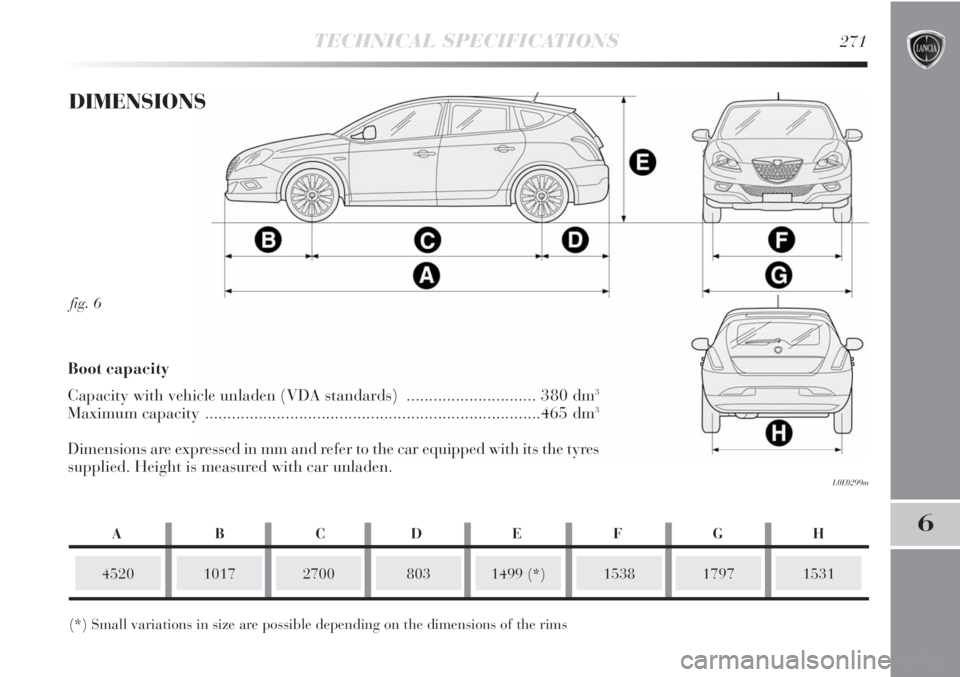

fig. 6
L0E0299m
DIMENSIONS
452010172700
(*) Small variations in size are possible depending on the dimensions of the rims1499 (*)15381531
Boot capacity
Capacity with vehicle unladen (VDA standards) ............................. 380 dm
3
Maximum capacity ...........................................................................465 dm3
Dimensions are expressed in mm and refer to the car equipped with its the tyres
supplied. Height is measured with car unladen.
1797
ABCDEFGH
803

272TECHNICAL SPECIFICATIONS
PERFORMANCE
Maximum speeds after initial car use, in km/h.
195214203194222186
1.4 Turbo Jet 1.4 Turbo 1.6 Multijet 1.6 Multijet 1.9 Twin Turbo 2.0 Multijet120 HP Multi Air 105 HP 115 HP/120 HP Multijet

1410
570
1090
950
1980
1300
600
80
601320
570
1090
950
1890
1300/600()
600
80
60
TECHNICAL SPECIFICATIONS273
6
WEIGHTS
Weights (kg) 1.4 Turbo Jet
1.4 Turbo Multi Air 1.6 Multijet
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional equipment):
Payload (*) including the driver:
Maximum allowed loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on the ball joint (braked trailer):
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will
decrease, still complying with the maximum allowed loads.
(**) Loads not be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or on the load carry-
ing platform within the maximum permitted loads.
() 1.4 Turbo Multi Air version

1430
570
1150
950
2000
1300
500
80
601430
570
1150
950
2000
1300
500
80
60
274TECHNICAL SPECIFICATIONS
Weights (kg) 1.9 Twin Turbo Multijet 2.0 Multijet
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional equipment):
Payload (*) including the driver:
Maximum allowed loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on the ball joint (braked trailer):
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will
decrease, still complying with the maximum allowed loads.
(**) Loads not be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or on the load carry-
ing platform within the maximum permitted loads.

57 –
8/10 –
6.0 –
3.1 2.65
3.5 3.0
1.99 1.8
–0.8
6–57 –
8/10 –
5,9 –
2.75 2.4
2.9 2.55
2.4 2.0
–0.8
6–
TECHNICAL SPECIFICATIONS275
6
Unleaded petrol not less than
95 R.O.N (EN228 specifications)
Mixture of demineralised
water and PARAFLU
UP
in 50-50 proportion (▲)
SELENIA K P.E.
SELENIA WR P.E. (❍)
TUTELA CAR MATRYX ()
TUTELA TRANSMISSION
GEARFORCE (❍)
TUTELA TOP 4
Water and liquid mixture
TUTELA PROFESSIONAL SC 35
CAPACITIES
(▲) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUP
and 40% distilled water.
() 1.4 Turbo Jet 150 HP version
(❍) 1.4 Turbo Jet 120 HP and 1.4 Turbo Multi Air versions
1.4 Turbo Jet 1.4 Turbo MultiAir Recommended fuelslitres kg litres kg and original lubricants
Fuel tank:including a reserve of:
Engine cooling system:
Engine sump:Engine sump and filter:
Gearbox/differential casing:
Hydraulic brake circuit with ABS:
Windscreen/rear window washer
fluid reservoir:

57 –
8/10 –
7.1 –
4.3 3.6
4.9 4.1
1.87 (❍) 1.7 (❍)
3.1 () 2.7 ()
–0.8
6–Diesel fuel for motor vehicles
(Specification EN590)
Mixture of 50% demineralised water and
50% PARAFLU
UP(▲)
SELENIA WR P.E.
TUTELA TRANSMISSION GEARFORCE (❍)
TUTELA CAR MATRYX ()
TUTELA TOP 4
Water and liquid mixture
TUTELA PROFESSIONAL SC 35
57 –
8/10 –
7.1 –
4.3 3.6
4.9 4.1
1.87 (❍) 1.7 (❍)
–0.8
6–
276TECHNICAL SPECIFICATIONS
(▲) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand
40% distilled water.
(❍) 1.6 Multijet and 2.0 Multijet versions
() 1.9 Twin Turbo Multijet version
1.6 Multijet 1.9 Twin Turbo Multijet Recommended fuels
2.0 Multijet and original lubricants
litres kg litres kg
Fuel tank:including a reserve of:
Engine cooling system:
Engine sump:Engine sump and filter:
Gearbox/differential casing:
Hydraulic brake circuit with ABS:
Windscreen/rear window
washer fluid reservoir:

Synthetic based lubricant grade
SAE 5W-40 ACEA C3
FIAT 9.55535-S2 certification.
Synthetic based lubricant grade
SAE 5W-30.
FIAT 9.55535-S1 cerification.
Synthetic based lubricant grade
SAE 5W-40
FIAT 9.55535-Z2 certification.
TECHNICAL SPECIFICATIONS277
6
SELENIA K P.E.
Contractual Technical
Reference No. F603.C07
SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07
SELENIA SPORT 5W-40
Contractual Technical
Reference No. F716.B08
For 1.6 Multijet and 2.0 Multijet diesel engines, in the event of an emergency in which the original products are not available, lu-
bricants with at least ACEA C2 performance are acceptable; however, in this case optimum engine performance is not guaranteed
and the lubricants should be replaced with recommended products as soon as possible at a Lancia Dealership.
The use of products with specifications below ACEA C3 standards for petrol engines and ACEA C2 standards for 1.6 Multijet and
2.0 Multijet diesel engines could cause damage to the engine not covered under the warranty.
For the 1.9 Twin Turbo Multijet engine, only use lubricants with FIAT Classification 9.55535-Z2; the use of lower specification
products could cause engine damage not covered by the warranty.
For petrol versions with Multi Air system, the use of lubricants with specifications below ACEA C3 and SAE grade other than
5W-40 could cause damage to the engine not covered by the warranty.
As per the Scheduled
Servicing Plan
As per the Scheduled
Servicing Plan
As per the Scheduled
Servicing Plan
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant features Genuine Replacement
for correct use of the car fluids and lubricants interval
Petrol engine
lubricant
Lubricant for
diesel engines
(1.6 Multijet
and 2.0 Multijet)
Lubricant for
diesel engines
(1.9 Twin
Turbo Multijet)

Petrol
engine
lubricants
SAE 75W grade synthetic base lubricant.
Classification 9.55550-MZ6
Synthetic based lubricant, grade SAE 75W-85.
Exceeds API GL-4 specifications.
Classification 9.55550-MZ1
Grease for constant-velocity joints with low
friction coefficient. NL.GI. 0-1 consistency
Classification 9.55580
Molybdenum disulphide grease
for high temperatures. NL.GI. 1-2 consistency
Classification 9.55580
Synthetic fluid for brake and clutch systems.
It exceedes the specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704. Classification 9.55597
Red protective with antifreeze action, based
on inhibited monoethyl glycol with organic formula.
Exceeding CUNA NC 956-16,
ASTM D 3306 specifications.
Additive for diesel fuel, protecting Diesel engines
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications.
Classification 9.55522
278TECHNICAL SPECIFICATIONS
TUTELA TRANSMISSIONGEARFORCE
Contractual Technical
Reference No. F002.F10
TUTELA CAR MATRYX Contractual Technical
Reference No. F108.F02
TUTELA STAR 700
Contractual Technical
Reference No. F701.C07
TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07
TUTELA TOP 4
Contractual Technical
Reference No.F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference No. F101.M01
TUTELA DIESEL ARTContractual Technical
Reference No. F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02 Brake fluid
Protective
agent for
radiators
Additive for
diesel fuel
Windscreen/
rear window
washer fluid
(
●) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand distilled water.
Gearboxes and manual
mechanical (1.4 Turbo Jet
120 HP, 1.4 Turbo Multi Air,
1.6 Multijet and 2.0 Multijet
versions)
Gearboxes and manual
differentials
(1.9 Multijet versions)
CV joints differential side
CV joints wheel side
Hydraulic brakes and
hydraulically operated clutch
windscreen/rear window
washer/wiper
Cooling circuits.
Percentage of use:
50% water
50% PARAFLU
UP(❑)
To be mixed with diesel
(25 cc per 10 litres)
To be used diluted or undiluted
in windscreen/rear window
washer/wiper systems
Use Fluid and lubricant features for correct use of the car Genuine fluids and lubricants Applications
