2012 Lancia Delta Owner handbook (in English)

IN AN EMERGENCY215
4
fig. 27L0E0166m
fig. 26L0E0165m
REPLACING AN INTERIOR BULB
For the type of bulb and power rating, see the “Types of
bulbs” paragraph.FRONT ROOF LIGHT
Proceed as follows to replace the bulbs:
❍remove the roof light A-fig. 26 by acting on the points
shown by the arrows;
❍open the protective flap B-fig. 27;
❍replace the bulbs C releasing them from the side con-
tacts and making sure that the new bulbs are correctly
secured between the contacts;
❍close the lid B-fig. 27 and fasten the roof light A-fig.
26 in its housing, making sure it is locked correctly.
IMPORTANT In some versions, the roof light in fig. 26
is at the back (electric sun roof version). To replace the
relevant bulbs, refer to the procedure described in para-
graph “Front roof light” in this chapter.

216IN AN EMERGENCY
fig. 28L0E0167mfig. 30L0E0169m
fig. 29L0E0168m

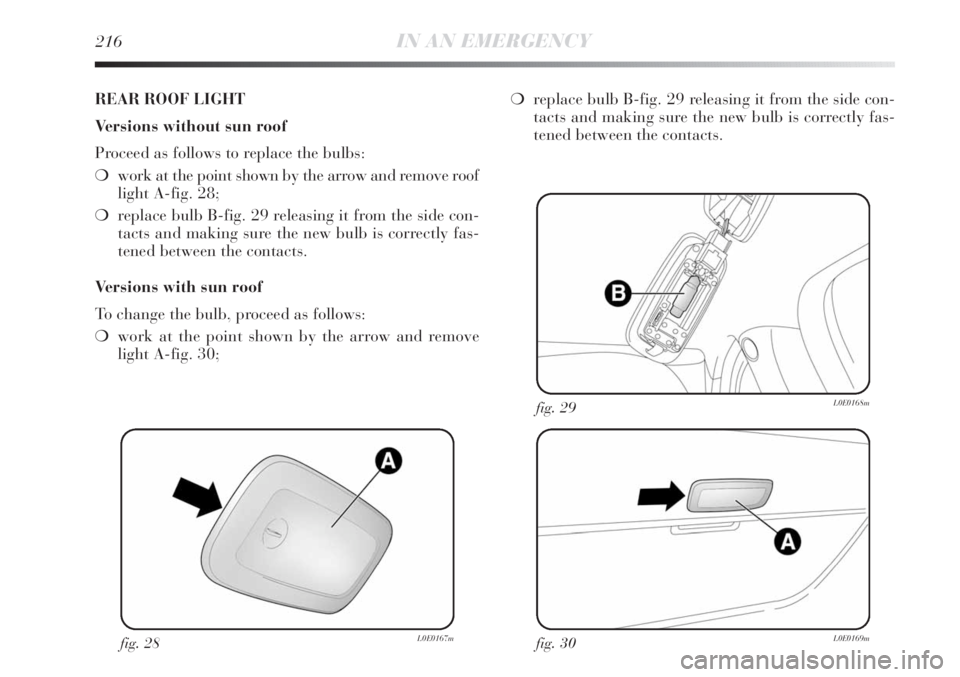

REAR ROOF LIGHT
Versions without sun roof
Proceed as follows to replace the bulbs:
❍work at the point shown by the arrow and remove roof
light A-fig. 28;
❍replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.
Versions with sun roof
To change the bulb, proceed as follows:
❍work at the point shown by the arrow and remove
light A-fig. 30;❍replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.

IN AN EMERGENCY217
4
fig. 32L0E0171mfig. 33L0E0172m
LUGGAGE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the luggage compartment;
❍remove the light A-fig. 32 using leverage at the point
shown by the arrow;
❍open protection B-fig. 33 and replace the press-fitted
bulb;❍close protection B onto the lens cover;
❍refit the light A by inserting it in its correct position
firstly on one side and then on the other until it clicks
into place.

218IN AN EMERGENCY
fig. 34L0E0173mfig. 36L0E0175m
fig. 35L0E0174m
GLOVE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the glove compartment, and remove the light
A-fig. 34;
❍replace bulb B releasing it from the side contacts and
making sure the new bulb is correctly fastened be-
tween the contacts.
COURTESY MIRROR LIGHT
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❍open the cover A-fig. 35 on the mirror;
❍using leverage at the points shown by the arrows, re-
move light B;❍replace bulb C-fig. 36 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.

IN AN EMERGENCY219
4
REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electric system: they cut in (i.e. they
blow) in the event of a failure or improper action on the
system. Check the state of the corresponding fuse when
a device does not work: the filament A-fig. 37 must be in-
tact. If it is not, replace the blown fuse with another with
the same amperage (same colour).
B intact fuse
C fuse with damaged filament.
To replace a fuse, use the pliers D-fig. 37 attached to the
dashboard control unit.
Refer to the tables on the following pages to identify the
protection fuse.
fig. 37L0E0085m
If the fuse blows again contact a Lancia
Dealership.
Never replace a blown fuse with anything
other than a new fuse.
Never replace a fuse with another with
a higher amp rating; FIRE RISK.
If a general protective fuse (MEGA-FUSE,
MIDI-FUSE, MAXI-FUSE) blows, contact
a Lancia Dealership.
Before changing a fuse, check that the ignition
key has been removed and that all the other
electric devices have been turned off/disabled.
If a general protection fuse for safety systems
(air bag system, braking system), power unit
systems (engine system, gearbox system) or
steering system blows, contact a Lancia Dealership.

220IN AN EMERGENCY
fig. 38L0E0209m
FUSE LOCATION
Dashboard fuse box
To access the fuses you must remove the press-fitted cover A. The fuse box shown in fig. 38 is located in the lower
area next to the pedal unit.

IN AN EMERGENCY221
4
Engine compartment fuse box fig. 39 and 40
A second fuse box is located on the right side of the en-
gine compartment, next to the battery. To access this fuse
box release the side tabs and remove cover L. The ID
number of the electrical component corresponding to
each fuse can be found on the back of the cover.
fig. 39L0E0088mfig. 38aL0E0211m
If you need to wash the engine compartment,
take care not to directly hit the engine com-
partment fuse box with the jet of water.
Additional fuses (1.4 Turbo Multi Air versions)
On the 1.4 Turbo Multi Air versions there are four addi-
tional fuses (fig. 38a) next to the dashboard junction unit.

222IN AN EMERGENCY
Luggage compartment fuse box fig. 41 and 42
To gain access to the fuse box located on the left side of
luggage compartment open the relevant inspection lid
fig. 41.
fig. 42L0E0115m
fig. 41L0E0114m
fig. 40L0E0210m
