2012 JEEP WRANGLER Owners Manual

may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.
To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.The power inverter switch is located
on the instrument panel below the
climate controls. To turn on the power
outlet, press the switch once. The in-
dicator light will illuminate. Press the
switch a second time to turn the power
inverter outlet off.
NOTE: When the power inverter switch is pressed,
there will be a delay of approximately one second before
the inverter indicator light turns ON.WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

CUPHOLDERS
Front Cupholders
The front cupholders are located in the center console.
Rear Cupholders
The rear cupholders are located on the back of the center
console.
Front CupholdersRear Cupholders
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE
Glovebox Storage
The lockable glovebox storage compartment is located on
the passenger side of the lower instrument panel. Pull
outward on the handle/latch to open the compartment.
Console Storage Compartment
To lock or unlock the storage compartment, insert the
ignition key and turn. To open the storage compartment,
press the latch and lift the cover.
Rear Storage Compartment
The rear cargo area storage compartment cover is held by
a spring-loaded latch. In order to remove the rear storage
compartment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

1. Flip up the pull loop so it is perpendicular (straight
up) to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is
parallel to the slotted hole in the tray.
3. Open the rear compartment cover.DUAL TOP — IF EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar. The soft top was installed at the
factory for shipping purposes only. The soft top and the
hard top are to be used independently. Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing The Soft Top
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
Rear Storage Cover
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunridersecure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Remove the soft top bow assembly pivot bracket
screws (two per side) using a #T30 Torx head driver.4. Disconnect the knuckles from the left and right metal
pivot brackets. Remove the soft top from the vehicle and
store in a clean, dry location.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

NOTE:To aid in disconnecting the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
5. Unzip the zipper on the sport bar cover to expose the
pivot brackets. Remove the brackets using a #T30 Torx
head driver. Recover and re-zip the sports bar cover.
Store the pivot brackets and screws in a safe place. 6. Reinstall the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Installa-
tion” in this section.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

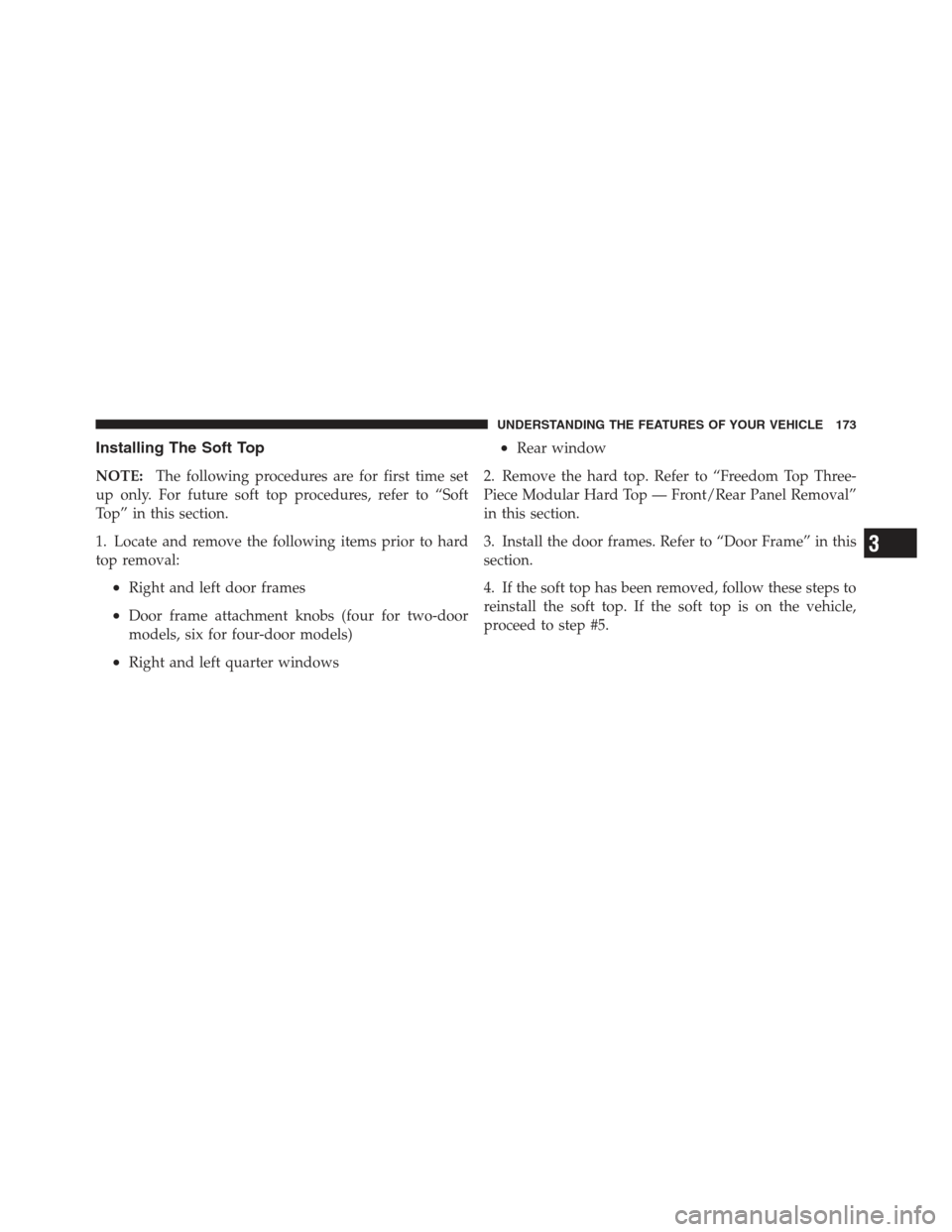

Installing The Soft Top
NOTE:The following procedures are for first time set
up only. For future soft top procedures, refer to “Soft
Top” in this section.
1. Locate and remove the following items prior to hard
top removal:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Install the door frames. Refer to “Door Frame” in this
section.
4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173

a. If the pivot brackets have been removed, unzip the
sport bar covers and attach the pivot brackets to the
sports bar with the four screws that were removed
using a #T30 Torxhead driver. Re-cover and re-zip
the sport bar covers. b. Lay the soft top into the rear of the vehicle with the
bows pointing forward and the curved portion of the
bows facing upward.
c. Reattach the knuckles onto the metal pivot brackets.
NOTE: To aid in reattaching the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
