2012 JEEP WRANGLER Owners Manual

inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Air Bag Warning Light
The light should come on and remain on for four to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see yourauthorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87

WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and inter-
fering with the pedals or the ability to control the
vehicle.
•Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.(Continued)
WARNING! (Continued)
•Check mounting of mats on a regular basis. Al-
ways properly reinstall and secure floor mats that
have been removed for cleaning.
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89

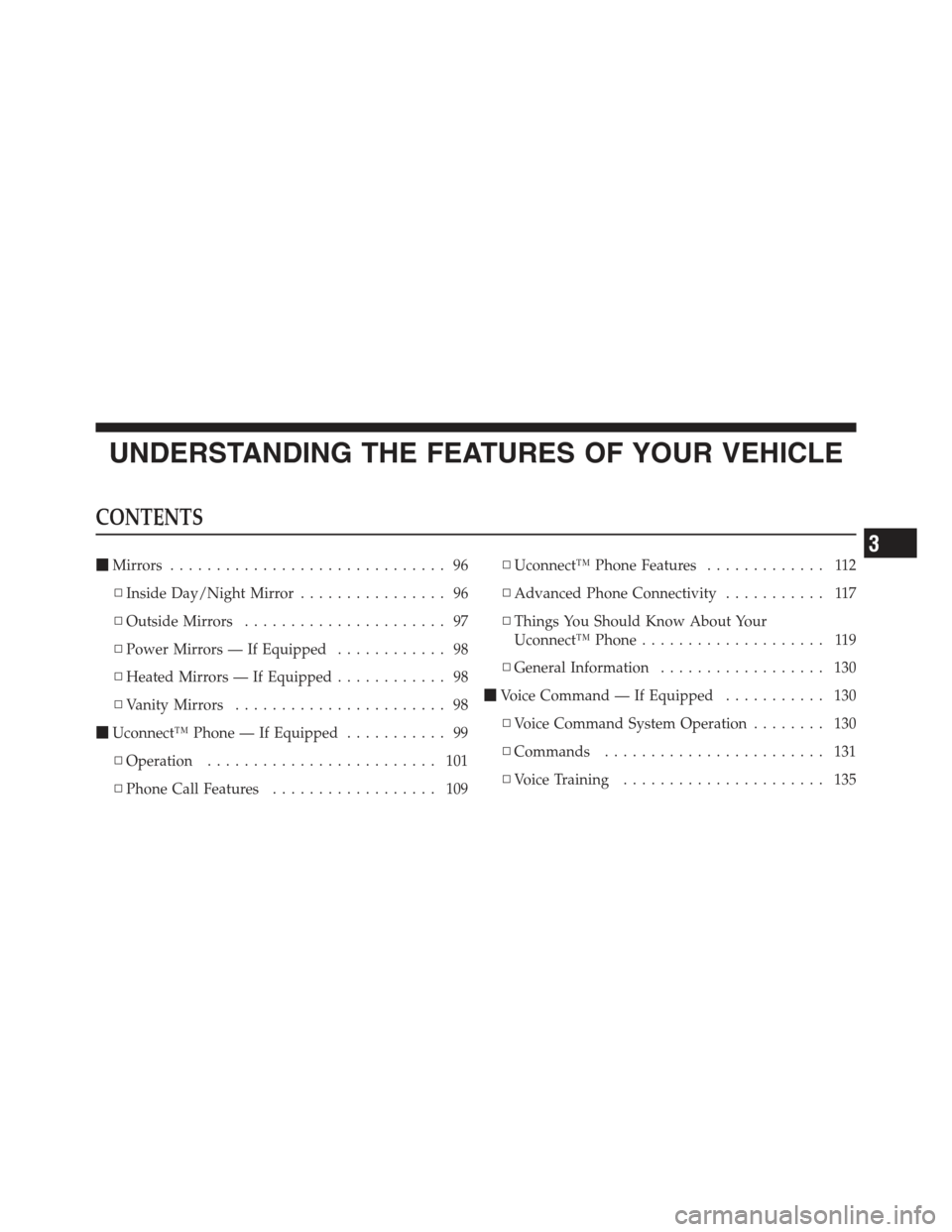

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 96
▫ Inside Day/Night Mirror ................ 96
▫ Outside Mirrors ...................... 97
▫ Power Mirrors — If Equipped ............ 98
▫ Heated Mirrors — If Equipped ............ 98
▫ Vanity Mirrors ....................... 98
 Uconnect™ Phone — If Equipped ........... 99
▫ Operation ......................... 101
▫ Phone Call Features .................. 109 ▫
Uconnect™ Phone Features ............. 112
▫ Advanced Phone Connectivity ........... 117
▫ Things You Should Know About Your
Uconnect™ Phone .................... 119
▫ General Information .................. 130
 Voice Command — If Equipped ........... 130
▫ Voice Command System Operation ........ 130
▫ Commands ........................ 131
▫ Voice Training ...................... 135
3

Seats .............................. 135
▫ Front Seat Adjustment ................. 135
▫ Manual Seat Height Adjustment — If
Equipped .......................... 136
▫ Front Seatback Recline ................. 137
▫ Front Passenger Easy Entry Seat —
Two-Door Models .................... 138
▫ Tip n’ Slide Seats — Two-Door Models ..... 139
▫ Heated Seats — If Equipped ............ 141
▫ Head Restraints ..................... 142
▫ Fold And Tumble Rear Seat — Two-Door
Models ........................... 144
▫ Removing The Rear Seat — Two-Door
Models ........................... 145 ▫
Replacing The Rear Seat — Two-Door
Models ........................... 146
▫ 60/40 Split Folding Rear Seat — Four-Door
Models ........................... 146
 To Open And Close The Hood ............ 148
 Lights ............................. 149
▫ Multifunction Lever .................. 149
▫ Headlights And Parking Lights .......... 150
▫ Automatic Headlights — If Equipped ...... 150
▫ Turn Signals ........................ 151
▫ Lane Change Assist ................... 152
▫ Lights-On Reminder .................. 152
▫ High/Low Beam Switch ............... 152
▫ Flash-To-Pass ....................... 152
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Front Fog Lights ..................... 152
▫ Instrument Panel Dimmer .............. 153
▫ Daytime Running Lights — If Equipped .... 153
▫ Interior Lights ...................... 154
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 156
▫ Intermittent Wiper System .............. 156
▫ Windshield Washers .................. 157
▫ Mist Feature ........................ 158
 Tilt Steering Column ................... 158
 Electronic Speed Control — If Equipped ..... 159
▫ To Activate ......................... 160
▫ To Set A Desired Speed ................ 161 ▫
To Deactivate ....................... 161
▫ To Resume Speed .................... 161
▫ To Vary The Speed Setting .............. 161
▫ To Accelerate For Passing .............. 162
 Electrical Power Outlet ................. 162
 Power Inverter — If Equipped ............ 166
 Cupholders .......................... 168
▫ Front Cupholders .................... 168
▫ Rear Cupholders ..................... 168
 Storage ............................. 169
▫ Glovebox Storage .................... 169
▫ Console Storage Compartment ........... 169
▫ Rear Storage Compartment ............. 169
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

Dual Top — If Equipped ................ 170
▫ Removing The Soft Top ................ 170
▫ Installing The Soft Top ................ 173
 Freedom Top™ Three-Piece Modular Hard Top
— If Equipped ........................ 176
▫ Front Panel(s) Removal ................ 177
▫ Freedom Top™ Storage Bag ............. 179
▫ Front Panel(s) Installation .............. 183
▫ Front Panel(s) Installation With Rear Hard
Top Removed ....................... 183
▫ Rear Hard Top Removal ............... 184
▫ Rear Hard Top Installation .............. 187
 Door Frame ......................... 187
▫ Door Frame Removal ................. 188 ▫
Door Frame Installation —
Two-Door Models .................... 190
▫ Door Frame Installation —
Four-Door Models .................... 191
 Soft Top — Two-Door Models ............ 194
▫ Quick Steps To Lowering The Soft Top ..... 196
▫ Quick Steps To Raising The Soft Top ....... 198
▫ Lowering The Soft Top ................ 201
▫ Raising The Soft Top .................. 210
 Soft Top — Four-Door Models ............ 219
▫ Quick Steps For Lowering The Soft Top .... 222
▫ Quick Steps For Raising The Soft Top ...... 225
▫ Folding Down The Soft Top ............. 228
▫ Putting Up The Soft Top ............... 238
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
