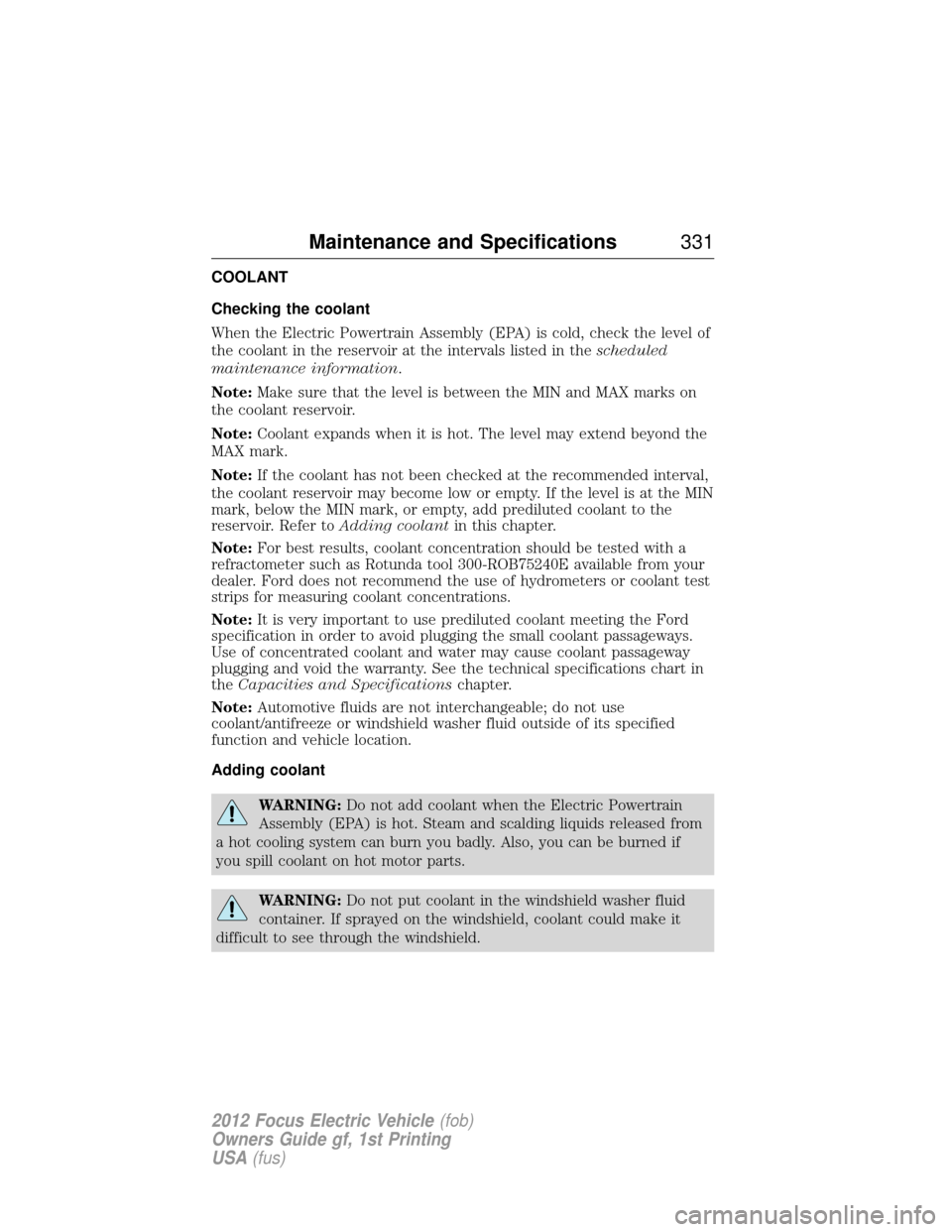

Page 331 of 380
COOLANT
Checking the coolant
When the Electric Powertrain Assembly (EPA) is cold, check the level of
the coolant in the reservoir at the intervals listed in thescheduled
maintenance information.
Note: Make sure that the level is between the MIN and MAX marks on
the coolant reservoir.
Note: Coolant expands when it is hot. The level may extend beyond the
MAX mark.
Note: If the coolant has not been checked at the recommended interval,
the coolant reservoir may become low or empty. If the level is at the MIN
mark, below the MIN mark, or empty, add prediluted coolant to the
reservoir. Refer to Adding coolantin this chapter.
Note: For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240E available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentrations.
Note: It is very important to use prediluted coolant meeting the Ford
specification in order to avoid plugging the small coolant passageways.
Use of concentrated coolant and water may cause coolant passageway
plugging and void the warranty. See the technical specifications chart in
the Capacities and Specifications chapter.
Note: Automotive fluids are not interchangeable; do not use
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding coolant
WARNING: Do not add coolant when the Electric Powertrain
Assembly (EPA) is hot. Steam and scalding liquids released from
a hot cooling system can burn you badly. Also, you can be burned if
you spill coolant on hot motor parts.
WARNING: Do not put coolant in the windshield washer fluid
container. If sprayed on the windshield, coolant could make it
difficult to see through the windshield.
Maintenance and Specifications 331
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

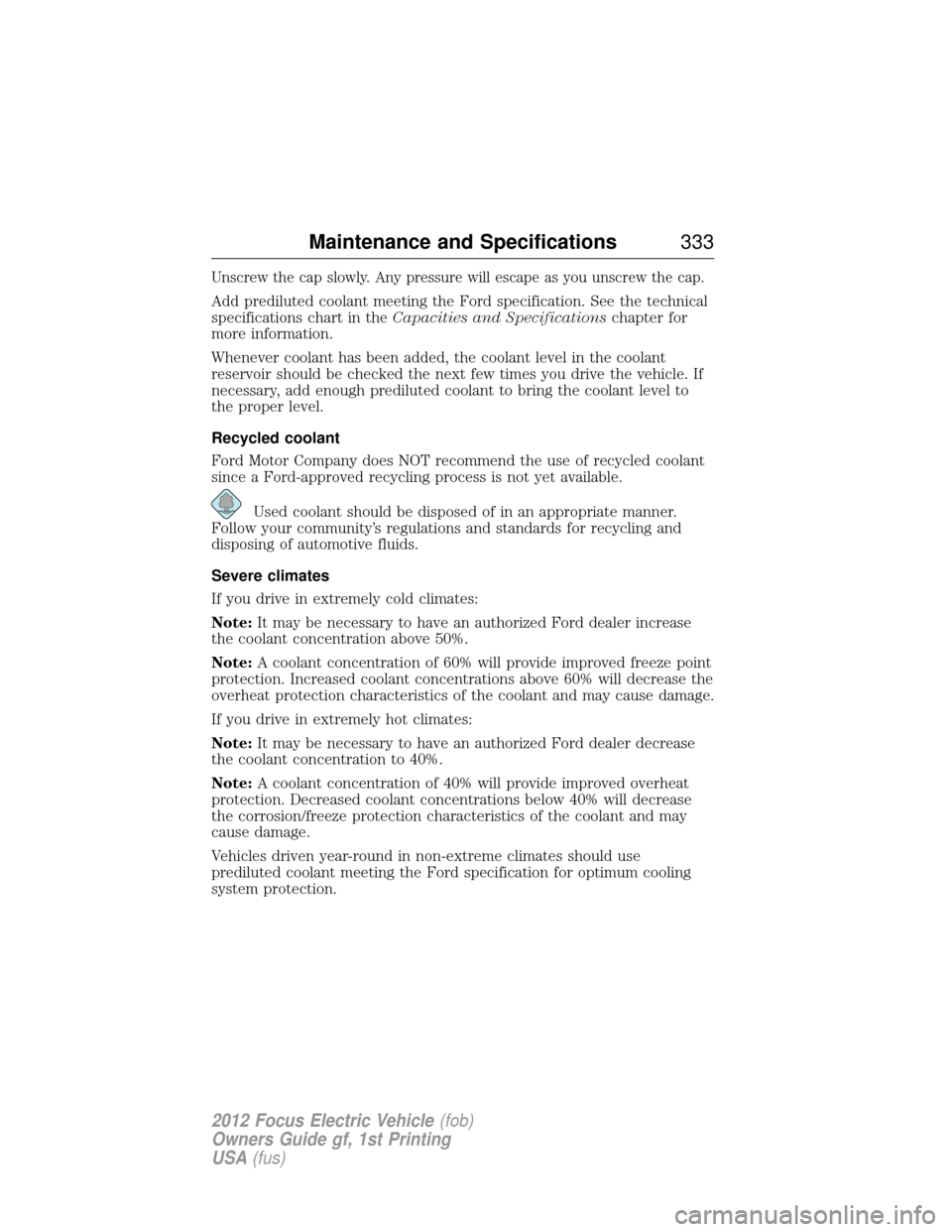

Page 333 of 380
Unscrew the cap slowly. Any pressure will escape as you unscrew the cap.
Add prediluted coolant meeting the Ford specification. See the technical
specifications chart in theCapacities and Specifications chapter for
more information.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough prediluted coolant to bring the coolant level to
the proper level.
Recycled coolant
Ford Motor Company does NOT recommend the use of recycled coolant
since a Ford-approved recycling process is not yet available.
Used coolant should be disposed of in an appropriate manner.
Follow your community’s regulations and standards for recycling and
disposing of automotive fluids.
Severe climates
If you drive in extremely cold climates:
Note: It may be necessary to have an authorized Ford dealer increase
the coolant concentration above 50%.
Note: A coolant concentration of 60% will provide improved freeze point
protection. Increased coolant concentrations above 60% will decrease the
overheat protection characteristics of the coolant and may cause damage.
If you drive in extremely hot climates:
Note: It may be necessary to have an authorized Ford dealer decrease
the coolant concentration to 40%.
Note: A coolant concentration of 40% will provide improved overheat
protection. Decreased coolant concentrations below 40% will decrease
the corrosion/freeze protection characteristics of the coolant and may
cause damage.
Vehicles driven year-round in non-extreme climates should use
prediluted coolant meeting the Ford specification for optimum cooling
system protection.
Maintenance and Specifications 333
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

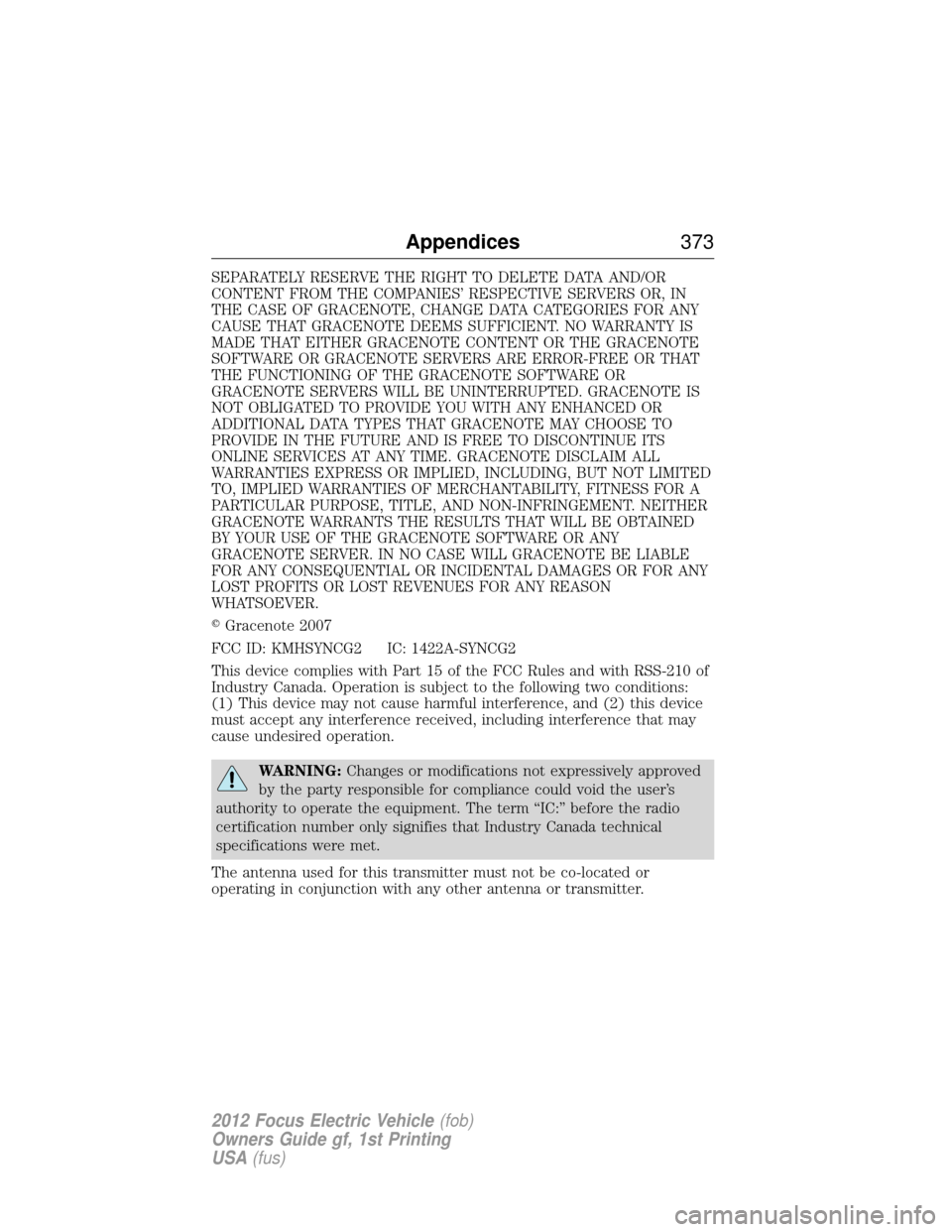

Page 373 of 380
SEPARATELY RESERVE THE RIGHT TO DELETE DATA AND/OR
CONTENT FROM THE COMPANIES’ RESPECTIVE SERVERS OR, IN
THE CASE OF GRACENOTE, CHANGE DATA CATEGORIES FOR ANY
CAUSE THAT GRACENOTE DEEMS SUFFICIENT. NO WARRANTY IS
MADE THAT EITHER GRACENOTE CONTENT OR THE GRACENOTE
SOFTWARE OR GRACENOTE SERVERS ARE ERROR-FREE OR THAT
THE FUNCTIONING OF THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE UNINTERRUPTED. GRACENOTE IS
NOT OBLIGATED TO PROVIDE YOU WITH ANY ENHANCED OR
ADDITIONAL DATA TYPES THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO DISCONTINUE ITS
ONLINE SERVICES AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS THAT WILL BE OBTAINED
BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY
LOST PROFITS OR LOST REVENUES FOR ANY REASON
WHATSOEVER.
Gracenote 2007
FCC ID: KMHSYNCG2 IC: 1422A-SYNCG2
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
WARNING: Changes or modifications not expressively approved
by the party responsible for compliance could void the user’s
authority to operate the equipment. The term “IC:” before the radio
certification number only signifies that Industry Canada technical
specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Appendices 373
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
