2012 FORD FOCUS ELECTRIC High voltage

Note:Electrical or electronic accessories or components added to the
vehicle by the dealer or the owner may adversely affect battery
performance and durability and may also affect the performance of other
electrical systems in the vehicle.
When a battery replacement is required, the battery should only be
replaced with a Ford recommended replacement battery that matches
the electrical requirements of the vehicle.
Note: The clock and the preset radio stations must be reset once the
battery is reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
HIGH-VOLTAGE BATTERY
WARNING: This battery pack should only be serviced by an
authorized electric vehicle technician. Improper handling can
result in personal injury or death.
Your vehicle consists of various high-voltage components and wiring. All
of the high-voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange striped tape. Do not come in contact with these components.
No regular maintenance, other than regular charging is required.
The high-voltage battery system is a high-voltage, lightweight lithium-ion
battery system comprised of two individual packs. One pack is located in
the rear cargo area behind the second row seats, and the other is located
underneath the vehicle. The high-voltage battery system uses an advanced,
active liquid heating and cooling system to regulate high-voltage battery
temperature and help maximize high-voltage battery life.
LEAD
RETURN
RECYCLE
324 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

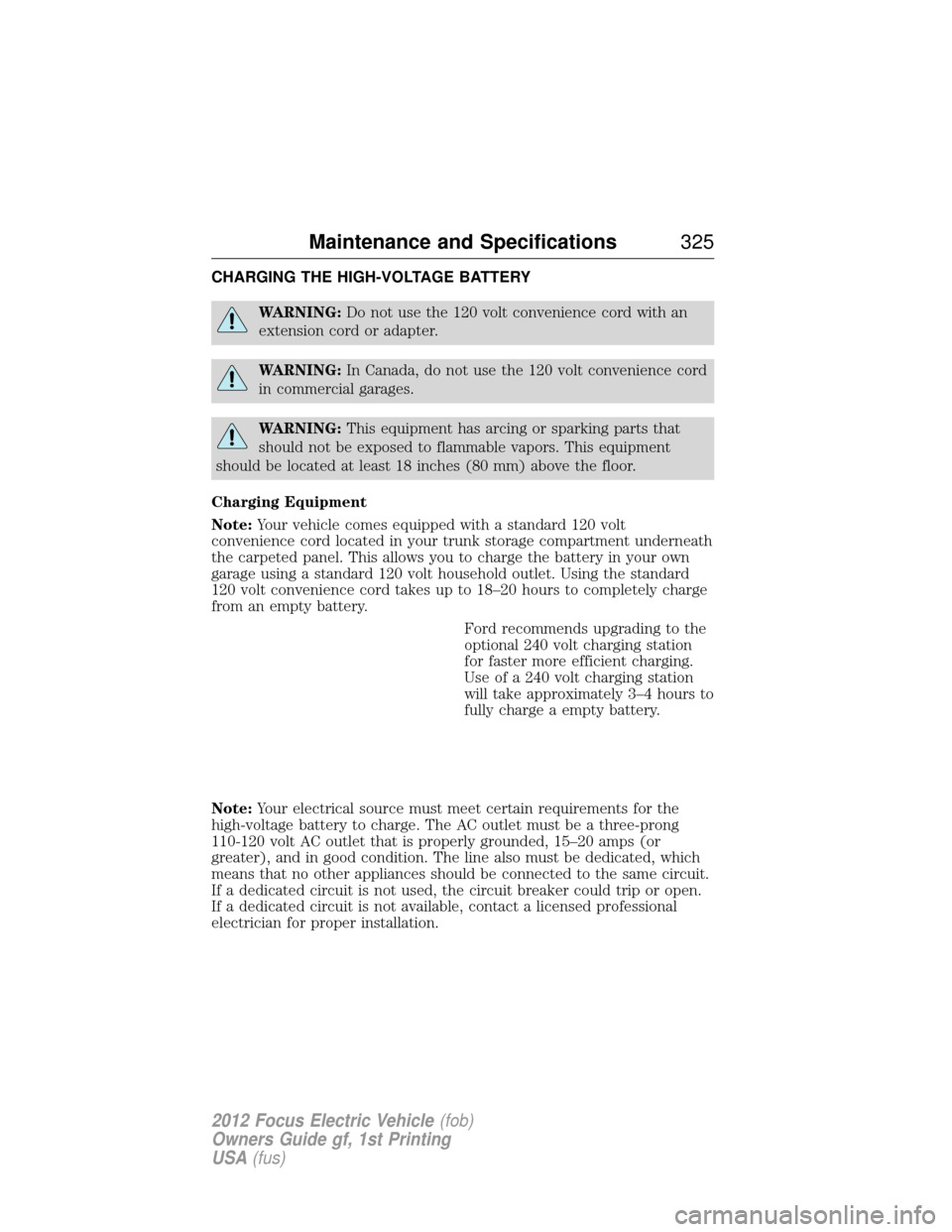

CHARGING THE HIGH-VOLTAGE BATTERY
WARNING:Do not use the 120 volt convenience cord with an
extension cord or adapter.
WARNING: In Canada, do not use the 120 volt convenience cord
in commercial garages.
WARNING: This equipment has arcing or sparking parts that
should not be exposed to flammable vapors. This equipment
should be located at least 18 inches (80 mm) above the floor.
Charging Equipment
Note: Your vehicle comes equipped with a standard 120 volt
convenience cord located in your trunk storage compartment underneath
the carpeted panel. This allows you to charge the battery in your own
garage using a standard 120 volt household outlet. Using the standard
120 volt convenience cord takes up to 18–20 hours to completely charge
from an empty battery.
Ford recommends upgrading to the
optional 240 volt charging station
for faster more efficient charging.
Use of a 240 volt charging station
will take approximately 3–4 hours to
fully charge a empty battery.
Note: Your electrical source must meet certain requirements for the
high-voltage battery to charge. The AC outlet must be a three-prong
110-120 volt AC outlet that is properly grounded, 15–20 amps (or
greater), and in good condition. The line also must be dedicated, which
means that no other appliances should be connected to the same circuit.
If a dedicated circuit is not used, the circuit breaker could trip or open.
If a dedicated circuit is not available, contact a licensed professional
electrician for proper installation.
Maintenance and Specifications 325
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Note:The vehicle must be in (P) park to charge the high-voltage battery.
Make sure that the 120 volt
convenience cord is completely
unwound before charging. Always
plug the cord into the AC outlet
before connecting the charging
coupler into the vehicle’s charge
port receptacle. The 120 volt
convenience cord inline control box
has three indicator lights that
represent the charging status;
power, charge and fault.
The charge port is located between the front left side door and front left
wheel well. There is an indentation located on the charge port door that
allows you to press to open and press to close the door.
Power (green light) — this indicator lights up when the cord is plugged
into the AC wall outlet.
Charge (green light) — Indicates status of charging:
• No light means the cord is not connected to the vehicle.
• Blinking light means that the charging is in process.
• Solid light means that the vehicle is connected but not charging.
Fault (red triangle light) — Lights up in case of a detected failure. No
charging is possible:
• Blinking red triangle light – means that the 120 volt convenience cord
is trying to reset the failure and could restart the charging cycle.
• Solid red triangle light – means that the fault is permanent. The cord
needs to be unplugged and re-plugged to reset the fault. If the fault
persists, contact your authorized dealer.
326 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Charging
Note:The vehicle must be in (P)
Park to charge.
To charge your high-voltage battery:
1. Put the vehicle in (P) park and
power down the vehicle.
2. Press the indentation located on
the charge port door and the door
will rotate open.
3. Plug the charging coupler into the vehicles charge port receptacle and
make sure the button “clicks” confirming that it is completely engaged.
4. Verify that the cord acknowledgement feature activates. This indicates
the beginning of a normal charge cycle.
5. If using a 240 volt charging station, follow the instructions on the
charge station to begin the charging process.
When charging, the light ring will display how far along the charge is:
• When the top right quadrant is pulsing the charge is between
0–25 percent.
• When the top right quadrant is solidly lit and the bottom right
quadrant is pulsing the charge is between 25–50 percent.
• When both right side quadrants are solidly lit and the bottom left
quadrant is pulsing the charge is between 50–75 percent.
• When three quadrants are solidly lit and the top left quadrant is
pulsing the charge is between 75–100 percent.
• When the entire ring is solidly lit, the charge is complete.
Note: The illuminated ring will shut off one minute after reaching a full
charge.
Note: If a vehicle charging system fault is detected at any point in a
charge cycle the entire light ring will flash continuously for one minute
and then shut off. If this happens unplug, and then re-plug the charging
coupler into the charge port receptacle. If the problem persists contact
your authorized dealer.
328 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

HIGH-VOLTAGE SERVICE DISCONNECT
The high-voltage service disconnect shuts off power from the
high-voltage battery.
Disabling the High-Voltage Battery
Note:There are two disconnect circuits in your vehicle. Disconnecting
one circuit will automatically disable the high-voltage battery.
To disable the high-voltage battery and stop all high-voltage electric
activity in the vehicle you can access one or both of the two high-voltage
disconnect circuits. To do this, you must unplug one of the circuits from
the circuit ports connected to the battery.
The lower battery high-voltage disconnect circuit is located by the right
rear wheel, accessible from under the car.
The upper battery high-voltage disconnect circuit is located behind the
rear fold-down seats near the left side of the vehicle, and is more easily
accessible than the lower battery circuit. To access this circuit:
1. Fold down the left rear seat.
2. Locate the access door. Press the
button on the top of the access
door to remove the plastic cover.
3. A cut out area will be visible
which allows your hand access to
the circuit.
4. Press the tab on the top center of
the circuit and rotate the handle
toward you. Press again to pull the
hand down.
5. Pull the handle toward you and remove the circuit from the vehicle to
disable the high-voltage battery.
Reactivating the High-Voltage Battery
Note: If you have manually disconnected your high-voltage shutoff
circuits you will need to reconnect the circuits before they can be
reactivated. The vehicle will detect if the electrical system is safe and
reactivate automatically.
330 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

LOW AND HIGH VOLTAGE BATTERY STORAGE
If your vehicle is to be stored for 30 days or longer, the high voltage
battery should be charged to above 25% state of charge and the low
voltage (under hood) battery negative terminal should be disconnected.
If your vehicle is to be stored for 3 months or longer, the high voltage
battery should be charged to between 80% and 100% state of charge and
the low voltage (under hood) battery negative terminal should be
disconnected. Failure to do this could damage the batteries.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
MOTORCRAFT PART NUMBERS
Component Part number
12 Volt battery BXT-96R-500/BXT-96R-590
Cabin air filter FP70
Windshield wiper blade WW-2201-PF (driver side) WW-1901-PF (passenger side)
