2012 FORD F550 child restraint

Locks and Security 129Keys 129
Locks 137
Anti-theft system 149
Seating and Safety Restraints 153Seating 153
Rear seats 166
Safety restraints 168
Airbags 180
Child restraints 195
Tires, Wheels and Loading 216Tire information 219
Tire inflation 221
Tire Pressure Monitoring System (TPMS) 237
Vehicle loading 244
Trailer towing 252
Trailer brake controller-integrated 256
Recreational towing 263
Driving 265Starting 265
Brakes 271
Traction Control™ 274
AdvanceTrac  275
Hill descent control 281
Transmission operation 287
Reverse sensing system 296
Rear-view camera system 298Table of Contents
2
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Do not add friction modifier compounds or special break-in oils since these
additives may prevent piston ring seating. See Engine oil in the
Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to the Warranty
Guide that is provided to you along with your Owner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING: Please read the section Airbag Supplemental
Restraint System (SRS) in the Seating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could
result in personal injury.
WARNING: Front seat mounted rear-facing child or infant seats
should NEVER be placed in front of an active passenger airbag.
Notice to owners of diesel-powered vehicles
Read the diesel supplement for information regarding correct operation
and maintenance of your Diesel-powered light truck.
Notice to owners of pickup trucks and utility type vehicles
WARNING: Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.
Using your vehicle with a snowplow
For more information and guidelines for using your vehicle with a
snowplow, refer to the Driving chapter. Introduction
7
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

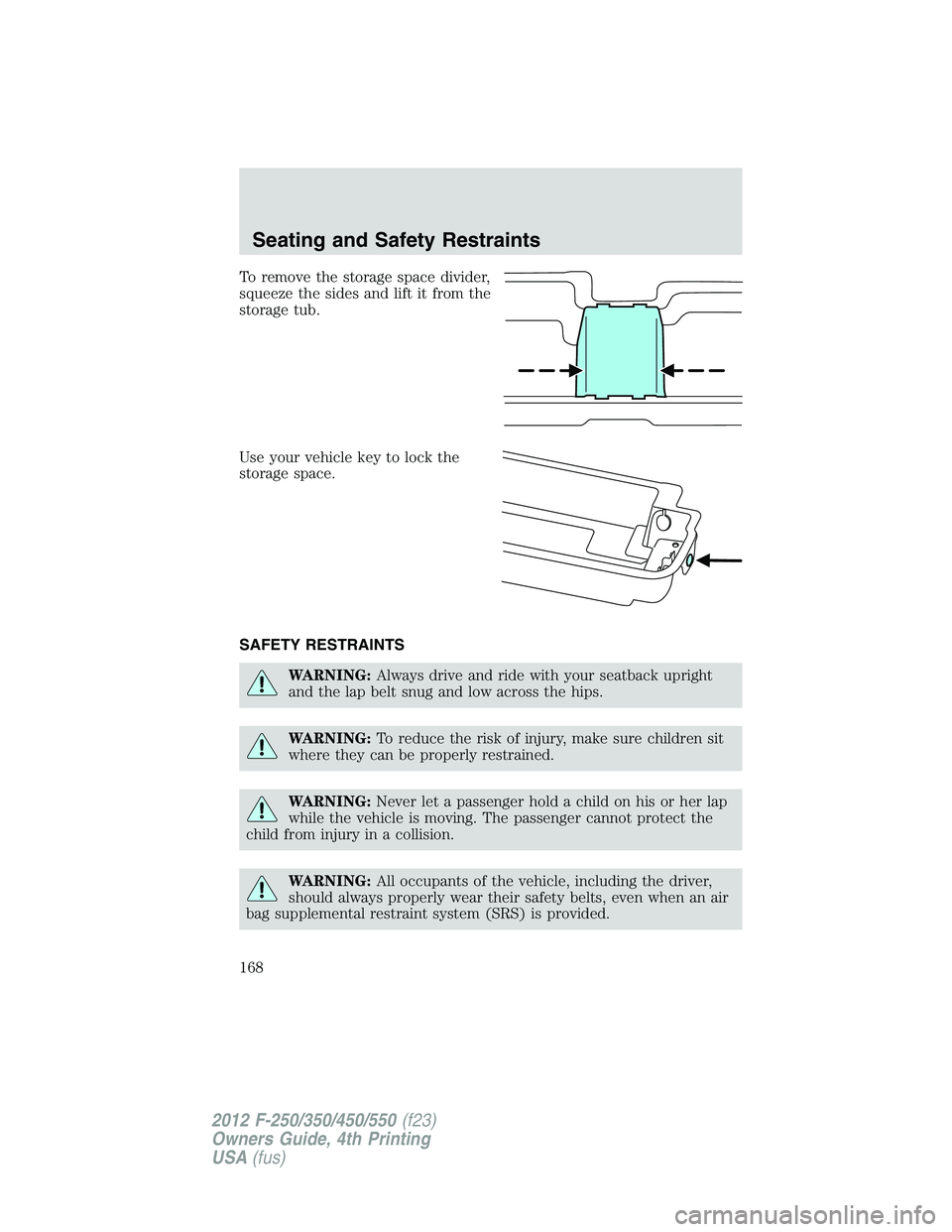

To remove the storage space divider,
squeeze the sides and lift it from the
storage tub.
Use your vehicle key to lock the
storage space.
SAFETY RESTRAINTS
WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an air
bag supplemental restraint system (SRS) is provided.Seating and Safety Restraints
168
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

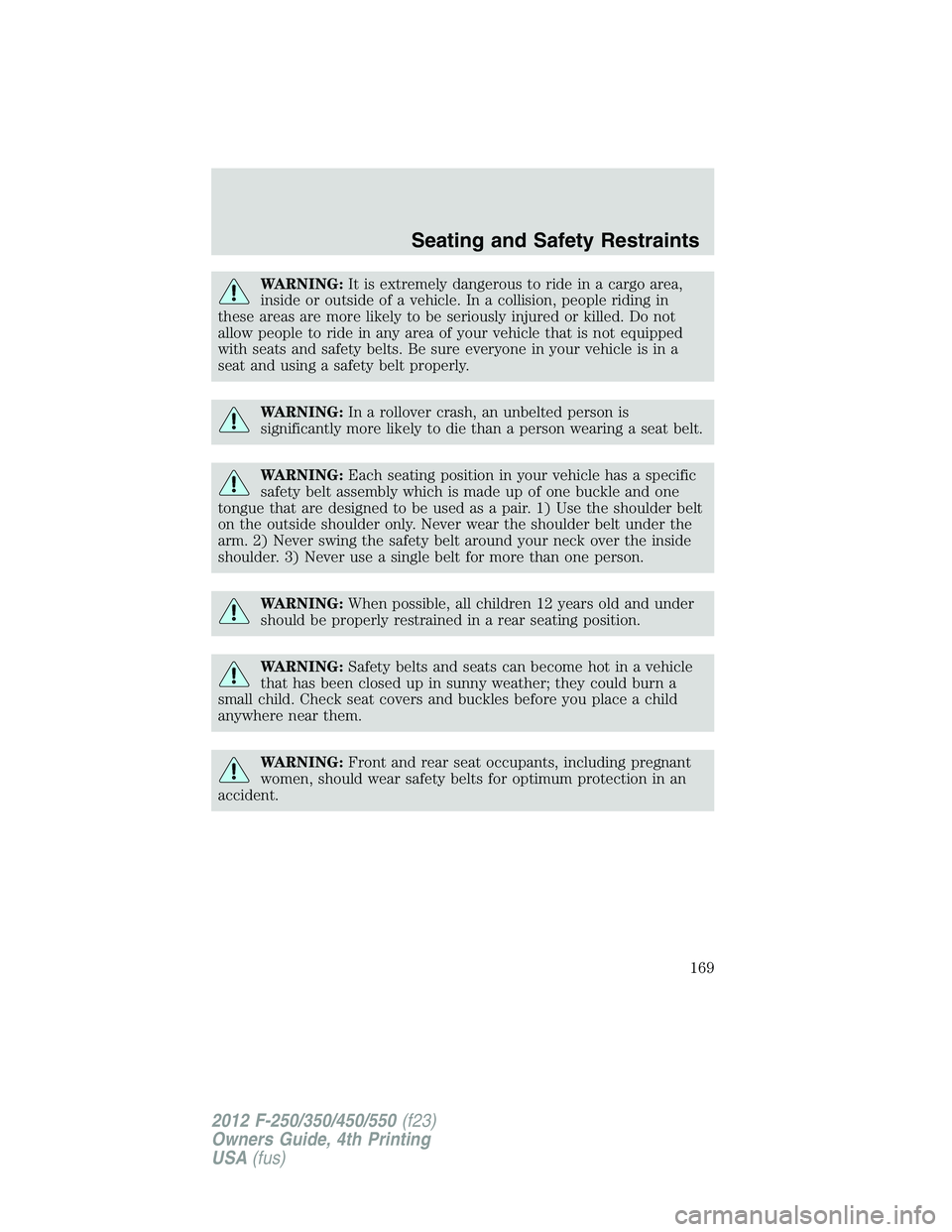

WARNING: It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle that is not equipped
with seats and safety belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
WARNING: In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
WARNING: Each seating position in your vehicle has a specific
safety belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the shoulder belt
on the outside shoulder only. Never wear the shoulder belt under the
arm. 2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
WARNING: When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
WARNING: Safety belts and seats can become hot in a vehicle
that has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you place a child
anywhere near them.
WARNING: Front and rear seat occupants, including pregnant
women, should wear safety belts for optimum protection in an
accident. Seating and Safety Restraints
169
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver safety belt or the optional
front or rear seat center safety belt.
When to use the automatic locking mode
This mode should be used any time a child safety seat is installed in a
front outboard passenger seating position or any outboard rear seating
position (if equipped). The optional front and rear seat center safety belt
have a cinch mechanism. Refer to Safety belt with cinch tongue earlier
in this chapter. Children 12 years old and under should be properly
restrained in a rear seat whenever possible. Refer to Safety restraints
for children or Safety seats for children later in this chapter.
How to use the automatic locking mode
1. Buckle the combination lap and
shoulder belt (front safety
belt/buckle shown, rear similar).
2. Grasp the shoulder portion and
pull downward until the entire belt
is pulled out.
• Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the safety belt is now in the automatic locking
mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
WARNING: After any vehicle collision, the safety belt system at
all passenger seating positions must be checked by an authorized
dealer to verify that the “automatic locking retractor” feature for child
seats is still functioning properly. In addition, all safety belts should be
checked for proper function. Seating and Safety Restraints
173
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

WARNING: BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the safety belt assembly “automatic locking
retractor” feature or any other safety belt function is not operating
properly when checked by an authorized dealer. Failure to replace the
belt and retractor assembly could increase the risk of injury in
collisions.
Energy management feature
• This vehicle has a safety belt system with an energy management
feature at the front outboard seating positions to help further reduce
the risk of injury in the event of a head-on collision.
• The front outboard safety belt systems have a retractor assembly that
is designed to pay out webbing in a controlled manner. This feature is
designed to help reduce the belt force acting on the occupant’s chest.
Safety belt pretensioner
The safety belt pretensioners at the front outboard seating positions are
designed to tighten the safety belts firmly against the occupant’s body
during frontal collisions, and in side collisions and rollovers. This helps
increase the effectiveness of the safety belts. In frontal collisions, the
safety belt pretensioners can be activated alone or, if the collision is of
sufficient severity, together with the front airbags.
The driver and front outboard passenger safety belt system (including
retractors, buckles and height adjusters) must be replaced if the vehicle
is involved in a collision that results in the activation of the safety belt
pretensioners. Refer to the Child restraint and safety belt
maintenance section in this chapter.
WARNING: Failure to replace the safety belt assembly under
the above conditions could result in severe personal injuries in
the event of a collision.Seating and Safety Restraints
174
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Reasons given... Consider...
“The people I’m with don’t
wear belts” Set the example, teen deaths occur 4
times more often in vehicles with
TWO or MORE people. Children and
younger brothers/sisters imitate
behavior they see.
“I have an airbag” Airbags offer greater protection when
used with safety belts. Frontal airbags
are not designed to inflate in rear and
side crashes or rollovers.
“I’d rather be thrown clear” Not a good idea. People who are
ejected are 40 times more likely
to DIE. Safety belts help prevent
ejection, WE CAN’T “PICK OUR
CRASH”.
WARNING: Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minder  chime. To
do so may adversely affect the performance of the vehicle’s airbag
system.
Deactivating/activating the Belt-Minder  feature (Driver only)
Note: If you are using MyKey  , the Belt-Minder  cannot be disabled.
Also, if the Belt-Minder  has been previously disabled, it will be
re-enabled during the use of MyKey  . Refer to MyKey  in the Locks and
Security chapter.
The Belt-Minder  feature can be deactivated/activated by performing the
following procedure:
Before following the procedure, make sure that the following conditions
are met:
• the parking brake is set
• the gearshift is in P (Park)
• the ignition switch is in the off position
• all vehicle doors are closed
• the driver’s safety belt is unbuckled
• the parking lamps/headlamps are in the off positionSeating and Safety Restraints
178
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

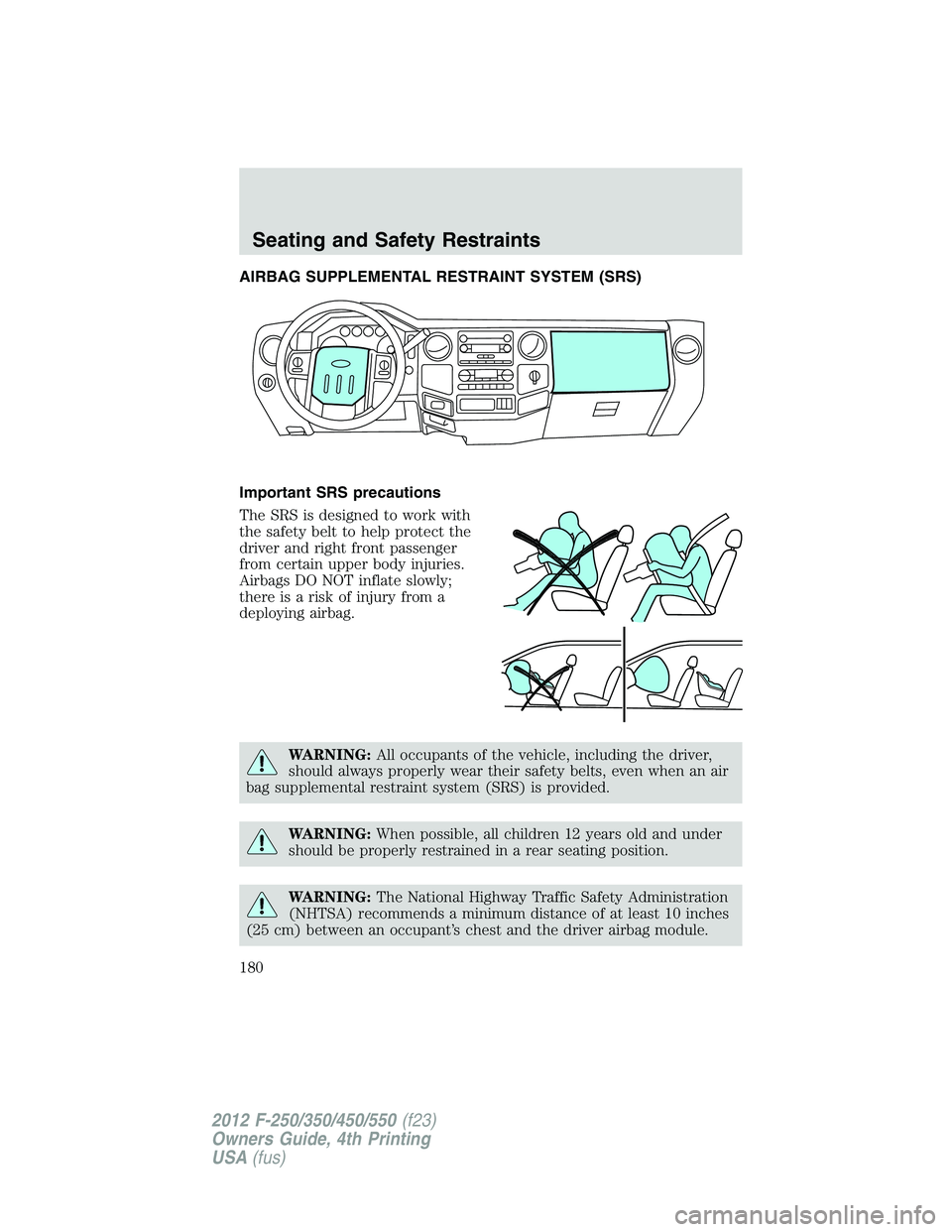

AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Important SRS precautions
The SRS is designed to work with
the safety belt to help protect the
driver and right front passenger
from certain upper body injuries.
Airbags DO NOT inflate slowly;
thereisariskofinjuryfroma
deploying airbag.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING: When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
WARNING: The National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 10 inches
(25 cm) between an occupant’s chest and the driver airbag module.Seating and Safety Restraints
180
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
