TIRES NOT TRAINED – REPEAT (if equipped) — Displayed when
an error occurs while training the TPMS. Refer to TPMS reset procedure
in the Tires, Wheels and Loading chapter for more information.
TRAINING COMPLETE (if equipped) — Displayed when training of
the TPMS is complete. Refer to TPMS reset procedure in the Tires,
Wheels and Loading chapter for more information.
TRACTION CONTROL OFF (if equipped) — Displayed when the
traction control has been disabled by the driver. Refer to the Driving
chapter for more information.
INTKEY COULD NOT PROGRAM — Displayed when an attempt is
made to program a fifth integrated key to the remote keyless entry
system. For more information on integrated key, refer to the Locks and
Security chapter.
KEY COULD NOT PROGRAM — Displayed when an attempt is made
to program a spare key using two existing MyKeys. Refer to MyKey  in
the Locks and Security chapter for more information.
VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey  is in
use and the Admin has enabled the MyKey speed limit and the vehicle
speed is 80 mph (130 km/h). Refer to MyKey  in the Locks and
Security chapter for more information.
SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle
and MyKey  is in use and the MyKey speed limit is on. Refer to MyKey
in the Locks and Security chapter for more information.
CHECK SPEED DRIVE SAFELY — Displayed when a MyKey  is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer to MyKey  in the Locks and Security chapter for more
information.
VEHICLE NEAR TOP SPEED — Displayed when a MyKey  is in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer to MyKey  in the Locks and Security
chapter for more information.
TOP SPEED MYKEY SETTING — Displayed when a MyKey  is in use
and the MyKey speed limit is on and the vehicle speed is 80 mph
(130 km/h). Refer to MyKey  in the Locks and Security chapter for
more information.
BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey  is in
use and Belt-Minder  is activated. Refer to MyKey  in the Locks and
Security chapter for more information. Instrument Cluster
31
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

TRAIN SPARE TIRE (if equipped) — Displayed when training the
TPMS. Refer to TPMS reset procedure in the Tires, Wheels and
Loading chapter for more information.
TRAINING COMPLETE — Displayed when training of the TPMS
system is complete. Refer to TPMS reset procedure in the Tires, Wheels
and Loading chapter for more information.
POWER STEERING ASSIST FAULT — The power steering system
has disabled power steering assist due to a system error; service is
required.
SERVICE POWER STEERING — The power steering system has
detected a condition that requires service.
SERVICE POWER STEERING NOW — The power steering system
has detected a condition that requires service immediately.
BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey  is in
use and Belt-Minder  is activated. Refer to MyKey  in the Locks and
Security chapter for more information.
TRACTION CONTROL OFF (if equipped) — Displayed when the
traction control has been disabled by the driver. Refer to the Driving
chapter for more information.
CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is
present. For more information, refer to Four-wheel drive (4WD)
operation in the Driving chapter.
4X4 SHIFT IN PROGRESS (if equipped) — Displayed when the 4X4
system is making a shift. For further information, refer to Four-wheel
drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW APPLY BRAKE (if equipped) — Displayed when
trying to select 4X4 LOW. For more information, refer to Four-wheel
drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when
4X4 LOW is selected while the vehicle is moving. For more information,
refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW APPLY BRAKE (if equipped) — Displayed when
2WD is selected from 4X4 LOW mode. For more information, refer to
Four-wheel drive (4WD) operation in the Driving chapter.Instrument Cluster
55
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

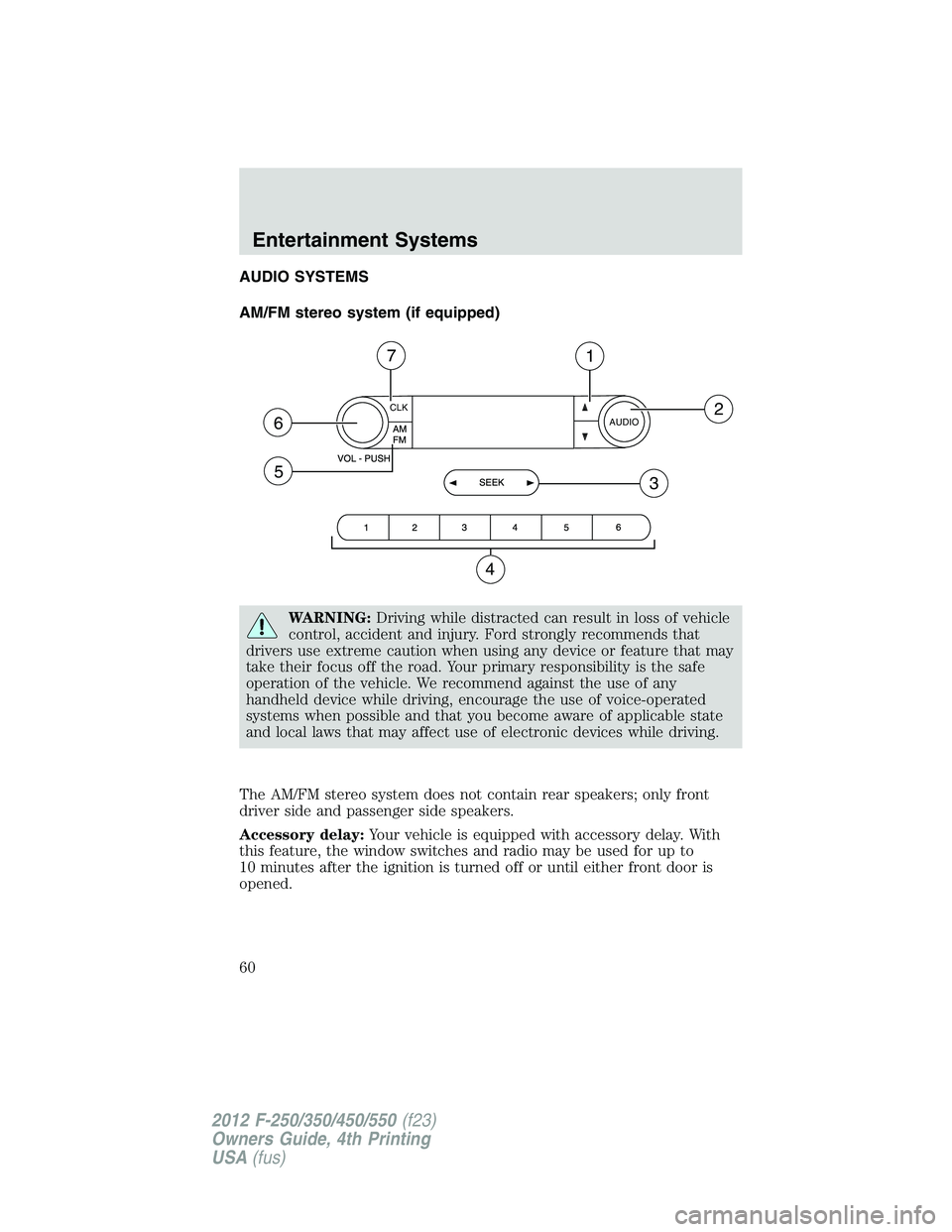

AUDIO SYSTEMS
AM/FM stereo system (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
The AM/FM stereo system does not contain rear speakers; only front
driver side and passenger side speakers.
Accessory delay: Your vehicle is equipped with accessory delay. With
this feature, the window switches and radio may be used for up to
10 minutes after the ignition is turned off or until either front door is
opened. 2
46 CLK
AUDIO
5 17
3Entertainment Systems
60
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

1. / (Tuner): Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in AUDIO mode to gain
access to various settings.
2. AUDIO: Press AUDIO repeatedly
to access the following settings:
• TREB (Treble): Press AUDIO to reach the treble setting.
Use
/ / SEEK .
• BASS (Bass): Press AUDIO to reach the bass setting.
Use
/ / SEEK
• BAL (Balance): Press AUDIO to reach the balance setting.
Use
/ / SEEK to adjust between the left and right
speakers.
• Setting the clock: Press and hold CLK until the hours start to flash,
then use
/ / SEEK to adjust. To adjust minutes, press
CLK again to make the minutes start to flash and use / /
SEEK to adjust. Press CLK again to exit the clock setting mode.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
3. SEEK: Press SEEK to
access the previous/next strong
station.
4. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5. AM/FM: Press AM/FM to select
AM/FM1/FM2 frequency band. Entertainment Systems
61
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Accessory delay: Your vehicle is equipped with accessory delay which
allows you to operate the window switches and the audio for up to
10 minutes after the ignition has been turned off or until either front
door is opened.
1. / : Press / to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
In satellite radio mode (if equipped) , press / to tune to the
next/previous channel.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
2. (Phone): If your vehicle is
equipped with SYNC  , press to
access SYNC PHONE features. For
further information, please refer to your SYNC  supplement.
If your vehicle is not equipped with SYNC  , the display will read NO
PHONE.
3. MENU: Press MENU repeatedly
to access to the following settings:
Setting the clock: Press MENU until SET HOUR or SET MINUTES is
displayed. Use / / SEEK, SEEK to adjust the
hours/minutes.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
SATELLITE RADIO MENU (if equipped): Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press / to cycle through the following options:
• CATEGORY: Press OK to enter category mode. Press / to
scroll through the list of available SIRIUS  channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS  categories and channels.
Press OK to close and return to the main menu. Entertainment Systems
63
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
BASS: Press MENU to reach the bass setting. Use / / SEEK,
SEEK to adjust.
TREB (Treble): Press MENU to reach the treble setting.
Use / / SEEK, SEEK to adjust.
L..R (Balance): Press MENU to reach the balance setting.
Use / / SEEK, SEEK to adjust the audio between the left
(L) and right (R) speakers.
B..F (Fade): Press MENU to reach the fade setting. Use / /
SEEK, SEEK to adjust the audio between the back (B) and
front (F) speakers.
SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to
reach the SPEEDVOL setting. Radio volume automatically gets louder
with increasing vehicle speed to compensate for road and wind noise.
Use / / SEEK, SEEK to adjust.
The default setting is off; increasing your vehicle speed will not change
the volume level.
Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.
Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting.
Track/Folder mode: Available only on MP3 discs in CD mode. In Track
mode, pressing SEEK, SEEK will scroll through all tracks on the
disc
In Folder mode, pressing SEEK, SEEK will scroll only through
tracks within the selected folder.
Press FOLDER, FOLDER to access the previous/next folder (if
available). Entertainment Systems
65
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

COMPRESS (Compression): Available only in CD/MP3 mode. Press
MENU until COMPRESS ON/OFF appears in the display.
Use
/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS
is ON, the system will bring the soft and loud CD passages together for a
more consistent listening level.
4. AUX: Press repeatedly to cycle
through LINE IN (auxiliary audio
mode, if equipped) and SAT1, SAT2
and SAT3 modes (satellite radio, if equipped).
For location and further information on auxiliary audio mode, refer to
Auxiliary input jack later in this chapter.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
5. SEEK: In radio mode,
press
/ to access the
previous/next strong station.
In CD/MP3 mode, press /
to access the previous/next CD/MP3 track.
In satellite radio mode (if equipped), press
SEEK, SEEK to
seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
SEEK, SEEK to seek to the
previous/next channel in the selected category. Press and hold
SEEK, SEEK to fast seek through the previous /next channels.
In TEXT MODE, press SEEK, SEEK to view the
previous/additional display text.
In CATEGORY MODE, press
SEEK, SEEK to select a category.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
6.
/ OK (Play/Pause): This
control is operational in CD/MP3
mode. When a CD/MP3 is playing,
press to pause or play the current CD/MP3. The CD/MP3 status will
display in the radio display.
OK: Use in various menu selections.Entertainment Systems
66
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Auxiliary input jack (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle may be equipped with
an auxiliary input jack (AIJ). The
auxiliary input jack, located on the
instrument panel below the power
point, provides a way to connect
your portable music player to the
in-vehicle audio system. This allows
the audio from a portable music
player to be played through the
vehicle speakers with high fidelity.
To achieve optimal performance,
please observe the following instructions when attaching your portable
music device to the audio system.
If your vehicle is equipped with a navigation system, refer to the
Auxiliary input jack section in the Audio Features chapter of your
Navigation System supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level. Entertainment Systems
69
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
