ENGINE WARMING PLEASE WAIT XX (diesel engine only) —
Displayed in extremely cold weather, typically below –15°F (–26°C), if
the engine block heater is not utilized. The engine will not respond to
accelerator pedal movement for 30 seconds; this is done so the engine oil
can be properly circulated to avoid engine damage from lack of
lubrication. A timer will begin a countdown from 30 seconds. Once the
counter has reached 0 seconds, OK TO DRIVE will be displayed and the
engine will respond to accelerator pedal movement. Refer to your diesel
supplement for more information.
OK TO DRIVE (diesel engine only) — Displayed when the time
counter has reached 0 (zero) and the engine is sufficiently warm enough
to drive in extremely cold weather (refer to the engine warming please
wait message description mentioned previously). Refer to your diesel
supplement for more information.
WATER IN FUEL DRAIN FILTER (diesel engine only) — Displayed
when the water separator has reached a predetermined capacity and
needs to be drained. Refer to your diesel supplement for more
information.
ENGINE TURNS OFF IN XX (diesel engine only) — Displayed
when the vehicle is in the final 30 seconds of a countdown to where the
engine will intentionally be turned off by the PCM. The diesel engine
shutdown for extended idling is an optional feature. Refer to your diesel
supplement for more information.
ENGINE TURNED OFF (diesel engine only) — Displayed after the
30 second countdown. Refer to your diesel supplement for more information.
DRIVE TO CLEAN EXHAUST FILTER (diesel engine only) —
Displayed when the Diesel Particulate Filter (DPF) is full of particles
(exhaust soot) and the vehicle is not being operated in a manner to
allow normal cleaning. This message will stay on until the exhaust filter
cleaning has begun, at which time the CLEANING EXHAUST FILTER
message will be displayed. It is recommended the vehicle operator drive
the vehicle above 30 mph (48 km/h) until the CLEANING EXHAUST
FILTER message turns off. This message is NORMAL. Refer to your
diesel supplement for more information.
Note: If this message is ignored, your vehicle will continue to fill the
Diesel Particulate Filter (DPF) with particles (exhaust soot). If cleaning
is not permitted, the light will illuminate and engine power may be
limited. If the vehicle is still not operated in a manner to allow cleaning,
the service engine soon light will illuminate and engine power will
be further limited. Dealer service will then be required to restore your
vehicle to full-power operation. Instrument Cluster
35
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

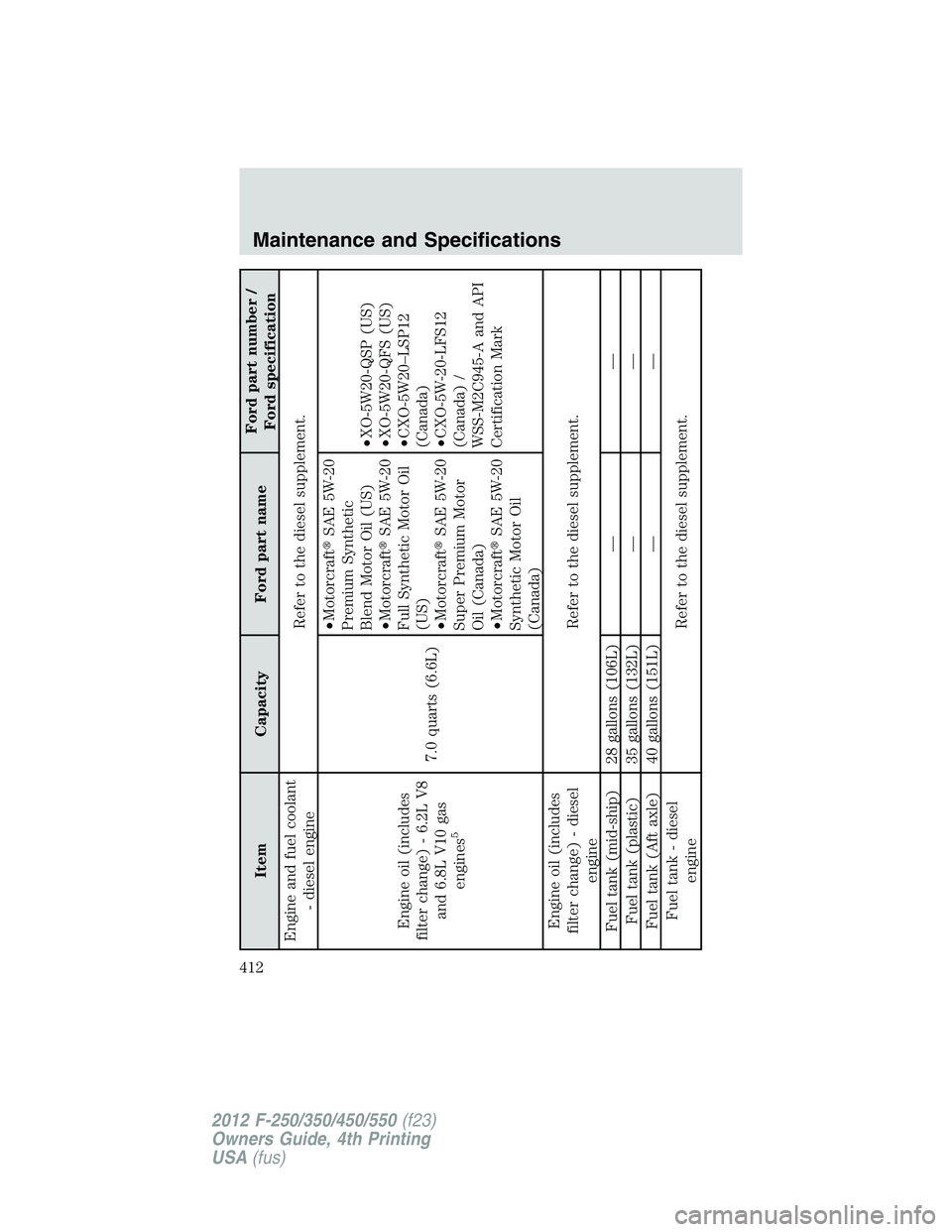

Item Capacity Ford part name Ford part number /
Ford specification
Engine and fuel coolant
- diesel engine Refer to the diesel supplement.
Engine oil (includes
filter change) - 6.2L V8
and 6.8L V10 gas
engines
57.0 quarts (6.6L) • Motorcraft  SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
• Motorcraft  SAE 5W-20
Full Synthetic Motor Oil
(US)
• Motorcraft  SAE 5W-20
Super Premium Motor
Oil (Canada)
• Motorcraft  SAE 5W-20
Synthetic Motor Oil
(Canada) • XO-5W20-QSP (US)
• XO-5W20-QFS (US)
• CXO-5W20–LSP12
(Canada)
• CXO-5W-20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
Engine oil (includes
filter change) - diesel
engine Refer to the diesel supplement.
Fuel tank (mid-ship) 28 gallons (106L) — —
Fuel tank (plastic) 35 gallons (132L) — —
Fuel tank (Aft axle) 40 gallons (151L) — —
Fuel tank - diesel
engine Refer to the diesel supplement.Maintenance and Specifications
412
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Windshield washer fluid Fill as required Motorcraft  Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada) ZC-32–A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16–A2 /- -
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.
2Add the coolant type originally equipped in your vehicle.
3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to your scheduled maintenance information to determine the
correct service interval.
Automatic transmissions that require MERCON  LV should only use MERCON  LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.
6Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type A.
7Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type B.Maintenance and Specifications
414
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Engine oil ..................................375
checking and adding ..............375
dipstick ....................................375
filter, specifications ........376, 410
recommendations ...................376
refill capacities ........................411
Event data recording ....................9
Exhaust fumes ..........................269
F
Fail safe cooling ........................384
Fleet MyKey programming ......129
Flexible Fuel Vehicle (FFV) ....386
Floor mats .........................122–123
Fluid capacities .........................411
Fog lamps ....................................88
Four-Wheel Drive vehicles .......301
driving off road .......................307
electronic shift ................301, 306
indicator light .........................302
lever operated shift ................303
manual locking hubs ..............301
preparing to drive your
vehicle .....................................285
Fuel ............................................386
calculating fuel
economy ............................25, 393
cap ...........................................389
capacity ...................................411
choosing the right fuel ...........390
detergent in fuel .....................392
filling your vehicle
with fuel ..................386, 389, 393
filter, specifications ................386
fuel pump shut-off ..................321
improving fuel economy ........393
octane rating ...................391, 415
quality ......................................391 running out of fuel .................392
safety information relating
to automotive fuels ................386
Fuel - flex fuel vehicle
(FFV) .........................386, 390–391
Fuses ..................................321–322
G
Garage door opener ..................116
Gas cap (see Fuel cap) ............389
Gas mileage
(see Fuel economy) .................393
Gauges .........................................21
H
Hazard flashers .........................320
Headlamps ...................................87
aiming ........................................90
autolamp system .......................87
daytime running lights .............89
flash to pass ..............................88
high beam .................................88
replacing bulbs .........................94
turning on and off ....................87
Heating
heating and air conditioning
system .................................78, 81
Hill descent mode .....................281
Hill start assist ..........................294
Hood ..........................................371
I
Ignition ...............................265, 415
Illuminated visor mirror .............99Index
