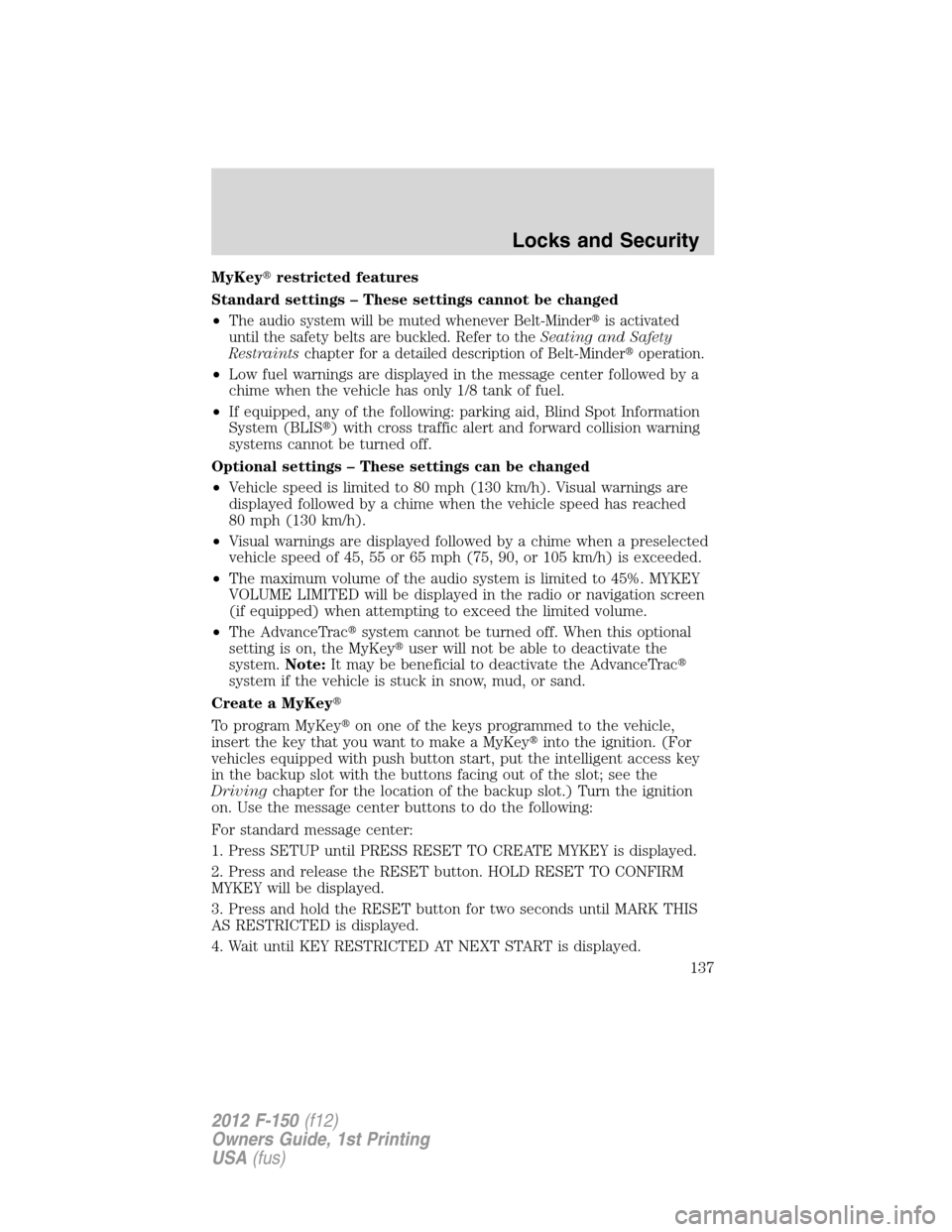

MyKeyrestricted features
Standard settings – These settings cannot be changed
•
The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minderoperation.
•Low fuel warnings are displayed in the message center followed by a
chime when the vehicle has only 1/8 tank of fuel.
•If equipped, any of the following: parking aid, Blind Spot Information
System (BLIS) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – These settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or navigation screen
(if equipped) when attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. (For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with the buttons facing out of the slot; see the
Drivingchapter for the location of the backup slot.) Turn the ignition
on. Use the message center buttons to do the following:
For standard message center:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
Locks and Security
137
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

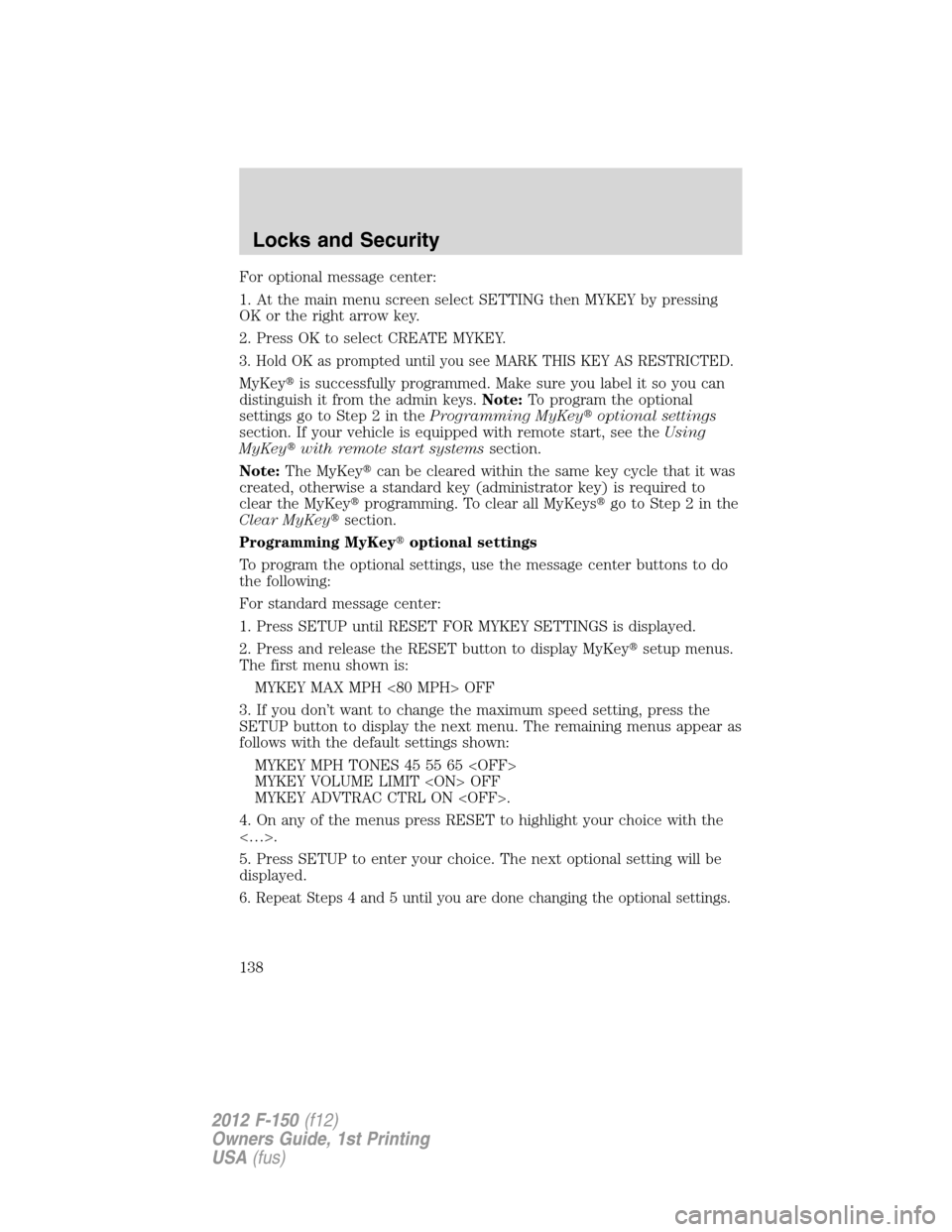

For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Press OK to select CREATE MYKEY.
3. Hold OK as prompted until you see MARK THIS KEY AS RESTRICTED.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyoptional settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyoptional settings
To program the optional settings, use the message center buttons to do
the following:
For standard message center:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKeysetup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional settings.
Locks and Security
138
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

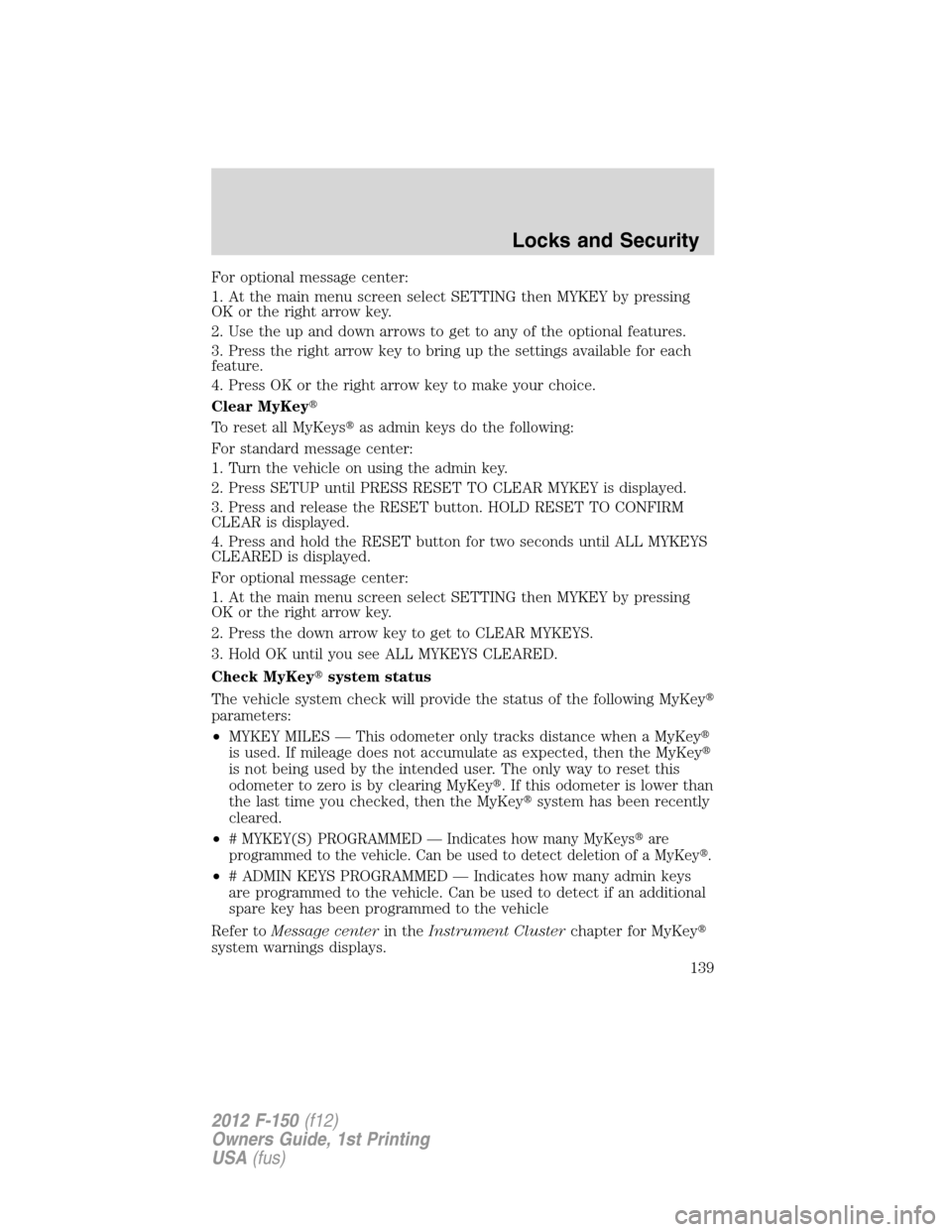

For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Use the up and down arrows to get to any of the optional features.
3. Press the right arrow key to bring up the settings available for each
feature.
4. Press OK or the right arrow key to make your choice.
Clear MyKey
To reset all MyKeysas admin keys do the following:
For standard message center:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Press the down arrow key to get to CLEAR MYKEYS.
3. Hold OK until you see ALL MYKEYS CLEARED.
Check MyKeysystem status
The vehicle system check will provide the status of the following MyKey
parameters:
•MYKEY MILES — This odometer only tracks distance when a MyKey
is used. If mileage does not accumulate as expected, then the MyKey
is not being used by the intended user. The only way to reset this
odometer to zero is by clearing MyKey. If this odometer is lower than
the last time you checked, then the MyKeysystem has been recently
cleared.
•
# MYKEY(S) PROGRAMMED — Indicates how many MyKeysare
programmed to the vehicle. Can be used to detect deletion of a MyKey.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKey
system warnings displays.
Locks and Security
139
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

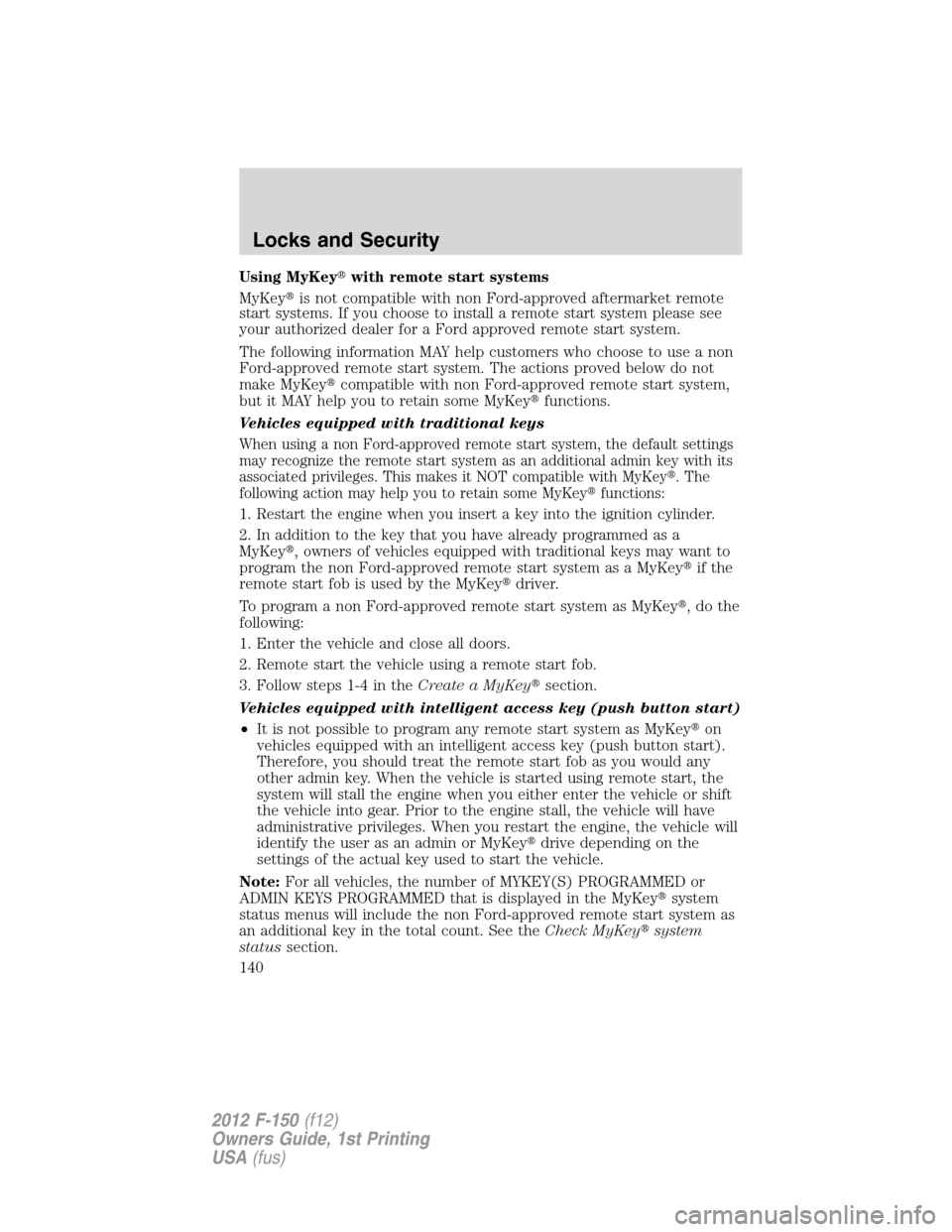

Using MyKeywith remote start systems
MyKeyis not compatible with non Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
The following information MAY help customers who choose to use a non
Ford-approved remote start system. The actions proved below do not
make MyKeycompatible with non Ford-approved remote start system,
but it MAY help you to retain some MyKeyfunctions.
Vehicles equipped with traditional keys
When using a non Ford-approved remote start system, the default settings
may recognize the remote start system as an additional admin key with its
associated privileges. This makes it NOT compatible with MyKey. The
following action may help you to retain some MyKeyfunctions:
1. Restart the engine when you insert a key into the ignition cylinder.
2. In addition to the key that you have already programmed as a
MyKey, owners of vehicles equipped with traditional keys may want to
program the non Ford-approved remote start system as a MyKeyif the
remote start fob is used by the MyKeydriver.
To program a non Ford-approved remote start system as MyKey,dothe
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow steps 1-4 in theCreate a MyKeysection.
Vehicles equipped with intelligent access key (push button start)
•It is not possible to program any remote start system as MyKeyon
vehicles equipped with an intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKeydrive depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the non Ford-approved remote start system as
an additional key in the total count. See theCheck MyKeysystem
statussection.
Locks and Security
140
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

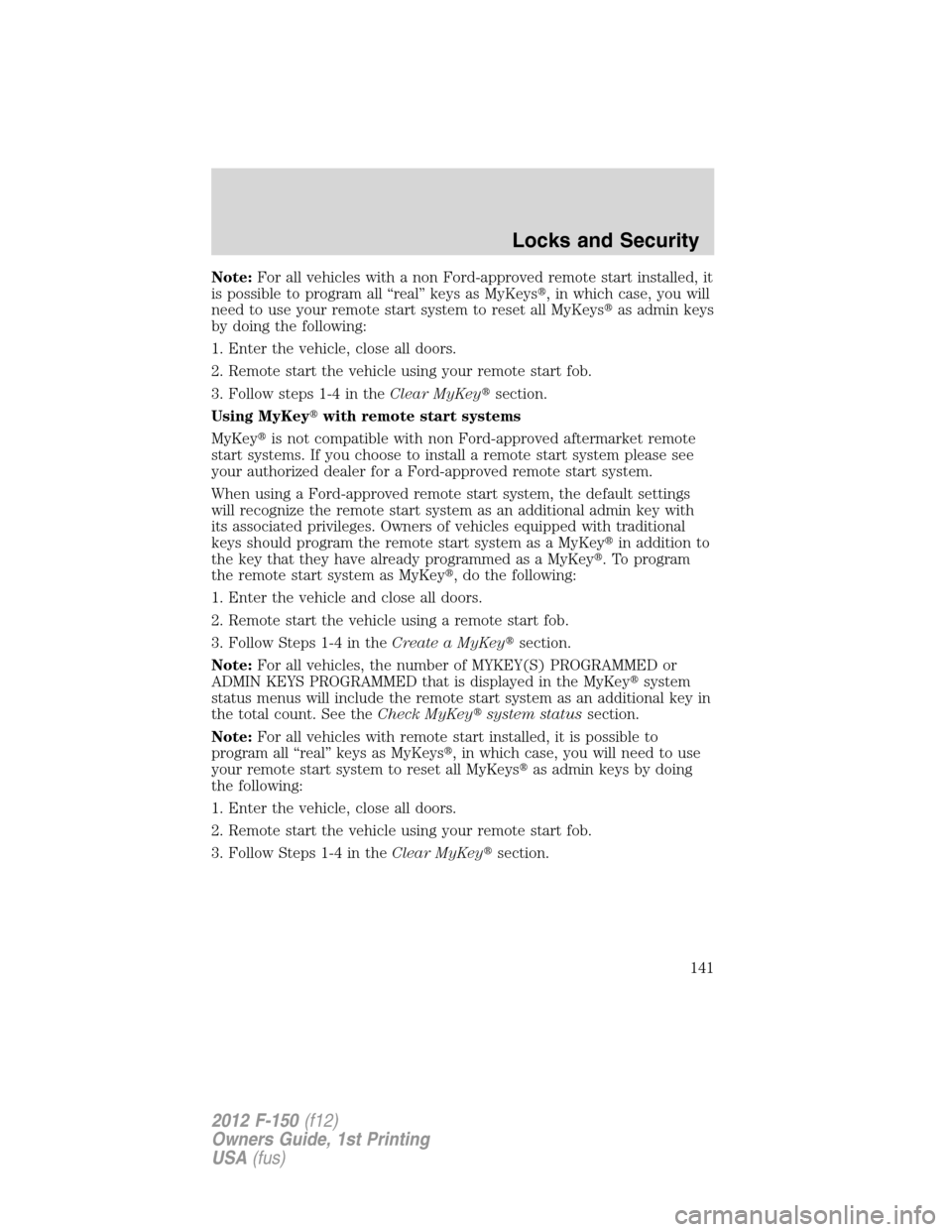

Note:For all vehicles with a non Ford-approved remote start installed, it
is possible to program all “real” keys as MyKeys, in which case, you will
need to use your remote start system to reset all MyKeysas admin keys
by doing the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow steps 1-4 in theClear MyKeysection.
Using MyKeywith remote start systems
MyKeyis not compatible with non Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford-approved remote start system.
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. Owners of vehicles equipped with traditional
keys should program the remote start system as a MyKeyin addition to
the key that they have already programmed as a MyKey. To program
the remote start system as MyKey, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKeysection.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKeysystem statussection.
Note:For all vehicles with remote start installed, it is possible to
program all “real” keys as MyKeys, in which case, you will need to use
your remote start system to reset all MyKeysas admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow Steps 1-4 in theClear MyKeysection.
Locks and Security
141
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

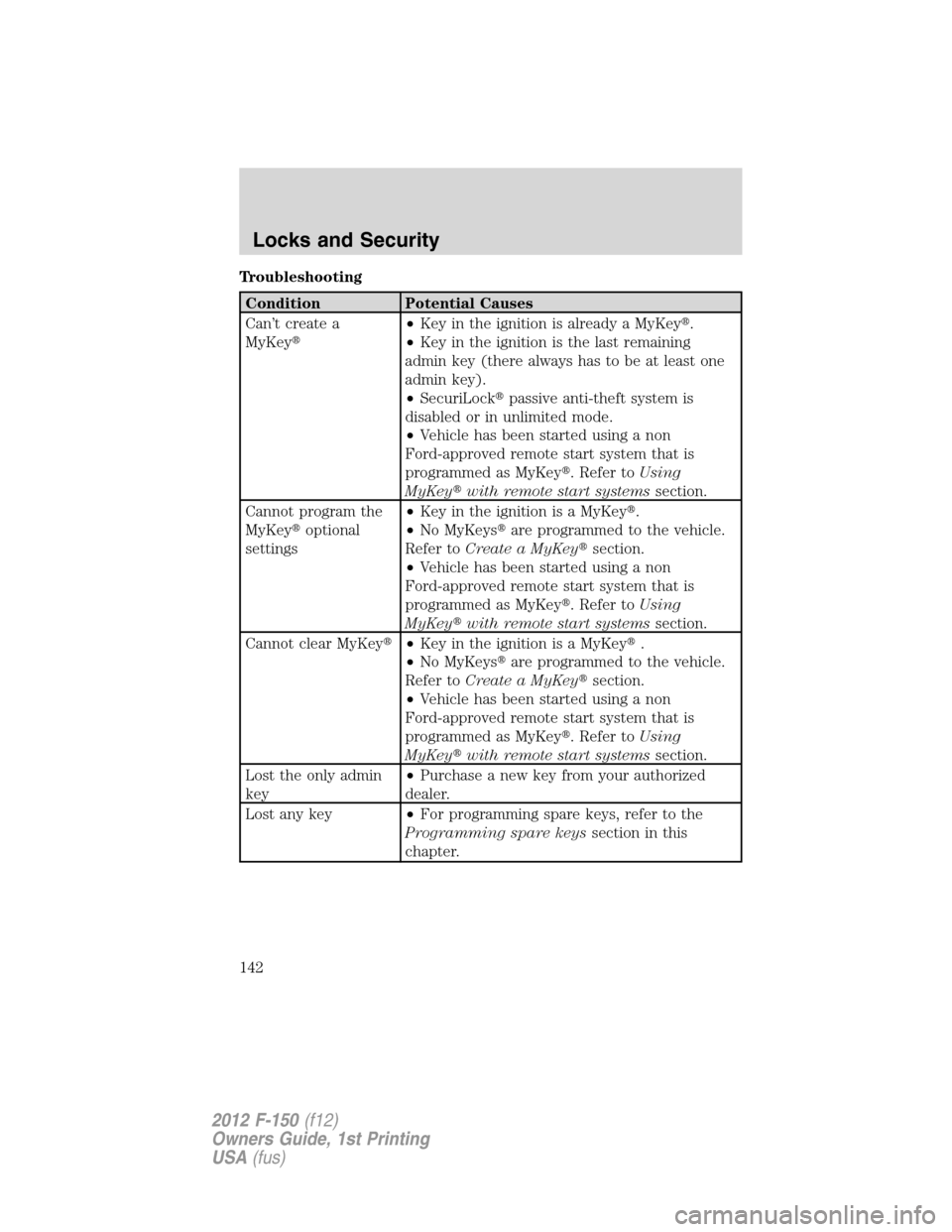

Troubleshooting
Condition Potential Causes
Can’t create a
MyKey•Key in the ignition is already a MyKey.
•Key in the ignition is the last remaining
admin key (there always has to be at least one
admin key).
•SecuriLockpassive anti-theft system is
disabled or in unlimited mode.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing
MyKeywith remote start systemssection.
Cannot program the
MyKeyoptional
settings•Key in the ignition is a MyKey.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing
MyKeywith remote start systemssection.
Cannot clear MyKey•Key in the ignition is a MyKey.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing
MyKeywith remote start systemssection.
Lost the only admin
key•Purchase a new key from your authorized
dealer.
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this
chapter.
Locks and Security
142
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

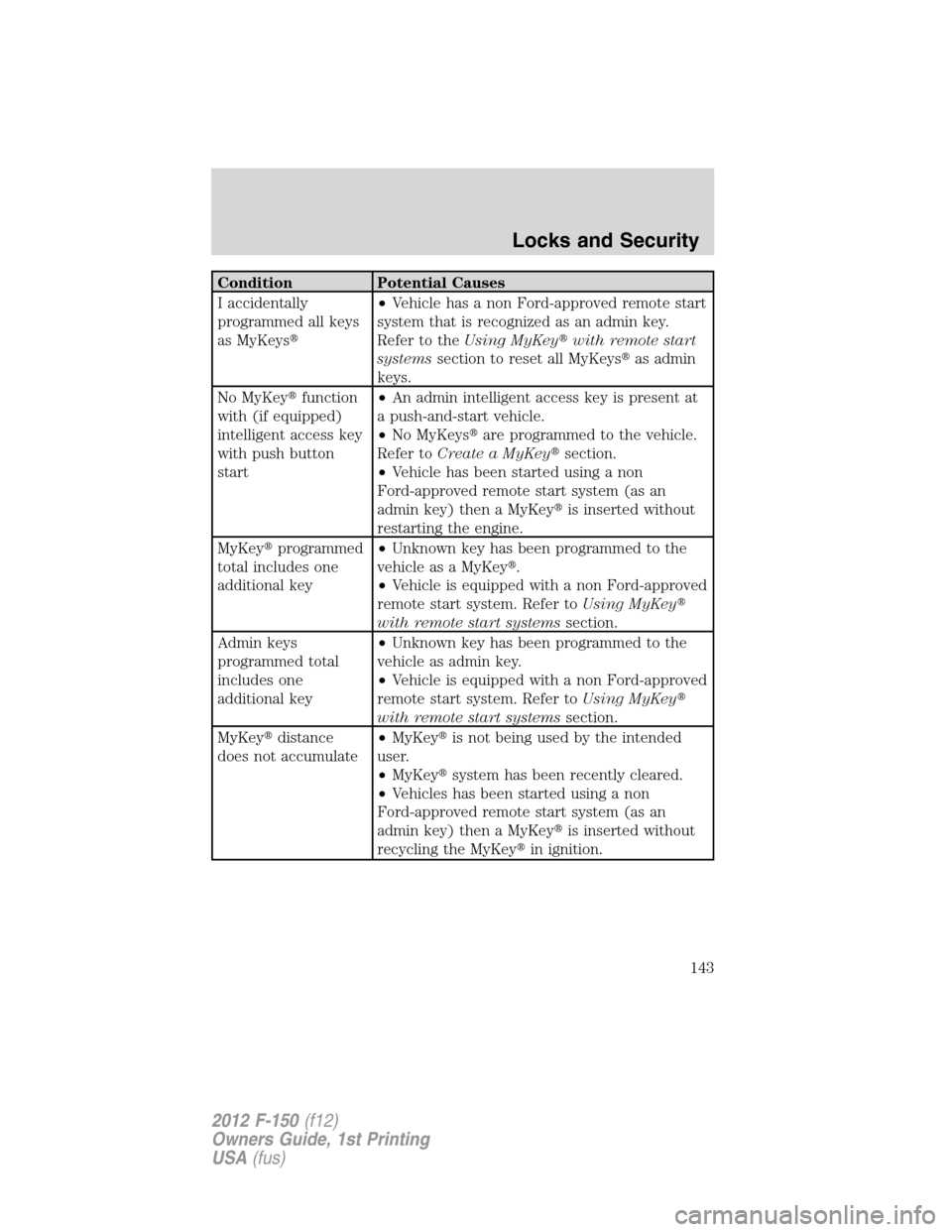

Condition Potential Causes
I accidentally
programmed all keys
as MyKeys•Vehicle has a non Ford-approved remote start
system that is recognized as an admin key.
Refer to theUsing MyKeywith remote start
systemssection to reset all MyKeysas admin
keys.
No MyKeyfunction
with (if equipped)
intelligent access key
with push button
start•An admin intelligent access key is present at
a push-and-start vehicle.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system (as an
admin key) then a MyKeyis inserted without
restarting the engine.
MyKeyprogrammed
total includes one
additional key•Unknown key has been programmed to the
vehicle as a MyKey.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKey
with remote start systemssection.
Admin keys
programmed total
includes one
additional key•Unknown key has been programmed to the
vehicle as admin key.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKey
with remote start systemssection.
MyKeydistance
does not accumulate•MyKeyis not being used by the intended
user.
•MyKeysystem has been recently cleared.
•Vehicles has been started using a non
Ford-approved remote start system (as an
admin key) then a MyKeyis inserted without
recycling the MyKeyin ignition.
Locks and Security
143
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

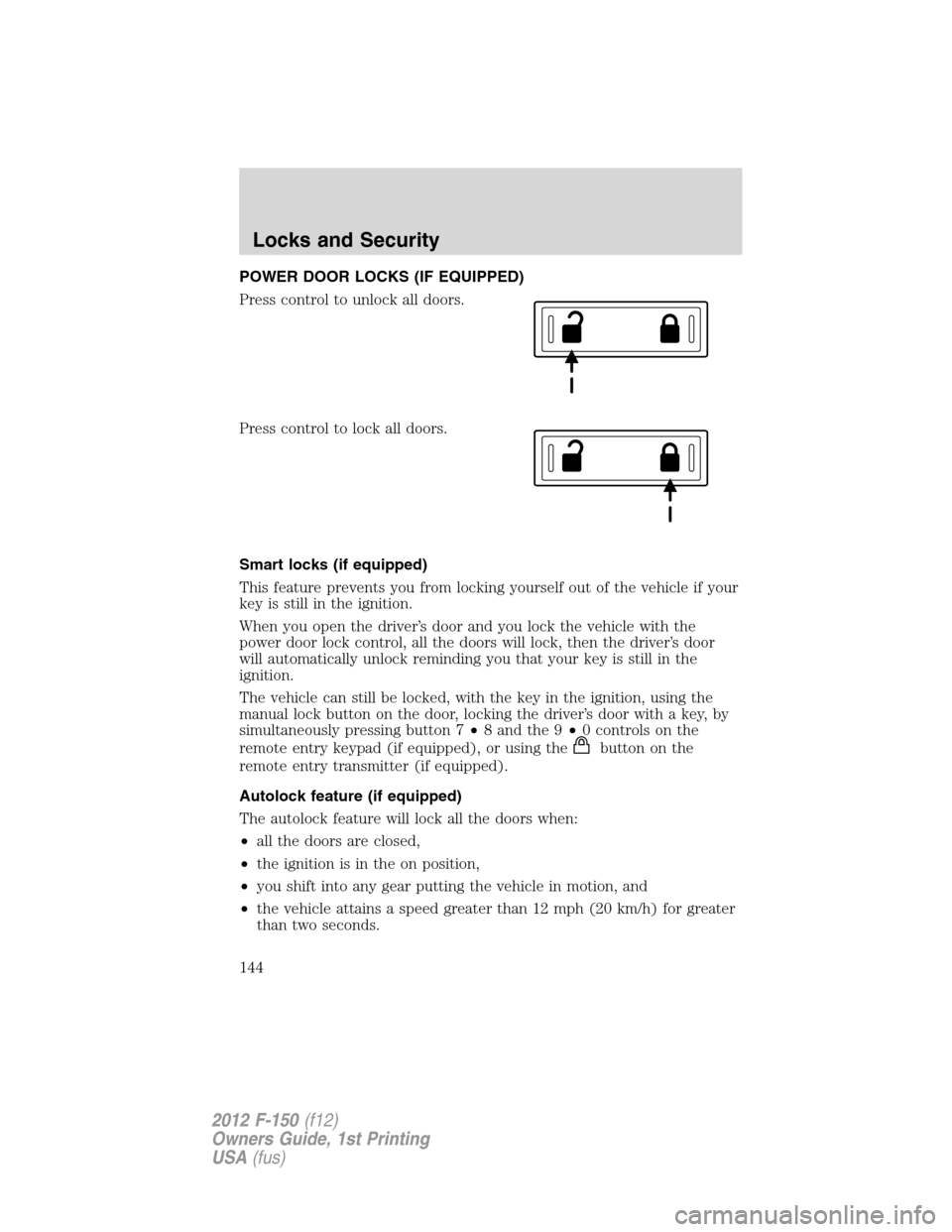

POWER DOOR LOCKS (IF EQUIPPED)
Press control to unlock all doors.
Press control to lock all doors.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the
buttononthe
remote entry transmitter (if equipped).
Autolock feature (if equipped)
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h) for greater
than two seconds.
Locks and Security
144
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
