2012 FORD F150 Owners Manual

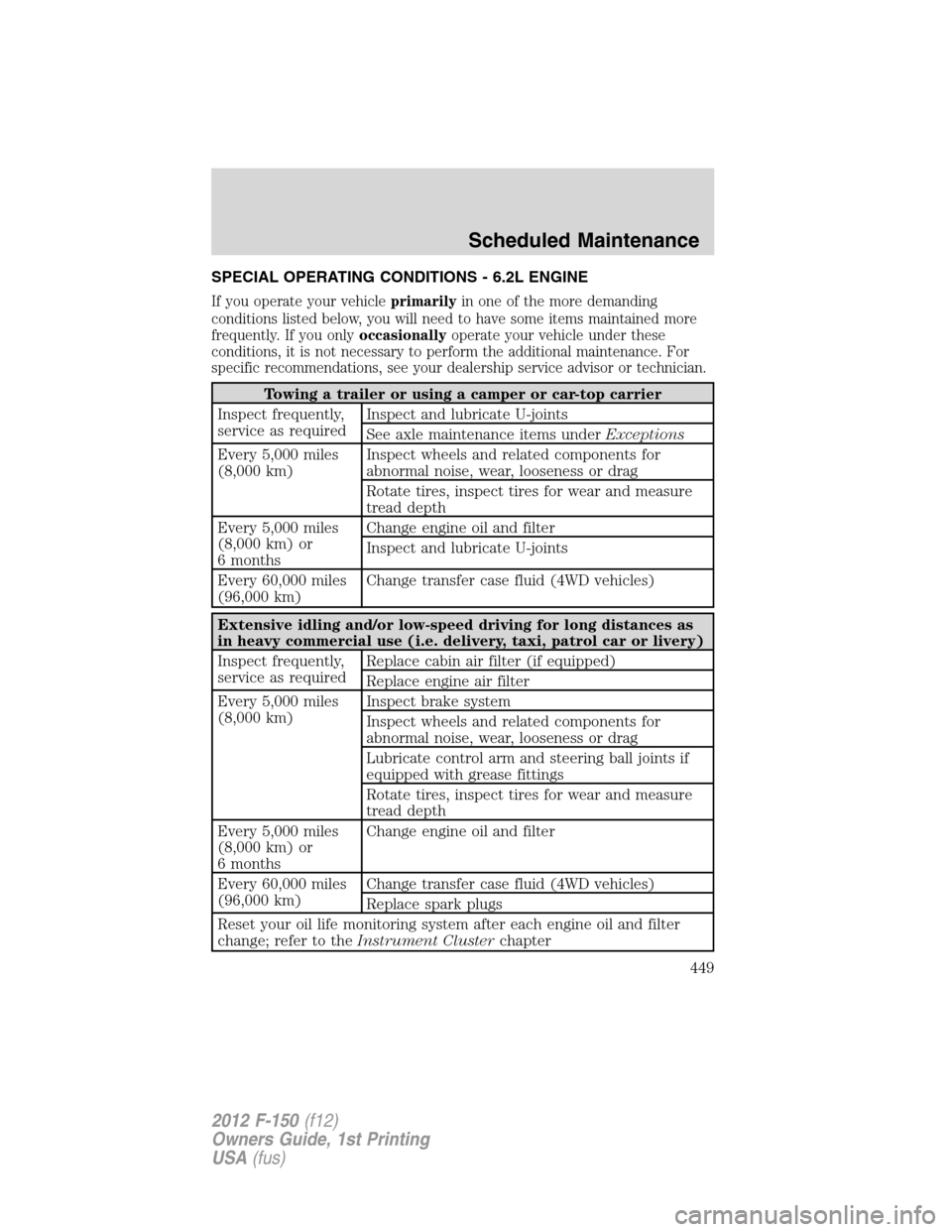

SPECIAL OPERATING CONDITIONS - 6.2L ENGINE
If you operate your vehicleprimarilyin one of the more demanding
conditions listed below, you will need to have some items maintained more
frequently. If you onlyoccasionallyoperate your vehicle under these
conditions, it is not necessary to perform the additional maintenance. For
specific recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 5,000 miles
(8,000 km)Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Replace spark plugs
Reset your oil life monitoring system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance
449
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

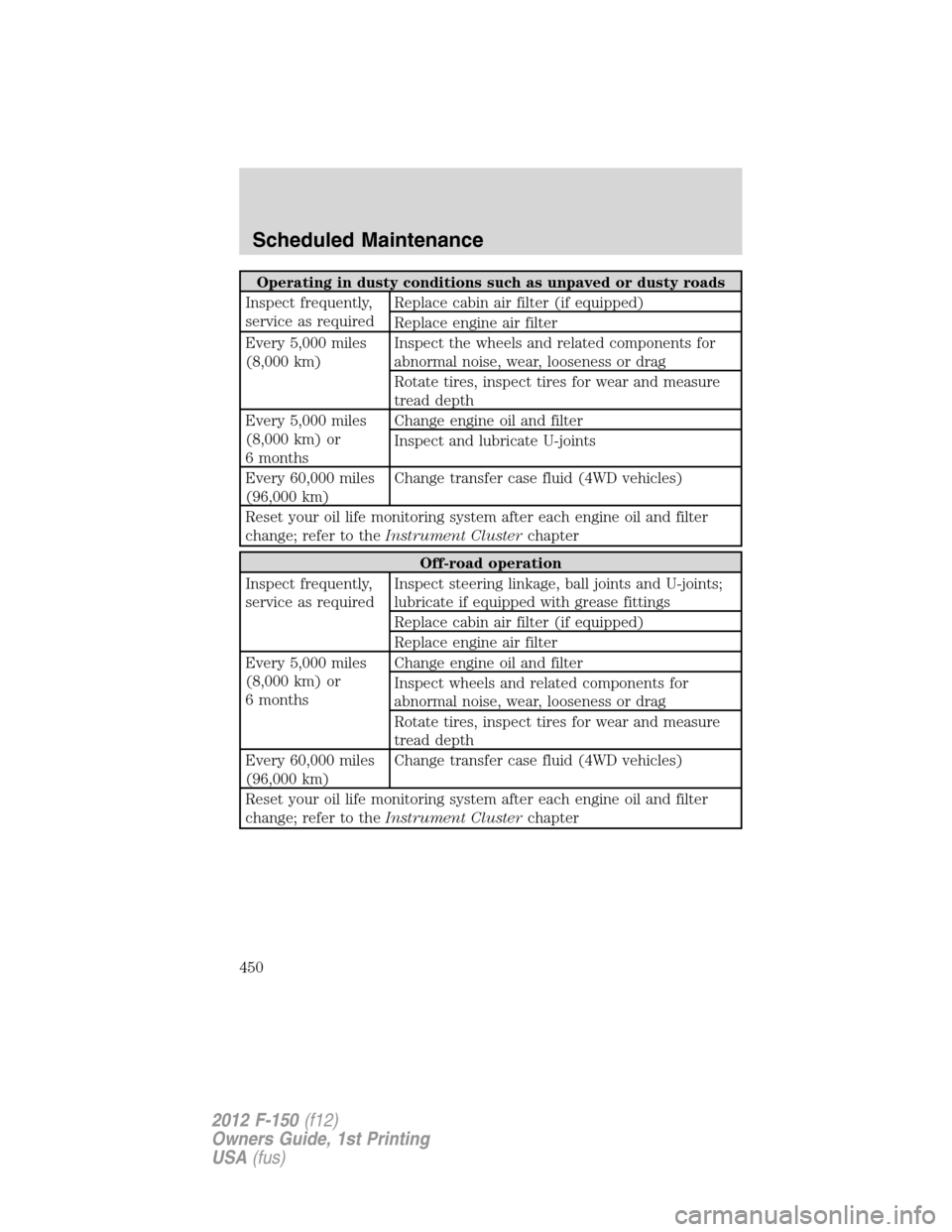

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Reset your oil life monitoring system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Off-road operation
Inspect frequently,
service as requiredInspect steering linkage, ball joints and U-joints;
lubricate if equipped with grease fittings
Replace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Reset your oil life monitoring system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance
450
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

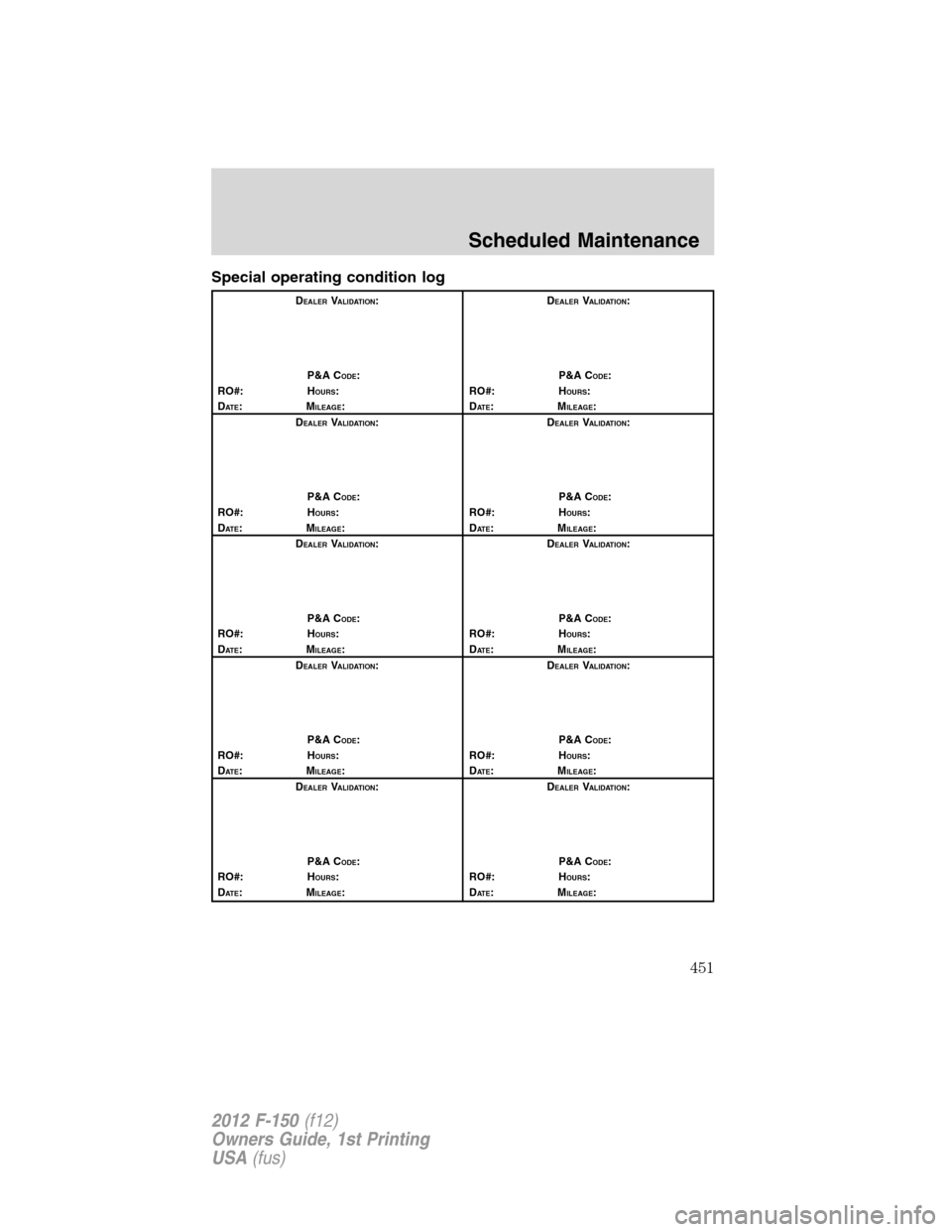

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
451
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
452
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

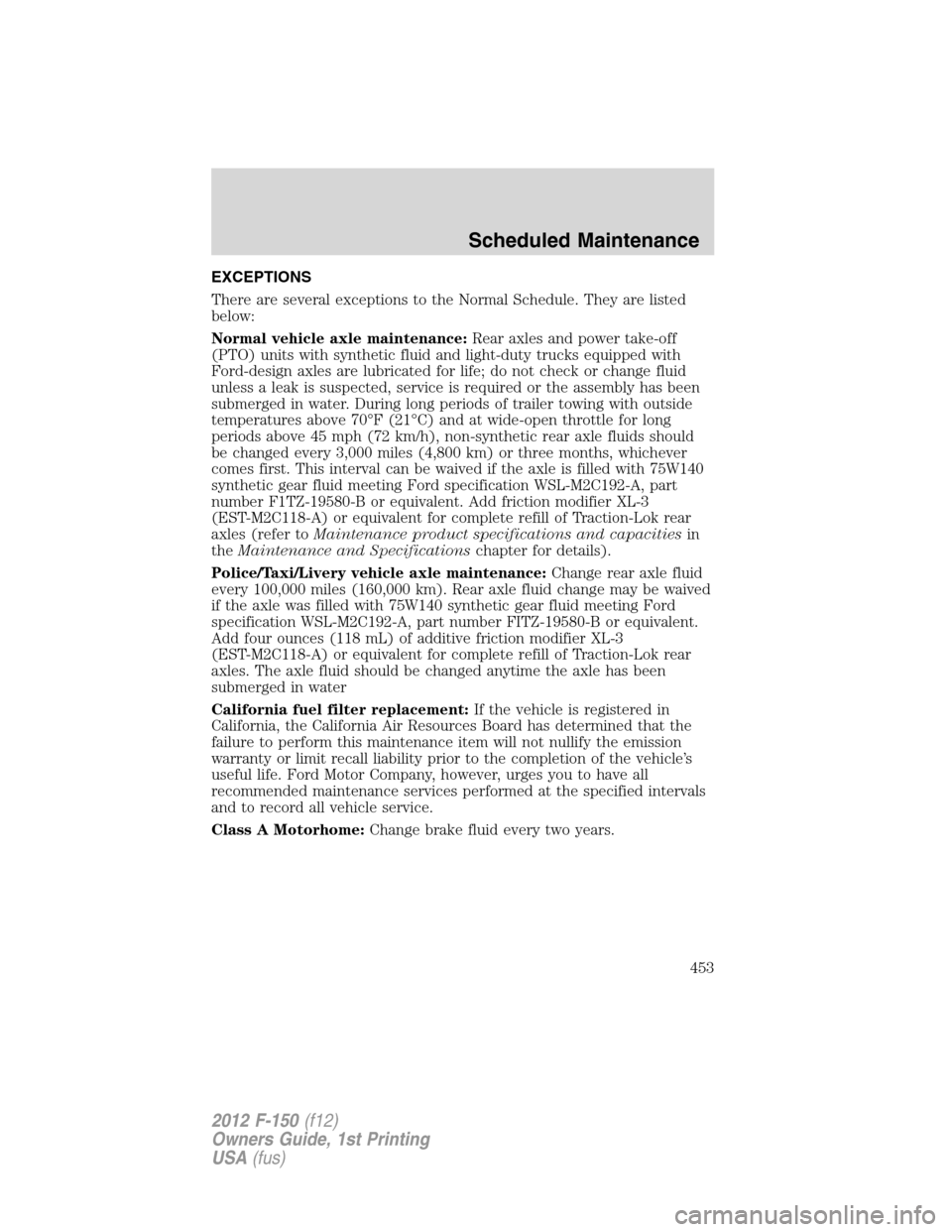

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Scheduled Maintenance
453
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

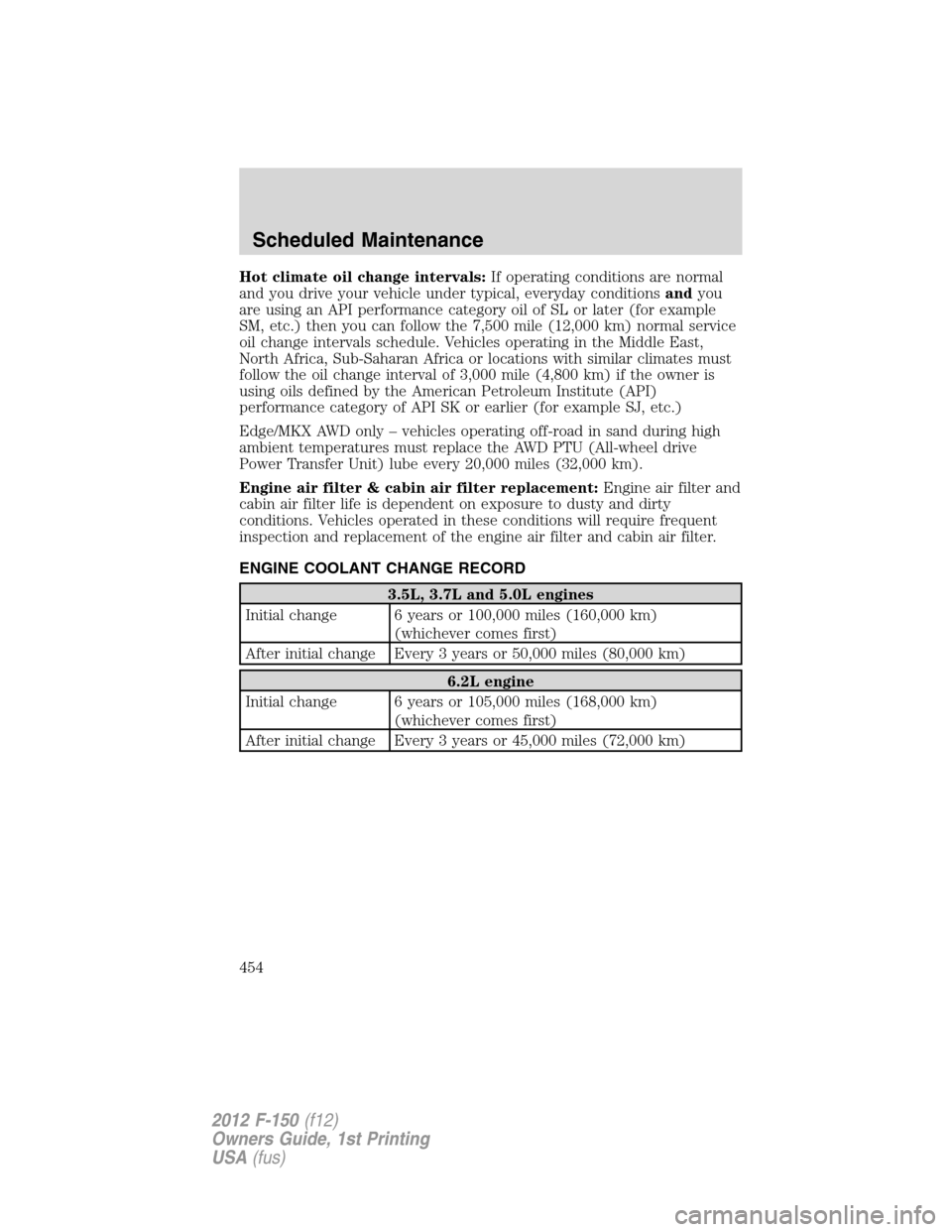

Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc.)
Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
3.5L, 3.7L and 5.0L engines
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
6.2L engine
Initial change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
After initial change Every 3 years or 45,000 miles (72,000 km)
Scheduled Maintenance
454
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

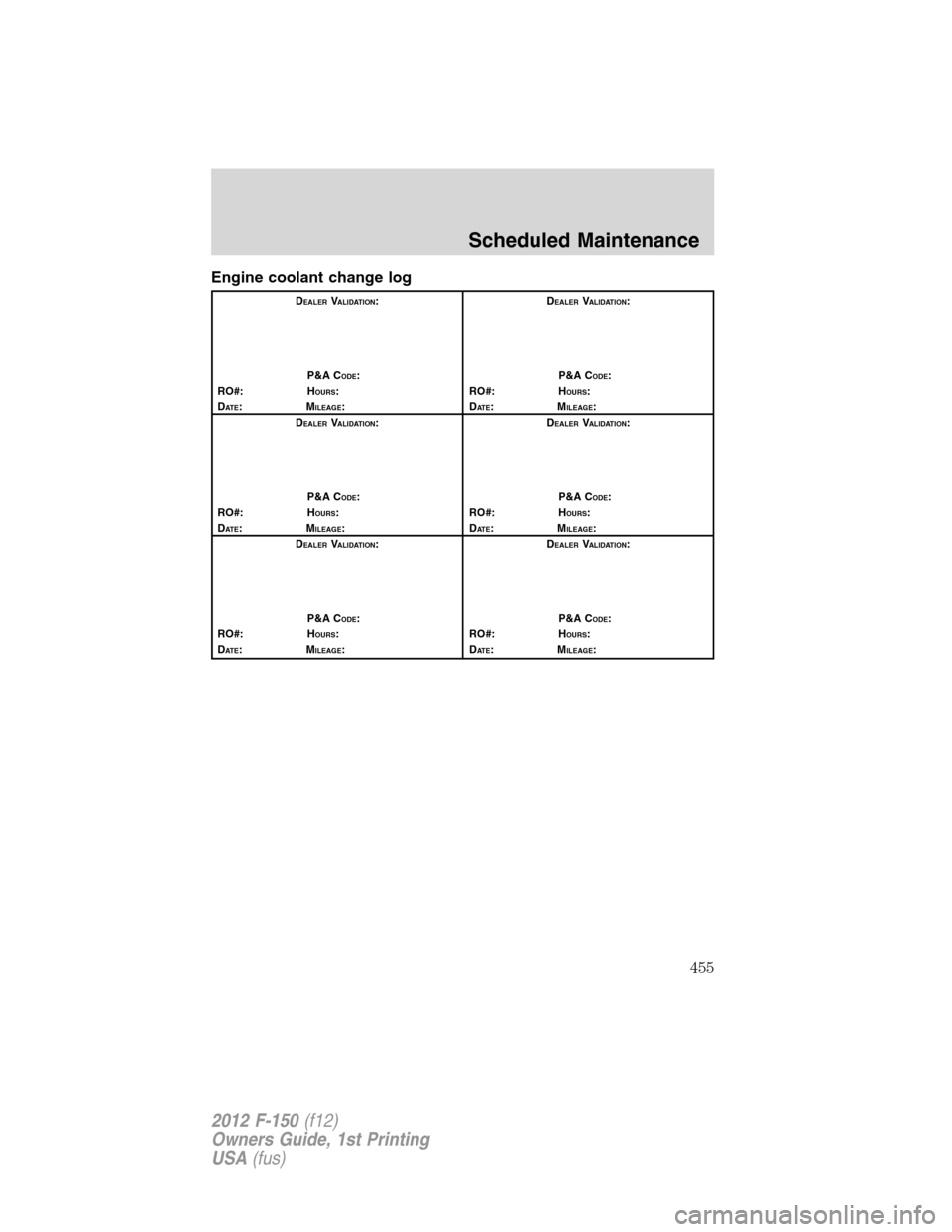

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
455
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

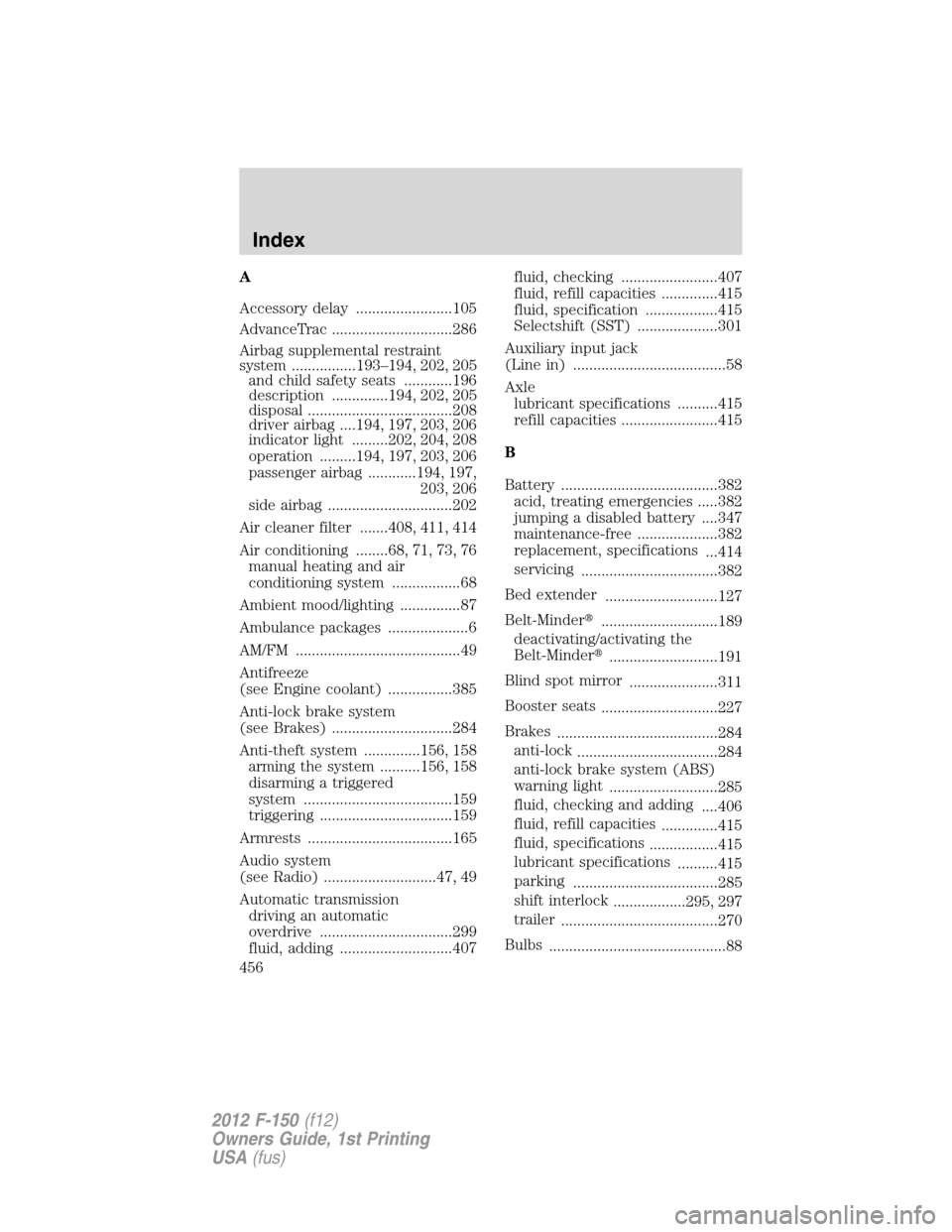

A
Accessory delay ........................105
AdvanceTrac ..............................286
Airbag supplemental restraint
system ................193–194, 202, 205
and child safety seats ............196
description ..............194, 202, 205
disposal ....................................208
driver airbag ....194, 197, 203, 206
indicator light .........202, 204, 208
operation .........194, 197, 203, 206
passenger airbag ............194, 197,
203, 206
side airbag ...............................202
Air cleaner filter .......408, 411, 414
Air conditioning ........68, 71, 73, 76
manual heating and air
conditioning system .................68
Ambient mood/lighting ...............87
Ambulance packages ....................6
AM/FM .........................................49
Antifreeze
(see Engine coolant) ................385
Anti-lock brake system
(see Brakes) ..............................284
Anti-theft system ..............156, 158
arming the system ..........156, 158
disarming a triggered
system .....................................159
triggering .................................159
Armrests ....................................165
Audio system
(see Radio) ............................47, 49
Automatic transmission
driving an automatic
overdrive .................................299
fluid, adding ............................407fluid, checking ........................407
fluid, refill capacities ..............415
fluid, specification ..................415
Selectshift (SST) ....................301
Auxiliary input jack
(Line in) ......................................58
Axle
lubricant specifications ..........415
refill capacities ........................415
B
Battery .......................................382
acid, treating emergencies .....382
jumping a disabled battery ....347
maintenance-free ....................382
replacement, specifications
...414
servicing
..................................382
Bed extender
............................127
Belt-Minder
.............................189
deactivating/activating the
Belt-Minder
...........................191
Blind spot mirror
......................311
Booster seats
.............................227
Brakes
........................................284
anti-lock
...................................284
anti-lock brake system (ABS)
warning light
...........................285
fluid, checking and adding
....406
fluid, refill capacities
..............415
fluid, specifications
.................415
lubricant specifications
..........415
parking
....................................285
shift interlock
..................295, 297
trailer
.......................................270
Bulbs
............................................88
Index
456
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
