2012 FORD ESCAPE Owners Manual

5. Locate the vertical adjuster on
the headlamp, then usea4mm
socket to turn the adjuster either
counterclockwise (to adjust up) or
clockwise (to adjust down) aligning
the upper edge of the light pattern
to the horizontal line.
6. Move the opaque cloth to cover
the right-hand headlamp and repeat
Steps 4 and 5 for the left-hand
headlamp.
7. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
•To manually turn on the dome
lamp, rotate the panel dimmer
control, located on the instrument
panel, to the full upright position
past the detent.
•
To turn off the dome lamp, rotate
the panel dimmer control to the
full down position past the detent.
Note:When manually in the off position, the dome lamp will not
illuminate when the door(s) are opened.
Lights
57
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

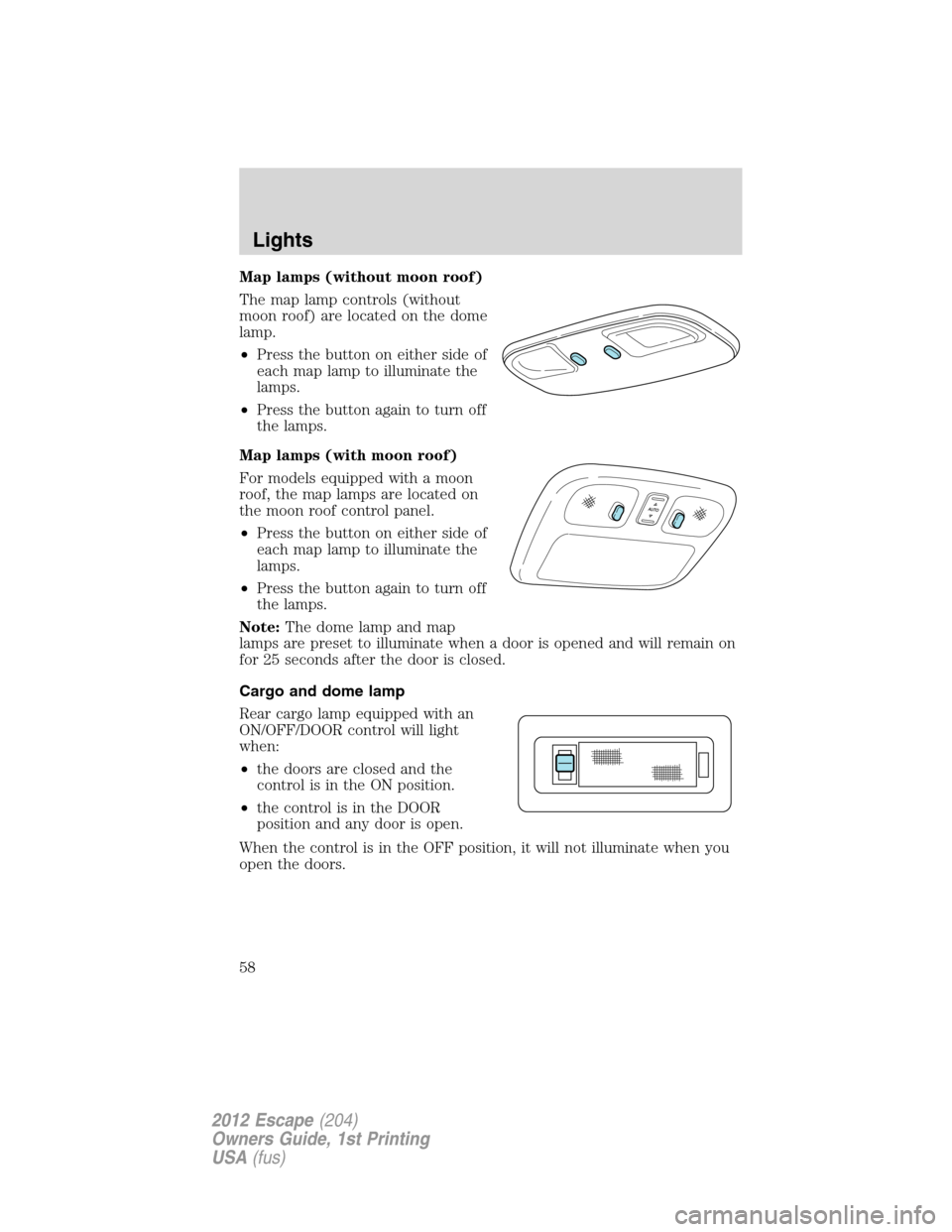

Map lamps (without moon roof)
The map lamp controls (without
moon roof) are located on the dome
lamp.
•Press the button on either side of
each map lamp to illuminate the
lamps.
•Press the button again to turn off
the lamps.
Map lamps (with moon roof)
For models equipped with a moon
roof, the map lamps are located on
the moon roof control panel.
•Press the button on either side of
each map lamp to illuminate the
lamps.
•Press the button again to turn off
the lamps.
Note:The dome lamp and map
lamps are preset to illuminate when a door is opened and will remain on
for 25 seconds after the door is closed.
Cargo and dome lamp
Rear cargo lamp equipped with an
ON/OFF/DOOR control will light
when:
•the doors are closed and the
control is in the ON position.
•the control is in the DOOR
position and any door is open.
When the control is in the OFF position, it will not illuminate when you
open the doors.
Lights
58
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Ambient lighting (if equipped)
Illuminates footwells, cupholders,
the console bin and the console tray
with a choice of several colors. The
ambient lighting control switch is
located on the floor console.
•To activate, press and release the
control to cycle through the color
choices plus the off state.
The lights come on whenever the ignition is in either the on or accessory
position.
Note:The ambient lights will stay on until the ignition is placed in the
off position and either of the front doors are opened or the accessory
delay timer expires.
Interior lighting battery saver
The interior lamps will automatically extinguish after 10 minutes when
the ignition key is in the off position, a door has been left open or the
interior lamp controls are in the on position.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Lights
59
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbs Trade number
Headlamps (high and
low beams)2
H13
Park/turn lamps
(front)2
3457A (amber)
Side marker (front) 2 194
Rear
stop/tail/sidemarker2
3157K / 4157K
Backup lamp 2 921
Fog lamp (front) 2 PS24WFF
Center High-mount
stop lamp5
W5WL
Rear license plate
lamp2
168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer
Replacing headlamp bulbs
1. Make sure the headlamp control is in the off position.
2. Open the hood.
3. Reach over the front bolster.
4. Remove the bulb by turning it
counterclockwise and then pulling it
straight out.
Lights
60
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

5. Disconnect the electrical
connector from the bulb.
WARNING:Handle a
halogen headlamp bulb
carefully and keep out of
children’s reach. Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
6. Connect the electrical connector on the new bulb.
7. Insert the glass end of the new bulb into the headlamp assembly.
When the grooves in the plastic base are aligned, turn the new bulb
clockwise to install.
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the off position.
2. Open the hood.
3. Reach over the front bolster.
4. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
5. Carefully pull the bulb out of the
socket and push in the new bulb.
6. Install the bulb socket into the
lamp assembly and rotate clockwise.
Lights
61
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Replacing front sidemarker bulbs
For bulb replacement, see your authorized dealer.
Replacing tail/stop/turn/backup lamp bulbs
The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb:
1. Make sure the headlamp switch is
in the off position and then open
the liftgate to expose the lamp
assembly screws.
2. Remove the two screws from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket. DO NOT
TIP THE LAMP ASSEMBLY SIDEWAYS.
4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull bulb straight out of socket and push in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle and secure with
two screws.
Replacing high-mount brake lamp bulbs
1. Remove the two screws and move
the lamp assembly away from the
liftgate.
Lights
62
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

2. Remove the bulb holder from the
lamp assembly by pressing the
snaps.
3. Pull the bulb straight out of the
socket and push in the new bulb.
Install the new bulbs in reverse
order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Press the lever and carefully pry
the license plate lamp assembly
(located above the license plate)
from the liftgate.
3. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
4. Pull bulb straight out of socket
and push in the new bulb.
5. Install the bulb socket into the
lamp assembly and rotate clockwise.
6. To install, carefully press the
lamp assembly into liftgate.
Lights
63
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

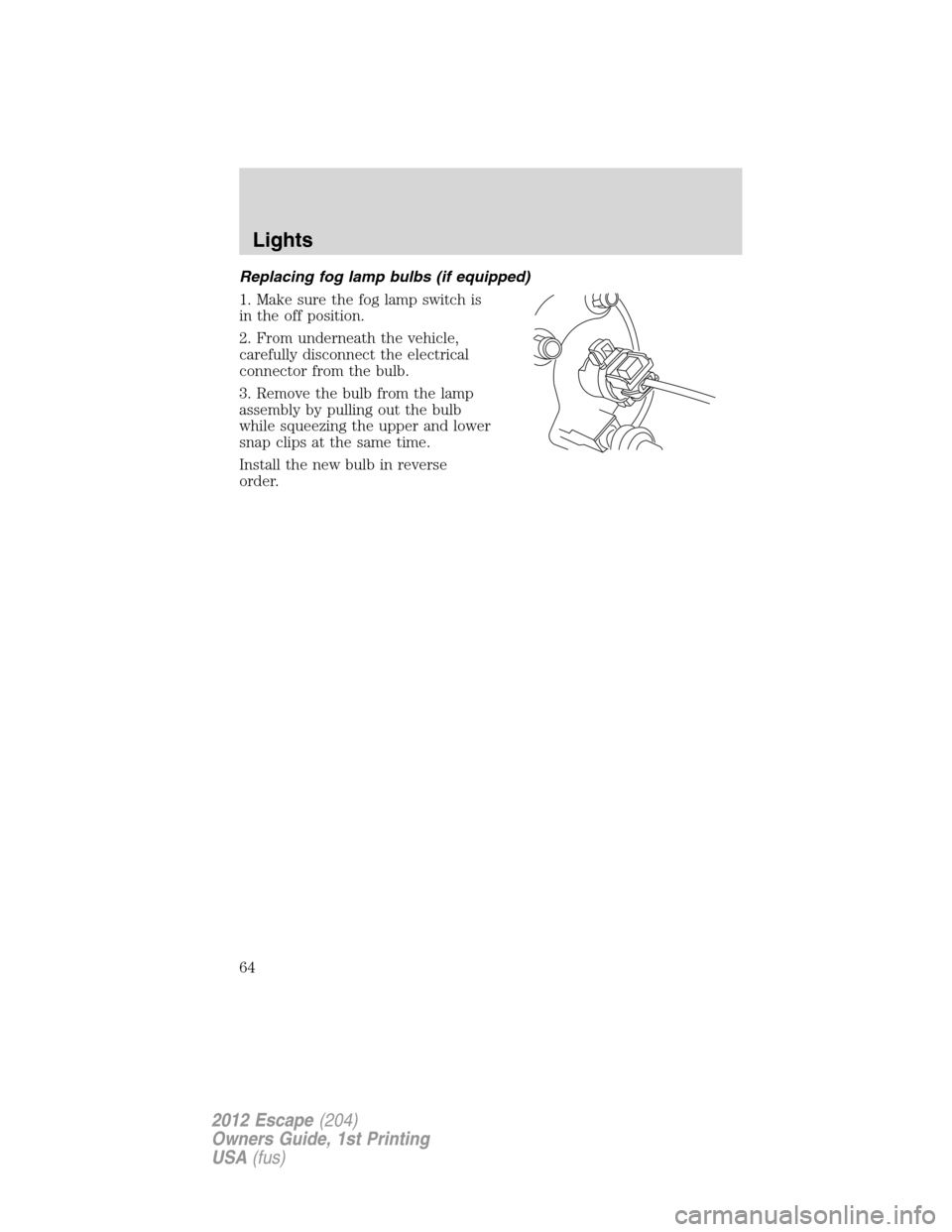

Replacing fog lamp bulbs (if equipped)
1. Make sure the fog lamp switch is
in the off position.
2. From underneath the vehicle,
carefully disconnect the electrical
connector from the bulb.
3. Remove the bulb from the lamp
assembly by pulling out the bulb
while squeezing the upper and lower
snap clips at the same time.
Install the new bulb in reverse
order.
Lights
64
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)
