2012 FORD ESCAPE Owners Manual

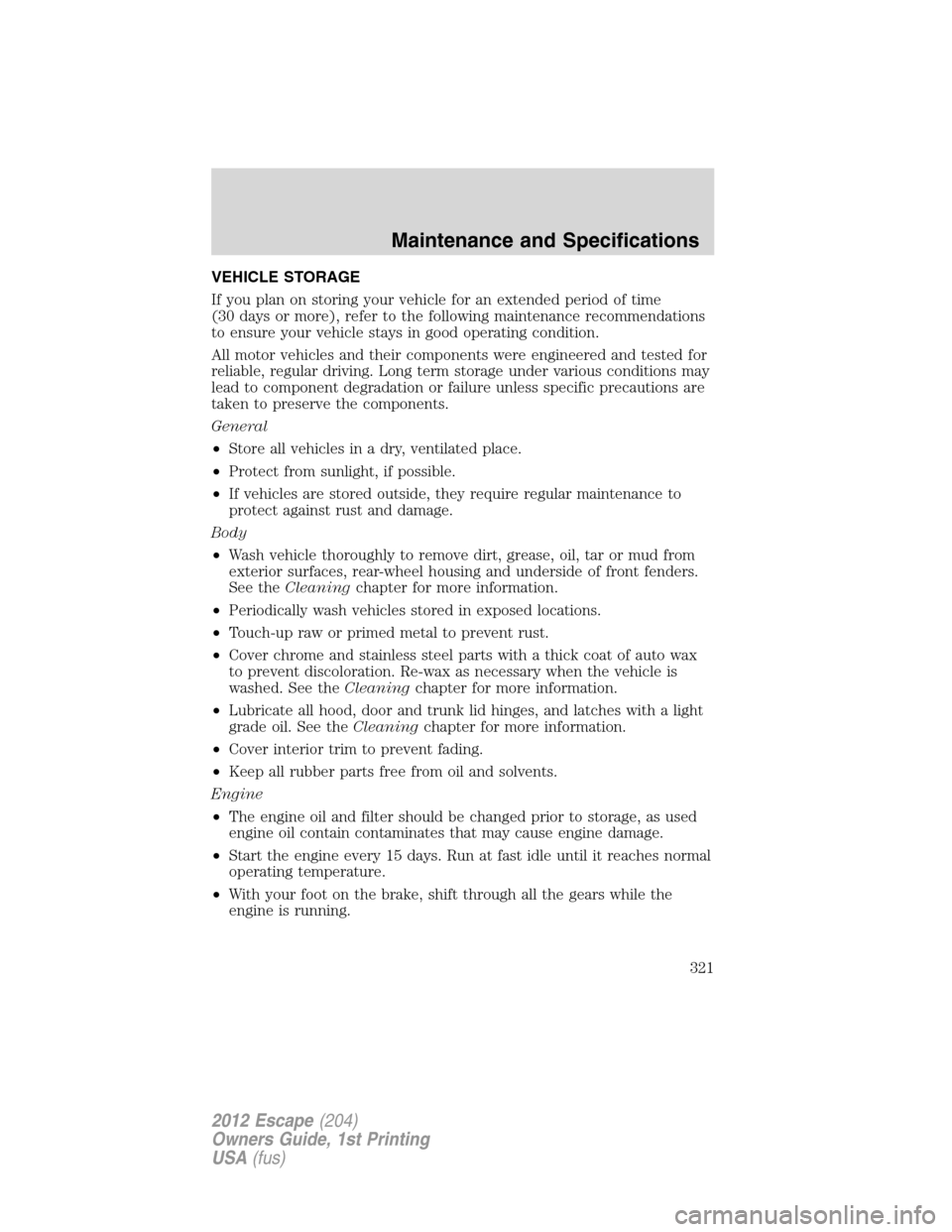

VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Maintenance and Specifications
321
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications
322
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 2.5L I4 engine 3.0L V6 engine
Air filter element FA-1772 FA-1893
Battery BXL-40R
Oil filter FL-910S FL-500-S
Spark Plugs
1
Windshield wiper
bladeWW-2001-PF (driver side)
WW-2001-PF (passenger side)
WW-1201-PF (rear)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
323
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Brake fluid and (clutch
fluid –if equipped)Between MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone LubricantXL-6 /
ESR-M13P4-A
Body hinges, latches,
door striker plates and
rollers, seat tracks, fuel
filler door hinge and
spring, primary and
auxiliary hood latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Engine coolant
(2.5L engine)7.4 quarts (7.0L)
MotorcraftSpecialty
Orange Engine Coolant
1
VC-3-B (US)
CVC-3-B (Canada) /
WSS-M97B44-D Engine coolant
(3.0L engine)9.5 quarts (9.0L)
Maintenance and Specifications
324
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

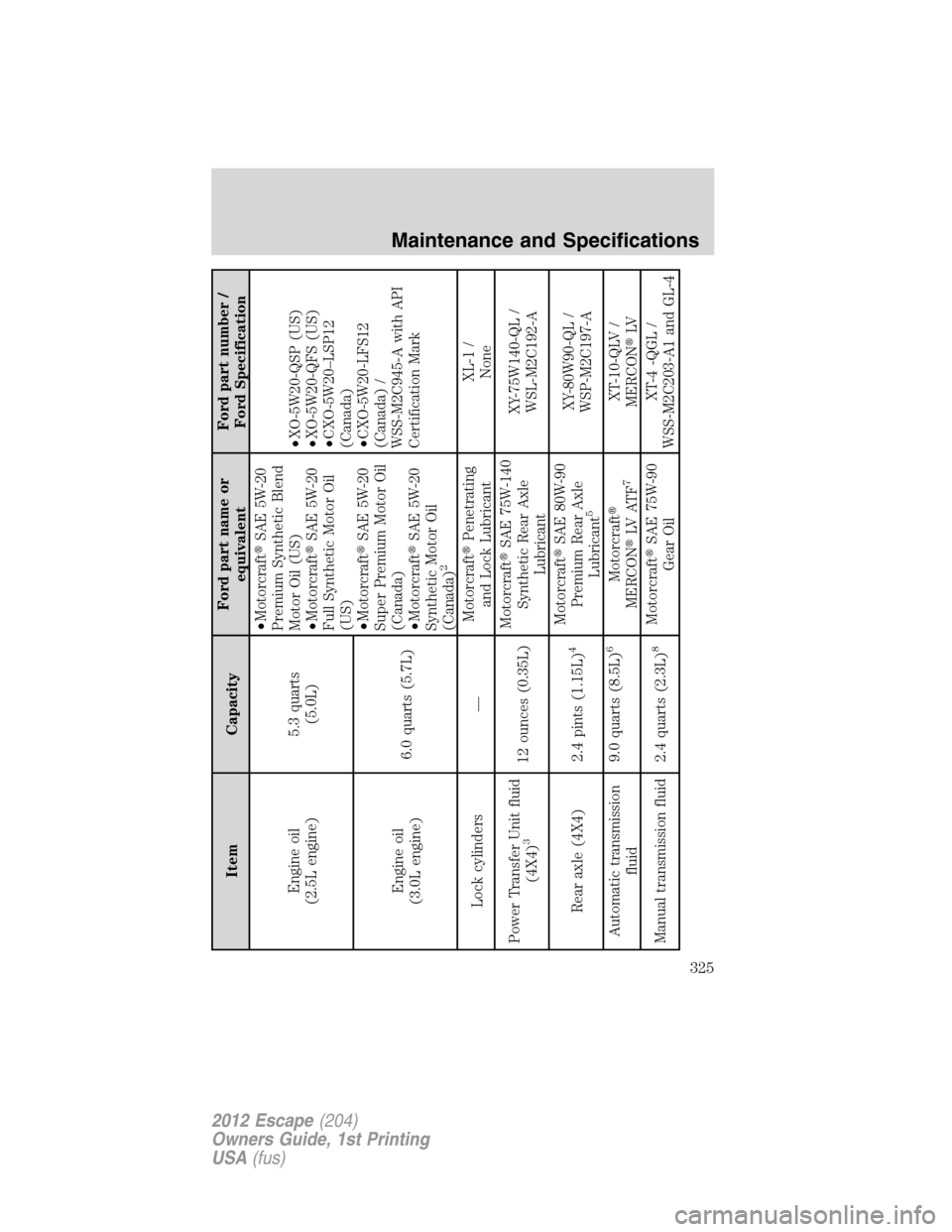

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Engine oil
(2.5L engine)5.3 quarts
(5.0L)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A with API
Certification Mark Engine oil
(3.0L engine)6.0 quarts (5.7L)
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Power Transfer Unit fluid
(4X4)
3
12 ounces (0.35L)MotorcraftSAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Rear axle (4X4) 2.4 pints (1.15L)
4
MotorcraftSAE 80W-90
Premium Rear Axle
Lubricant
5
XY-80W90-QL /
WSP-M2C197-A
Automatic transmission
fluid9.0 quarts (8.5L)
6
Motorcraft
MERCONLV AT F
7
XT-10-QLV /
MERCONLV
Manual transmission fluid 2.4 quarts (2.3L)
8
MotorcraftSAE 75W-90
Gear OilXT-4 -QGL /
WSS-M2C203-A1 and GL-4
Maintenance and Specifications
325
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank17.5 gallons
(66.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.3The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.4Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.54X4 vehicles exposed for prolonged periods to temperatures less than -40°F (-40°C) should
change out the rear axle fluid to MotorcraftSAE 75W-140 Synthetic Rear Axle Lubricant, Ford
part number XY-75W140-QL meeting Ford specification WSL-M2C192-A.6Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.8Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.
Maintenance and Specifications
326
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 2.5L I4 Engine 3.0L V6 Engine
Cubic inches 152 183
Required fuel Minimum 87 octane Minimum 87 octane or E85
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.045–0.049 inch
(1.15–1.25 mm)
Compression
ratio9.7:1 10.3:1
Engine drivebelt routing
•2.5L I4 Engine
•3.0L V6 Engine
Maintenance and Specifications
327
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
