2012 FORD ESCAPE Owners Manual

When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSC, you may
experience the following:
•A slight deceleration of the vehicle
•The stability control light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction control (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: engine traction control and brake traction
control. Engine traction control works to limit drive-wheel spin by
momentarily reducing engine power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction control is most active at low speeds.
During traction control events, the stability control light in the
instrument cluster will flash.
If the traction control system is activated excessively in a short period of
time, the braking portion of the system may become temporarily disabled
to allow the brakes to cool down. In this situation, traction control will
use only engine power reduction or transfer to help control the wheels
from over-spinning. When the brakes have cooled down, the system will
regain all features. Anti-lock braking, RSC, and ESC are not affected by
this condition and will continue to function during the cool-down period.
Driving
217
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

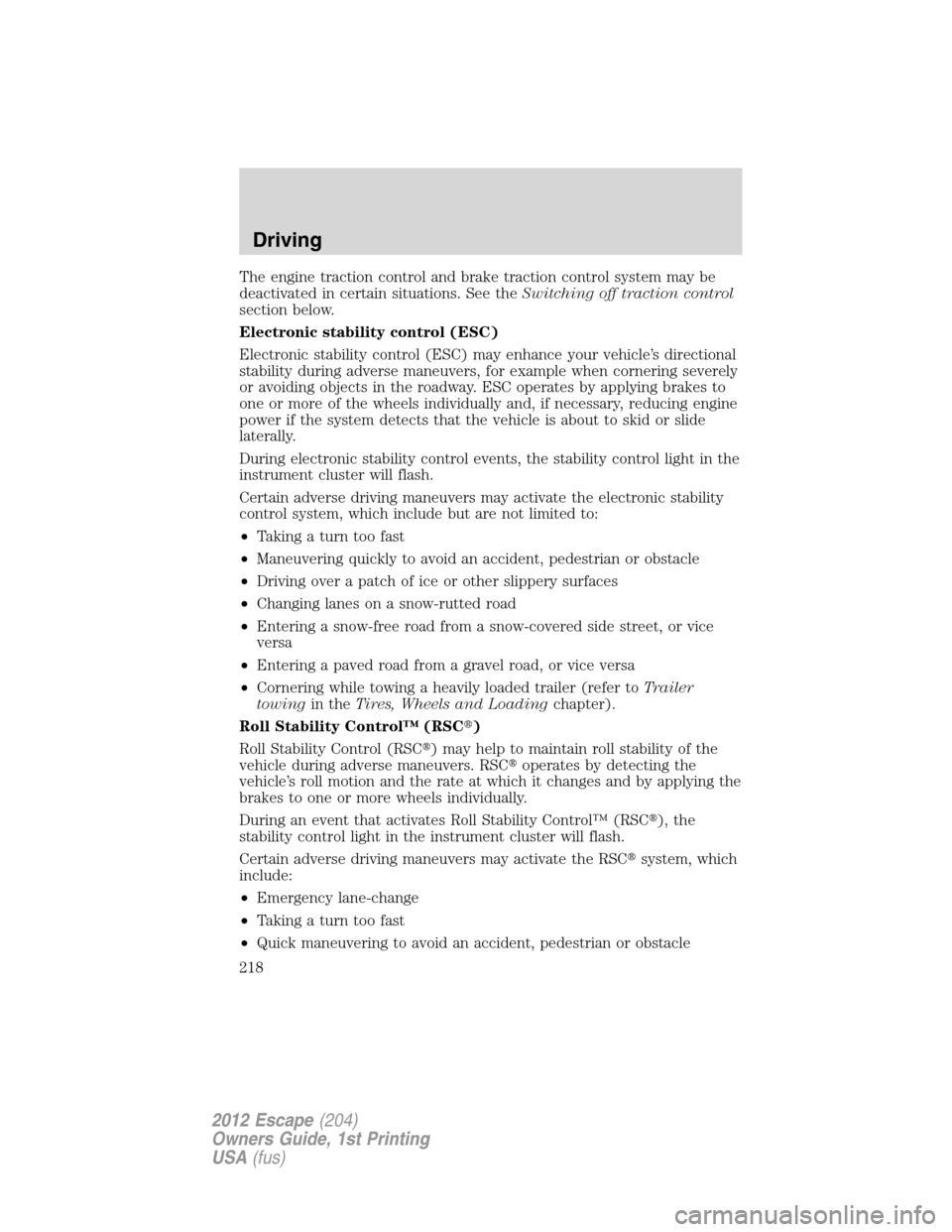

The engine traction control and brake traction control system may be
deactivated in certain situations. See theSwitching off traction control
section below.
Electronic stability control (ESC)
Electronic stability control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During electronic stability control events, the stability control light in the
instrument cluster will flash.
Certain adverse driving maneuvers may activate the electronic stability
control system, which include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
Roll Stability Control™ (RSC)
Roll Stability Control (RSC) may help to maintain roll stability of the
vehicle during adverse maneuvers. RSCoperates by detecting the
vehicle’s roll motion and the rate at which it changes and by applying the
brakes to one or more wheels individually.
During an event that activates Roll Stability Control™ (RSC), the
stability control light in the instrument cluster will flash.
Certain adverse driving maneuvers may activate the RSCsystem, which
include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
Driving
218
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Switching off traction control
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off the traction control features of the AdvanceTrac
with RSCsystem may be beneficial because the wheels are allowed to
spin. This will restore full engine power and will enhance momentum
through the obstacle. To switch off the traction control, press the
traction control off button. Full features of the stability control system
can be restored by pressing the traction control off button again, or by
turning off and restarting the engine.
If you switch off the traction control, the stability control “OFF” light will
illuminate steadily. Pressing the stability control off button again will turn
off the stability control “OFF” light.
In R (Reverse), ABS and the engine and brake traction control features
will continue to function; however, ESC and RSCare disabled.
AdvanceTracwith RSCFeatures
Button
functionsStability
control
light
RSC/
ESC/
Traction
controlStability
control
“OFF”Trailer
sway
Default at
start-upIlluminated
during bulb
checkEnabledIlluminated
during bulb
checkEnabled
Button pressed
momentarilyNot
IlluminatedEnabled
1Illuminated
solidEnabled
Button pressed
again after
deactivationNot
illuminatedEnabledNot
illuminatedEnabled
2
1
When the AdvanceTracbutton is pressed momentarily, traction
control is disabled.
2When the AdvanceTracbutton is pressed and held for more than five
seconds, trailer sway control is disabled.
Driving
219
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Trailer sway control (if equipped)
Your vehicle may be equipped with trailer sway control (TSC). When
properly equipped, trailer sway control will use the sensors of the
vehicle’s AdvanceTracwith RSCsystem to detect and attempt to
mitigate trailer sway by applying brake force at individual wheels and, if
necessary, by reducing engine power. No driver action is required.
WARNING:Trailer sway control does not prevent a trailer from
swaying, it mitigates the sway from increasing once it has
occurred. TSC cannot stop all trailers from swaying. If you are
experiencing trailer sway, it is likely that the trailer is improperly
loaded for the correct tongue weight or the speed of the vehicle and
trailer is too high. Pull the vehicle-trailer over to a safe location to
check the trailer weight distribution and tongue load and reduce speed
to a safe level while towing. If trailer sway is experienced, SLOW
DOWN. Always use caution when towing a trailer and follow the
tongue weight recommendations. Refer to theTrailer towingsection
in theTires Wheels and Loadingchapter of this owner’s guide for
more information on towing a trailer with your vehicle.
During trailer sway control events, the stability control light in the
instrument cluster will flash momentarily. In some cases, when trailer
sway is detected, the vehicle speed is too high and may be at or above a
speed at which trailer sway will grow continuously. This may cause the
system to activate multiple times, and you may experience a slight
deceleration of the vehicle.
Disabling trailer sway control
Trailer sway control can be disabled during any key cycle. Pressing and
holding the stability control button for more than five seconds will
disable the trailer sway control feature and the stability control light will
flash momentarily and then illuminate solid for that ignition cycle. Trailer
sway control can be re-enabled by momentarily pressing the stability
control button. Trailer sway control will also be re-enabled at each new
key cycle.
Driving
220
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

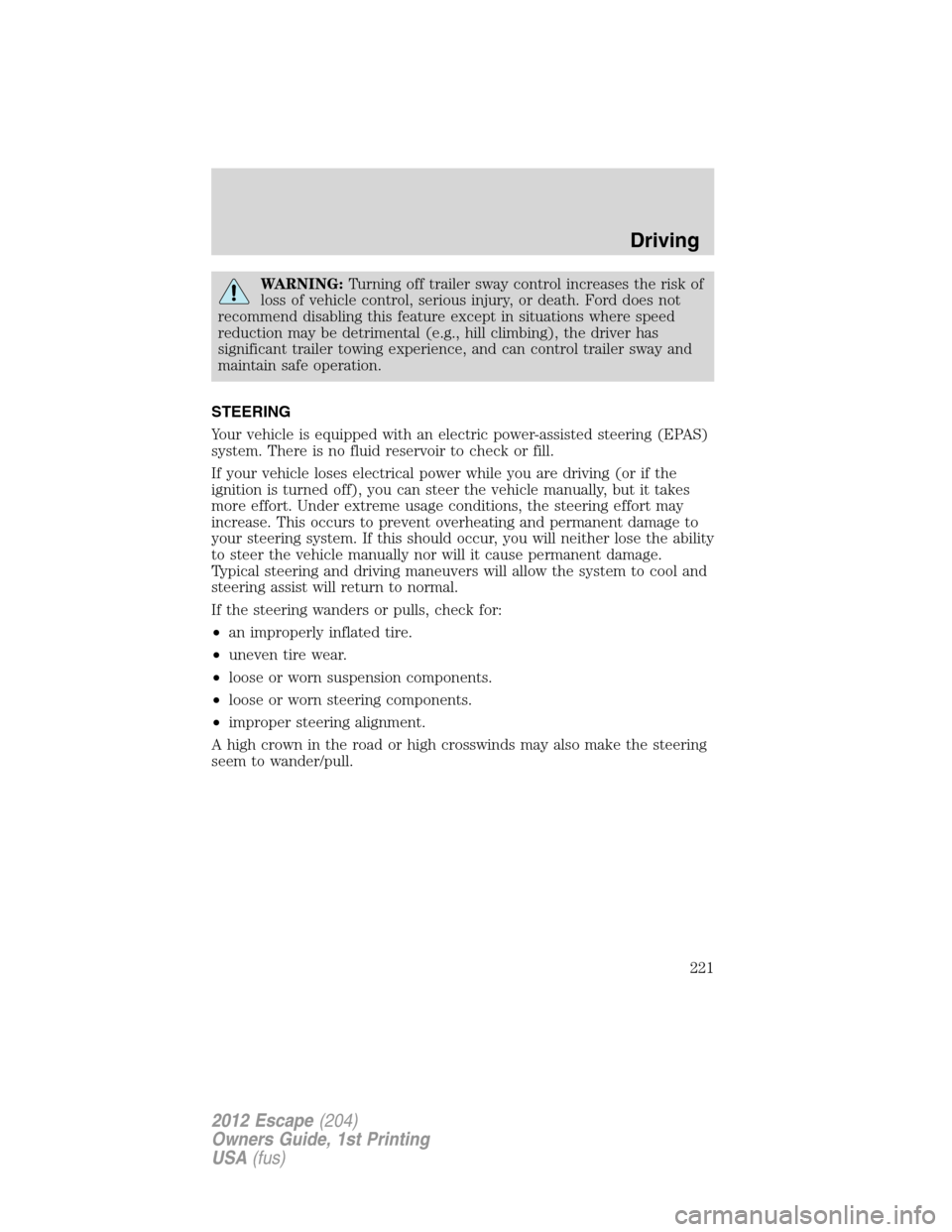

WARNING:Turning off trailer sway control increases the risk of
loss of vehicle control, serious injury, or death. Ford does not
recommend disabling this feature except in situations where speed
reduction may be detrimental (e.g., hill climbing), the driver has
significant trailer towing experience, and can control trailer sway and
maintain safe operation.
STEERING
Your vehicle is equipped with an electric power-assisted steering (EPAS)
system. There is no fluid reservoir to check or fill.
If your vehicle loses electrical power while you are driving (or if the
ignition is turned off), you can steer the vehicle manually, but it takes
more effort. Under extreme usage conditions, the steering effort may
increase. This occurs to prevent overheating and permanent damage to
your steering system. If this should occur, you will neither lose the ability
to steer the vehicle manually nor will it cause permanent damage.
Typical steering and driving maneuvers will allow the system to cool and
steering assist will return to normal.
If the steering wanders or pulls, check for:
•an improperly inflated tire.
•uneven tire wear.
•loose or worn suspension components.
•loose or worn steering components.
•improper steering alignment.
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
Driving
221
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

PREPARING TO DRIVE
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
Utility vehicles and trucks have larger tires and increased ground
clearance, giving the vehicle a higher center of gravity than a passenger
car.
WARNING:Vehicles with a higher center of gravity such as
utility vehicles and trucks handle differently than vehicles with a
lower center of gravity. Utility vehicles and trucks arenotdesigned for
cornering at speeds as high as passenger cars any more than low-slung
sports cars are designed to perform satisfactorily under off-road
conditions. Avoid sharp turns, excessive speed or abrupt maneuvers in
these vehicles. Failure to drive cautiously could result in an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death.
WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Do not overload
your vehicle and use extra precautions, such as driving at slower
speeds, avoiding abrupt steering changes and allowing for increased
stopping distance, when driving a heavily loaded vehicle. Over-loading
or loading the vehicle improperly can deteriorate handling capability
and contribute to loss of vehicle control and vehicle rollover.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
Driving
222
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Note:For some markets, this feature will be disabled. If the fuse is not
blown, perform the following procedure:
1. Apply the parking brake, turn the ignition to off, then remove the key.
2. Using a screwdriver or similar
tool, carefully pry out the small
Brake Transmission Shift Interlock
(BTSI) cover cap located to the
right of the gearshift lever.
3. Insert a screwdriver or similar
tool straight down into the access
hole and press downward while
pulling the gearshift lever out of the
P (Park) position and into the N
(Neutral) position.
4. Remove tool and reinstall the
BTSI cover cap.
5. Start the vehicle and release the
parking brake.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
WARNING:When doing this procedure, you will be taking the
vehicle out of park which means the vehicle can roll freely. To
avoid unwanted vehicle movement, always fully set the parking brake
prior to doing this procedure. Use wheel chocks if appropriate.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
Driving
223
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)

AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED)
Automatic transmission adaptive learning
Your transmission is equipped with an adaptive learning strategy found in
the vehicle computer. This feature is designed to increase durability and
provide consistent shift feel over the life of the vehicle. A new vehicle or
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation. Additionally, whenever the battery is
disconnected or a new battery installed, the strategy must be relearned.
Understanding the gearshift positions of the 6–speed automatic
transmission
Your vehicle has been designed to improve fuel economy by reducing
fuel usage while coasting or decelerating. When you take your foot off
the accelerator pedal and the vehicle begins to slow down, the torque
converter clutch locks up and aggressively shuts off fuel flow to the
engine while decelerating. This fuel economy benefit may be perceived
as a light to medium braking sensation when removing your foot from
the accelerator pedal.
P (Park)
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
1. Press the brake pedal.
2. Move the gearshift lever into the
desired gear.
To put your vehicle in P (Park):
1. Come to a complete stop.
2. Move the gearshift lever and
securely latch it in P (Park).
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
Driving
224
2012 Escape(204)
Owners Guide, 1st Printing
USA(fus)
