❒release the bulb holding clip;
❒remove the bulb and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the grooves on the curve
of the headlight. Then reconnect the bulb holder clip
and reattach the electrical connector;
❒refit the bayonet cap. FRONT FOG LIGHTS
(for versions/markets, where provided)
To replace the front fog light bulbs A-fig. 188 proceed as
follows:
❒steer fully to the left;
❒open the flap on the front wheel compartment
guard, unscrewing the self-tapping screw;
❒remove the bayonet cap;
❒disconnect the connector;
F0N0170mfig. 187F0N0339mfig. 188

189
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
REAR LIGHT CLUSTERS
The bulbs are arranged inside the light cluster as
follows, fig. 189:
A brake/side lights
B direction indicators
C reversing lights
D rear fog lights (for Maxi Van versions, the rear fog
lights are integral with the bumpers, see paragraph
“Maxi Van rear fog lights”).
F0N0086mfig. 189
Proceed as follows to replace a bulb fig. 190:
❒open the rear swing door and then undo the two
fixing screws A;
❒disconnect the central electric connector B and pull
the lens unit outwards;
❒undo the screws C-fig. 191 using the screwdriver
provided and remove the bulb holder;
F0N0087mfig. 190

190
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0088mfig. 191
❒remove the bulb D, E, F, G pushing it gently and
turning it anticlockwise (“bayonet” locking), then
replace it;
❒refit the bulb holder and tighten the screws C;
❒reconnect the electric connector B, suitably refit the
unit to the car body and then tighten the fastening
screws A.
F0N0239mfig. 192
For truck and chassis cab versions:
undo the four screws H-fig. 192 and replace the bulbs:
I bulb for rear fog light (left side); bulb for reversing
light (right side).
L bulb for side light
M bulb for brake light
N bulb for direction indicator.

191
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0241mfig. 193
REAR FOG LIGHTS (Maxi Van)
To change the bulb proceed as follows:
❒take up position at the rear of the side bumper;
❒unscrew the lower fastening A between the central
and side bumpers fig. 193;
❒after removing the tail-light, unscrew upper
fastening B;
❒unscrew both fastenings C-fig. 194 on the side of the
accessible rear swing door and open the door
slightly;
❒unscrew the three side fastenings D on the panel
side, accessible after removing the side mounting
fig. 194. To remove the moulding, undo the three
lower self-tapping screws and undo the pins with
care to avoid breaking them. If you break one or
more pins, they will have to be replaced;
F0N0242mfig. 194
F0N0243mfig. 195
❒remove the bulb holder;
❒turn bulb holder E anticlockwise (1/8 of a turn),
remove the bayonet bulb by pushing gently and
turning anticlockwise, then replace fig. 195.

192
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
❒press the tabs in the opposite direction B-fig. 197
and remove the bulb holder;
❒remove the snap-fitted bulb and replace it.
NUMBER PLATE LIGHTS fig. 198
To change the bulb proceed as follows:
❒apply pressure to the point shown by the arrow and
remove lens unit A;
❒change the bulb releasing it from the side contacts
and making sure the new bulb is correctly fastened
between the contacts;
❒refit the snap-fitted lens unit. THIRD BRAKE LIGHT fig. 196-197
To change the bulb proceed as follows:
❒unscrew both fixing screws A-fig. 196;
❒remove the lens unit;
F0N0141mfig. 196
F0N0142mfig. 197AF0N0089mfig. 198

193
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0244mfig. 199
CHANGING AN INTERIOR LIGHT
For the type of bulb and relevant power rating, see
“Changing a bulb”.
FRONT CEILING LIGHT
Proceed as follows to replace the bulbs:
❒work in the points shown by the arrows and remove
light A-fig. 200; SIDE LIGHTS
(for versions/markets where available)
To change the bulb proceed as follows:
❒for extra-long van:
– undo both fixing screws C-fig. 199 and remove
the light;
– remove the bulb-holder D on the rear of the light,
turning through 1/4 turn;
– remove the snap-fitted bulb and replace.
❒for chassis cabs with platform:
– remove bulb-holder on the rear of the light,
turning through 1/4 turn;
– remove the snap-fitted bulb and replace.
F0N0090mfig. 200

194
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0091mfig. 201
❒open the protective flap B-fig. 201;
❒replace bulbs C-fig. 201 releasing them from the side
contacts; make sure that new bulbs are correctly
clamped between the contacts;
❒close the flap B-fig. 201 and secure the ceiling light
A-fig. 200 in its housing locking it properly.
REAR COURTESY LIGHT
Proceed as follows to replace the bulbs:
❒work in the points shown by the arrows and remove
the ceiling light D-fig. 202;
❒open the protective flap E-fig. 203;
❒replace bulb F-fig. 203 by releasing it from the side
contacts and making sure that the new bulb is
correctly clamped between these contacts;
F0N0093mfig. 203
F0N0092mfig. 202
❒re-close the protection lid E-fig. 203 and secure roof
light D-fig. 202 into its housing, locking it correctly.

195
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0094mfig. 204

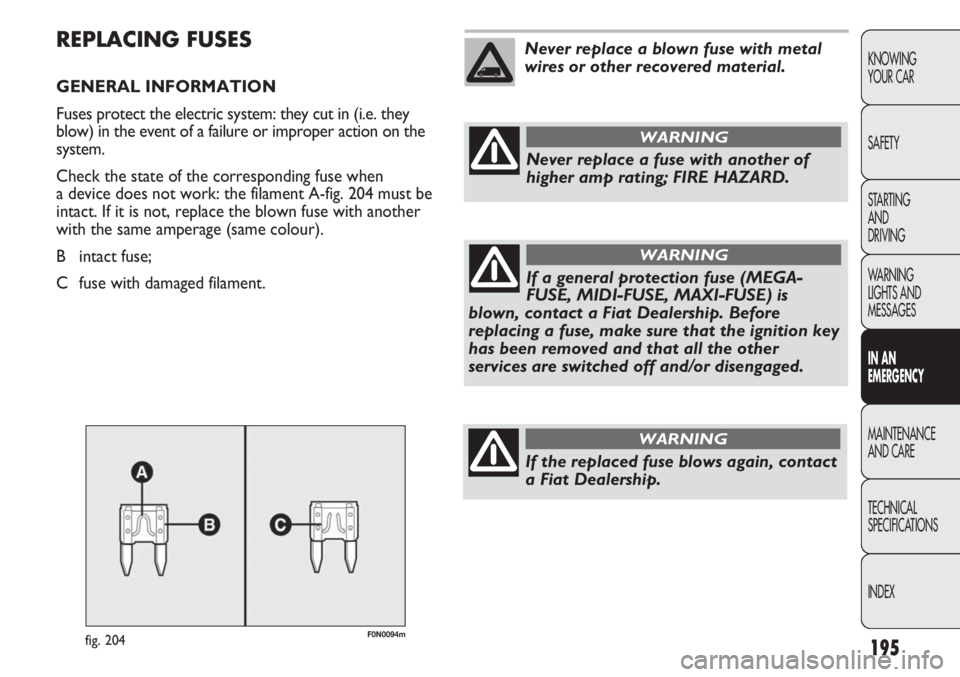

REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electric system: they cut in (i.e. they
blow) in the event of a failure or improper action on the
system.
Check the state of the corresponding fuse when
a device does not work: the filament A-fig. 204 must be
intact. If it is not, replace the blown fuse with another
with the same amperage (same colour).
B intact fuse;
C fuse with damaged filament.
Never replace a blown fuse with metal
wires or other recovered material.
Never replace a fuse with another of
higher amp rating; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) is
blown, contact a Fiat Dealership. Before
replacing a fuse, make sure that the ignition key
has been removed and that all the other
services are switched off and/or disengaged.
WARNING
If the replaced fuse blows again, contact
a Fiat Dealership.
WARNING
